Red Amber LED Side Marker Clearance Lights 12–24V IP68 Trailer Truck

OVERVIEW

High-visibility red and amber LED side marker and clearance lights designed for universal 12–24V applications. Ideal for cars, SUVs, vans, lorries, RVs, buses, boats, trailers and trucks as side marker, clearance, rear, indicator, tail, license plate or parking lights.

KEY FEATURES

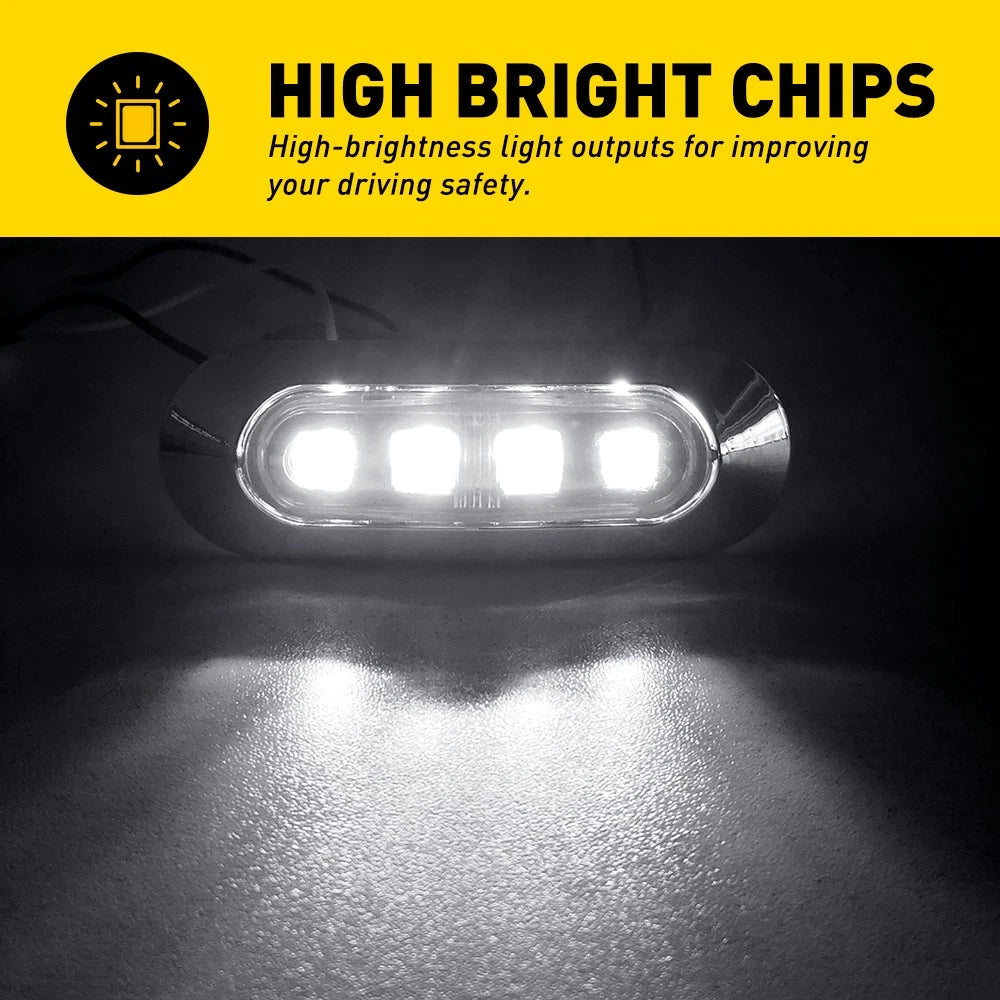

• High-brightness LEDs improve visibility and driving safety.

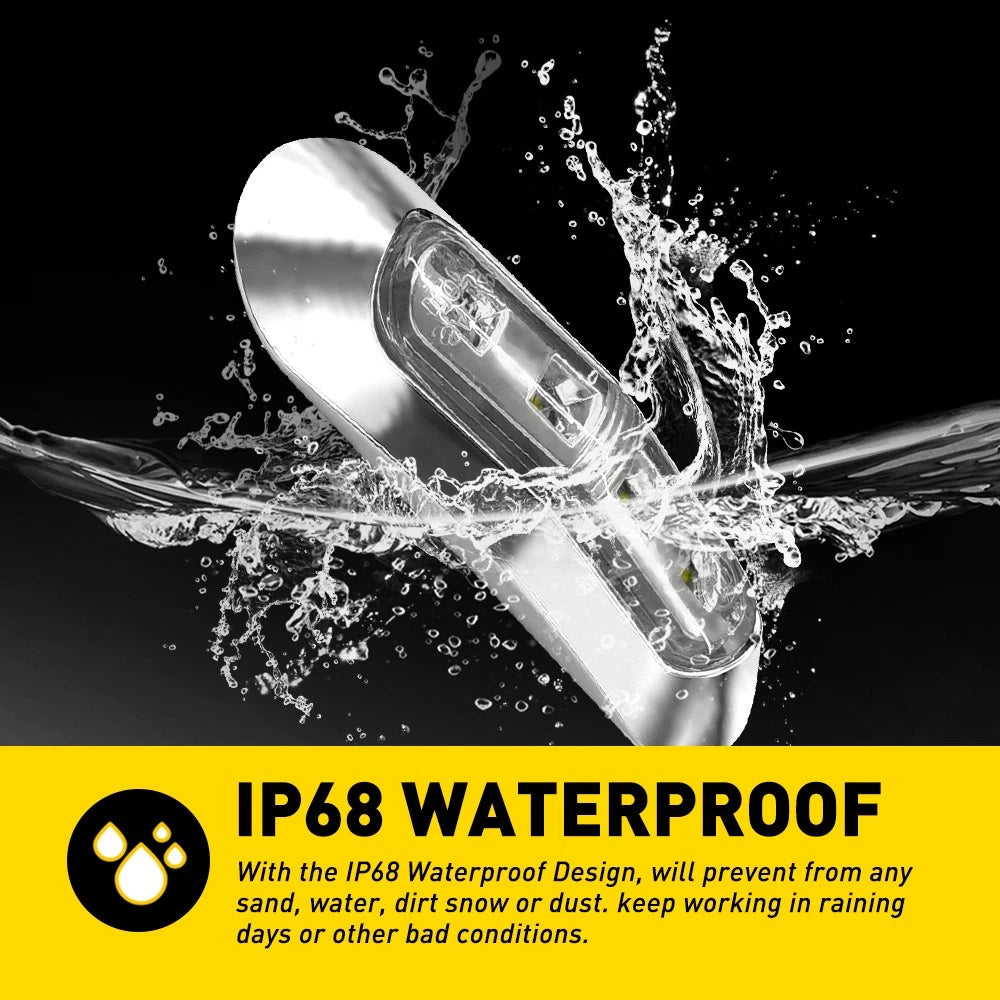

• Waterproof construction for reliable operation in rain and fog (IP67–IP68 design).

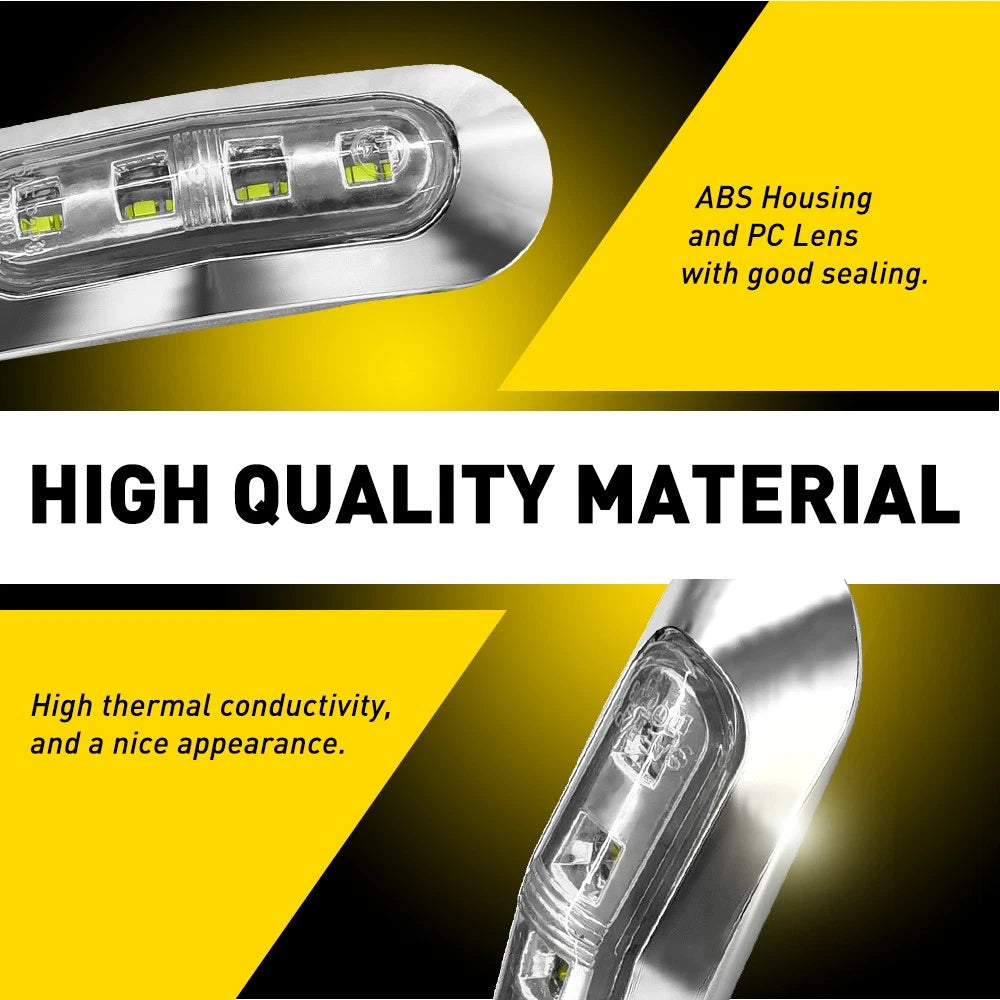

• Durable ABS housing with PC lens for impact and heat resistance.
• Low power consumption and long service life (50,000 hours+).
• Universal 12–24V DC operation for a wide range of vehicles.
• Road-legal design with E4 / DOT / SAE / ADR approvals on selected variants.
• Simple surface-mount installation with dual fixing holes.

SPECIFICATIONS

• Lighting technology: LED
• Light colour: Red + amber
• Operating voltage: DC 12–24V
• Waterproof rating: IP67–IP68 (model dependent)
• Service life: 50,000 hours+

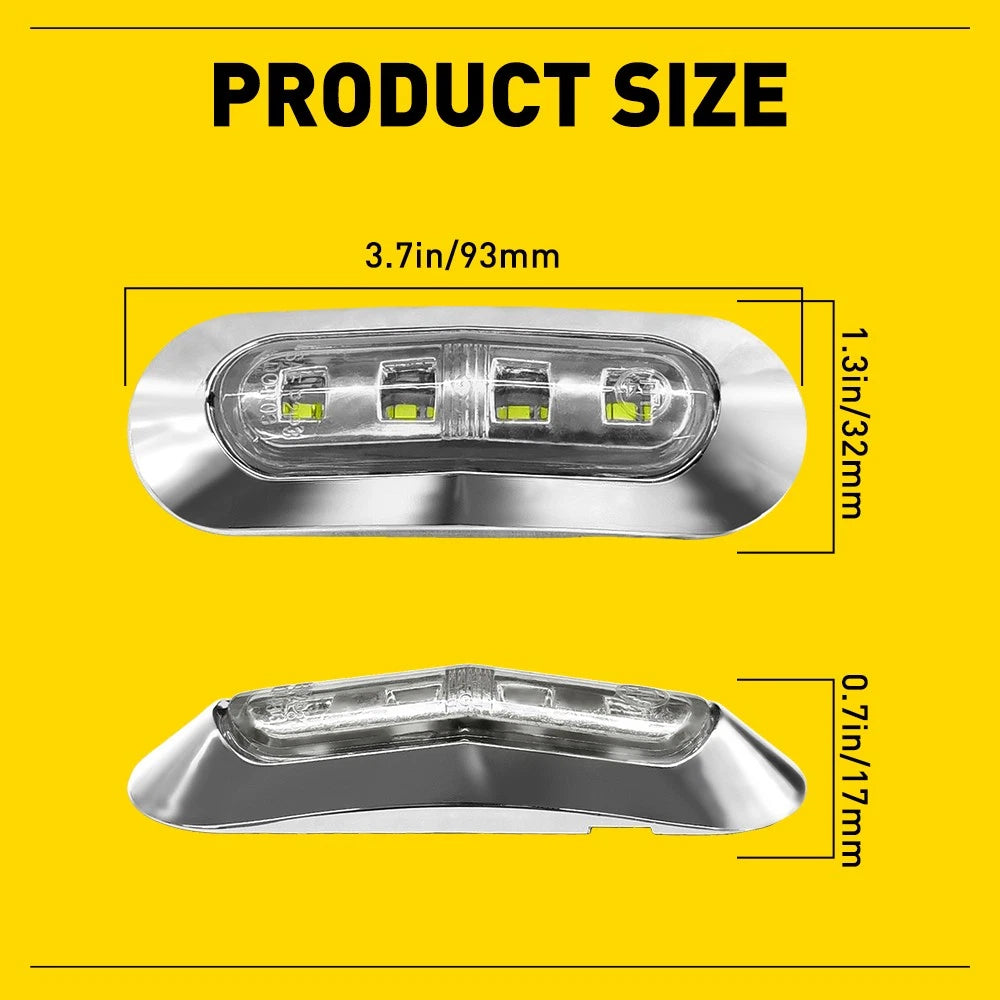

• Typical size (main style): 93 mm (L) × 33 mm (W) × 15–17 mm (H)
• Typical mounting hole distance: approx. 75 mm centre-to-centre
• LED quantity per lamp (by style): 2, 4 or 8 LEDs
• Certifications (by style): E4, DOT, SAE, ADR
• Working temperature: -40°C to 60°C
• Typical wattage: 5 W, approx. 1500 lm output (model dependent)
• Housing material: ABS
• Lens material: PC (polycarbonate)

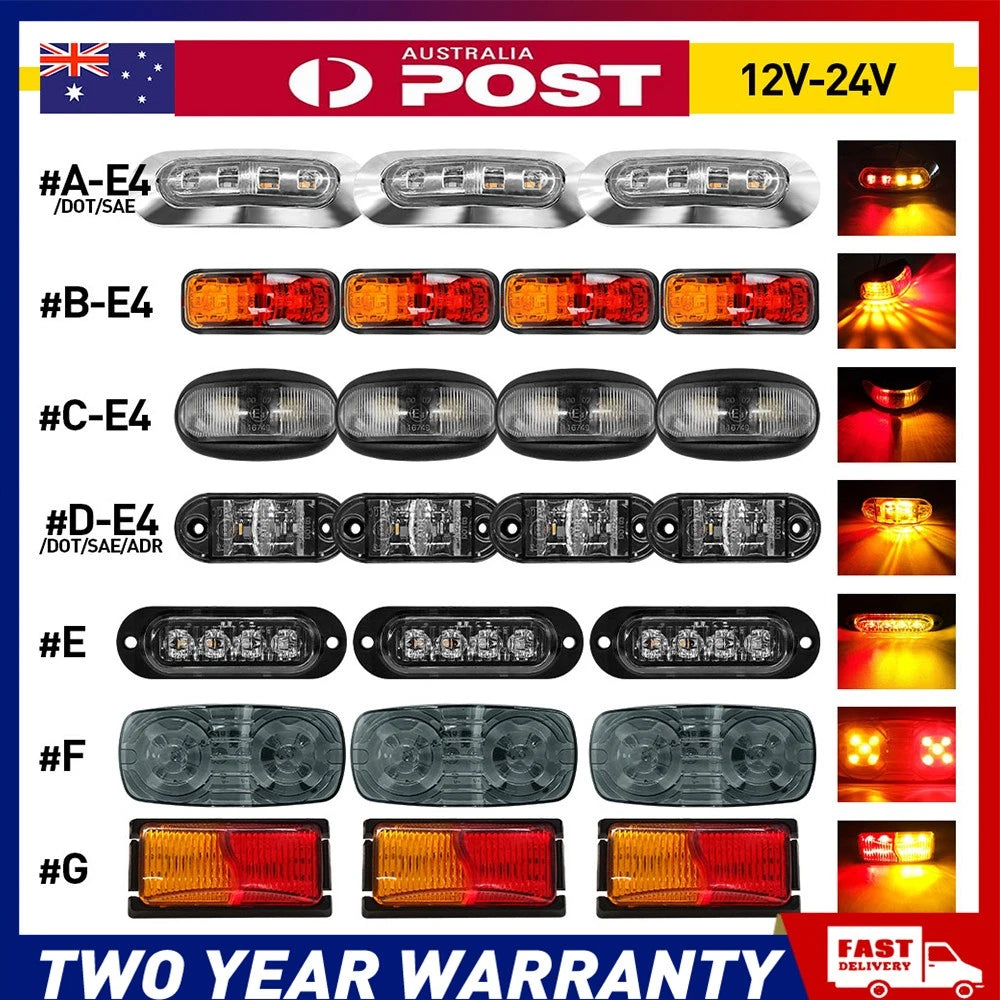

TYPICAL DIMENSIONS BY STYLE

• Style A: 9.3 × 3.2 × 1.7 cm, 4 LEDs, E4 / DOT / SAE.
• Style B: 5.3 × 2.4 × 2.8 cm, 4 LEDs, E4.
• Style C: 6.2 × 3.6 × 3.0 cm, 2 LEDs, E4, 30 mm fixing distance.
• Style D: 6.5 × 2.7 × 1.8 cm, 2 LEDs, E4 / DOT / SAE / ADR, 48 mm fixing distance.
• Style E: 8.6 × 2.8 × 1.0 cm, 4 LEDs, 76 mm fixing distance.
• Style F: 10.0 × 4.8 × 2.8 cm, 8 LEDs, 76 mm fixing distance.
• Style G: 7.3 × 3.8 × 2.3 cm, 8 LEDs, 37 mm fixing distance.

APPLICATIONS

• Lorry, truck, trailer, camper, caravan, UTE and RV marker or clearance lights.
• Side indicator / side marker lights.
• Rear marker, tail, indicator and parking lights.
• Boat and general 12–24V auxiliary lighting where compact marker lamps are required.

INSTALLATION

• Direct replacement / universal surface-mount installation.
• Two mounting holes; ensure the selected style matches your existing hole spacing.
• Connect to 12–24V DC positive and ground wires, observing polarity.

PACKAGE CONTENTS

• Side marker / clearance LED lights × selected quantity (4 / 8 / 10 / 12 / 20 / 40 / 50 / 60 pieces, depending on option chosen).

FITMENT NOTE

This is a universal product with no specific vehicle list. Please verify the dimensions, mounting hole spacing and voltage requirements against your vehicle before purchase.
