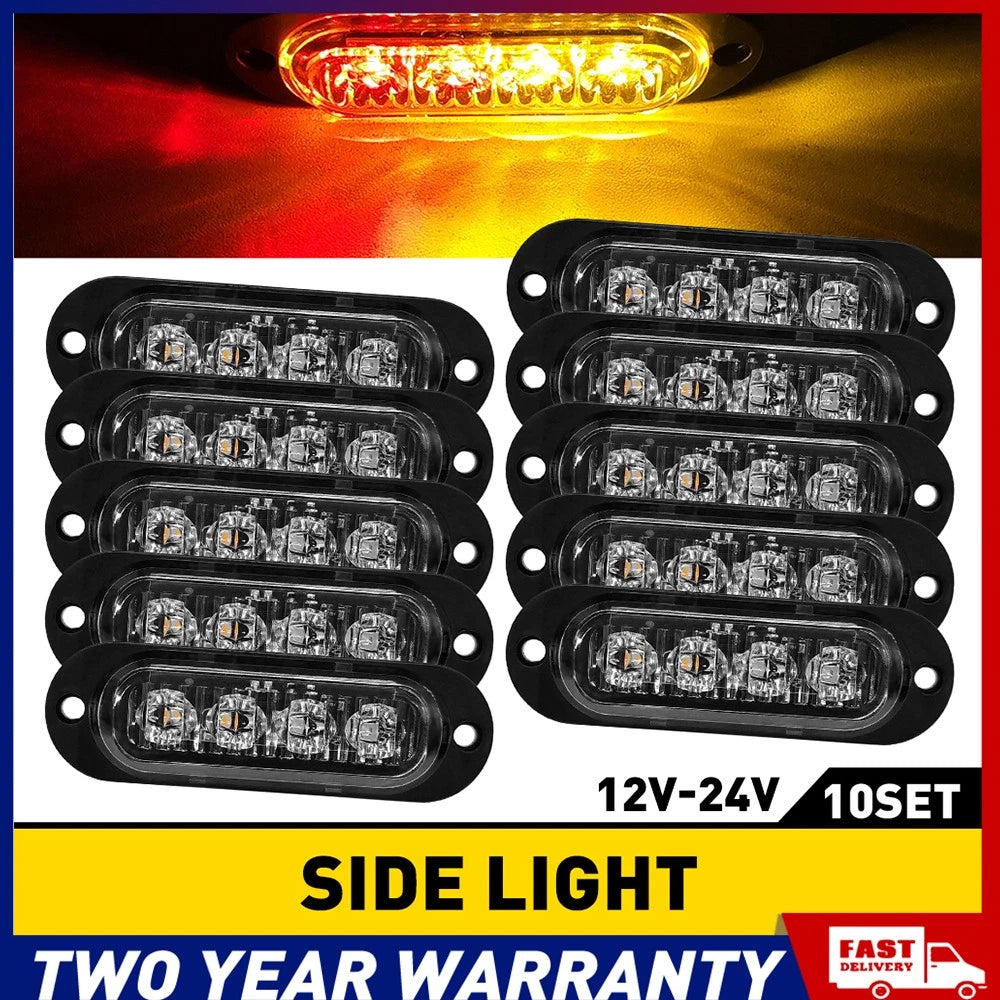

10x Red Amber 4-LED Side Marker Clearance Lights 12–24V IP68

PRODUCT OVERVIEW

This pack of 10 compact red/amber LED clearance lights provides bright, low-power side marker and outline lighting for trailers, trucks, RVs, boats and other 12–24V vehicles. The slim design and included hardware support quick, universal installation.

KEY FEATURES

• Red and amber LED output for marker and clearance applications.

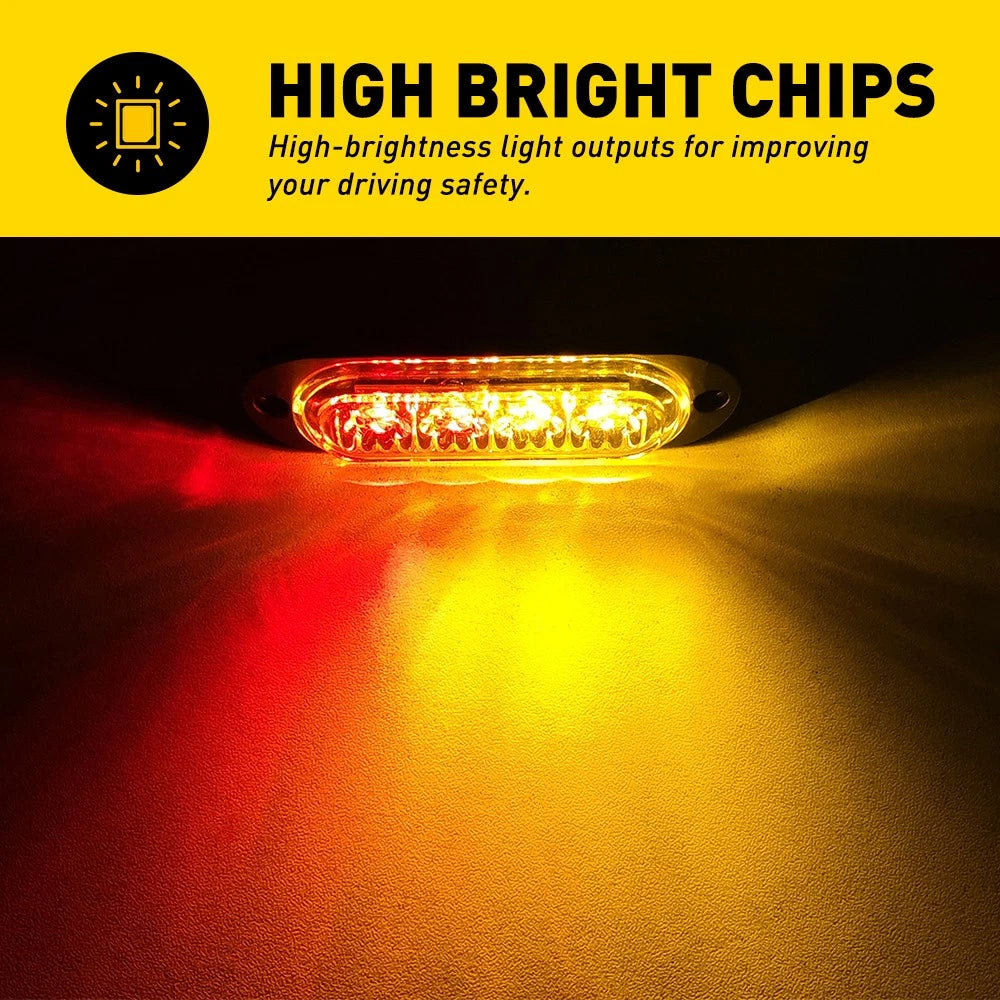

• 4 high-brightness LEDs per lamp for improved visibility and safety.
• Wide 12–24V DC operating range for cars, SUVs, vans, lorries, RVs, buses, boats and trailers.

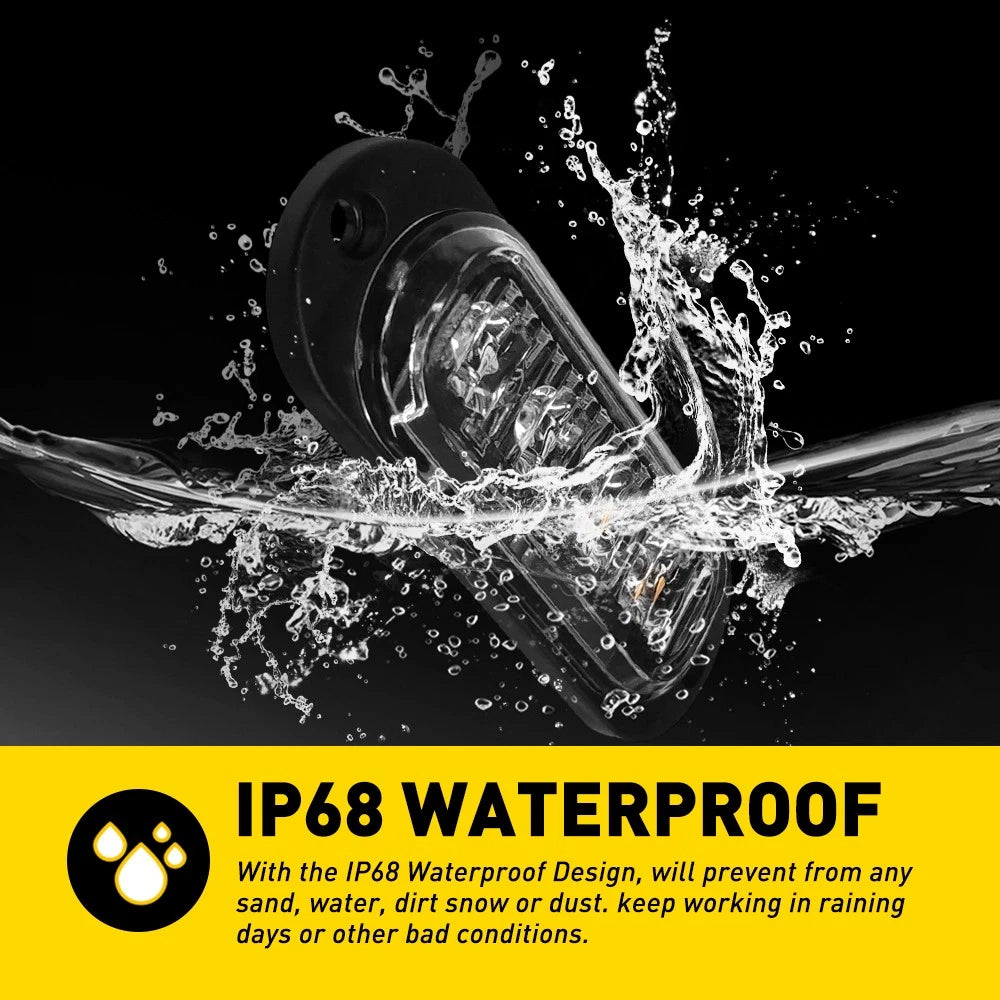

• IP68 waterproof rating for reliable use in rain, fog and harsh environments.
• Low power consumption and long service life (50,000+ hours).

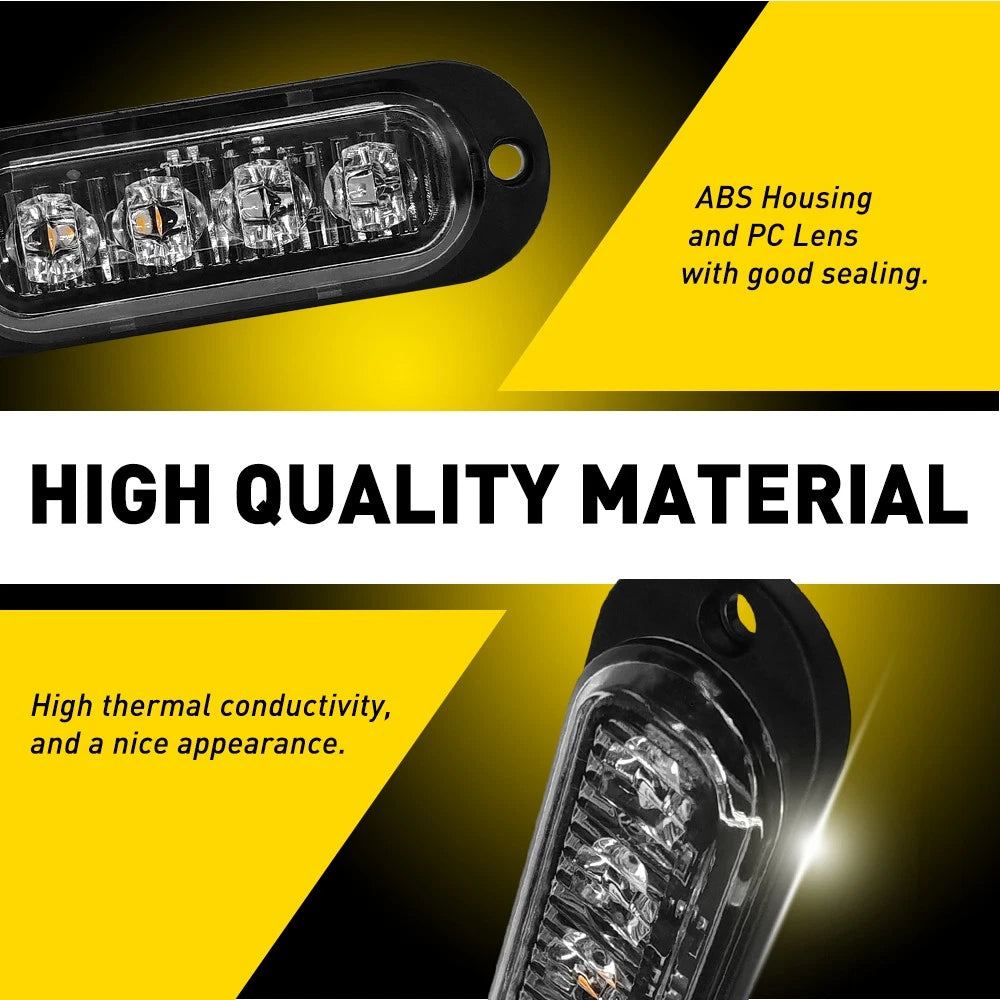

• Slim, sealed ABS housing with PC lens for durability and clean appearance.
• Simple 2-wire connection: black = negative, white = positive.

SPECIFICATIONS

• Quantity: 10 side marker / clearance lights
• LED quantity: 4 LEDs per light
• Lighting technology: LED
• Light colour: red & amber
• Lens colour: clear
• Housing material: ABS
• Lens material: PC (polycarbonate)
• Voltage: DC 12–24V
• Waterproof grade: IP68
• Service life: 50,000 hours+ (design life)
• Approx. wattage: 5 W (set data as supplied)
• Approx. lumen output: 1000 lm (set data as supplied)
• Dimensions (each): 86 x 28 x 10 mm (3.38 x 1.10 x 0.39 in)
• Mounting hole spacing: 76 mm (2.99 in) between fixing bolts
• Placement on vehicle: rear, side, left, right
• Bulb fitment code: C5W (reference)
• Wire: 2-core (black negative, white positive)

APPLICATIONS

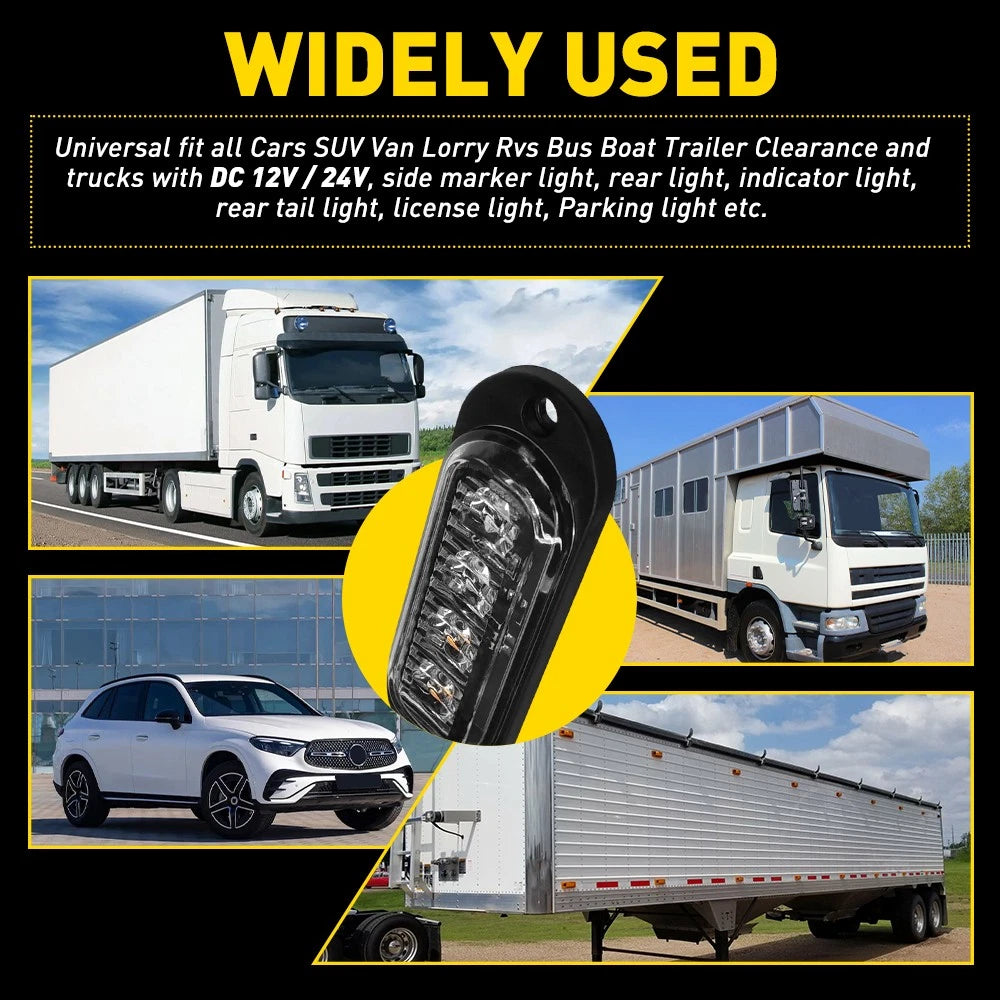

• Universal side marker and clearance lights for most trucks, trailers and lorries.
• Suitable for RVs, pickups, SUVs, vans and buses.
• Ideal for boat trailers and other marine-related 12–24V applications.
• Can be used as side marker lights, rear lights, indicator lights, tail lights, license plate lights and parking lights where size and colour are appropriate.

INSTALLATION

• Surface-mount design with two fixing points (76 mm spacing).
• Connect black wire to a clean chassis or ground (negative).
• Connect white wire to the appropriate 12–24V positive feed.
• Ensure mounting surface is flat and clean for best sealing.

PACKAGE CONTENTS

• 10 x LED side marker / clearance lights
• 20 x mounting screws
• 10 x gaskets

NOTES

• Universal fitment; no specific vehicle compatibility list is provided.
• Please check dimensions, voltage and mounting style before purchase.
• Professional installation is recommended if you are not familiar with vehicle wiring.
