100cc 2-Stroke Motorized Bicycle Engine Conversion Kit Petrol Gas

PRODUCT OVERVIEW

This 100cc 2-stroke motorized bicycle engine kit provides a complete solution to convert a compatible pedal bicycle into a petrol-powered bike. It includes the engine, fuel system, controls and mounting hardware required for installation on most 26" and 28" bicycles.

KEY FEATURES

• 100cc 2-stroke, single-cylinder, air-cooled petrol engine
• Rated power: 2.5 kW @ 5000 rpm (approx. 3 hp)
• Maximum power: 3.5 kW @ 5000 rpm (approx. 6–6.5 hp)
• Typical top speed: approx. 50–60 km/h (depending on bike and conditions)
• Low fuel consumption: approx. 2.5–3.5 L per 100 km
• Manual dry clutch with push clutch lever and brake lever with gear changer
• Capacitor discharge electronic ignition with handlebar kill switch
• Heavy-duty metal engine body with RS202 internal bearing and 415 standard chain
• Natural air cooling and needle rollers on both conrod ends for durability
• Suitable for many 26" and 28" bicycles (mountain, road, cruiser, chopper style)

TECHNICAL SPECIFICATIONS

• Engine type: 100cc 2-stroke, single cylinder
• Cooling: Natural air cooling
• Rated power: 2.5 kW @ 5000 rpm
• Maximum power: 3.5 kW @ 5000 rpm
• Maximum speed: approx. 55–60 km/h (bike- and condition-dependent)
• Ignition: Capacitor discharge electronic ignition
• Transmission ratio: 16.4:1
• Compression ratio: 7:1
• Spark plug type: 4144
• Lubrication: 2-stroke engine oil (mixed with petrol)
• Fuel: Unleaded 91 petrol mixed with 2-stroke oil
• Fuel tank capacity: 2 L teardrop-style tank
• Fuel consumption: approx. 2.5–3.5 L / 100 km
• Recommended break-in mix: 2-stroke oil at 8 oz per US gallon of petrol
• Drive chain: Standard 415 chain with idler
• Recommended maximum load: approx. 180 kg (396 lb)

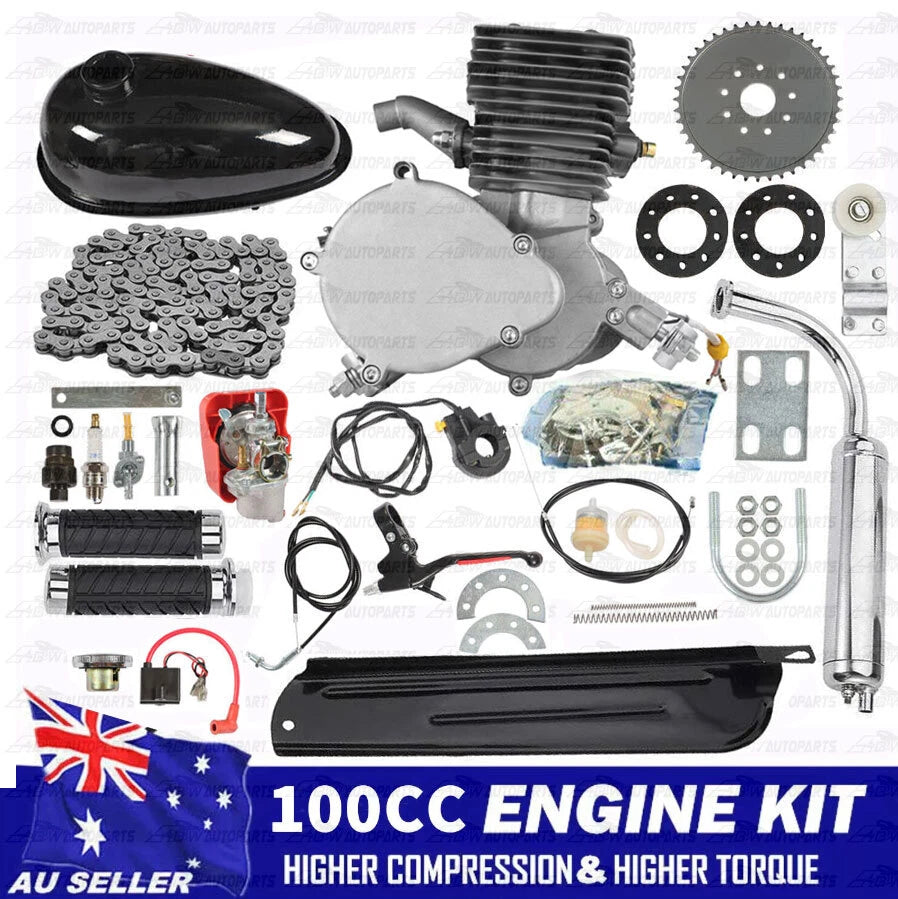

COMPLETE KIT CONTENTS

• 1 × 100cc 2-stroke engine
• 1 × Spark plug
• 1 × Chain cover
• 1 × Chrome muffler
• 1 × Drive chain idler
• 1 × Push clutch lever
• 1 × Standard bike drive chain
• 1 × CD ignition assembly
• 1 × Main bearings set
• 1 × Black teardrop fuel tank (2 L)
• 1 × Carburetor
• 1 × Magneto with handlebar kill switch
• 1 × Sprocket
• 1 × Twist throttle and cable with matching grip
• 1 × User manual

COMPATIBILITY & INSTALLATION NOTES

• Designed for many 26" and 28" bicycles.
• Not suitable for bicycles with a front frame width greater than approx. 50 mm.
• Includes installation manual with step-by-step assembly guidance.
• Ensure chain, chain wheel and sprocket are aligned in a straight line during installation.
• After installing carburetor and throttle cable, verify free throttle movement and correct carburetor operation.
• After installing the clutch cable, check that the rear wheel spins freely with clutch pulled in and stops when released.
• Adjust chain tension so that vertical chain sag is approximately 0.5–1 cm.
• Tighten all bolts on the spark plug, muffler and carburetor, and confirm all wiring connections are secure.

SAFETY & LEGAL DISCLAIMER

• Always wear an appropriate, approved helmet and protective gear when riding.
• Use at night is not recommended. If unavoidable, ensure a suitable lighting system is installed and operating.
• Local regulations may restrict or prohibit use of motorized bicycle engine kits on public roads or paths. Check all applicable laws and regulations in your area before use.
• Product dimensions and performance values are approximate; minor variations may occur.
• Colour and appearance may vary slightly due to monitor and lighting differences.
