10x LED Side Marker Clearance Lights 12-24V Amber Red White IP68 Universal

PRODUCT OVERVIEW

This 10-piece LED side marker and clearance light kit provides bright, low-power lighting for a wide range of 12–24V vehicles, including cars, SUVs, vans, lorries, RVs, buses, boats, trailers, campers and caravans. Each lamp uses 4 high-intensity LEDs and a sealed ABS housing with PC lens for long-lasting, waterproof performance.

KEY FEATURES

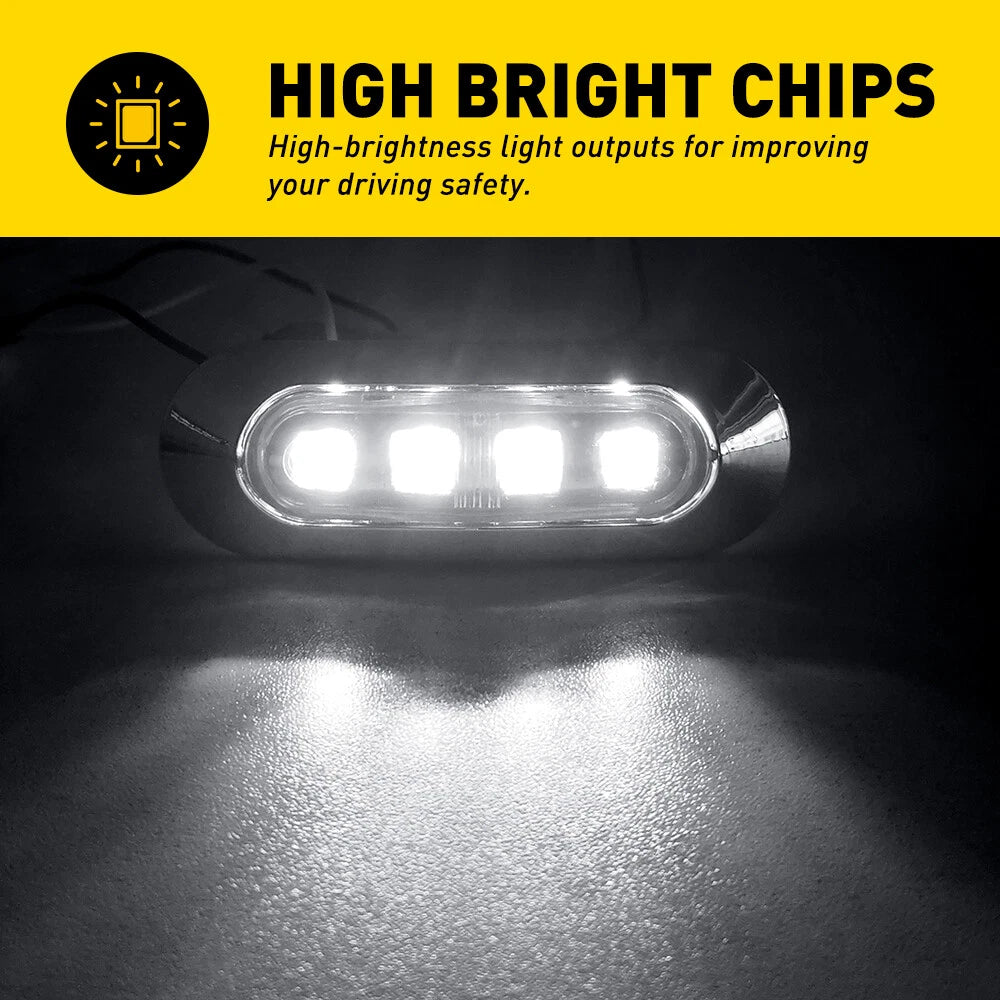

• Bright 4-LED design per lamp for improved visibility and safety
• Multi-purpose use as side marker, clearance, indicator, tail, license or parking light
• Wide 12–24V DC operating range for cars, trucks, trailers, RVs and boats

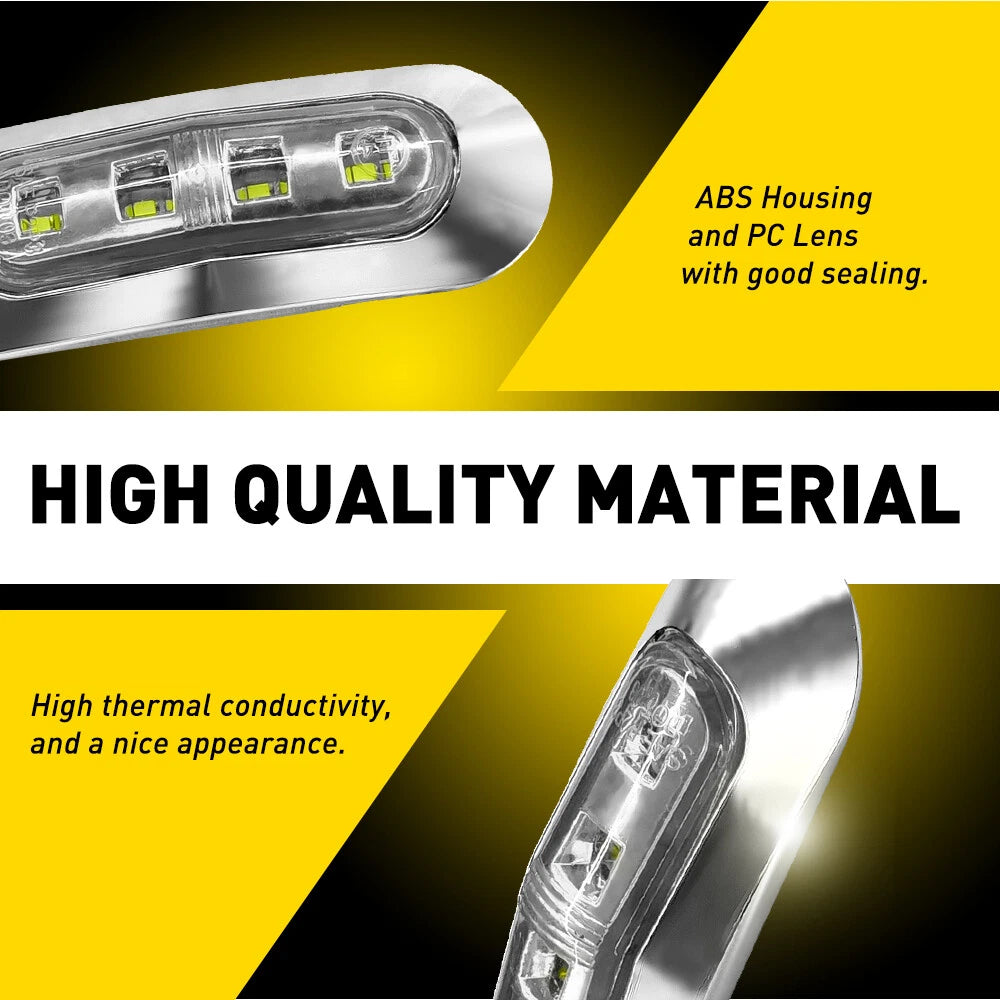

• Sealed ABS housing and PC lens with high waterproof rating for harsh conditions
• Energy-efficient, low power consumption and long service life (50,000+ hours)
• Simple two-wire connection and surface-mount installation

APPLICATIONS

• Universal fit for cars, SUVs, vans, lorries, RVs, buses and trucks
• Trailer, camper, caravan, UTE and boat marker/clearance lighting
• Suitable as accessory light, side indicator light, side marker light
• Can be mounted front, rear, left, right or outer positions as required

TECHNICAL SPECIFICATIONS

• Lighting technology: LED
• LED quantity: 4 LEDs per lamp

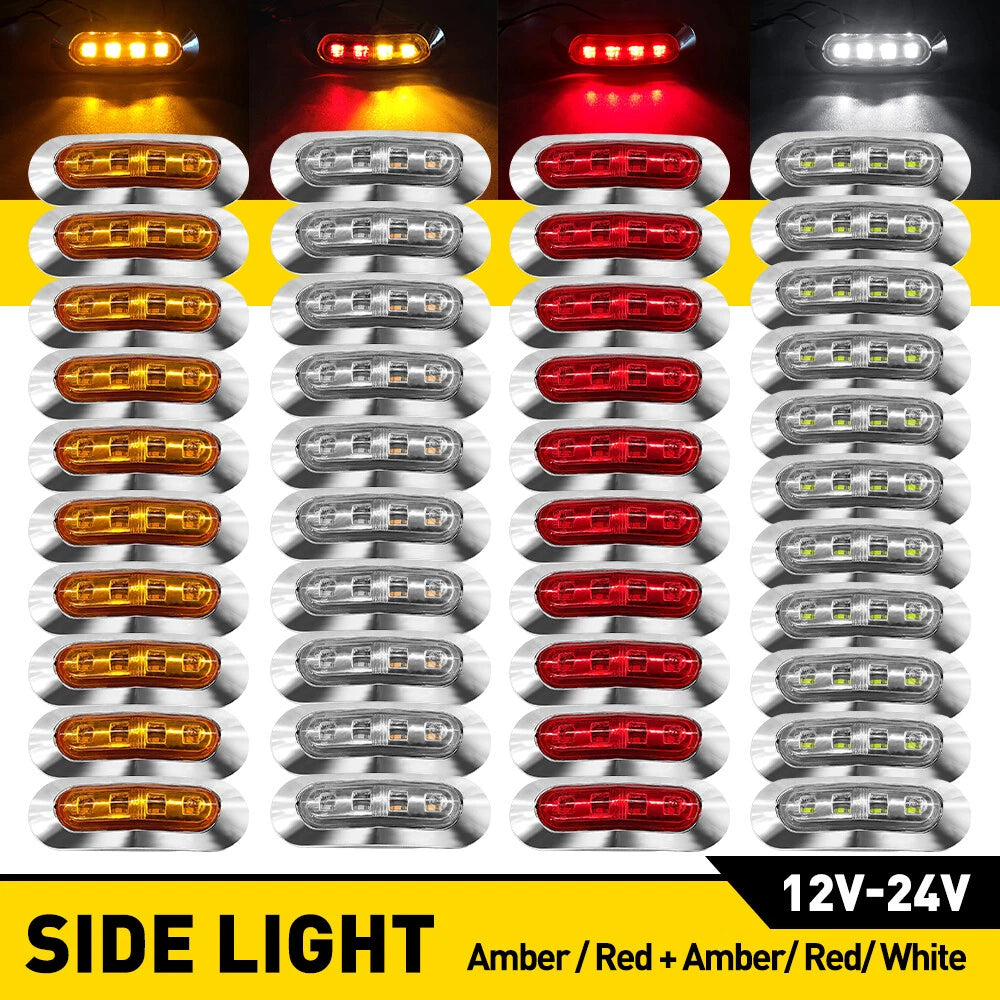

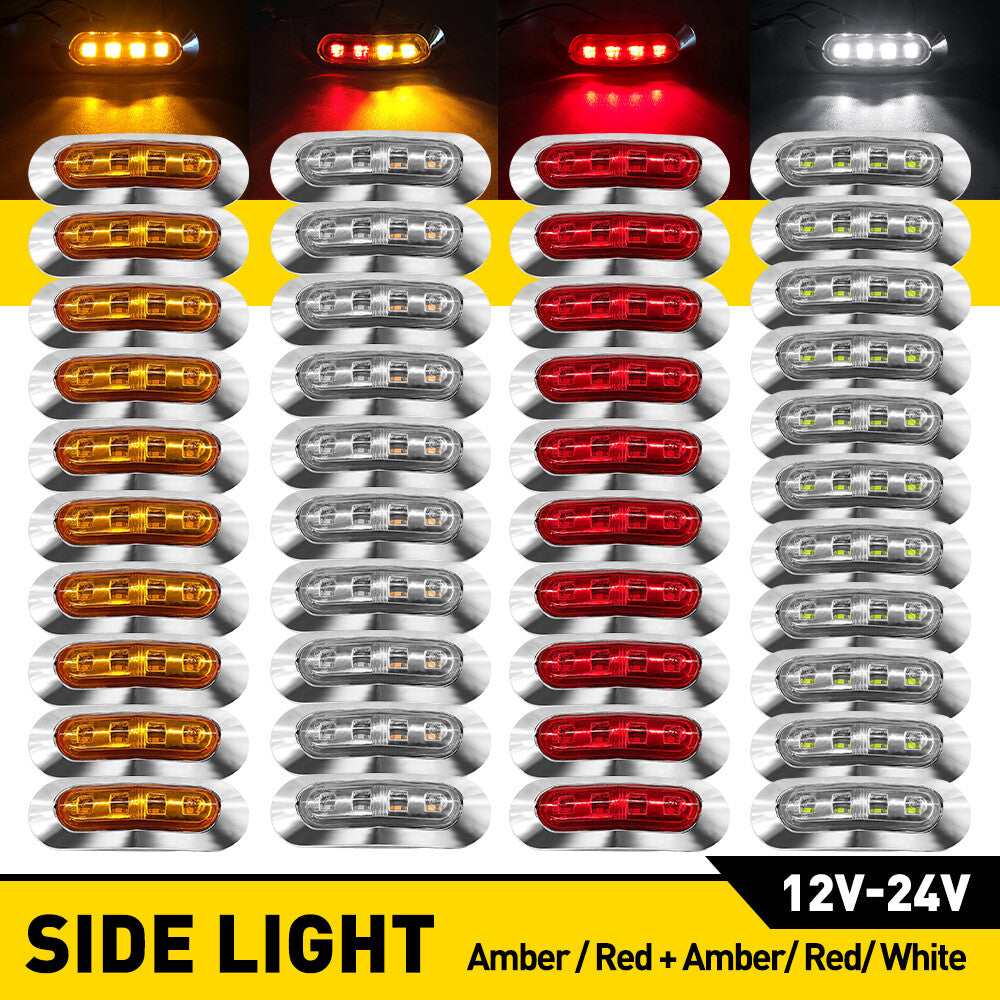

• Light colours: Amber / White / Red / Red & Amber (mixed set)
• Bulb colour options: White / Amber / Red / Red & Amber
• Voltage: DC 12V–24V
• Wattage: 5 W (per lamp)
• Lumens: up to 1500 lm (set, manufacturer specification)
• Colour temperature: approx. 2500–5000 K (depending on LED colour)

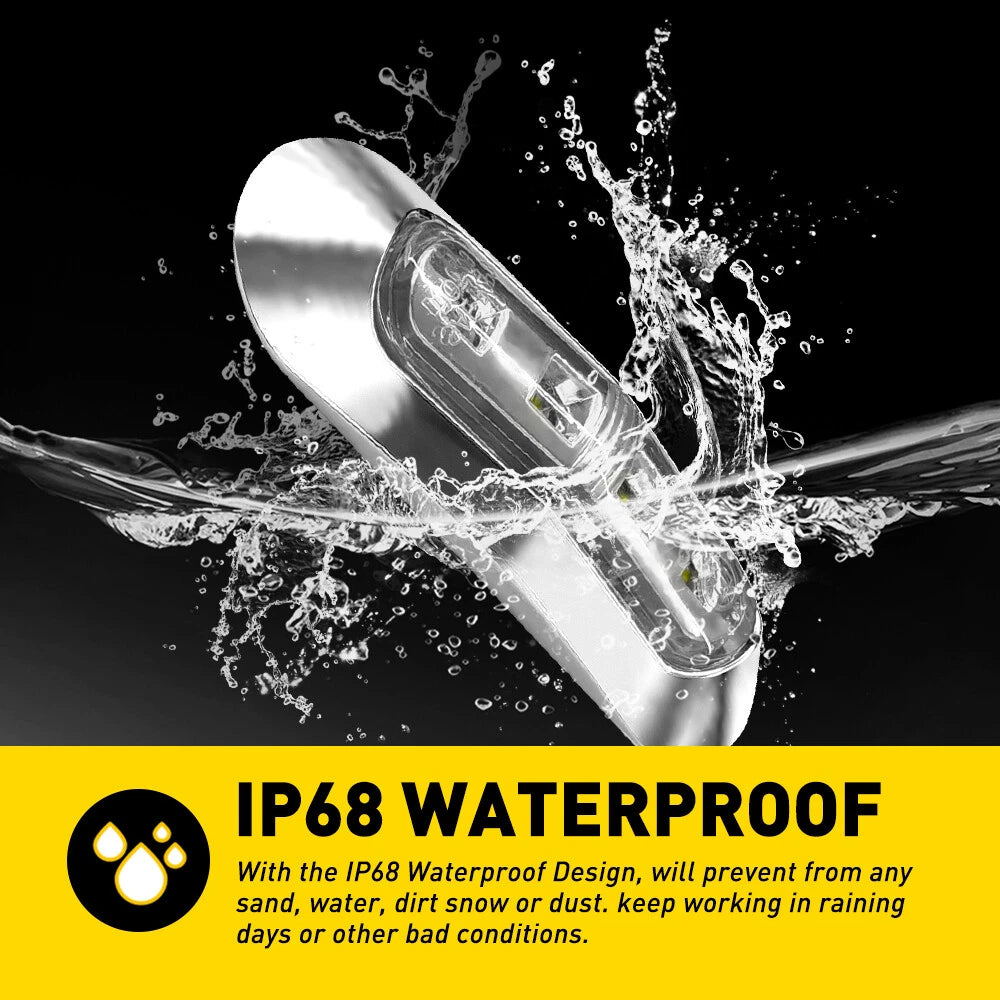

• Waterproof rating: IP67–IP68 (sealed housing and lens)
• Service life: 50,000+ hours (manufacturer specification)
• Operating temperature: -40°C to 60°C
• Bulb fitment code: C5W
• Fitment type: Direct replacement / universal
• Placement on vehicle: Front, rear, left, right, outer

DIMENSIONS & MOUNTING

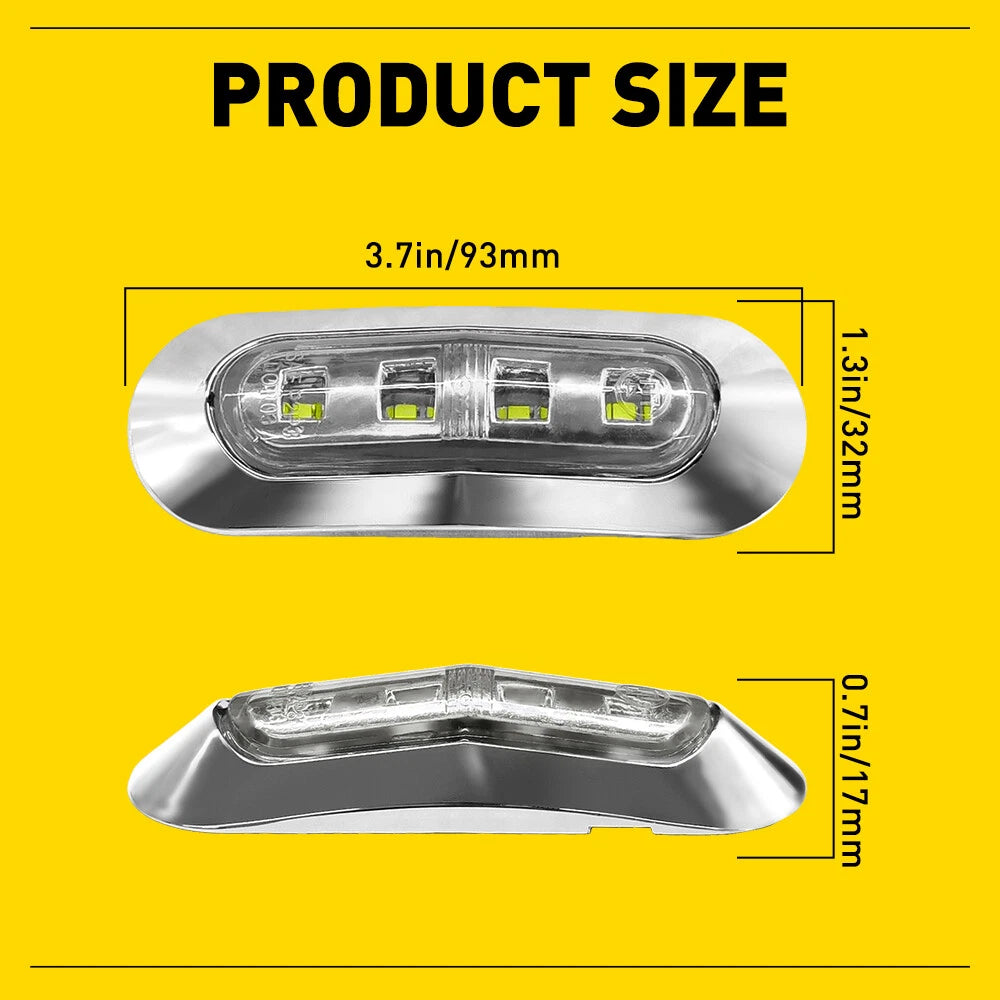

• Overall size (approx.): 93 mm (L) × 33 mm (W) × 15–17 mm (H)
• Two mounting holes centre distance: 75 mm (approx. 2.95 in)
• Typical model: side light / clearance light
• Universal fitment: yes (check space and mounting points before installation)

WIRING

• Black wire: negative (-)
• Colour wire (amber / white / red / red & amber): positive (+)
• Simple two-wire connection to existing 12–24V lighting circuit

BENEFITS

• Improves vehicle visibility in low light, rain or fog
• Durable construction for on-road and off-road use
• Low power draw helps protect battery life
• Suitable for both modern and classic vehicles

PACKAGE CONTENTS

• 10 × LED side marker / clearance lights
• 20 × Mounting screws
• 10 × Gaskets

FITMENT NOTICE

This is a universal product designed to suit many 12–24V vehicles. Please check dimensions, mounting hole spacing and voltage compatibility with your vehicle before purchase and installation.
