110A Alternator for Ford Ranger PX & Mazda BT-50 2.2L/3.2L Diesel

PRODUCT OVERVIEW

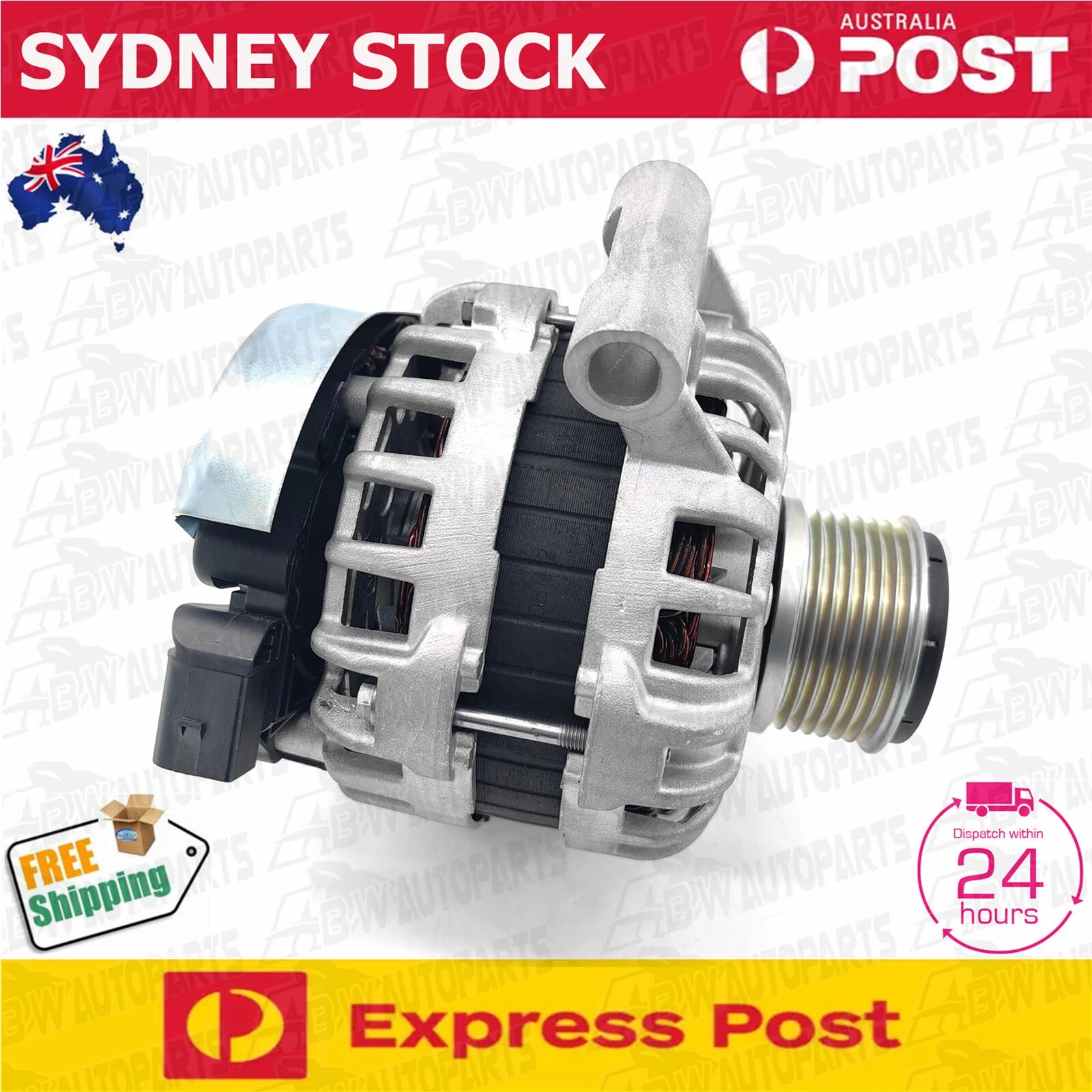

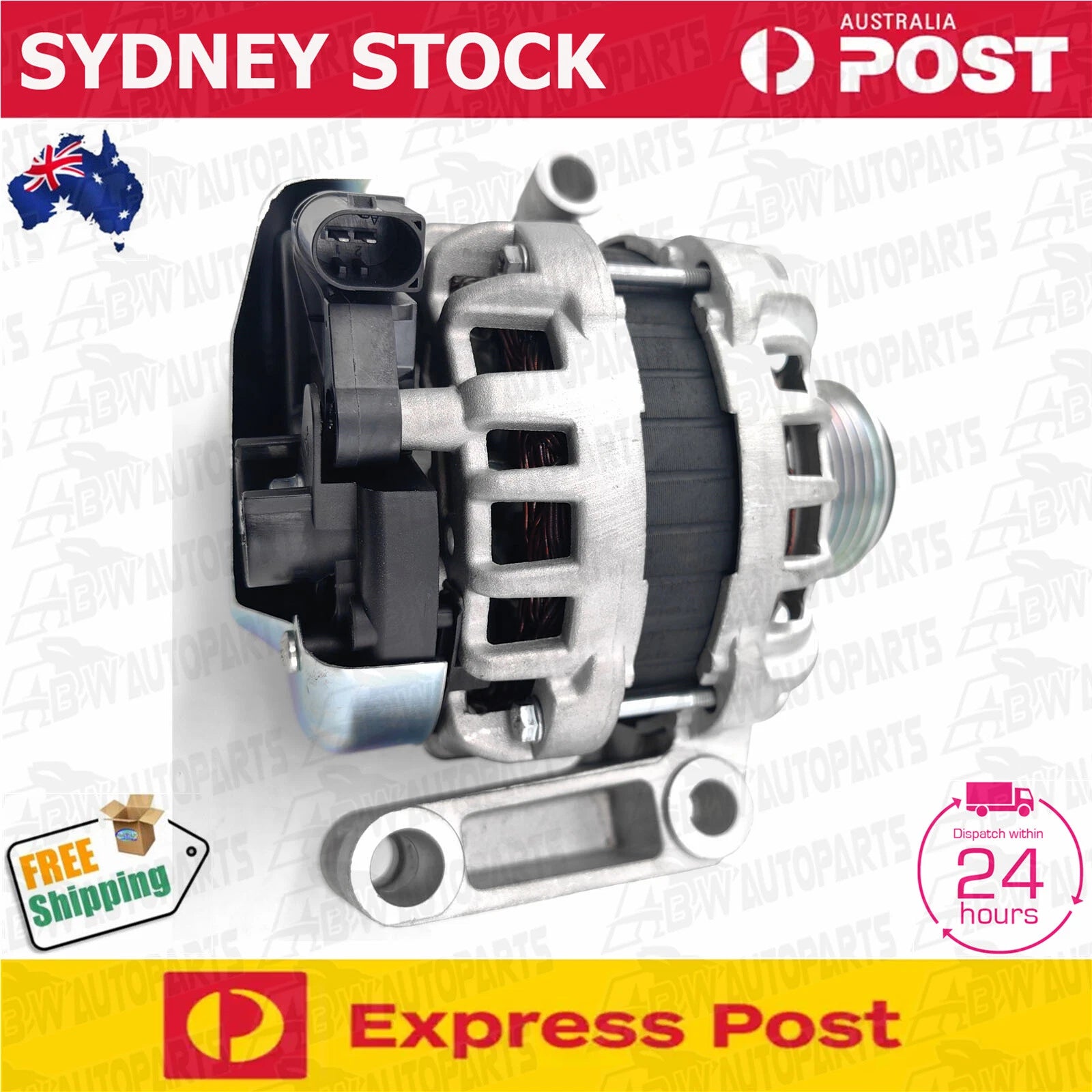

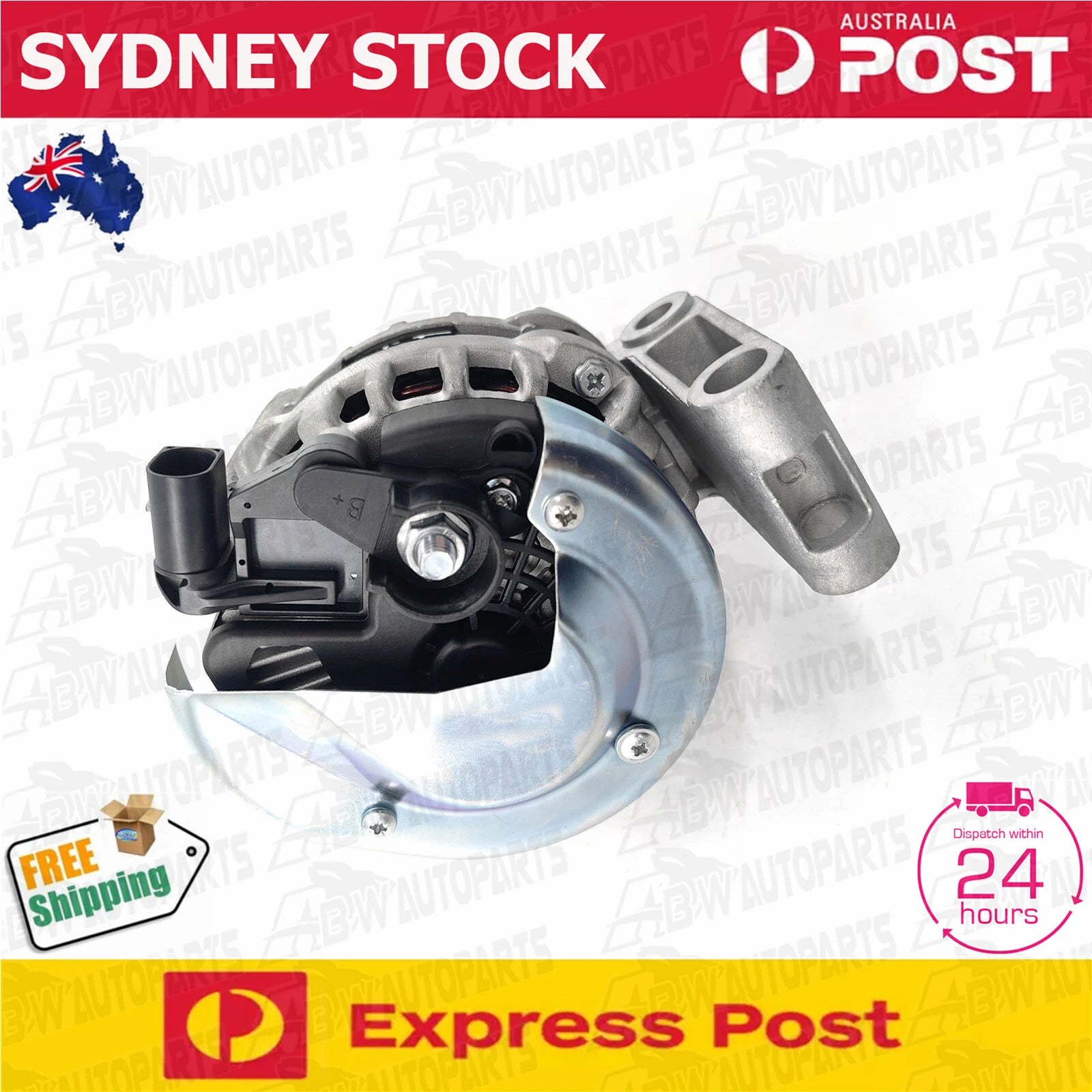

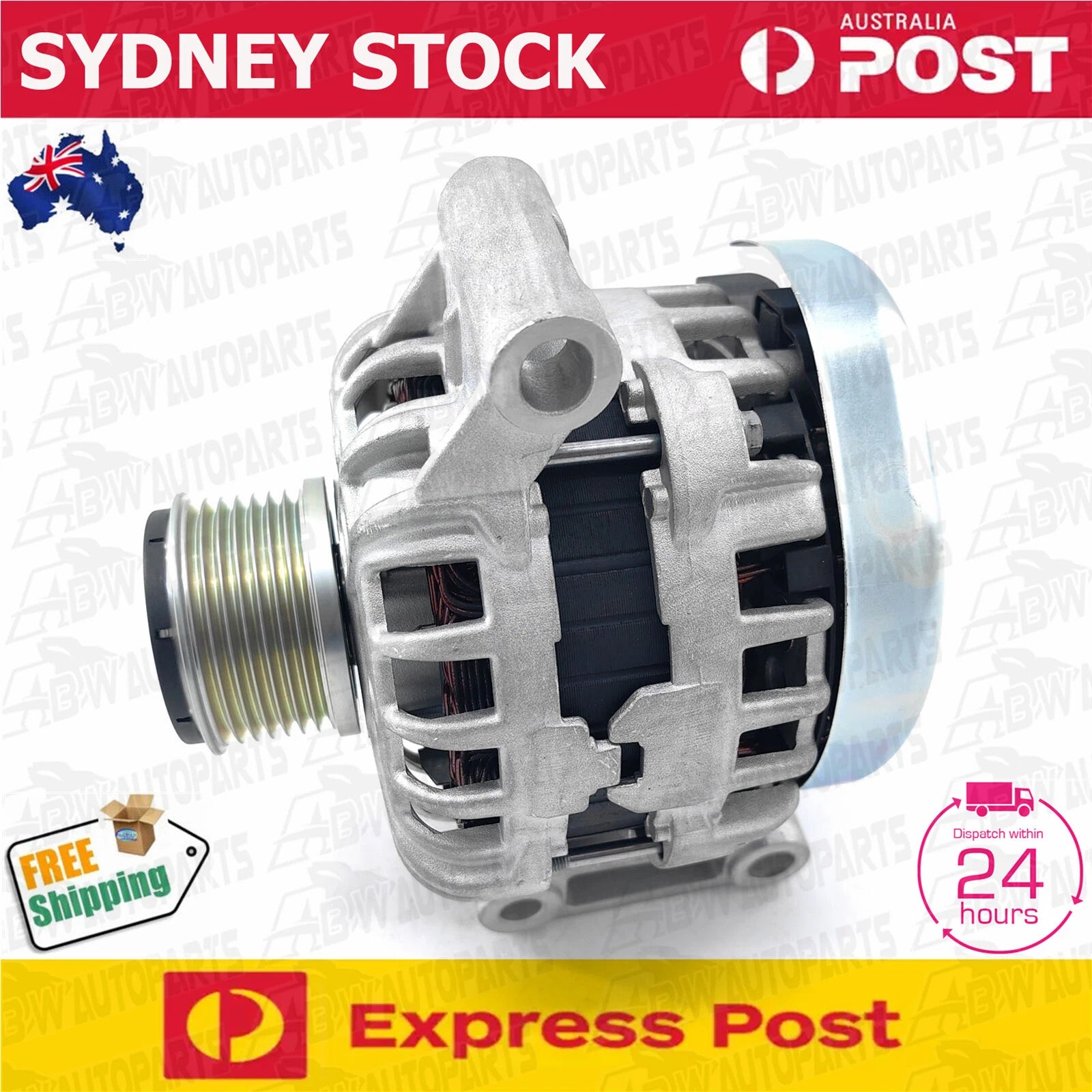

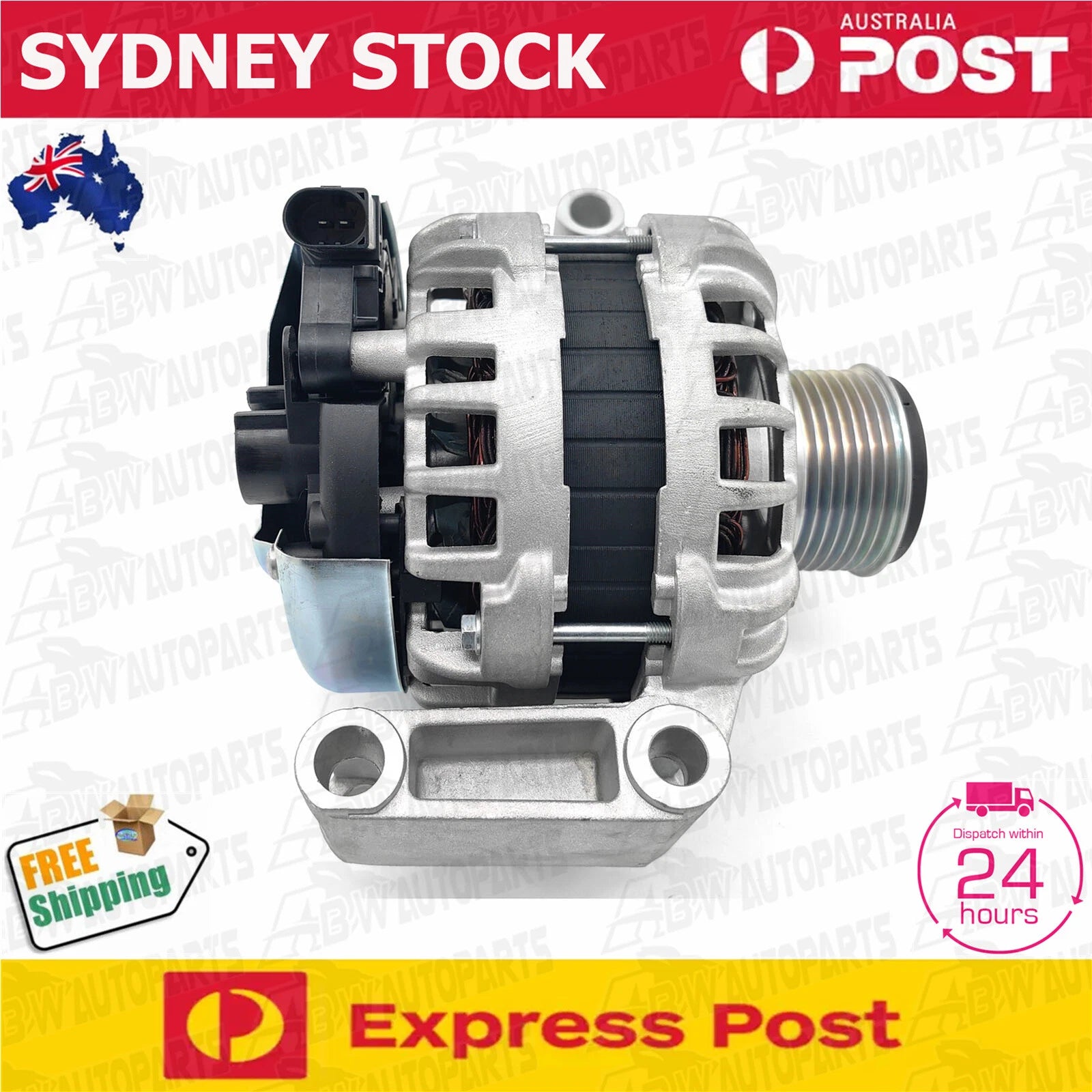

This 110A, 12V alternator is designed as a direct replacement unit for selected Ford Ranger PX Series 1 and Mazda BT-50 diesel applications using P4AT and P5AT engines. It features an RP36 plug and 7-groove pulley to match the original equipment configuration.

KEY FEATURES

• 110A output for stable charging performance
• 12V system compatibility
• 7-groove (7PV) pulley, 61 mm diameter
• Direct-fit replacement with RP36 plug
• Engineered to match OEM mounting and alignment

SPECIFICATIONS

• Voltage: 12 V
• Current: 110 A
• Adjustment hole: 12 mm
• Pivot hole: 12 / 14 mm
• Adjustment to pivot: 174 mm
• Pivot length: 61 mm
• Inside feet to feet: 74 mm
• Pulley diameter: 61 mm
• Number of grooves: 7PV

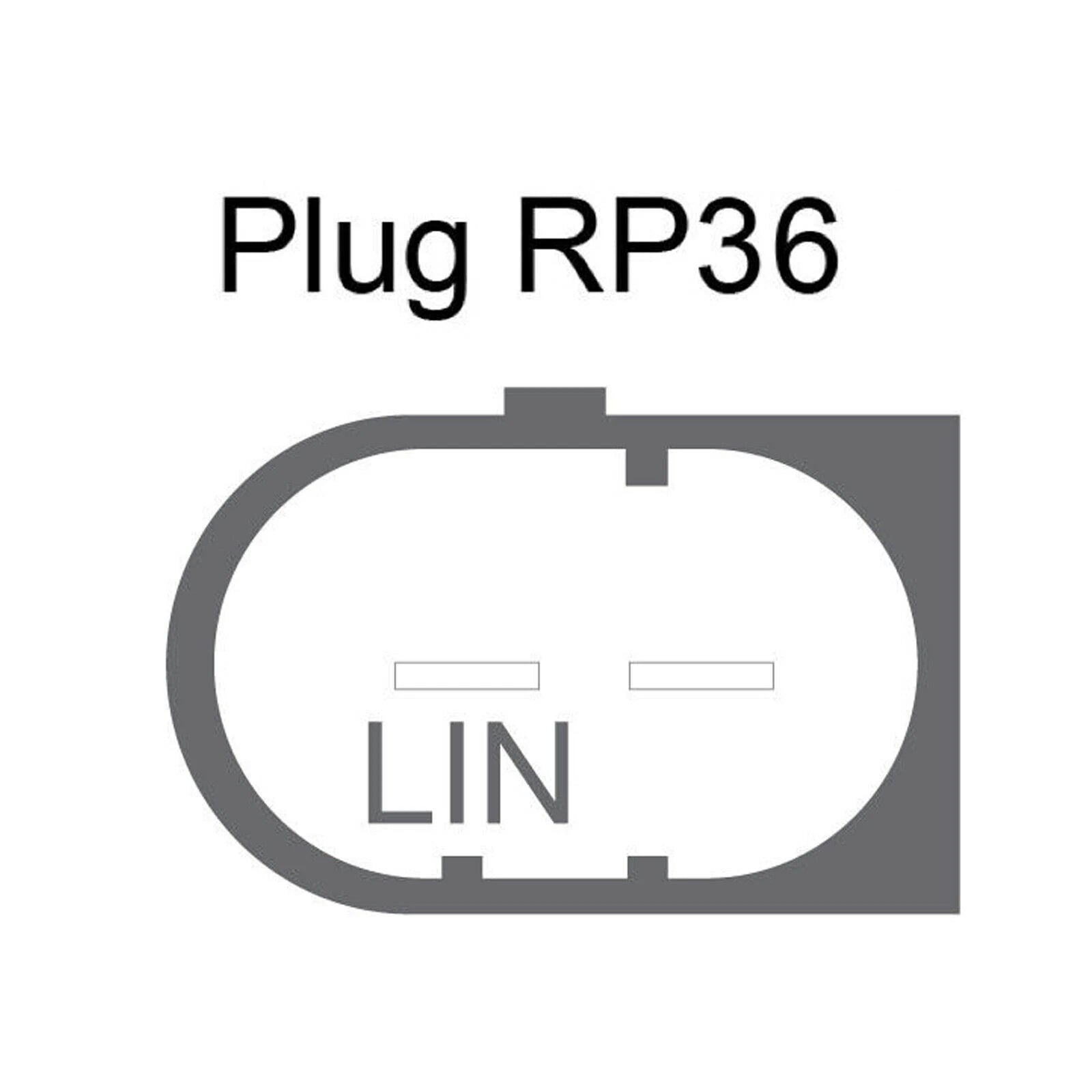

• Plug type: RP36

PART REFERENCE NUMBERS

Equivalent reference / cross numbers (for comparison only):

• Bosch: F000BL0639, F000BL06BG, F000BL06EY
• Cargo: 116546
• CAS: CAL 10557 AS, CAL 10557GS, CAL 10557RS
• Ford: 1916724, 5215796, 5287955, AB3910300AD, AB3910300AE, AB3910300AF, AB3910300AFFC, AB3910300AG
• KRAUF: ALB5796AN, ALB5796GB, ALB5796LK, ALB5796LP, ALB5796UX, ALB5796YX
• Mazda: U21218300, UK0118300A, UK0118300B, UK0118300C, UK0118300D
• ZAUFER: 301 N20972Z

APPLICATIONS

• Ford Ranger PX Series 1, P4AT & P5AT 2.2L / 3.2L diesel, approx. 2011–2015
• Mazda BT-50 BT50 UP, 2.2L diesel P4AT engine, approx. 2011–2015
• Mazda BT-50 BT50 UP / UR, 3.2L diesel P5AT engine, 2011-on (check plug and pulley)

Use the above as a guide only. Always confirm the part number, mounting dimensions, plug type and pulley configuration against your original alternator.

WHAT'S INCLUDED

• 1 x 110A alternator

INSTALLATION NOTES

• Professional installation is strongly recommended
• Verify plug type and pulley style against the original unit before ordering
• Ensure all electrical connections are clean and secure during fitment
