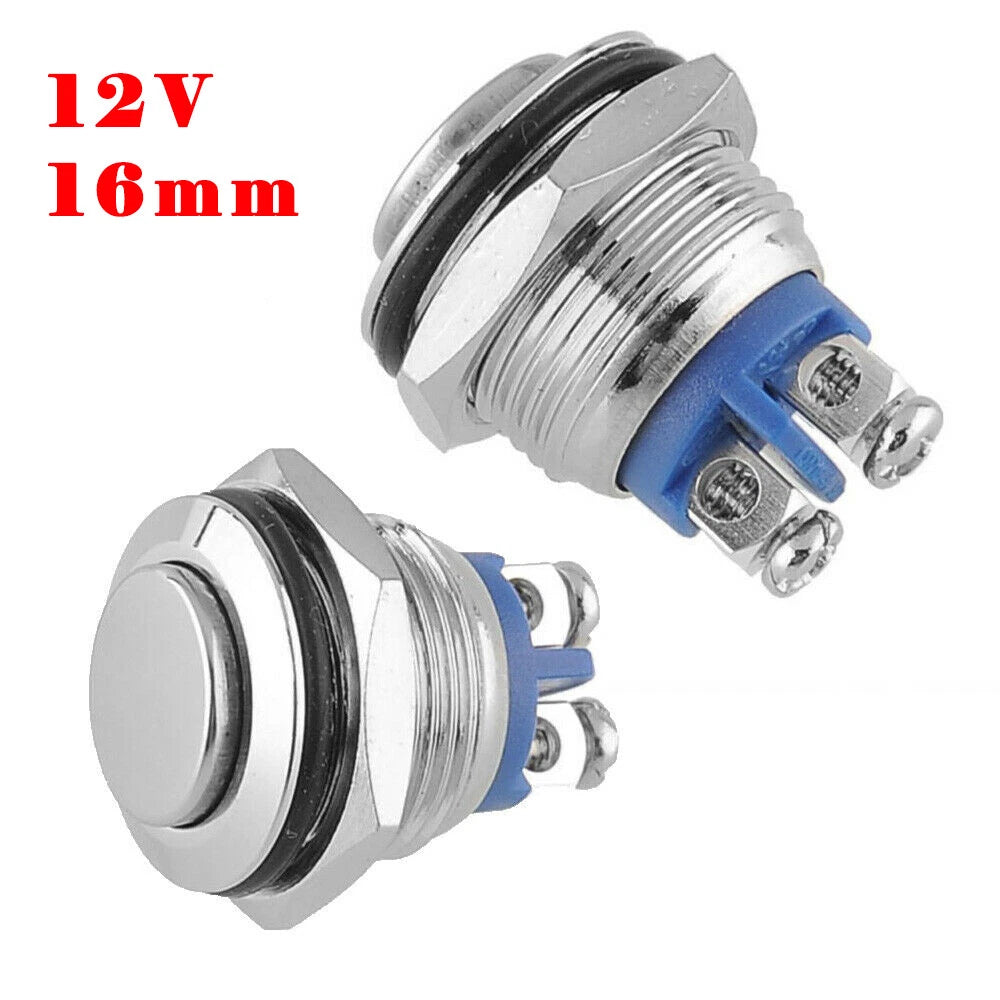

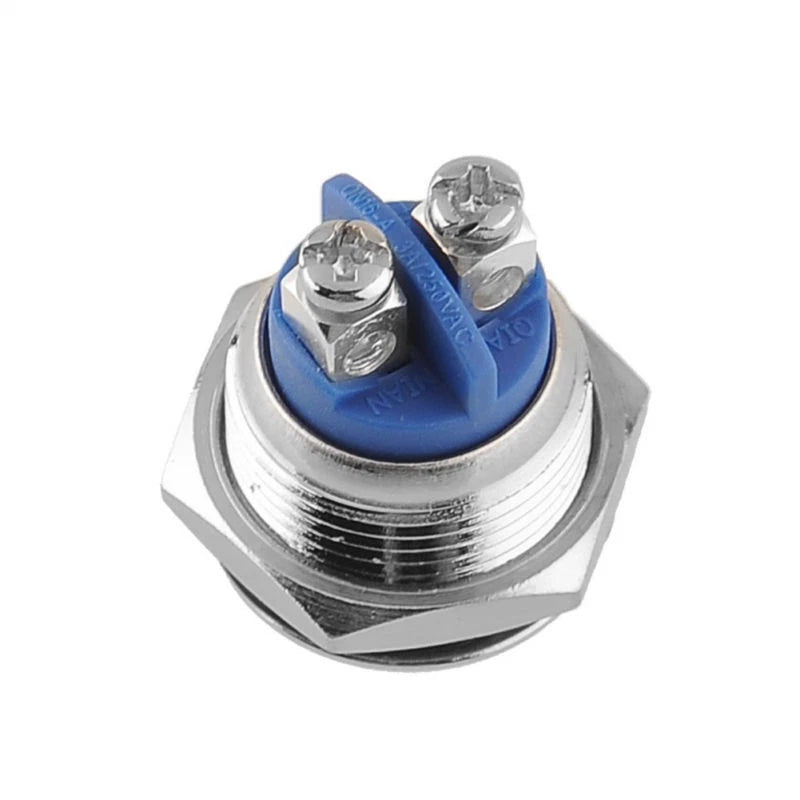

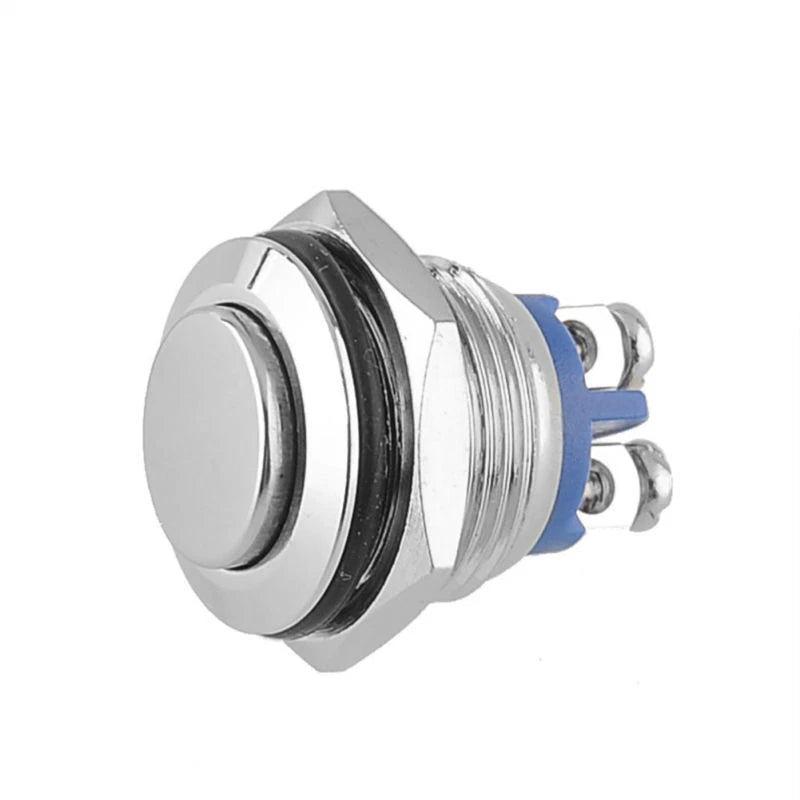

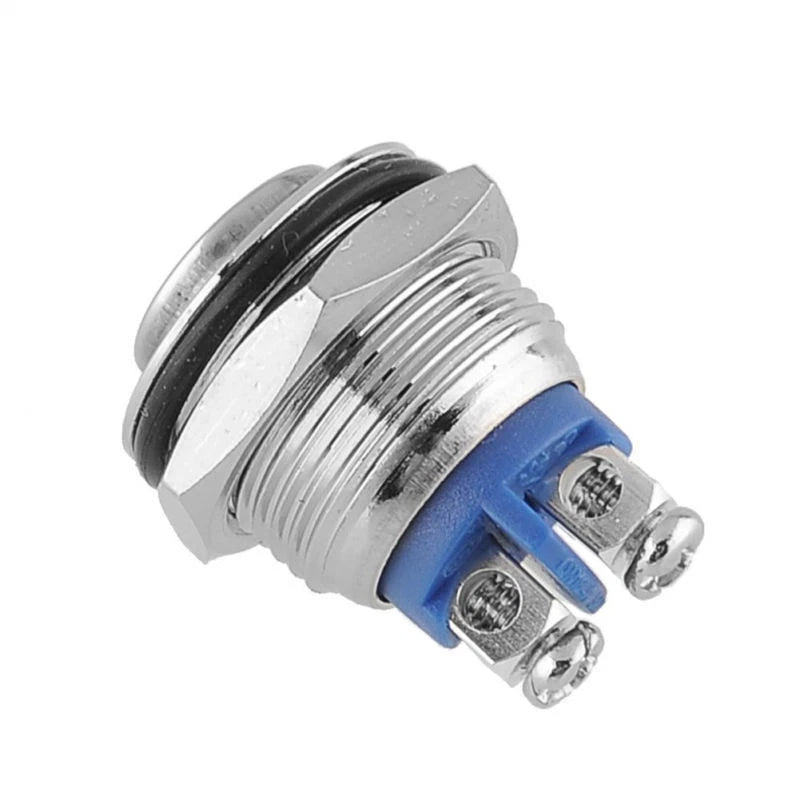

16mm Stainless Steel Momentary Dome Top Waterproof Push Button Switch

OVERVIEW

This 16mm stainless steel momentary dome top push button switch is designed for reliable control in automotive, marine, and general electrical applications. The compact metal body and IP67 protection make it suitable for harsh environments where durability and water resistance are required.

KEY FEATURES

• 16mm mounting hole size for standard panel installations
• Momentary operation: press = ON, release = OFF (self-return)
• Normally open (NO) contact configuration
• Waterproof and dustproof to IP67 for demanding environments
• Impact resistant to IK08 for enhanced mechanical durability
• Nickel-plated brass construction for strength and corrosion resistance
• Suitable for use with relays, contactors, starters and general circuit control

SPECIFICATIONS

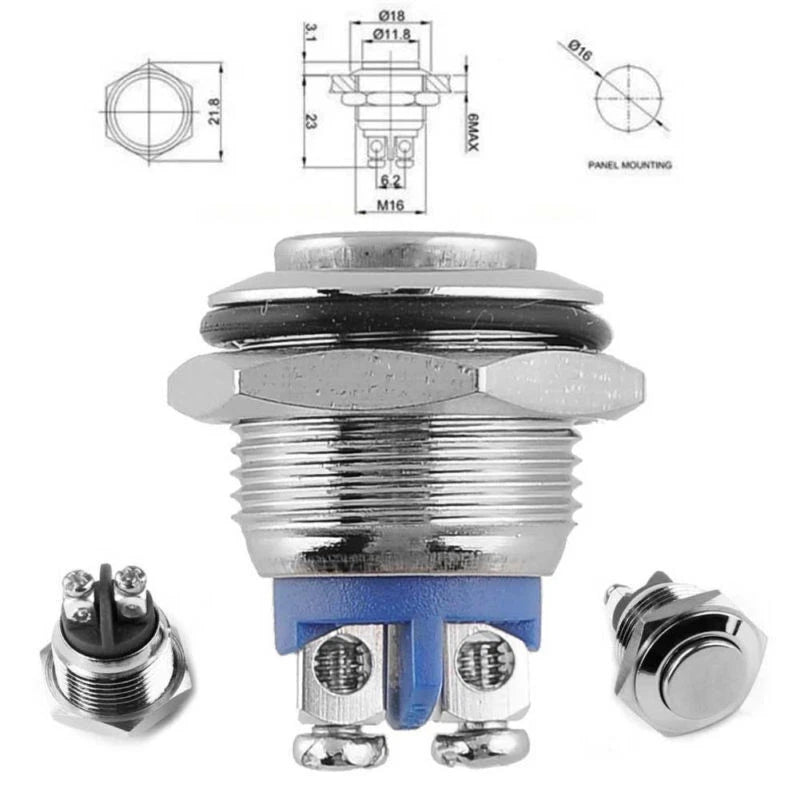

• Mounting hole size: 16mm (φ16mm)
• Operation type: Momentary (self-return)
• Contact configuration: Normally open (NO)
• Action: Press – ON, release – OFF
• Switch rating: 3A / 250V AC
• Material: Nickel-plated brass
• Degree of protection: IP67, IK08

APPLICATIONS

• Automotive and marine control panels
• Industrial machinery and equipment controls
• DIY electronics and hobby projects
• Replacement switch for existing 16mm panel cutouts

PACKAGE CONTENTS

• 1 x 16mm stainless steel momentary push button switch
