Pair of 1156 BAY15D red LED brake tail light bulbs 12V 600LM CANbus compatible
1156 BAY15D Red LED Brake Tail Light Bulbs 12V 600LM CANbus (Pair)
1156 BAY15D Red LED Brake Tail Light Bulbs 12V 600LM CANbus (Pair)
1156 BAY15D Red LED Brake Tail Light Bulbs 12V 600LM CANbus (Pair)
1156 BAY15D Red LED Brake Tail Light Bulbs 12V 600LM CANbus (Pair)
1156 BAY15D Red LED Brake Tail Light Bulbs 12V 600LM CANbus (Pair)
Click to zoom in
  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Added Value

    Mounting, Balancing

  • Fast Delivery

    Get your order delivered at lightning speed

1156 BAY15D Red LED Brake Tail Light Bulbs 12V 600LM CANbus (Pair)

2 8
376745916084
Out of stock
Lighting
A$40.41
OVERVIEW High-output 1156 BAY15D red LED bulbs designed for use as brake and tail lights. These...

customers are viewing this product
1156 BAY15D Red LED Brake Tail Light Bulbs 12V 600LM CANbus (Pair)

OVERVIEW

High-output 1156 BAY15D red LED bulbs designed for use as brake and tail lights. These 12V bulbs provide bright, uniform illumination with low power consumption and long service life. Direct replacement for standard 1156 incandescent bulbs.

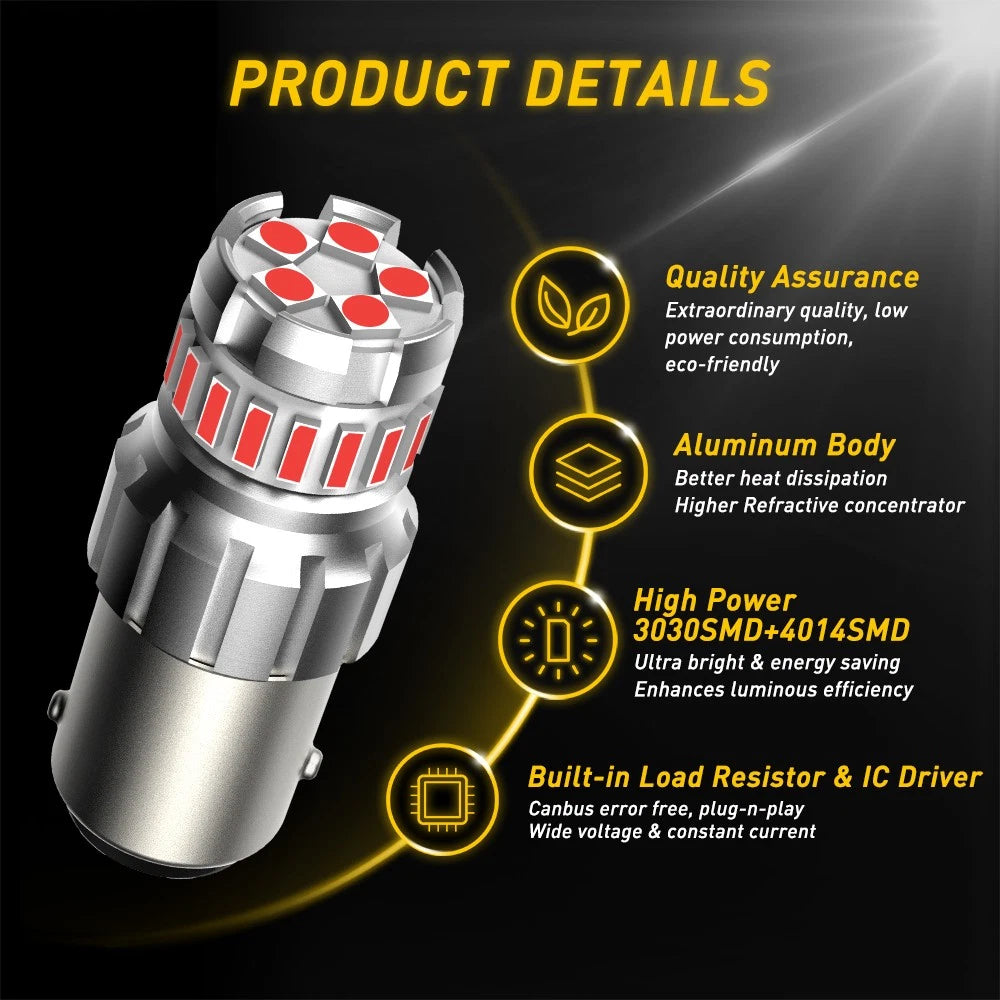

KEY FEATURES

  • 1156 BAY15D base for direct replacement of standard incandescent bulbs
  • Red LED output for brake and tail light applications
  • Non-polarity design for simple plug-and-play installation
  • Approximately 600 lumens per bulb, 1200 lumens per pair
  • 360° lighting effect for improved visibility

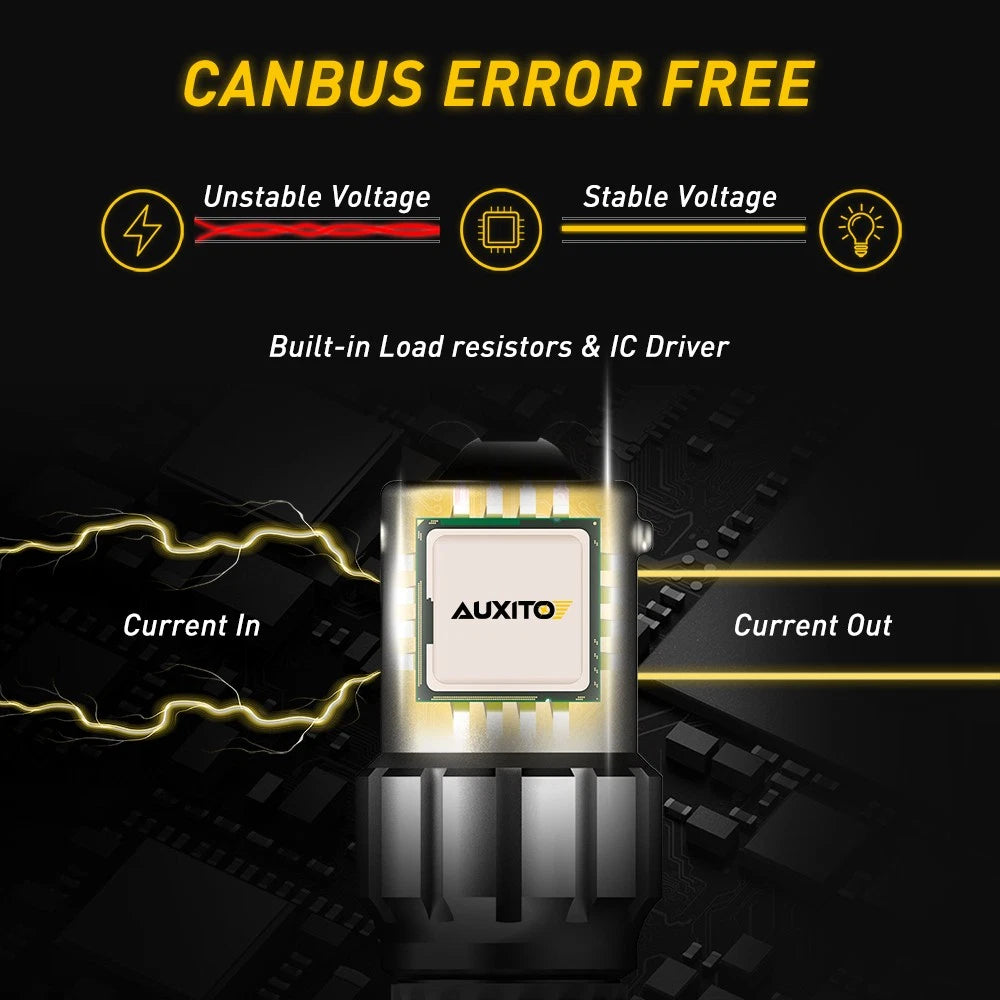

  • CANbus compatible for most vehicles (decoder may be required on some models)

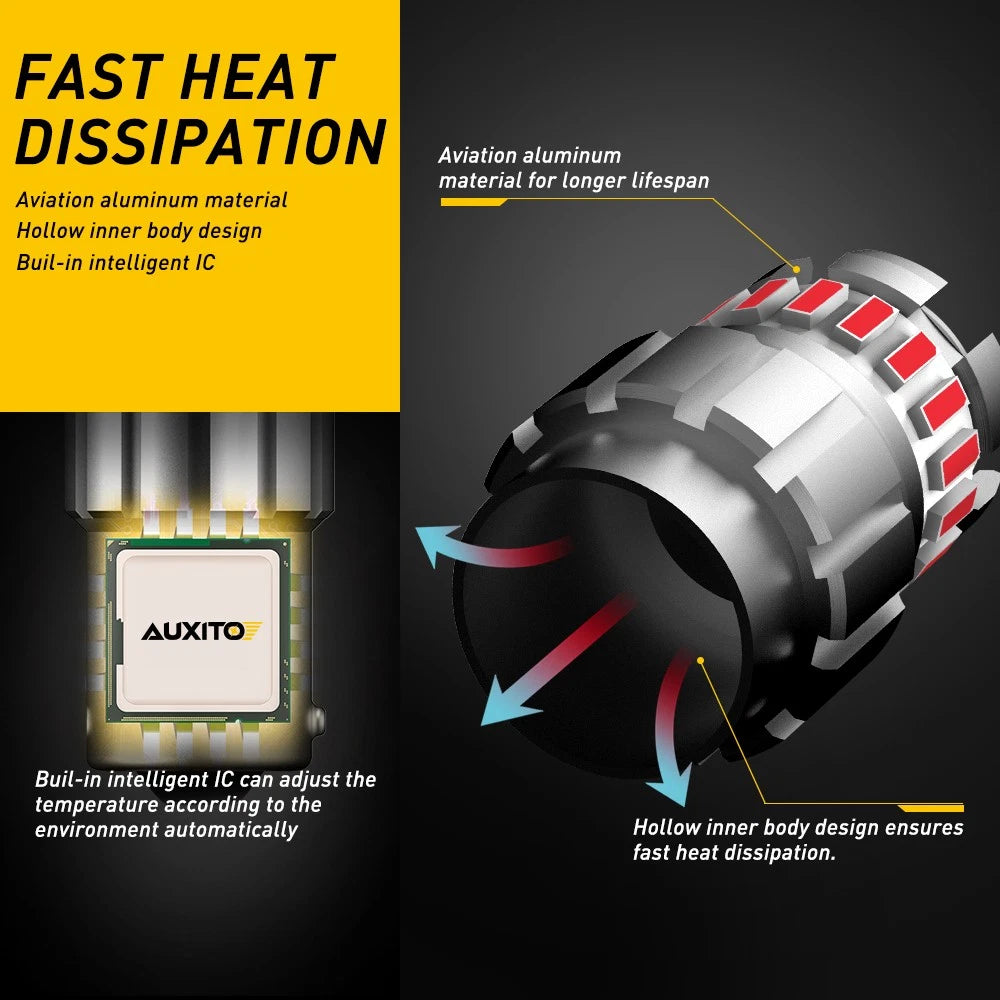

  • Aluminum body for improved heat dissipation and reliability
  • Rated lifespan greater than 30,000 hours
  • Waterproof to IP67 for all-weather performance

SPECIFICATIONS

  • Bulb type: 1156 BAY15D LED light bulb
  • Fitment / cross-reference: 1156, 7506, 1141, 1073, 1156NA, 1095, 1195, 5007, 5008, 1295NA
  • Lighting technology: LED
  • Color: Red
  • Color temperature (nominal): 6500K source chips (red-emitting configuration)
  • Voltage: 12V (working range 9–18V DC)
  • Wattage: 20W per pair
  • Luminous flux: 600LM per bulb / 1200LM per pair
  • Beam angle: 360° lighting effect

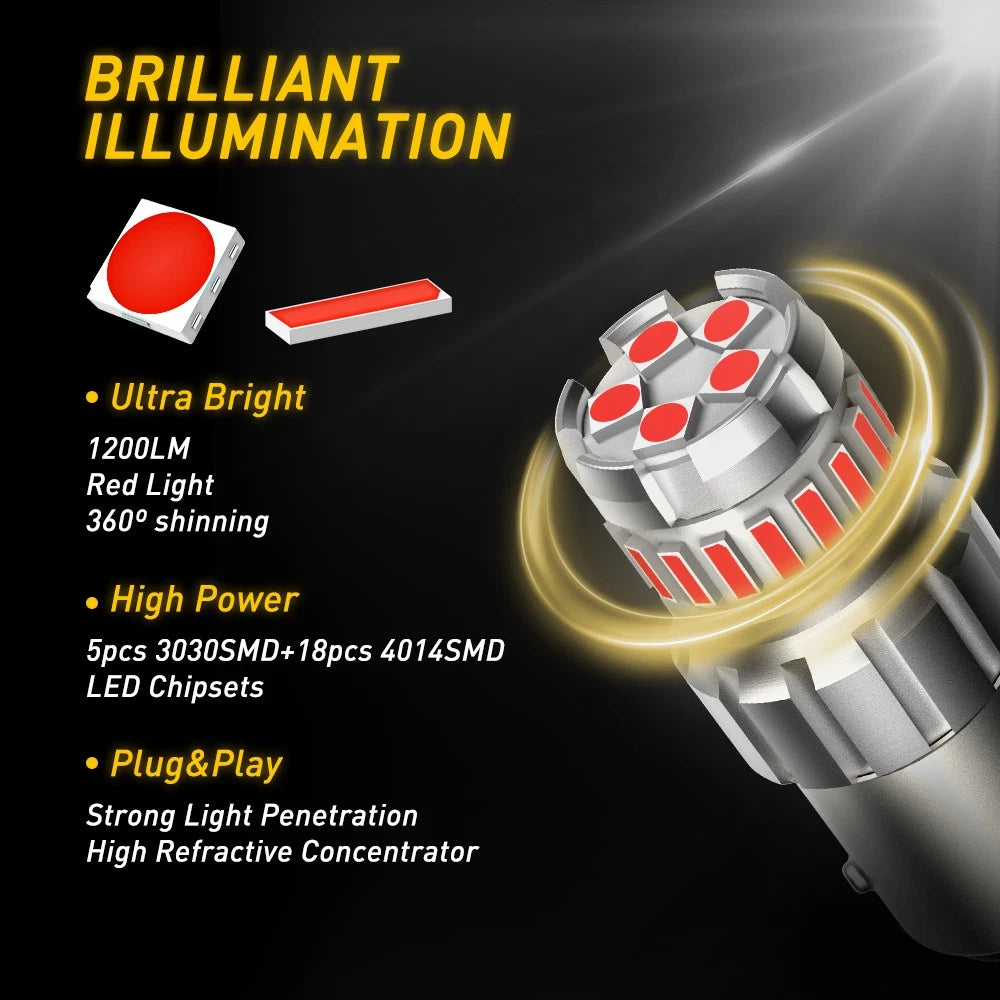

  • LED type: 5 × 3030 SMD + 18 × 4014 SMD
  • Housing material: Aluminum
  • Waterproof rating: IP67
  • Operating temperature: -40°C to +80°C (approx. 40–80°C working range specified)
  • Lifespan: >30,000 hours
  • Fitment type: Direct replacement
  • Features: CANbus compatible on most vehicles
  • Certification: CE / RoHS
  • Placement on vehicle: Left or right brake / tail position
  • Number of bulbs in pack: 2

COMPATIBILITY NOTES

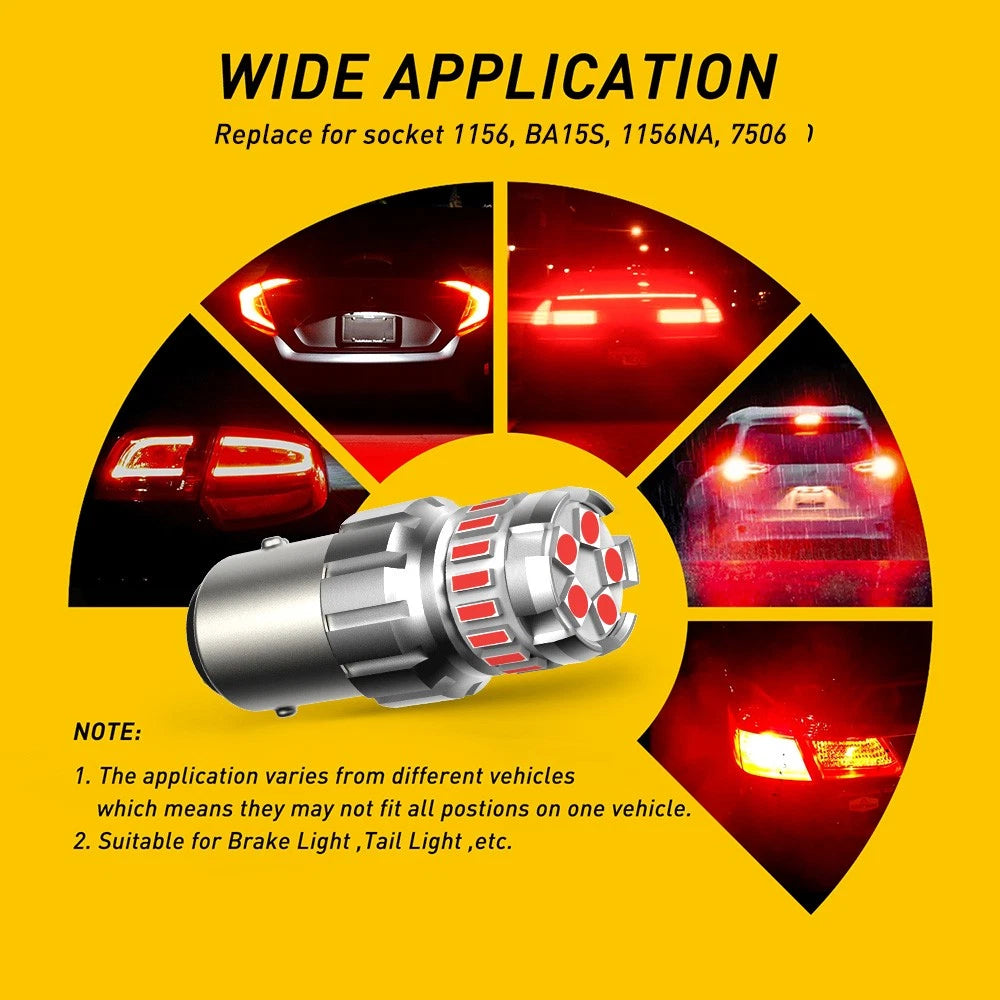

  • Designed for sockets that accept 1156 / BAY15D type bulbs and listed cross-reference numbers.
  • Some vehicles with sensitive CANbus systems may require an additional decoder or load resistor to prevent error messages or hyper flashing.
  • Always confirm the original bulb part number in your vehicle manual or on the existing bulb before purchase.

PACKAGE CONTENTS

  • 2 × 1156 BAY15D red LED brake / tail light bulbs

INSTALLATION GUIDELINES

  • Allow the vehicle lighting components to cool before starting installation.
  • Park the vehicle securely and switch off the ignition; remove the key.
  • Remove the existing bulb from the 1156 / BAY15D socket.
  • Insert the LED bulb firmly into the socket, ensuring proper contact.
  • Test the light before reassembling the lamp housing.
  • If the bulb does not illuminate, check the socket contacts and wiring for secure connection.
  • On vehicles with CANbus systems, install a suitable decoder or load resistor if warning lights or fast blinking occur.
