100cc 2-Stroke Bicycle Engine Kit Motorized Petrol Gas Bike Conversion

OVERVIEW

Convert a standard bicycle into a motorized petrol bike with this upgraded 100cc 2-stroke engine kit. Designed for most 26" and 28" bicycles, it delivers high power output with efficient fuel consumption, ideal for off-road or private property use where permitted.

KEY FEATURES

• 100cc 2-stroke single-cylinder, air-cooled engine for strong acceleration and durability.
• Rated power 2.5 kW @ 5000 rpm; max power up to 3.5 kW (approx. 6–6.5 hp) for higher cruising speeds.
• Top speed approx. 50–60 km/h depending on bicycle, rider weight and riding conditions.
• Low fuel consumption of approx. 2.5–3.5 L per 100 km for economical operation.
• Capacitor discharge ignition (CDI) system with handlebar kill switch for reliable starting and easy shutdown.
• Manual dry clutch with push clutch lever and included twist throttle for precise control.
• Heavy-duty metal engine body and quality internal bearings for extended service life.
• Suitable for most 26" and 28" frames that meet clearance requirements (see tips section).

TECHNICAL SPECIFICATIONS

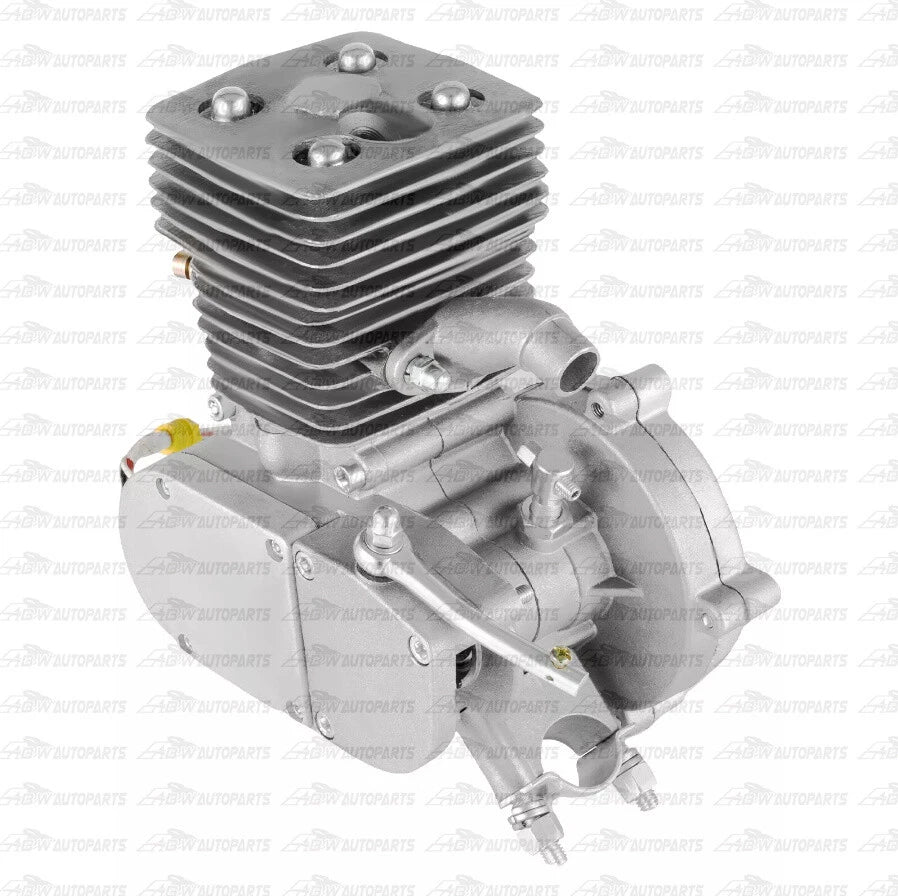

• Engine type: 100cc 2-stroke, single cylinder, air-cooled
• Rated power: 2.5 kW @ 5000 rpm (approx. 3 hp)
• Maximum power: up to 3.5 kW @ 5000 rpm (approx. 6–6.5 hp)
• Maximum speed: approx. 55–60 km/h (bike and conditions dependent)
• Ignition: Capacitor discharge electronic ignition
• Transmission ratio: 16.4:1
• Compression ratio: 7:1
• Spark plug type: 4144
• Lubrication: 2-stroke engine oil mixed with petrol
• Fuel: Unleaded 91 petrol mixed with 2-stroke oil
• Fuel tank capacity: 2 L (black teardrop tank)
• Fuel consumption: approx. 2.5–3.5 L / 100 km
• Clutch type: Manual dry clutch
• Cooling: Natural air cooling
• Conrod: Needle rollers on both ends
• Internal bearing: RS202
• Chain: Standard 415 bike chain
• Recommended load capacity: up to approx. 180 kg (396 lb)
• Recommended break-in mix: approx. 8 oz 2-stroke oil per US gallon of fuel (follow included manual)

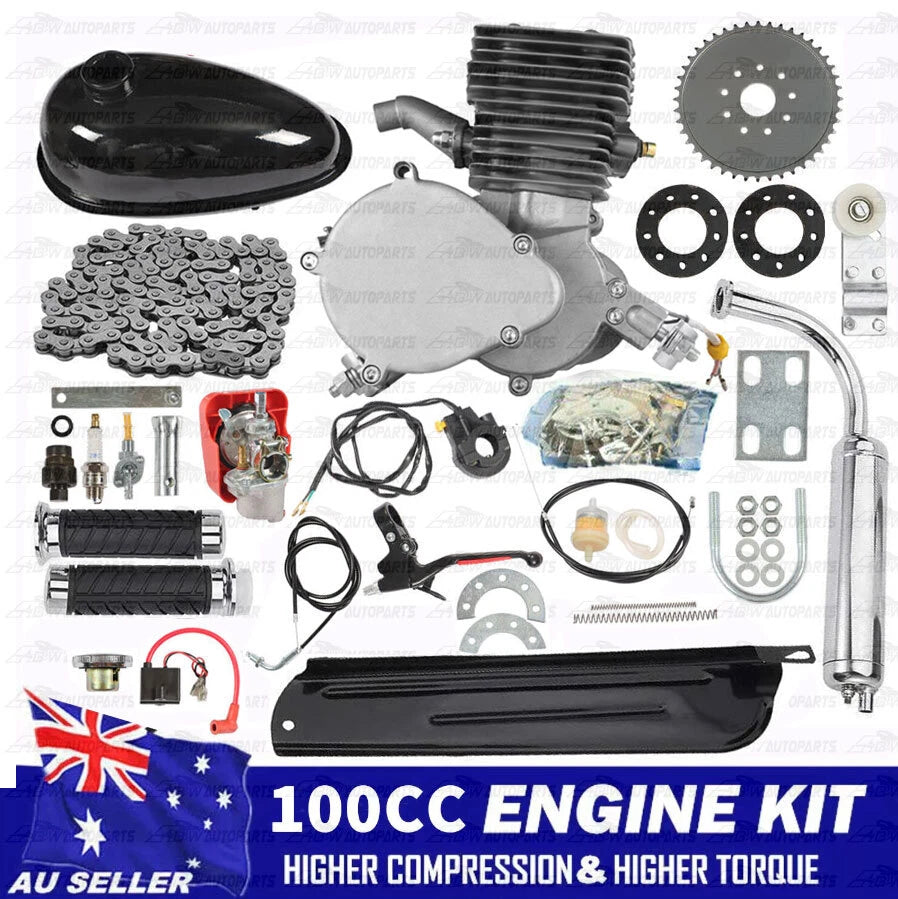

COMPLETE KIT CONTENTS

• 100cc 2-stroke engine assembly
• Spark plug
• Chain cover
• Chrome muffler
• Drive chain idler
• Push clutch lever
• Standard 415 drive chain
• CDI ignition assembly
• Main bearings (pre-installed in engine)

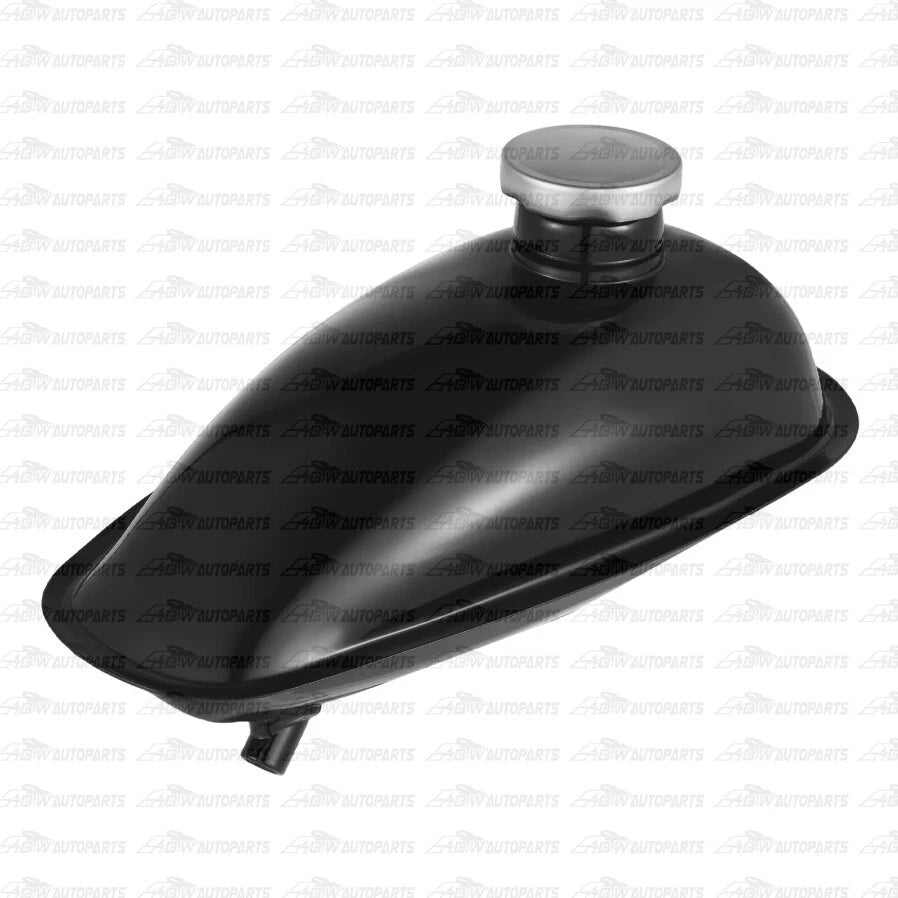

• Black teardrop fuel tank, approx. 2 L
• Carburetor
• Magneto with handlebar kill switch
• Sprocket
• Twist throttle and cable with matching grip
• User/installation manual

INSTALLATION NOTES

• Chainwheel and sprocket must be aligned in a straight line to prevent premature wear.
• After installing the carburetor and throttle cable, operate the throttle to ensure smooth carburetor response.
• When installing and adjusting the clutch cable, confirm that the rear wheel spins freely with the clutch pulled in and stops when released.
• Adjust chain tension so that downward deflection is approx. 0.5–1 cm under hand pressure.
• Securely tighten all bolts on the spark plug, muffler, carburetor and engine mounts.
• Verify all electrical connections, including CDI and kill switch, before first start-up.

FITMENT & USAGE GUIDELINES

• Designed for most 26" and 28" bicycles with a suitable frame triangle for the engine and tank.
• Not suitable for bicycles with a front frame tube wider than approx. 50 mm.
• Ensure adequate mechanical and structural strength of the bicycle frame before installation.
• Check local regulations regarding the use of motorized bicycles; in some regions these kits are for off-road or private property use only.

SAFETY & WARNINGS

• Always wear an appropriate, approved helmet and protective gear when riding.
• Not recommended for night riding. If riding at night is unavoidable, ensure the bicycle has a compliant lighting system.
• Follow correct fuel/oil mixing ratios and break-in procedures as outlined in the manual.
• Allow for 1–3 cm measurement tolerance on listed dimensions.
• Colour and finish may vary slightly due to lighting and display differences.
