2x CV Axle Drive Shaft Pair for Eunos, Ford Telstar, Mazda 626 & MPV

PRODUCT OVERVIEW

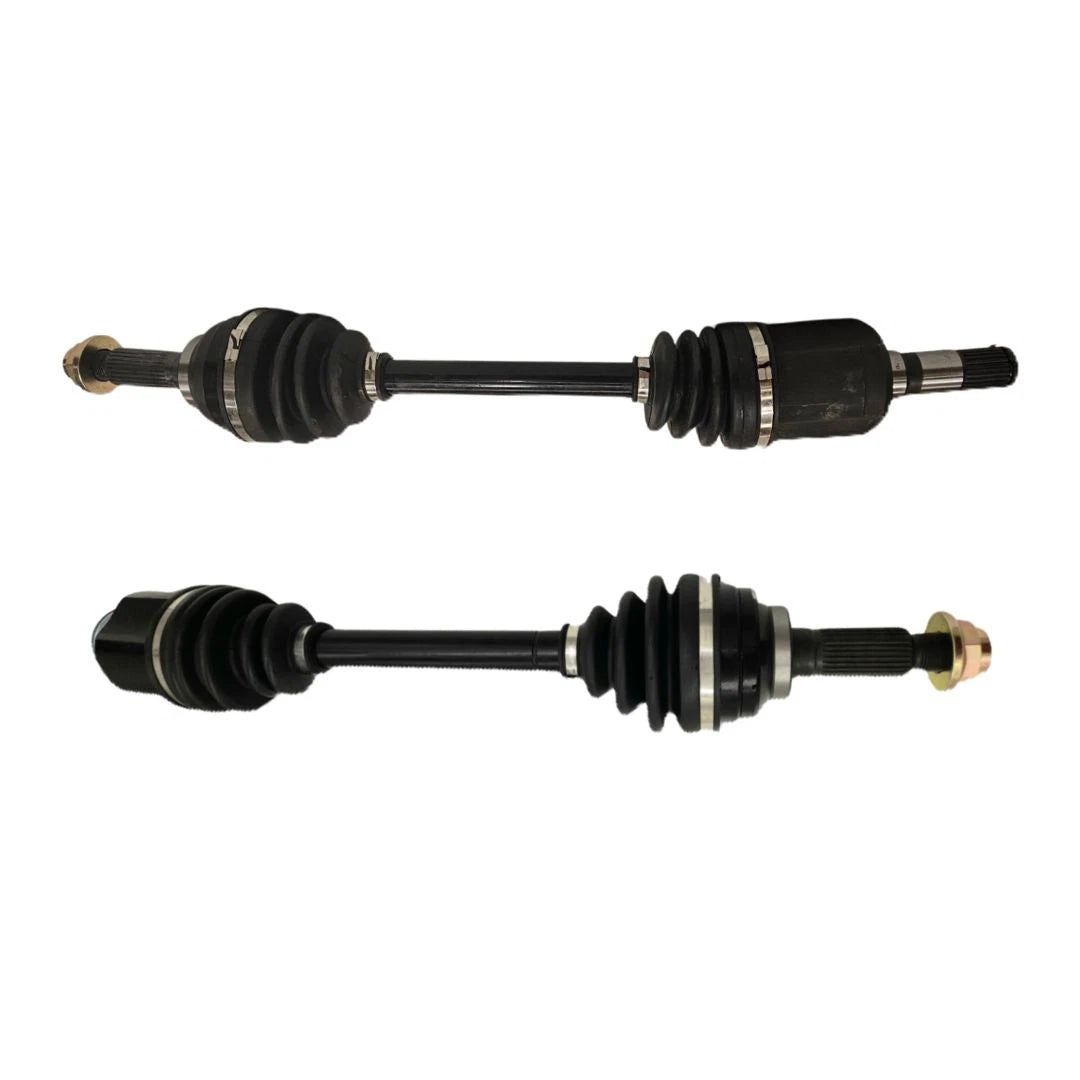

This pair of CV axle drive shafts (left and right) is designed for front-wheel-drive vehicles with manual or automatic transmissions. Built to OEM specifications, they provide reliable power delivery from the transmission to the wheels.

KEY FEATURES

• Pair kit – includes both left-hand and right-hand CV axle shafts
• Suitable for manual and automatic front-wheel-drive applications
• OEM-style construction using heat-treated chrome steel for durability
• High-quality neoprene dust boots with stainless steel clamps to reduce contamination
• Filled with high-performance moly grease for smooth operation at varying angles and speeds

FITMENT NOTES

Suits selected Series 1 Mazda 626 models with 28 inner spline teeth. For Series 2 Mazda 626 applications, refer to CVA1602 for the left CV shaft. Always confirm spline counts and dimensions against your original components before purchase.

COMPATIBLE VEHICLES (SUMMARY)

• Eunos 500 CA8PE 1.8L / 2.0L FWD (01/1992 - 12/1996), including LE, Signature
• Ford Probe ST, SU, SV 2.5L KL FWD (01/1992 - 12/1996), including GT
• Ford Telstar AX, AY 2.0L FS / 2.5L KL FWD (01/1992 - 11/1996), including TX5 Ghia, GLX, Ghia
• Mazda 626 GF, GFSP, GFSS, GWEW 2.0L FS / FSDE FWD (07/1997 - 08/2002) Series 1 with 28T inner spline
• Mazda 626 GE 2.0L FS / 2.5L KL FWD (01/1992 - 06/1997)
• Mazda MPV LW 2.5L GY / GYDE FWD (06/1999 - 06/2002)

Model variants covered include selected Anniversary, Classic, Eclipse, Limited, Luxury, Platinum Edition, G, L, Field Break, VS, Sport, Navi and related trims as listed in the specifications table.

TECHNICAL SPECIFICATIONS

Left CV Shaft:

• Compressed length: 629 mm
• Outer (wheel side) spline count: 28T
• Inner (diff side) spline count: 28T
• Inboard joint type: Tripod
• Outboard joint type: Ball
• Hub nut: M22 x 1.5

Right CV Shaft:

• Compressed length: 582 mm
• Outer (wheel side) spline count: 28T
• Inner (diff side) spline count: 26 + 2 blank
• Inboard joint type: Tripod
• Outboard joint type: Ball
• Hub nut: M22 x 1.5

WHAT'S INCLUDED

• 2 x complete front CV axle shafts (left and right)

WARRANTY

• 12 month / 20,000 km warranty on CV driveshafts
• CV boots warranted for 3 months from date of purchase

Please ensure all dimensions, spline counts and fitment details are checked against your original parts before installation.
