33cm Sequential LED Tail Light Bar Kit, 12-24V Trailer Truck RV (Pair)

PRODUCT OVERVIEW

This pair of 33cm sequential LED tail light bars provides bright, energy-efficient lighting for a wide range of 12–24V vehicles. Designed for universal mounting, they combine brake, tail, turn signal and reverse functions in a slim, durable housing.

KEY FEATURES

• Sequential amber turn signal with dynamic flowing effect
• Integrated brake, tail and reverse lights (red and white LEDs)

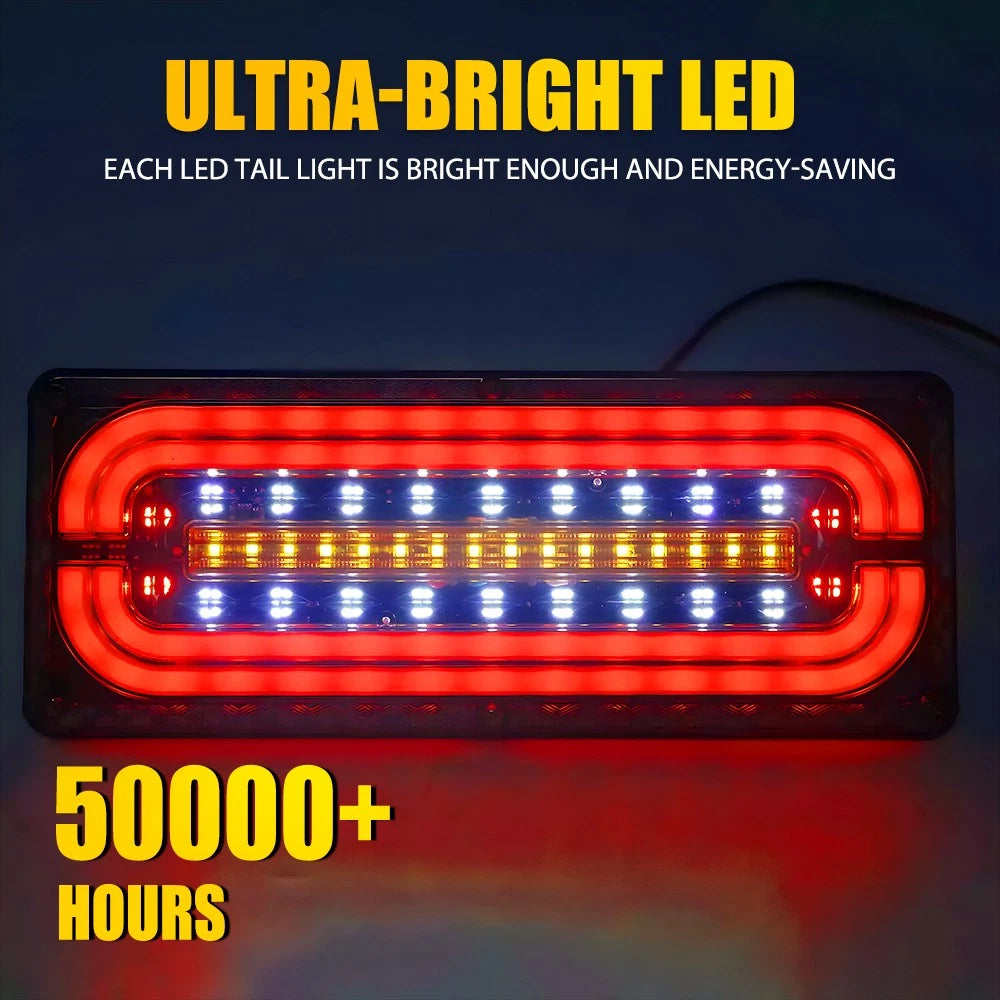

• High-brightness, low power consumption LED technology
• IP67-rated waterproof design for reliable outdoor use
• Shock-resistant ABS housing and PC lens construction
• Universal 12–24V suitability for trailers, trucks, utes, 4x4, caravans, RVs and more
• Easy screw mounting with no modification required

Note: Not submersible for boat trailers.

SPECIFICATIONS

• Technology: LED
• Length: 33cm (13in)
• Height: 4.1cm (1.61in)
• Width: 13cm (5.11in)
• Voltage: 12–24V DC
• Wattage: 5W (per lamp)
• Lumens: 2400 lm
• Colour temperature: 3000K (approx.)
• Light colours: Red, white, amber
• Model: Sequential dynamic flowing light
• Material: ABS housing, PC lens
• Finish: Polished black housing
• Waterproof rating: IP67
• Operating temperature: -40°C to 80°C
• Estimated service life: > 50,000 hours
• Mounting style: Screws

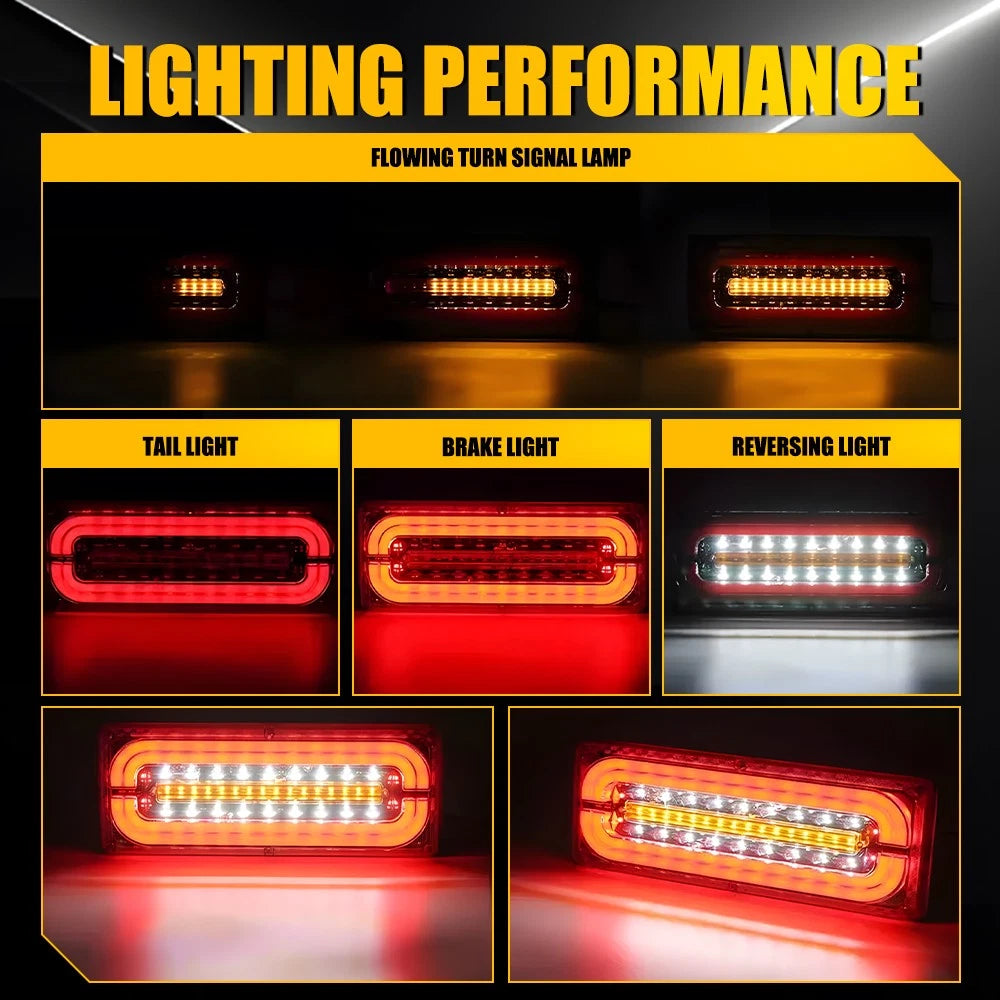

LIGHT FUNCTIONS & WIRING

• Brake light: High-brightness red ring (red wire)
• Tail light: Low-brightness red ring (green wire)
• Reverse light: White light (white wire)
• Turn signal (steady): Amber light (orange wire)
• Turn signal (sequential): Flowing amber light (yellow wire)
• Ground/negative: Black wire

Suitable as rear light, side indicator or marker indicator, depending on installation and local regulations.

APPLICATIONS

• General trailers and semi-trailers
• Trucks, pickup trucks and vans
• SUVs, 4WD and 4x4 vehicles
• Caravans, RVs and motorhomes
• Tow vehicles and light bars
• Marker or indicator lighting for suitable boats (not submersible)

Always confirm dimensions, voltage and mounting style with your vehicle or trailer before installation.

PACKAGE CONTENTS

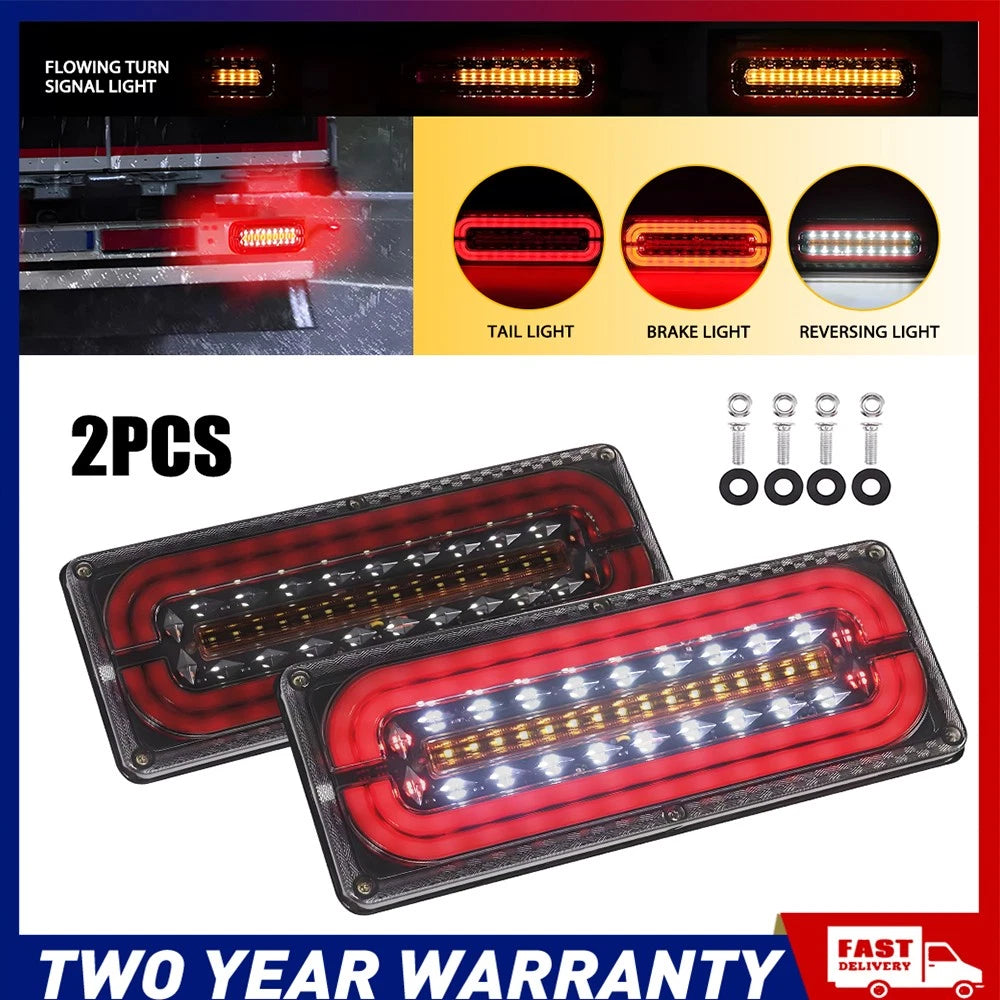

• 2 × 33cm sequential LED tail light bars

INSTALLATION NOTES

• Original-size design for straightforward fitment on compatible surfaces
• Requires basic wiring to vehicle lighting circuits (professional installation recommended if unsure)
• Ensure correct polarity and test all functions before final mounting

Please review all specifications and wiring information carefully before purchase.
