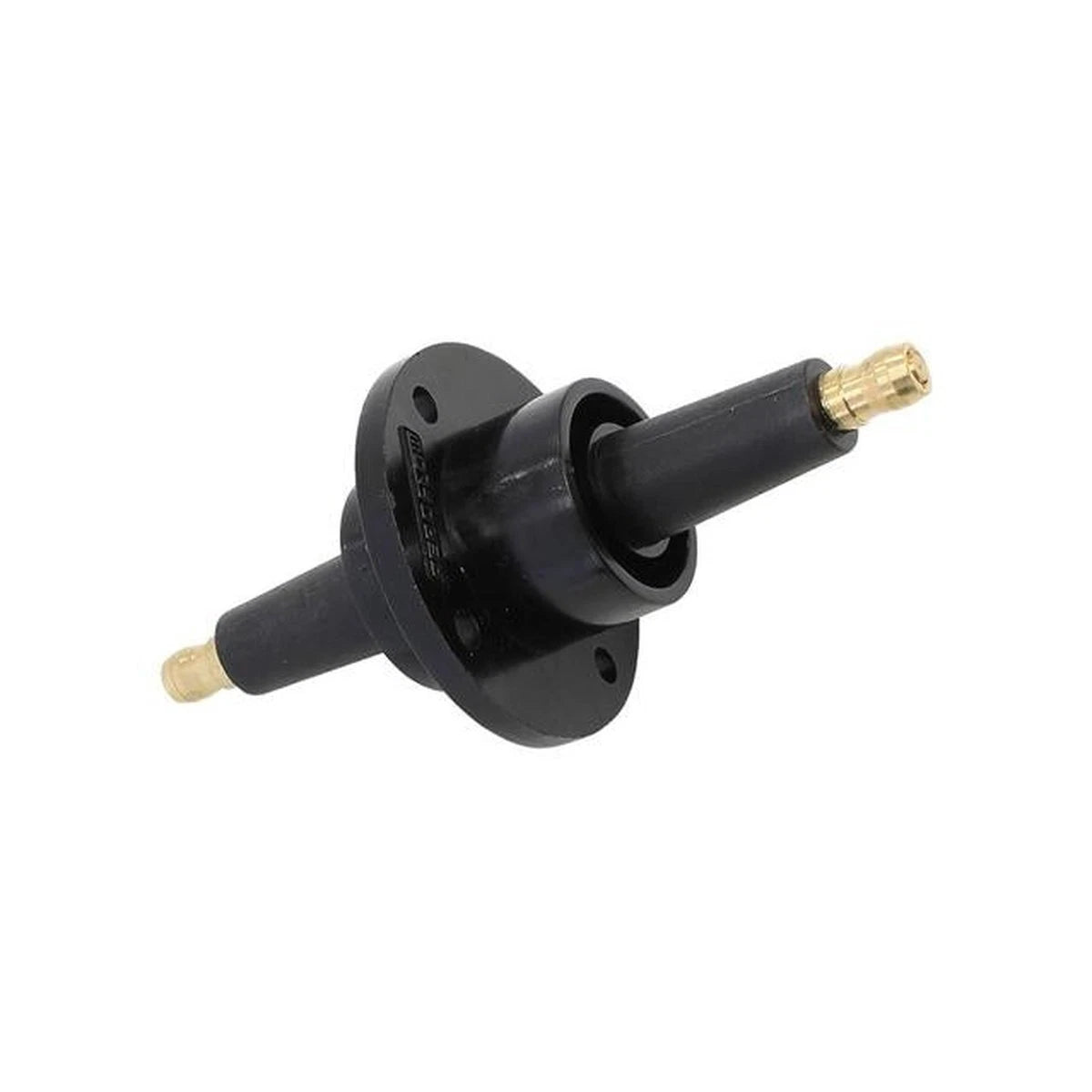

Aeroflow Firewall Feed Through Black AF4020-8212 Ignition Bulkhead

PRODUCT OVERVIEW

The Aeroflow AF4020-8212 firewall feed through provides a safe, insulated high-voltage path for ignition coil leads routed through the firewall, reducing the risk of arcing and voltage leakage into the passenger compartment.

KEY FEATURES

• Black finish firewall feed through for ignition coil wiring
• Ensures spark energy reaches the distributor cap without jumping to ground
• High-tension towers on both ends for strong coil wire connections

CONSTRUCTION

• 12.7 mm (1/2") brass rod core for reliable current transfer
• AN injection-moulded rynite and nylon housing for electrical isolation
• Spark-isolating path designed specifically for firewall penetration

INSTALLATION DETAILS

• Requires only a 25.4 mm (1") diameter hole in the firewall
• Mounts directly to the firewall for a secure, sealed installation
• Suitable where ignition coil is mounted in the passenger compartment

PART INFORMATION

• Brand: Aeroflow
• Part number: AF4020-8212
• Finish: Black
• Application: Universal ignition firewall feed through (no specific vehicle fitment supplied)
