Alternator 12V 150A for Ford Transit VM 2.2/2.4L & Defender DT224 2007-2014

PRODUCT OVERVIEW

This 12V, 150A alternator is designed as a direct replacement for selected Ford Transit VM diesel models and Land Rover Defender vehicles using DT224/DT244 engines. It matches the original mounting points, plug type and pulley configuration for reliable charging system performance.

SPECIFICATIONS

• Voltage: 12V
• Output: 150A
• Adjustment hole: 12 mm
• Pivot hole: 12 x 10 mm
• Adjustment to pivot distance: 175 mm
• Pulley diameter: 63 mm
• Number of grooves: 7PV (7-rib belt)

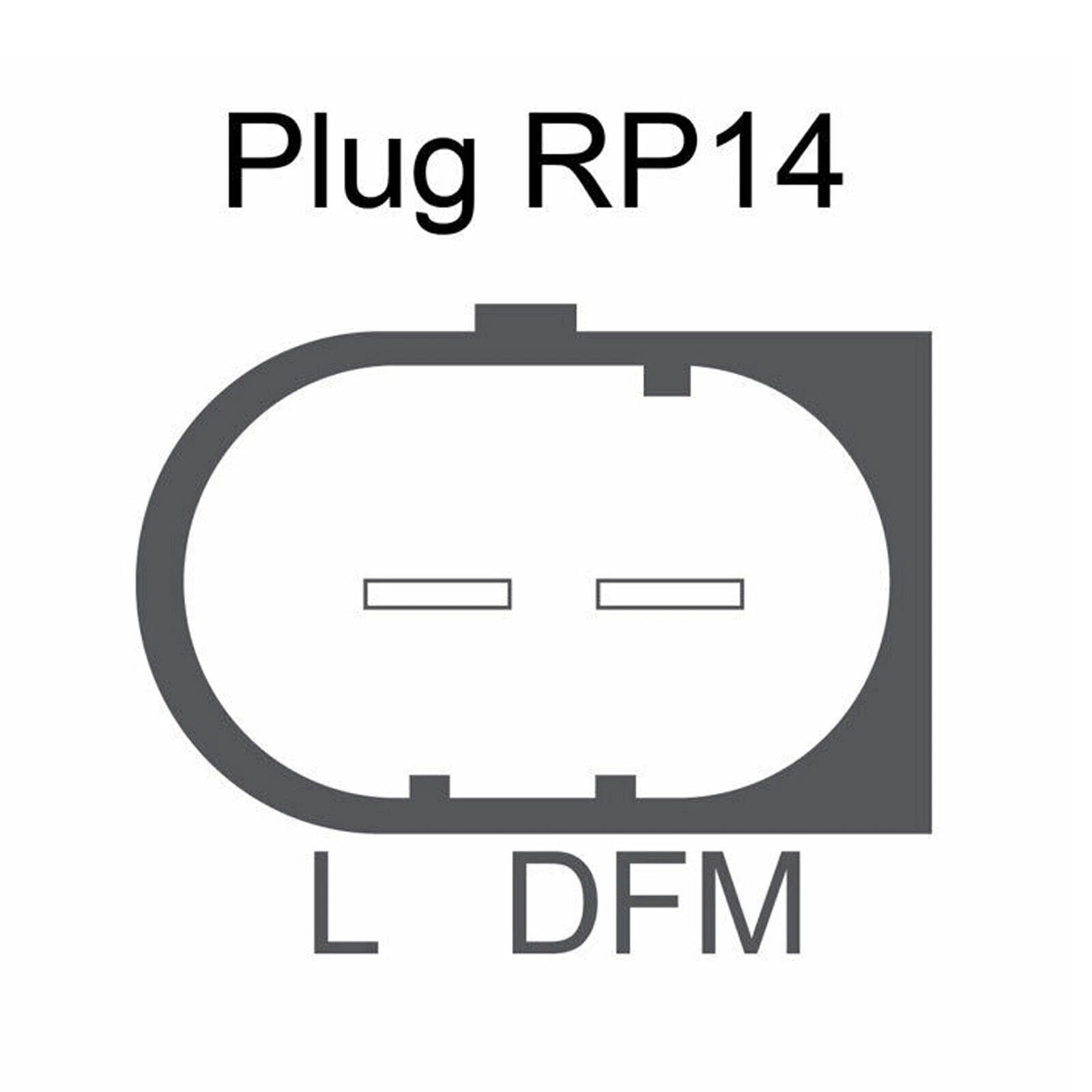

• Plug type: RP14

CROSS REFERENCES

This alternator is compatible with the following reference numbers (for identification only):

• BOSCH: 01210AA68B, 0121615003, 0986047920, 4792
• DELCO/FORD: 1372737, 1404792, 1581844, 6C1T10300CA, 6C1T10300CB, 6C1T10300CC, 6C1TCA, 6C1TCB, 6C1TCC, 7H1210300AA, 7H12AA
• LUCAS: LRA02978, LRA2978
• ROVER: 7H1210300AA, YLE500310

VEHICLE APPLICATIONS

Includes selected models and engines such as (not exhaustive):

• Ford Transit 2.4 TDCi (various power outputs, RWD and 4x4) 2004–2014
• Ford Transit 3.2 TDCi (RWD) 2007–2014
• Ford Australia Transit 2.4 TD (selected years and outputs)
• Land Rover Defender 2.2 Td4 4x4 (various outputs)
• Land Rover Defender 2.4 Td4 4x4 (selected years)
• Land Rover Defender 90/110/130 L316 with DT224 2.2L diesel (approx. 2012–2016)

Always verify compatibility using the OEM/part number and compare the plug and pulley with your original alternator before purchase.

PACKAGE CONTENTS

• 1 x Alternator

INSTALLATION NOTES

• Professional installation is recommended.
• Check plug type and pulley style/size against your original unit before ordering.
• Ensure all electrical connections are clean and secure during installation.
