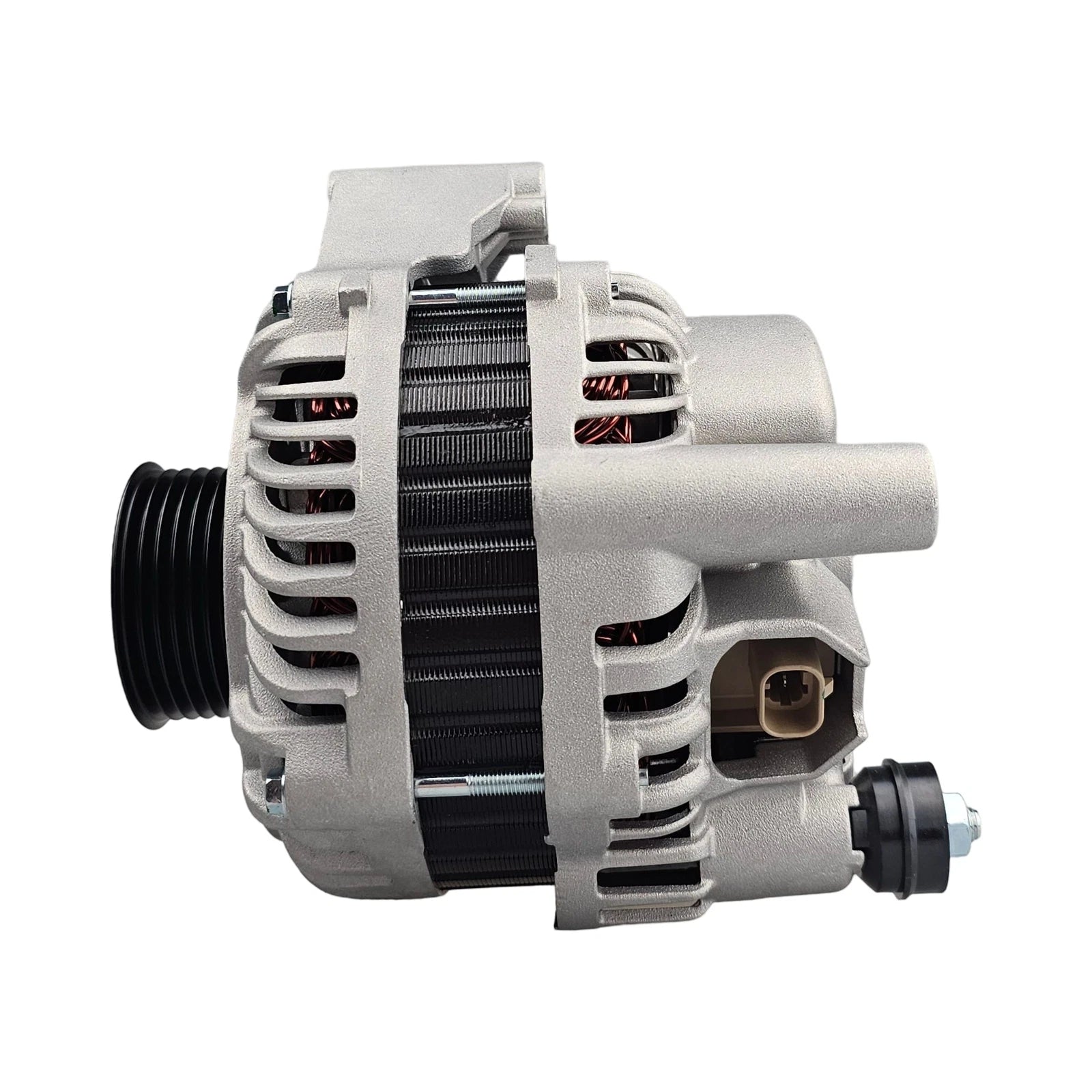

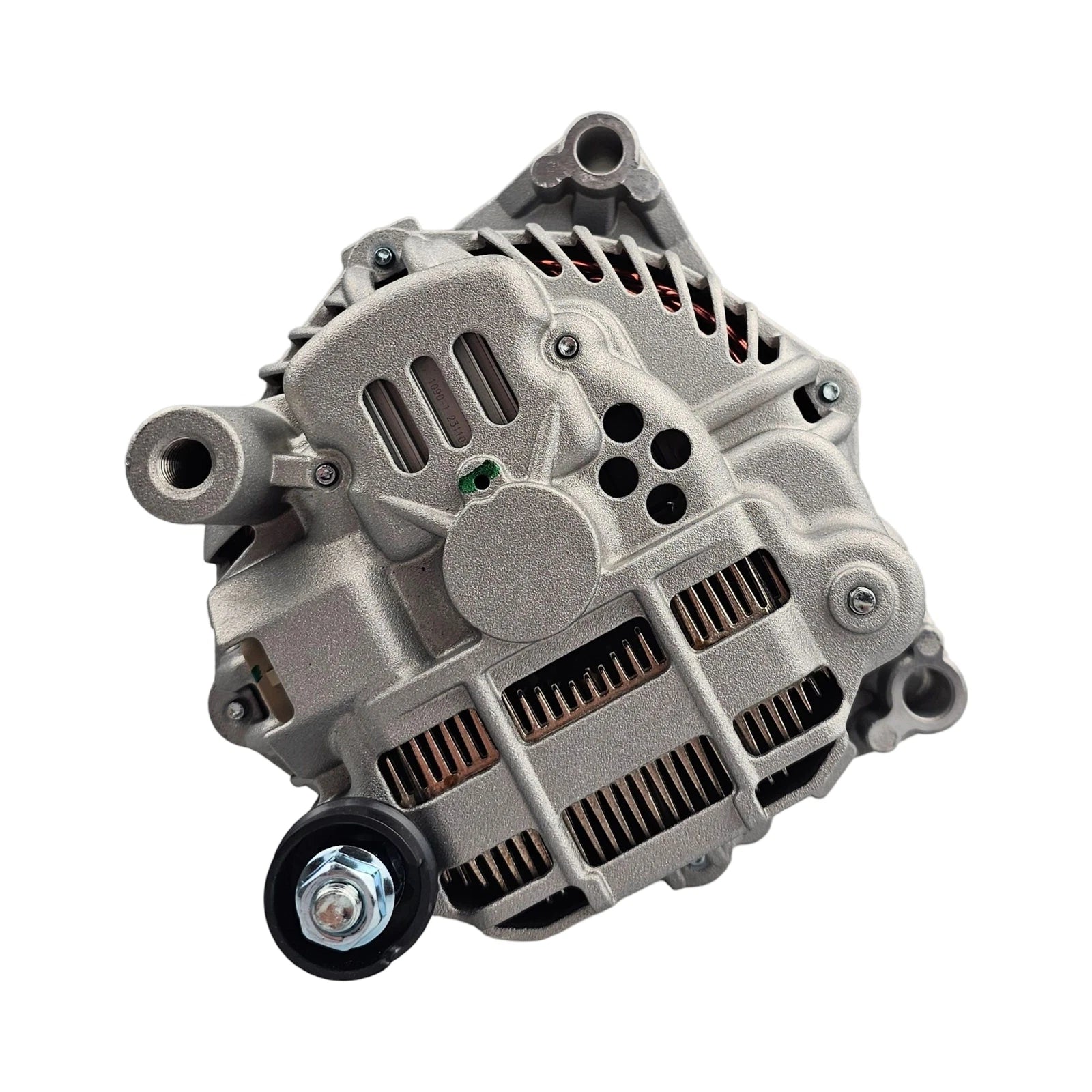

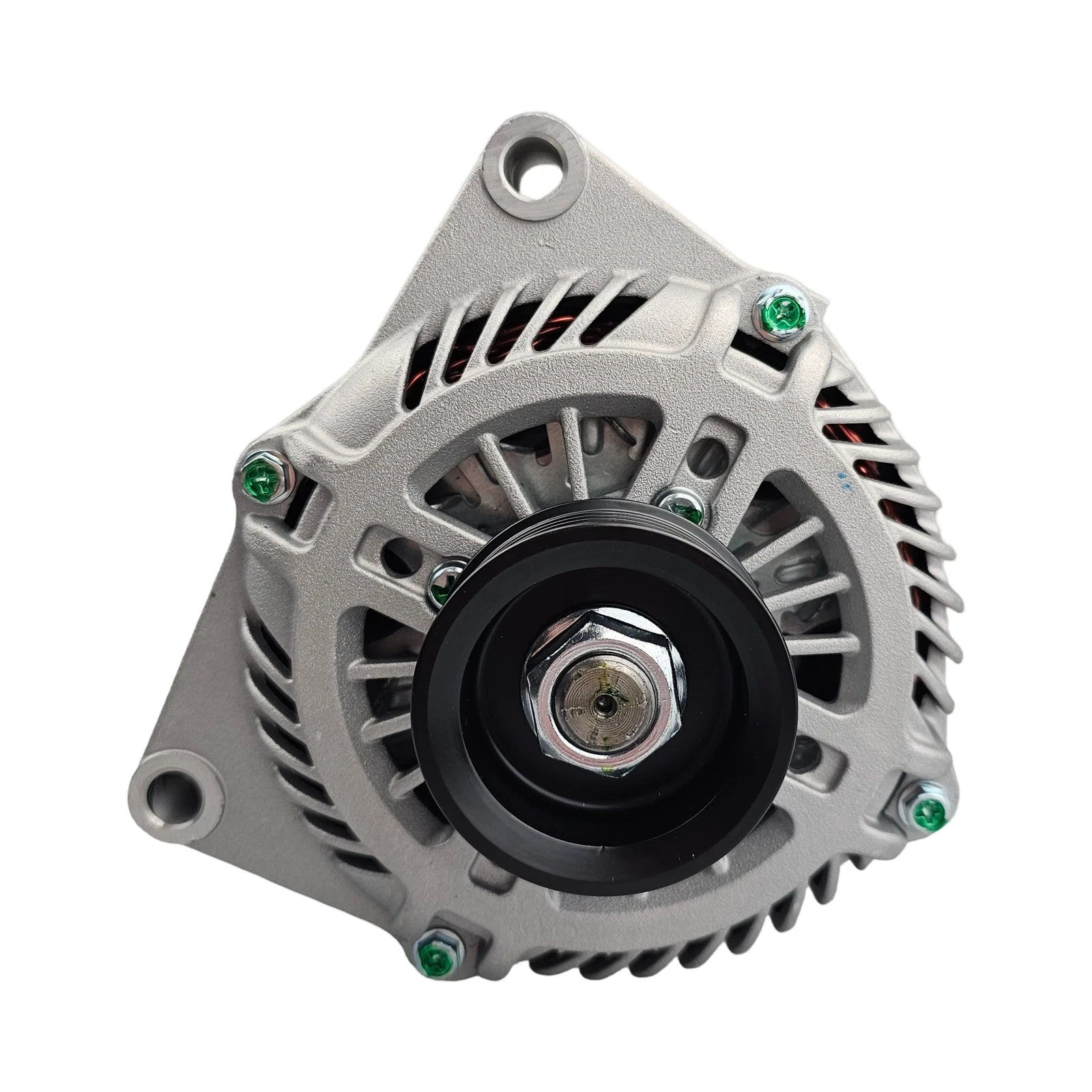

140A Alternator 12V for Holden VZ LS1 LS2 L76 Commodore & HSV

PRODUCT OVERVIEW

Brand new 12V, 140A alternator suitable for a range of Holden VZ and HSV LS-series applications. Designed for dependable charging performance and built to ISO/TS16949 quality standards.

KEY FEATURES

• 140A output for stable electrical performance
• 2-pin FR L plug configuration
• Direct replacement unit, ready to install
• Engineered to OEM-equivalent specifications

VEHICLE APPLICATIONS

Suitable for selected 5.7L and 6.0L LS-series Holden and HSV models, including but not limited to:

• Holden Adventra VZ 5.7L 4WD (2003–2006) – CX8, LX8
• Holden Calais VZ 5.7L / 6.0L RWD (2004–2006)
• Holden Caprice WL 5.7L / 6.0L RWD (2004–2006)
• Holden Commodore VZ 5.7L / 6.0L RWD (2004–2006) – Berlina, SS, SSZ, SV8, S
• Holden Crewman VZ 5.7L 4WD (2003–2006) – SS, SSZ, Cross 8, SS Thunder
• HSV Coupe VZ 5.7L / 6.0L RWD (2004–2007) – GTO, Signature
• HSV Clubsport VZ 6.0L RWD (2004–2006) – HRT Edition, HSV Dealer Team Edition
• HSV Grange WL 6.0L RWD (2004–2006)
• HSV Maloo VZ 6.0L RWD (2004–2007) – R8
• HSV Senator VZ 6.0L RWD (2004–2006) – Mark Skaife Signature Edition
• HSV SV6000 VZ 6.0L RWD (2005–2006)
• Holden Monaro VZ 5.7L / 6.0L RWD (2004–2006) – CV8, CV8-Z
• Holden Statesman WL 5.7L / 6.0L RWD (2004–2006) – International, V8

Always verify part compatibility against your vehicle VIN and existing alternator specifications before purchase.

TECHNICAL SPECIFICATIONS

• Voltage: 12V
• Amperage: 140A
• Plug type: RP120, 2-pin FR L
• Pulley type: 6PV (6PK)
• Pulley diameter: 55mm
• Adjustment hole: M8 x 1.25
• Pivot hole: 10mm
• Adjustment-to-pivot distance: 140mm
• Pivot length: 51mm

WHAT'S INCLUDED

• 1 x brand new alternator (140A, 12V)

WARRANTY

Supplied with a 12 month / 20,000 km warranty, subject to correct installation and normal use.
