Alternator for Nissan Pulsar N15 N16 GA16DE QG16DE QG18DE 1.6L 1.8L

PRODUCT OVERVIEW

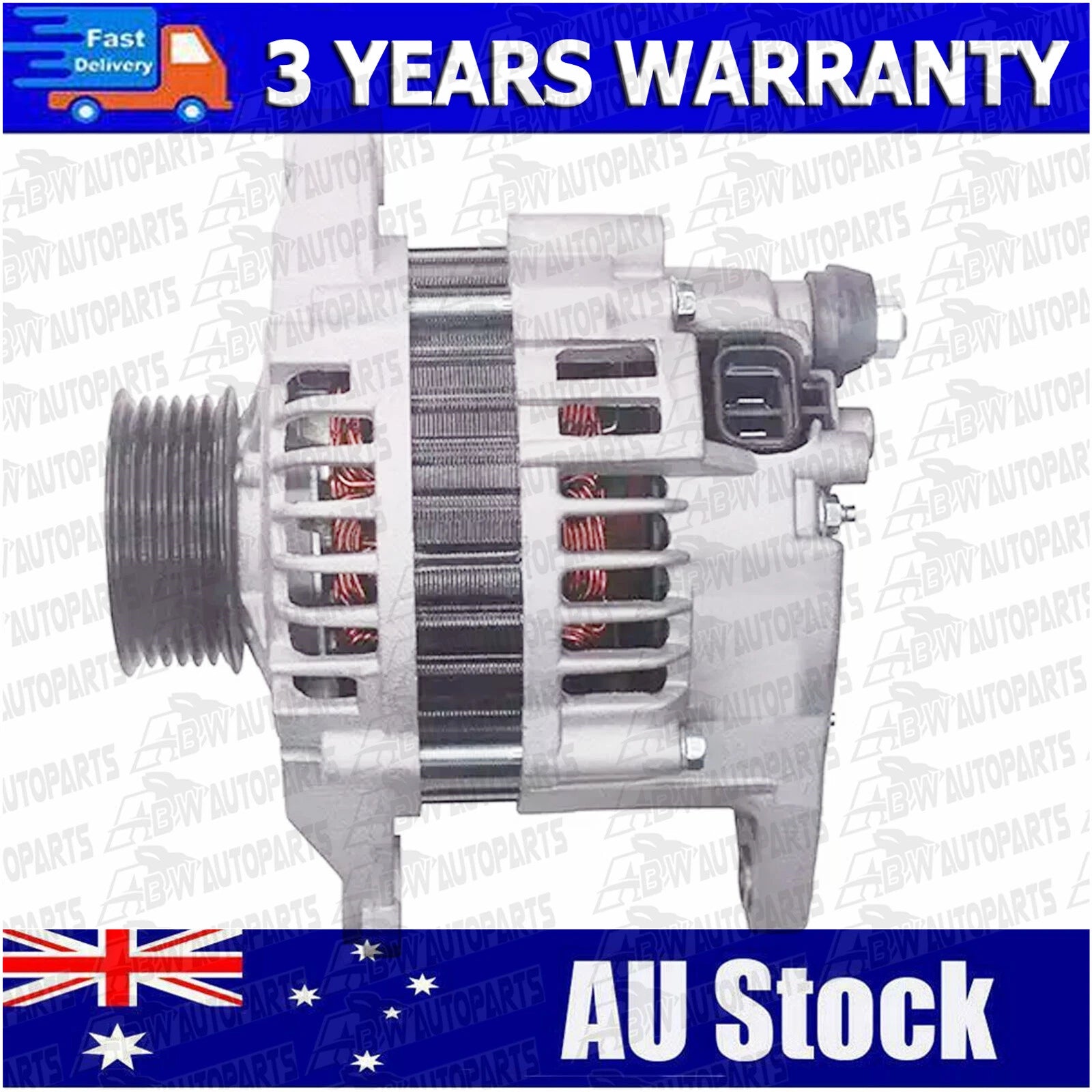

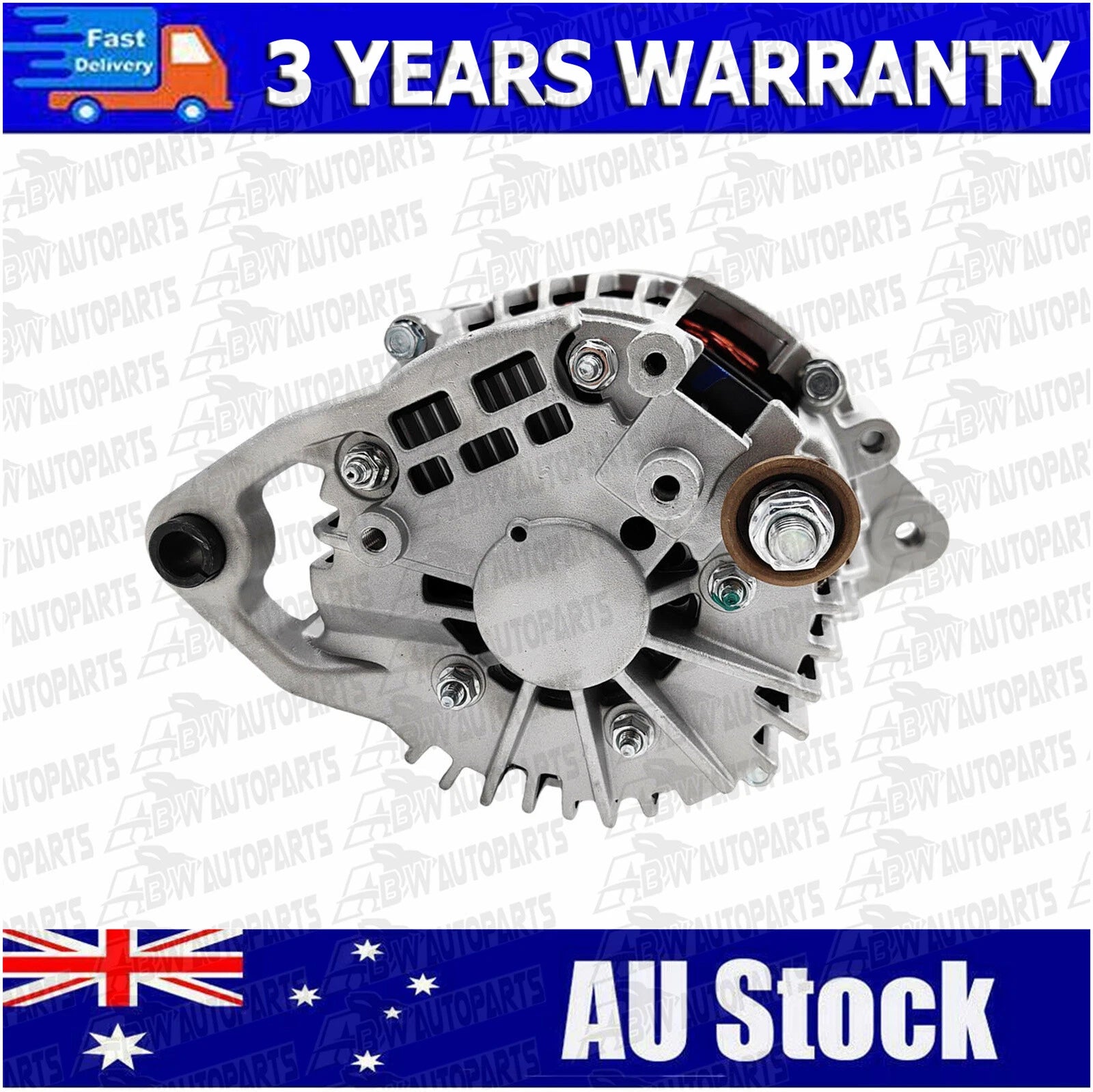

This replacement alternator is designed as an OEM-style unit for selected Nissan Pulsar N15 and N16 models equipped with GA16DE, QG16DE or QG18DE 1.6L and 1.8L engines. It provides stable charging performance for factory electrical systems and accessories.

Please compare the plug type, pulley configuration and reference part numbers with your original alternator before ordering.

KEY FEATURES

• 12V, 90A output for reliable charging performance

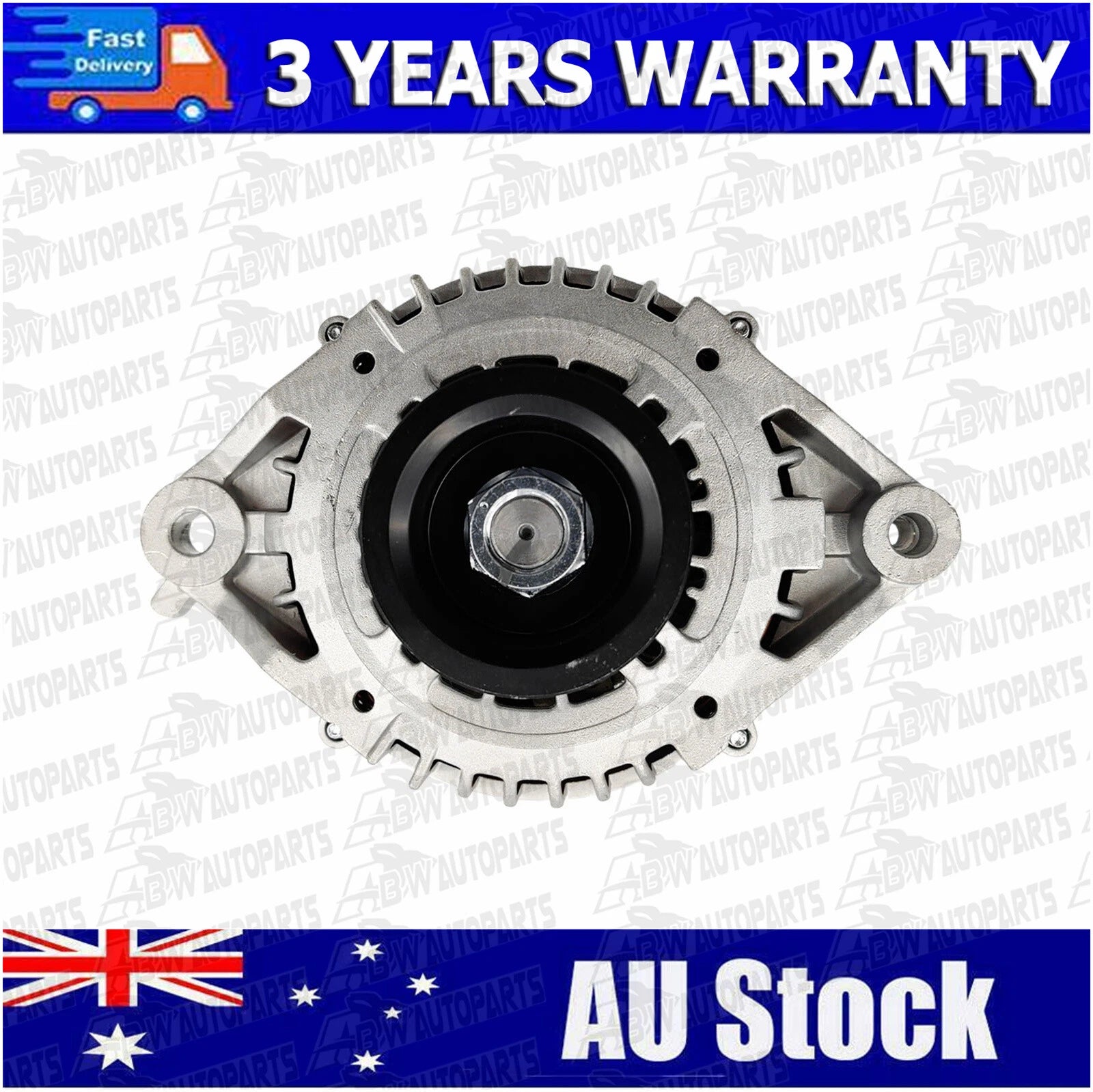

• 6-rib (6PV) pulley for serpentine belt systems

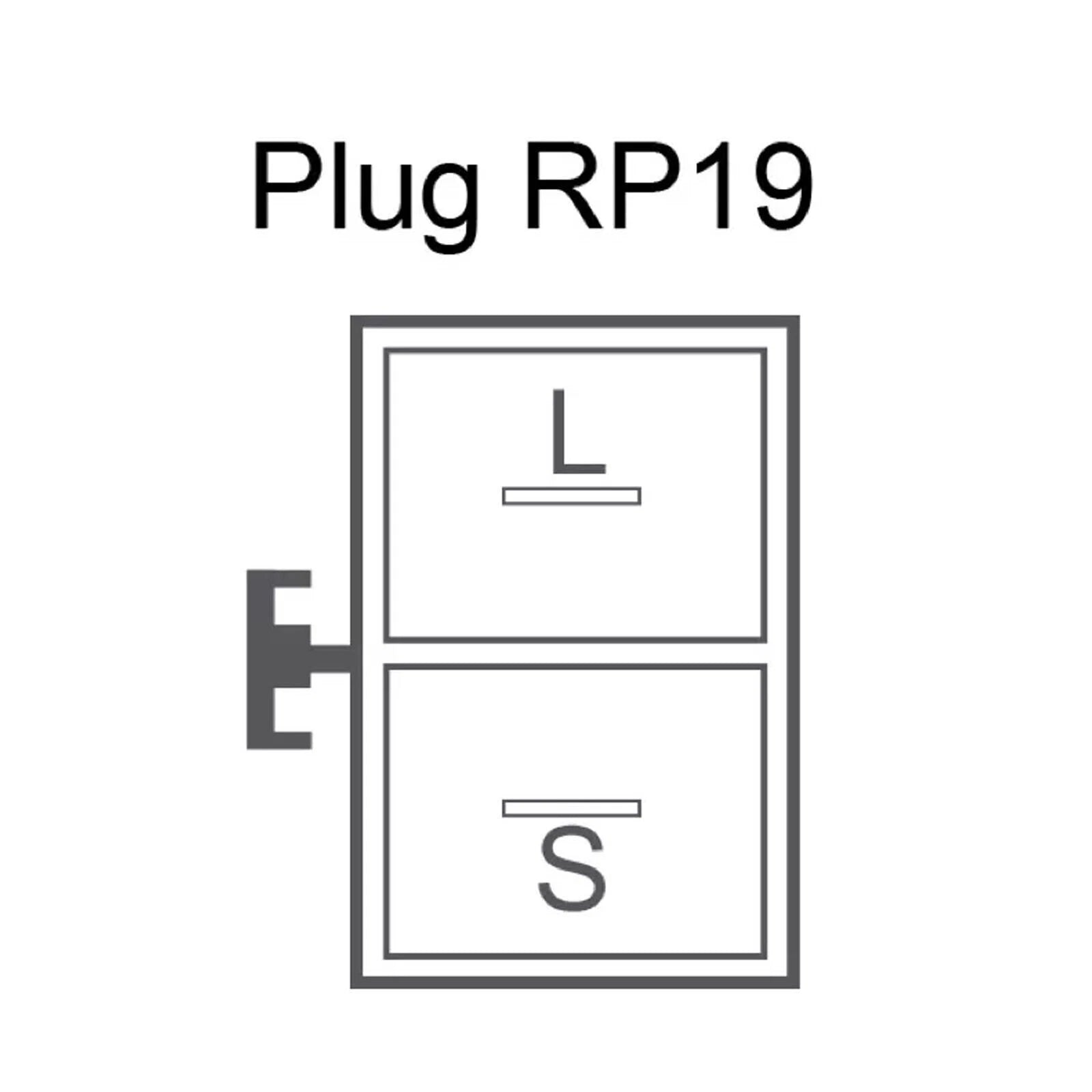

• Direct-bolt replacement with RP19 plug connection
• Engineered to meet or replace OEM performance

SPECIFICATIONS

REFERENCE PART NUMBERS

The following reference numbers are provided for cross-checking only. Match these with your original unit where possible:

LRB459, DRA3948, LR180-751, LR180-751B, LR180-751R, LR180-762, LR180-762B, LR180-768, LR180-769, LR180-769B, LR180-769F, LR180751, LR180751B, LR180751R, LR180762, LR180762B, LR180768, LR180769, LR180769B, LR180769F, 23100-3M200, 23100-3M200R, 23100-4M510, 23100-4Z400, 23100-AU000, 23100-BU010, 23100-BU015, 231003M200, 231003M200R, 231004M510, 231004Z400, 23100AU000, 23100BU010, 23100BU015, A2TB3191, A2TB3191A, 113371, 13728, 13937, HX097, 13637, 23100-0M003, 23100-0M003R, 231000M003, 231000M003R, LR170-748, LR170-748B, LR170748, LR170748B, HX098.

PACKAGE CONTENTS

• 1 x Alternator

INSTALLATION NOTES

• Professional installation is highly recommended.
• Confirm pulley size, groove count and plug type match your original unit.
• Disconnect the battery before removing or installing the alternator.
