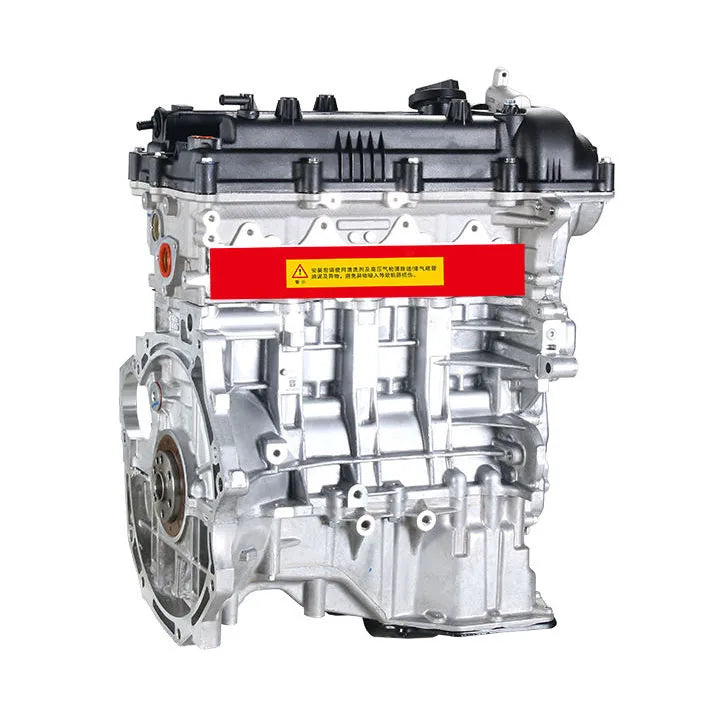

Brand New Korean Motor Gdi 1.6 1.6L G4FD Long Block Engine for KIA Hyundai I30 IX35 Elantra Tucson
Brand New Korean Motor Gdi 1.6 1.6L G4FD Long Block Engine for KIA Hyundai I30 IX35 Elantra Tucson
Brand New Korean Motor Gdi 1.6 1.6L G4FD Long Block Engine for KIA Hyundai I30 IX35 Elantra Tucson
Brand New Korean Motor Gdi 1.6 1.6L G4FD Long Block Engine for KIA Hyundai I30 IX35 Elantra Tucson
Brand New Korean Motor Gdi 1.6 1.6L G4FD Long Block Engine for KIA Hyundai I30 IX35 Elantra Tucson
Brand New Korean Motor Gdi 1.6 1.6L G4FD Long Block Engine for KIA Hyundai I30 IX35 Elantra Tucson
Click to zoom in
Load image into Gallery viewer, Brand New Korean Motor Gdi 1.6 1.6L G4FD Long Block Engine for KIA Hyundai I30 IX35 Elantra Tucson
Load image into Gallery viewer, Brand New Korean Motor Gdi 1.6 1.6L G4FD Long Block Engine for KIA Hyundai I30 IX35 Elantra Tucson
Load image into Gallery viewer, Brand New Korean Motor Gdi 1.6 1.6L G4FD Long Block Engine for KIA Hyundai I30 IX35 Elantra Tucson
Load image into Gallery viewer, Brand New Korean Motor Gdi 1.6 1.6L G4FD Long Block Engine for KIA Hyundai I30 IX35 Elantra Tucson
Load image into Gallery viewer, Brand New Korean Motor Gdi 1.6 1.6L G4FD Long Block Engine for KIA Hyundai I30 IX35 Elantra Tucson
Load image into Gallery viewer, Brand New Korean Motor Gdi 1.6 1.6L G4FD Long Block Engine for KIA Hyundai I30 IX35 Elantra Tucson

  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Added Value

    Mounting, Balancing

  • Fast Delivery

    Get your order delivered at lightning speed

Brand New Korean Motor Gdi 1.6 1.6L G4FD Long Block Engine for KIA Hyundai I30 IX35 Elantra Tucson

2 8
Many in stock
Engine Assembly
A$1,758.99
A$2,286.69 SAVE 23%
Hyundai’s 1.6-liter G4FD or 1.6 GDI engine was first introduced back in 2009 and is installed...
A$1,758.99
customers are viewing this product
Brand New Korean Motor Gdi 1.6 1.6L G4FD Long Block Engine for KIA Hyundai I30 IX35 Elantra Tucson
Description
Hyundai’s 1.6-liter G4FD or 1.6 GDI engine was first introduced back in 2009 and is installed in a number of popular Hyundai models such as the Tucson, Veloster and Soul. This motor belongs to the Gamma II line and is distinguished by a direct fuel injection system. Gamma family: G4FA, G4FL, G4FS, G4FC, G4FD, G4FG, G4FJ, G4FM, G4FP, G4FT, G4FU. In 2010, the GDi direct fuel injection unit debuted as part of the Gamma II line. This is a completely modern engine with an aluminum block, thin-walled cast-iron liners, a 16-valve cylinder head without hydraulic lifters, an injection pump driven by an exhaust camshaft, a timing chain drive and a proprietary Dual CVVT phase control system on two camshafts. There is also a plastic intake manifold with a VIS geometry change system.
The engine was installed on:
Hyundai Accent 4 (RB) in 2010 – 2017; Accent 5 (YC) since 2017;
Hyundai Elantra 5 (MD) in 2010 – 2015;
Hyundai i30 2 (GD) in 2011 – 2017;
Hyundai i40 1 (VF) in 2011 – 2019;
Hyundai ix35 1 (LM) in 2010 – 2015;
Hyundai Tucson 3 (TL) since 2015;
Hyundai Veloster 1 (FS) in 2011 – 2017;
Kia Carens 4 (RP) in 2013 – 2018;
Kia Ceed 2 (JD) in 2012 – 2018;
Kia Cerato 2 (TD) in 2010 – 2012;
Kia ProCeed 2 (JD) in 2015 – 2018;
Kia Rio 3 (UB) in 2011 – 2017;
Kia Soul 1 (AM) in 2011 – 2014; Soul 2 (PS) in 2013 – 2019;
Kia Sportage 3 (SL) in 2010 – 2015; Sportage 4 (QL) since 2015.
Technical Specifications
Displacement, cc
1591
Fuel system
direct injection
Power output, hp
130 – 140
Torque output, Nm
160 – 167
Cylinder block
aluminum R4
Block head
aluminum 16v
Cylinder bore, mm
77
Piston stroke, mm
85.4
Compression ratio
11
Features
VIS
Hydraulic lifters
no
Timing drive
chain
Phase regulator
Dual CVVT
Turbocharging
no
Q1. Which package do you used ? A: Generally we pack our goods in neutral boxes and wooden cases. Your own brand and and logo are welcomed after getting your authorization letter. Q2. What‘s your payment way? A: T/T 30% advance, and 70% after send photos of goods to you before load . Q3. What’s the delivery way? A: We accept EXW, FOB, CFR, CIF, DDU, just as your wish. Q4. How long is your delivery time? A: Usually it will take about 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Q5. What can I do if i received bad products ? A: We will think highly of your feedback, Please contact our sales at once if you find any problems after you received goods, our sales will give you resonable reply and help you solve all problems. Q6. What is your sample policy? A: We can supply the sample if we have ready parts in stock.
