Front Bendix 4WD Brake Pads & Rotors Kit for Isuzu D-Max & Colorado

PRODUCT OVERVIEW

Complete front brake upgrade kit featuring premium disc rotors and Bendix 4WD brake pads, designed for reliable stopping power and durability in demanding conditions.

Note: Suits Holden Colorado up to 08/2016. For vehicles after 08/2016, use kit BRK1046.

KEY FEATURES

• Engineered for strong, consistent braking under normal and 4WD use
• Geomet anti-rust coated rotors for superior corrosion protection
• Improved heat management to reduce brake fade and extend rotor life
• Precision machining for smoother operation and reduced vibration
• Suitable for a wide range of Isuzu D-Max TFS/TFR and Holden Colorado RG models

VEHICLE APPLICATIONS

• Holden Colorado RG (06/2012 - 08/2016) – models including DX, LX, LX THUNDER, LT THUNDER, LT, LTZ, LTZ THUNDER, DX, LX SPACE CAB, LTZ SPACE CAB, STORM, Z71, Z71 EXTREME
• Holden Colorado 7 RG (11/2013 - 08/2016) – models including LTZ, LT
• Isuzu D-Max TFS 3.0L 4JJ1-TCX (06/2012 - 08/2016) – models including EX, SX
• Isuzu D-Max TFR/TFS 3.0L 4JJ1-TCX (06/2012 - 06/2020) – models including LS HI RIDE, LS-T HI RIDE, SX, SX HI RIDER, X RUNNER, X RIDER LIMITED EDITION, SX LOW RIDE, SPACE CAB, SX HI RIDE

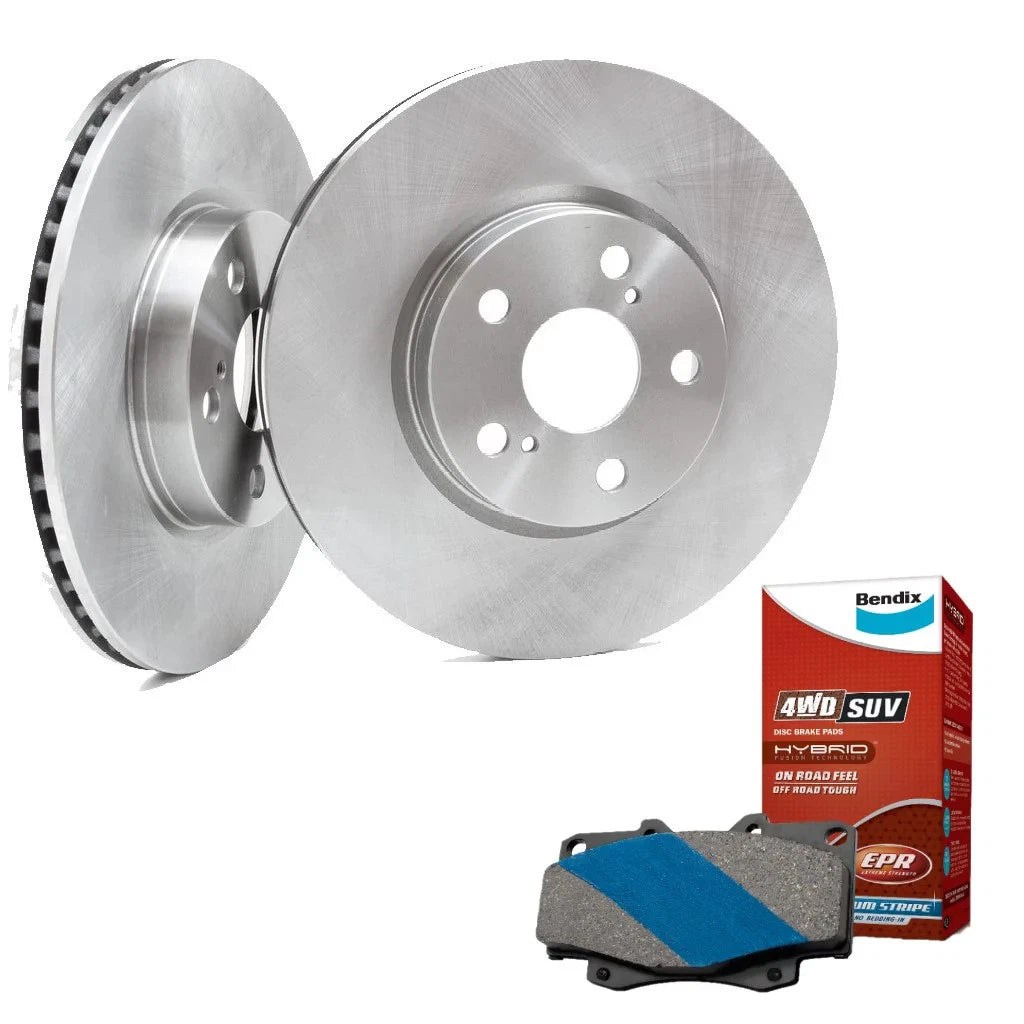

WHAT'S INCLUDED

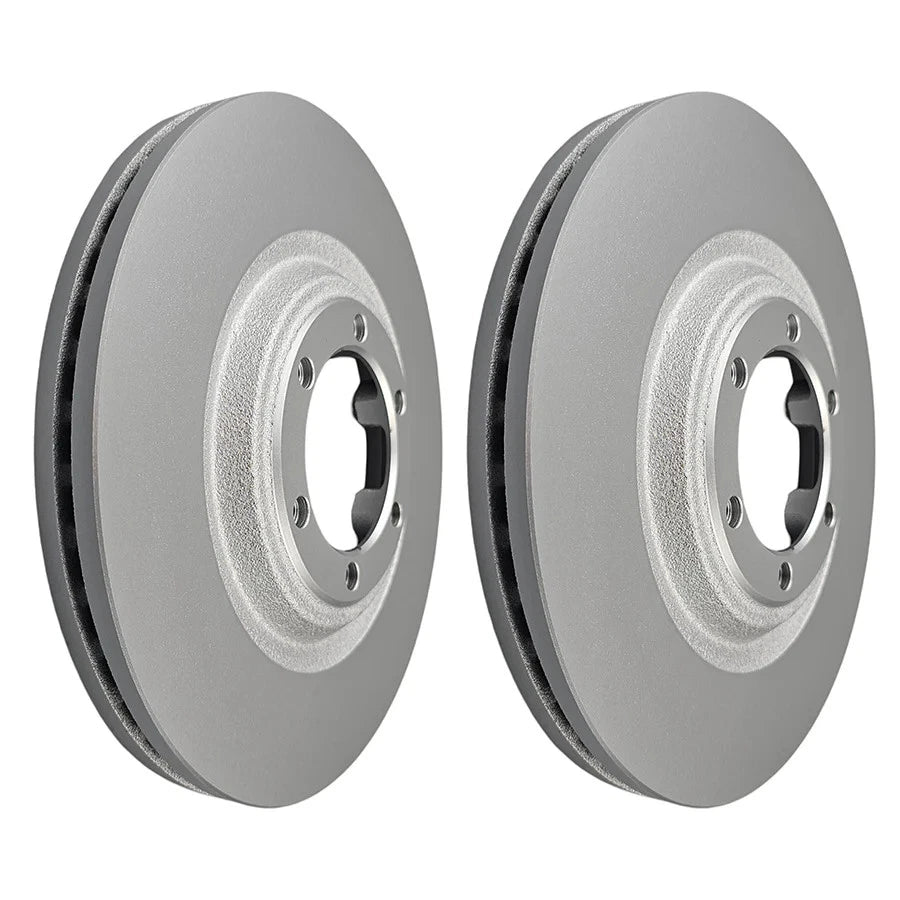

• 2 x Front brake disc rotors (Part No: BDR10022)

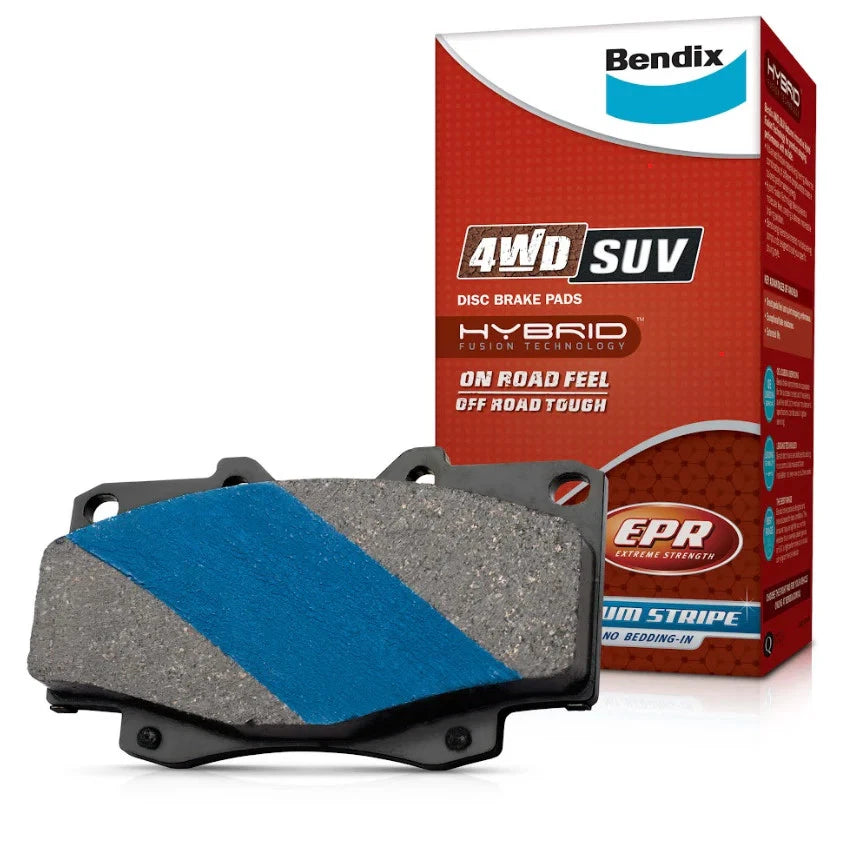

• 1 x Set Bendix 4WD front brake pads (Part No: DB1841, 4 pads)

ROTOR SPECIFICATIONS

• Studs & PCD: 6 x 109 mm
• Outer diameter: 300 mm
• Height: 40 mm
• Thickness (max): 27 mm
• Thickness (min): 25 mm
• Centre diameter: 88 mm
• Coating: Geomet anti-rust

PAD SPECIFICATIONS (DB1841)

• Application: 4WD front brake pads
• Length: 151.8 mm
• Width: 60 mm
• Thickness: 16 mm

ADDITIONAL DETAILS

The precision-machined rotors and 4WD-specific Bendix pads are designed to offer a smoother brake feel, reduced noise, and extended service life when installed and maintained correctly.
