Front Brake Pads and Disc Rotors set for Hyundai i40 VF 2011-2018 320mm
Front Brake Pads and Disc Rotors set for Hyundai i40 VF 2011-2018 320mm
Front Brake Pads and Disc Rotors set for Hyundai i40 VF 2011-2018 320mm
Front Brake Pads and Disc Rotors set for Hyundai i40 VF 2011-2018 320mm
Front Brake Pads and Disc Rotors set for Hyundai i40 VF 2011-2018 320mm
Click to zoom in
  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Added Value

    Mounting, Balancing

  • Fast Delivery

    Get your order delivered at lightning speed

Front Brake Pads and Disc Rotors set for Hyundai i40 VF 2011-2018 320mm

2 8
263480353717
In stock
Braking System
$282.35
Product Description All Items | New Arrival | Ending Soon | Items On Sale OPEN HOURS: ...
$282.35

customers are viewing this product
Front Brake Pads and Disc Rotors set for Hyundai i40 VF 2011-2018 320mm
Product Description
All Items | New Arrival | Ending Soon | Items On Sale OPEN HOURS:  Mon - Fri: 8:00am -4:30pm  Home Feedback Add Us
  • The Parts Compatibility listed in eBay are for reference Only.
  • In some cases, for the same year range & model variants, there could be different part.
  • Please check the following listing details carefully.
Product Title Front Brake Pads and Disc Rotors set for Hyundai i40 VF 2011-2018 320mm Product Images click thumbnails above to enlarge SET_HR8197_HDB2174
Product Description

SET_HR8197_HDB2174

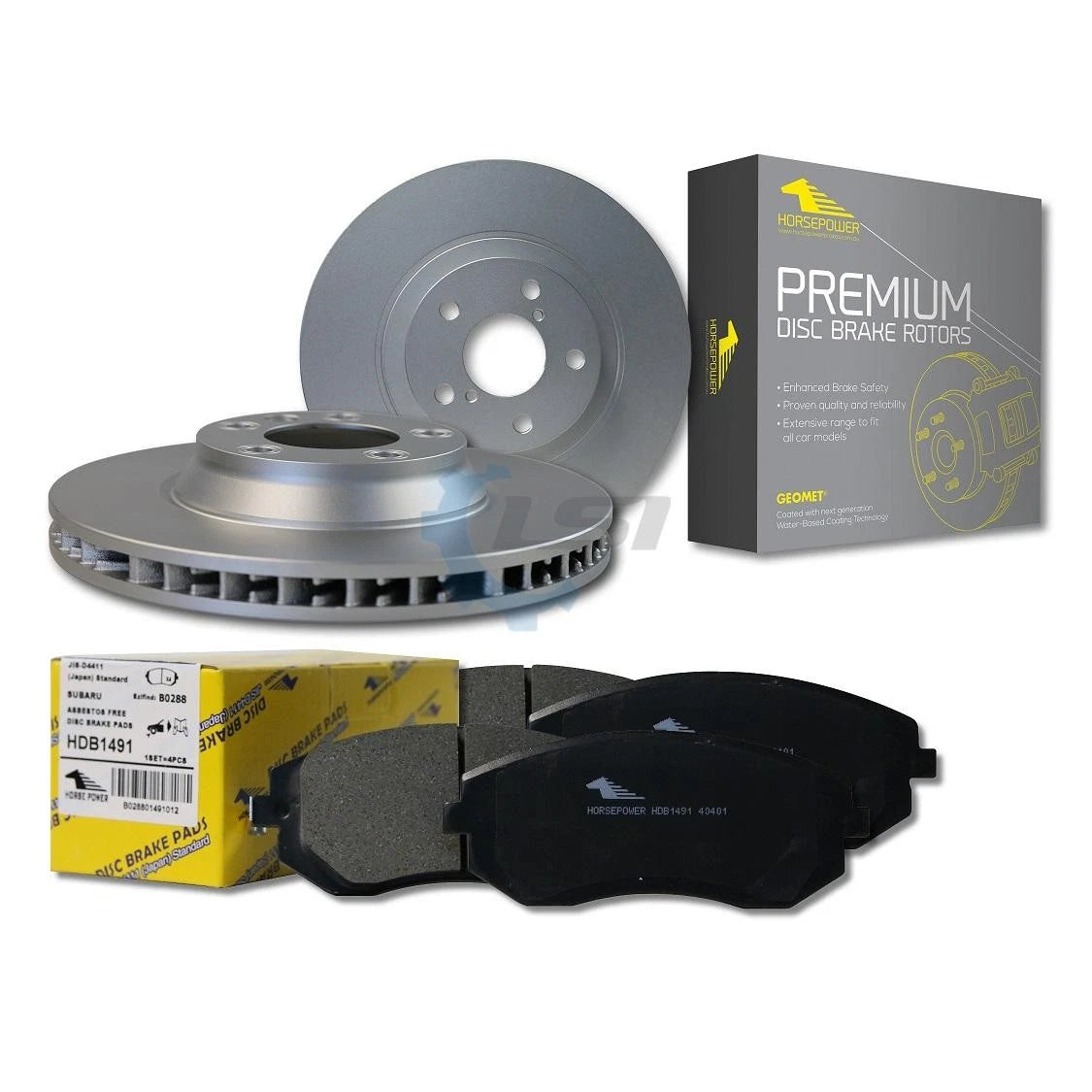

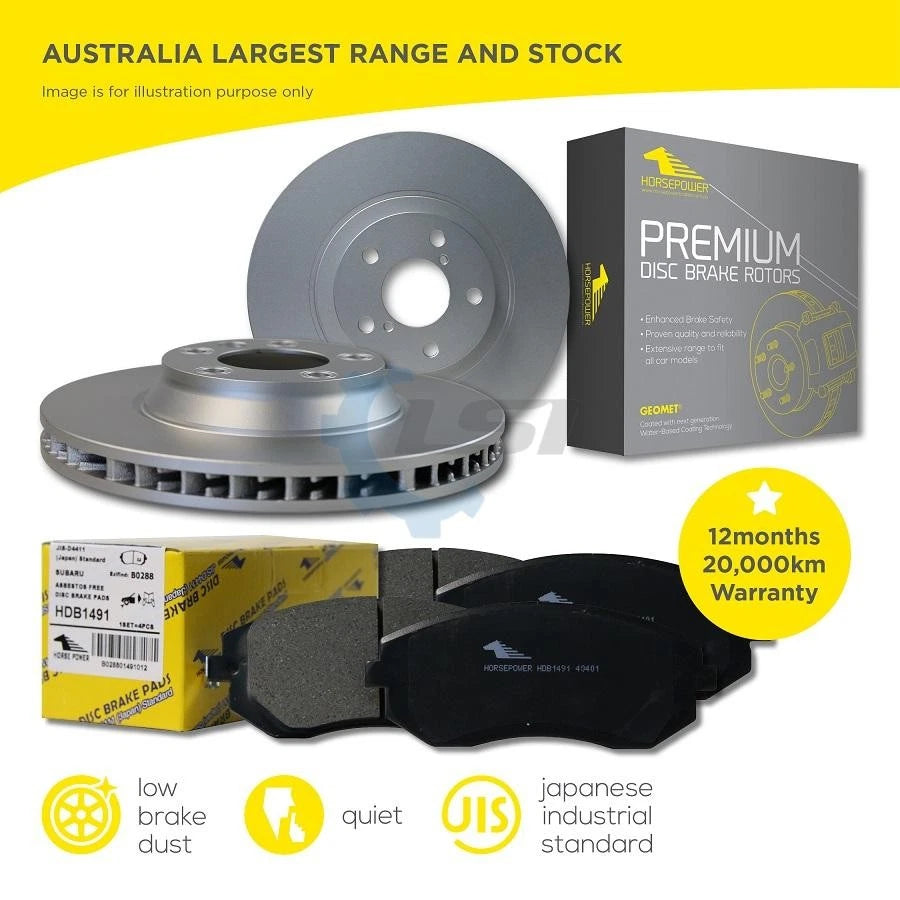

Product Description   This listing consists of 2 x Disc Rotors and 1 x set of  Brake Pads for LH and RH wheels.Disc Rotors Features:
  • Perfect match to OE Design
  • Optimal thermal conductivity
  • Help to prevent brake judder
  • Avoid braking noise due to better damping coefficient
  • Higher resistance to distortion and thermal cracking
  • Improve braking safety and performance
  • Maximum rotor life
  • Brake effectiveness (requires less pedal effort)
  • Lower temperature (reduces stress on the rotors and other brake components)
  • Lower wear (long life as cooler brakes last more)

Brake Pads Features:

  • Advanced Ceramic Formula
  • Specifically designed for Australian/Japanese/Korean Models
  • excellent pedal feeling
  • Low brake noise
  • Low Dust
  • suitable for everyday driving
Product Specification Disc Rotor Dimension:
Diameter 320 mm
Height 47 mm
Max. Thickness 28 mm
Min. Thickness 26 mm
Centre Holes 69 mm
No. of Studs 5
Vented/Solid V

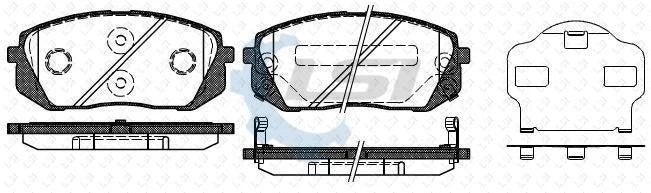

Brake Pads Measurement:
Length 138 mm
Height 61 mm
Thickness 17 mm
Sensor Length mm
Additional Information

You are buying the 320mm disc

Some models may take the 300mm

Please send you VIN number for us to check if you are not sure

Pick up Inv & TrackTax Invoice & Tracking Warranty

Pick up

Pick up option is available.

On the checkout page, please tell us the estimate date & time to pick up.
You will be contacted if there is any stock availability Issue.

Tax Invoice & Tracking

Tax Invoice

A Tax Invoice from LSI Auto Parts will be attached to the parcel.

Tracking Your Order

Orders will be despatch the same or next business day.
We will update the tracking number in eBay when the item is ready to despatch.

  1. Australia post or Courier Company
    Please track the parcel from Australia Post or Courier company website with the tracking number provided.
  2. Customer Pick up
    If you specified "pick up", We will update ebay with "Customer Pick up" as the courier name , "date & Invoice number" as Tracking.

Warranty

We supply all products with a 1 Year Parts Replacement Warranty unless specified on the Product description & Specifications.

Note :
Copy of invoice as prove of purchases is required for all warranty claims.
Return postage and installation labour are buyer's expense.



Please refer to eBay by clicking "Postage & Payment" Tabs, then scroll down to "".

Business hours:
Monday to Friday (8:00am to 4:30pm)
Close on Public Holidays.

Contact:
Please quote product SKU # SET_HR8197_HDB2174 when sending your enquiry.

© 2025 LSI Auto Parts - All Rights Reserved.
Specifications
Diameter 320 mm
Height 47 mm
Max. Thickness 28 mm
Min. Thickness 26 mm
Centre Holes 69 mm
No. of Studs 5
Vented/Solid V
Vehicle Fitment
Make Model Year Submodel Variant Engine Notes
Hyundai i40 2018 VF CW 1.7 CRDi FWD Diesel 1.7L 4cyl 104kW D4FD 1685cc 104kW (Diesel)
Hyundai i40 2018 VF CW 2.0 FWD Petrol 2.0L 4cyl 122kW G4NC 1999cc 122kW (Petrol)
Hyundai i40 2018 VF CW 2.0 GDi FWD Petrol 2.0L 4cyl 130kW G4NC 1999cc 130kW (Petrol)
Hyundai i40 2018 VF Sedan 1.7 CRDi FWD Diesel 1.7L 4cyl 100kW D4FD 1685cc 100kW (Diesel)
Hyundai i40 2018 VF Sedan 1.7 CRDi FWD Diesel 1.7L 4cyl 104kW D4FD 1685cc 104kW (Diesel)
Hyundai i40 2018 VF Sedan 2.0 GDi FWD Petrol 2.0L 4cyl 121kW G4NC 1999cc 121kW (Petrol)
Hyundai i40 2018 VF Sedan 2.0 GDi FWD Petrol 2.0L 4cyl 131kW G4NC 1999cc 131kW (Petrol)
Hyundai i40 2017 VF CW 1.7 CRDi FWD Diesel 1.7L 4cyl 104kW D4FD 1685cc 104kW (Diesel)
Hyundai i40 2017 VF CW 2.0 FWD Petrol 2.0L 4cyl 122kW G4NC 1999cc 122kW (Petrol)
Hyundai i40 2017 VF CW 2.0 GDi FWD Petrol 2.0L 4cyl 130kW G4NC 1999cc 130kW (Petrol)
Hyundai i40 2017 VF Sedan 1.7 CRDi FWD Diesel 1.7L 4cyl 100kW D4FD 1685cc 100kW (Diesel)
Hyundai i40 2017 VF Sedan 1.7 CRDi FWD Diesel 1.7L 4cyl 104kW D4FD 1685cc 104kW (Diesel)
Hyundai i40 2017 VF Sedan 2.0 GDi FWD Petrol 2.0L 4cyl 121kW G4NC 1999cc 121kW (Petrol)
Hyundai i40 2017 VF Sedan 2.0 GDi FWD Petrol 2.0L 4cyl 131kW G4NC 1999cc 131kW (Petrol)
Hyundai i40 2016 VF CW 1.7 CRDi FWD Diesel 1.7L 4cyl 104kW D4FD 1685cc 104kW (Diesel)
Hyundai i40 2016 VF CW 2.0 FWD Petrol 2.0L 4cyl 122kW G4NC 1999cc 122kW (Petrol)
Hyundai i40 2016 VF CW 2.0 GDi FWD Petrol 2.0L 4cyl 130kW G4NC 1999cc 130kW (Petrol)
Hyundai i40 2016 VF Sedan 1.7 CRDi FWD Diesel 1.7L 4cyl 100kW D4FD 1685cc 100kW (Diesel)
Hyundai i40 2016 VF Sedan 1.7 CRDi FWD Diesel 1.7L 4cyl 104kW D4FD 1685cc 104kW (Diesel)
Hyundai i40 2016 VF Sedan 2.0 GDi FWD Petrol 2.0L 4cyl 121kW G4NC 1999cc 121kW (Petrol)
