Front Left 5-Pin Window Lift Motor for Toyota Landcruiser 100 1998–2007

Product Overview

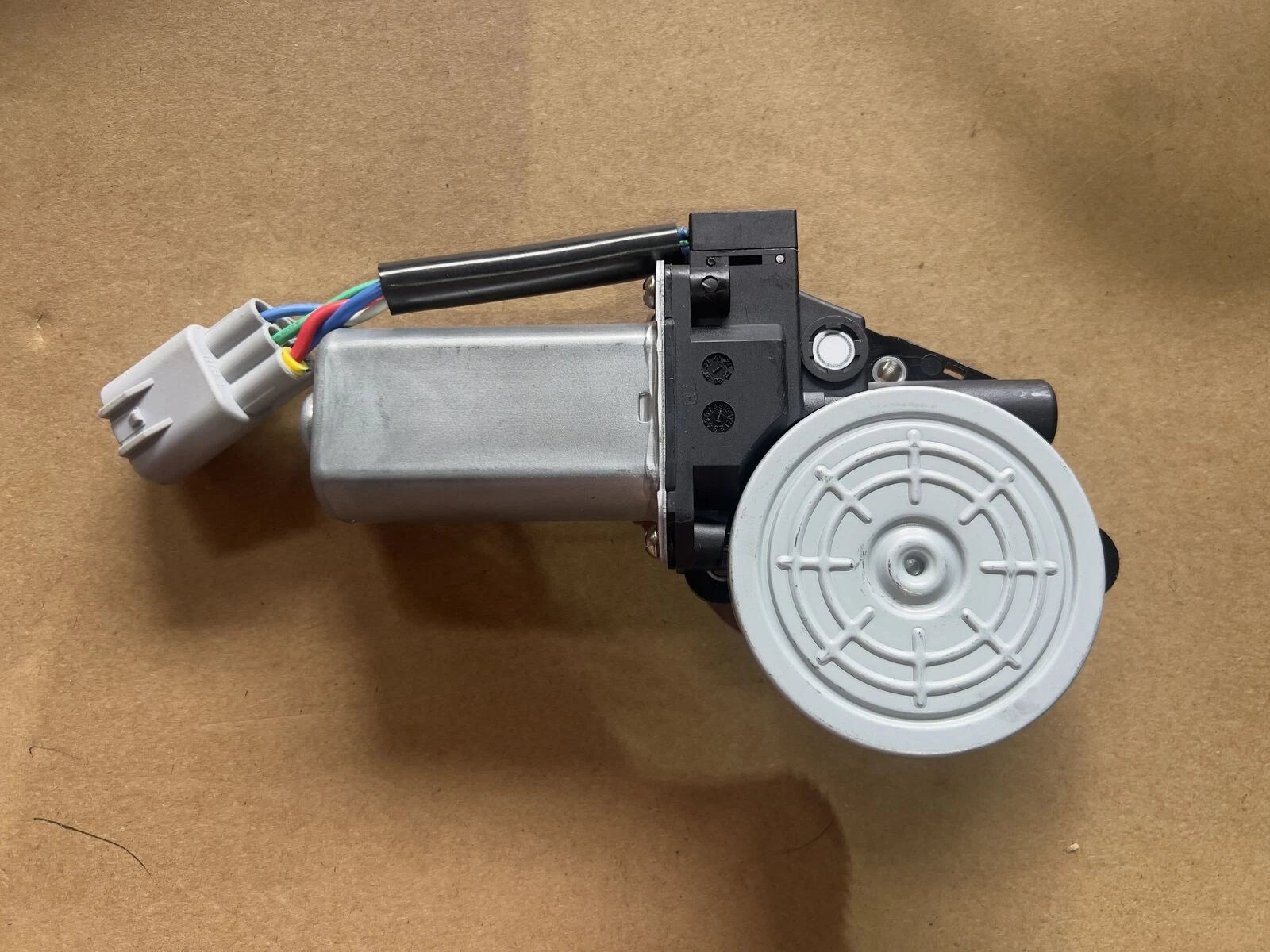

This front left electric window lift motor is a high-quality aftermarket replacement designed for Toyota Landcruiser 100 (J100) Series models built between 01/1998 and 08/2007. It is supplied as a brand-new unit with a 5-pin motor connector.

Key Features

• Direct-fit front left (front passenger side) window lift motor

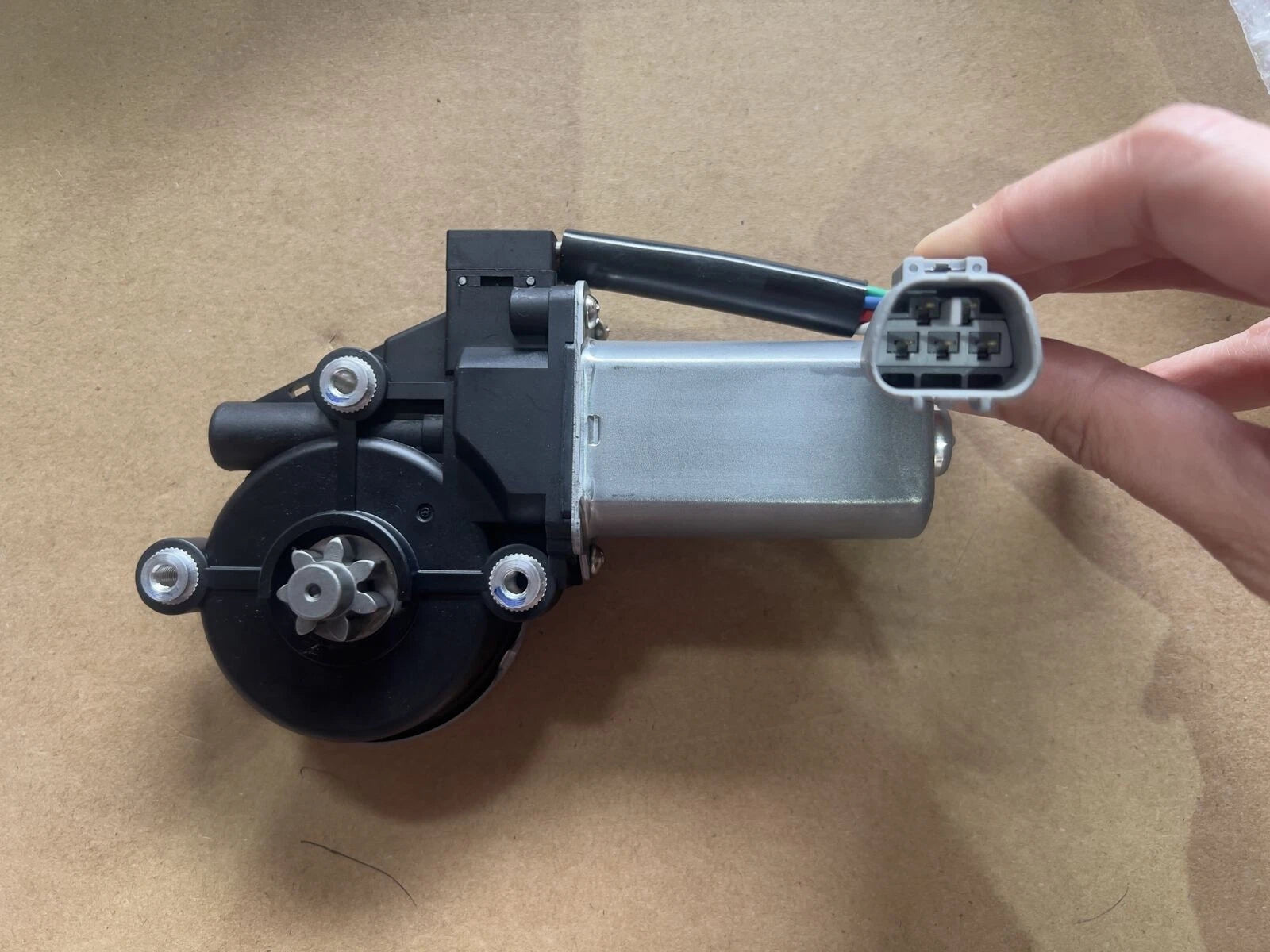

• Electric operation with 5-pin motor connector
• High-quality aftermarket construction
• Brand new replacement part
• Supplied as 1 piece

Specifications

• Product: Window lift motor
• Operating mode: Electric
• Placement on vehicle: Front left (front passenger side)
• Motor connector: 5 pins
• Part type: High-quality aftermarket
• Condition: Brand new
• MPN/Item No.: 102255M5F
• Warranty: 1 year (part only)
• Quantity supplied: 1 piece

Vehicle Fitment

• Toyota Landcruiser J100 Series 01/1998 – 08/2007

Always confirm compatibility by matching the existing part and connector configuration before purchase.

Anti-Pinch Function Setup

This motor is suitable for window systems with an anti-pinch function. To avoid malfunction, do not operate or test the motor before it is installed in the door.

• Install the motor and connect it to the one-touch window switch.
• Pull the switch up and check that the window travels fully to the top.
• If the window drops after reaching the top, follow the reset procedure below.

Anti-Pinch Reset Procedure

• Step 1: Pull the window switch briefly to move the window slightly up to the top position.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top.
• Step 3: Press the window switch briefly to move the window slightly down to the bottom position.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom.
• Step 5: Pull the one-touch switch to move the window fully up to the top and confirm it no longer drops.

If the window still moves down after reaching the top, repeat the reset steps until the anti-pinch function is correctly set.

Installation & Usage Notes

• For best results, installation by a qualified automotive technician is recommended.
• Parts are intended for repair and replacement of existing components.
• Product colour and finish may vary slightly due to screen and lighting differences.
• Match the product images and connector type to your original motor before ordering.

Warranty Summary

• Standard 12-month warranty on this part, effective from date of invoice or delivery.
• Warranty covers replacement of the defective part only.
• Labour, installation, and consequential damage are not covered.
• Incorrect installation, misuse, modification, or use outside the intended application will void coverage.
• Customer is responsible for shipping costs associated with replacement under warranty.

Some electrical products and window motors may require assessment by the supplier or a repair agent before a claim is approved.

Returns & Refunds Overview

• Standard products are generally returnable within 30 days of receipt, provided they are unused, in original packaging, and in resaleable condition.
• Proof of purchase is required for all returns.
• Items that are modified, damaged, incorrectly installed, or with broken seals (for electrical items) are not returnable.
• Change-of-mind, incorrect item ordered, and most warranty returns require the customer to cover return shipping.
• Refunds typically cover the product cost only and exclude original shipping charges.

Refer to the store’s full returns and delivery terms at checkout for complete conditions and any updates to this summary.
