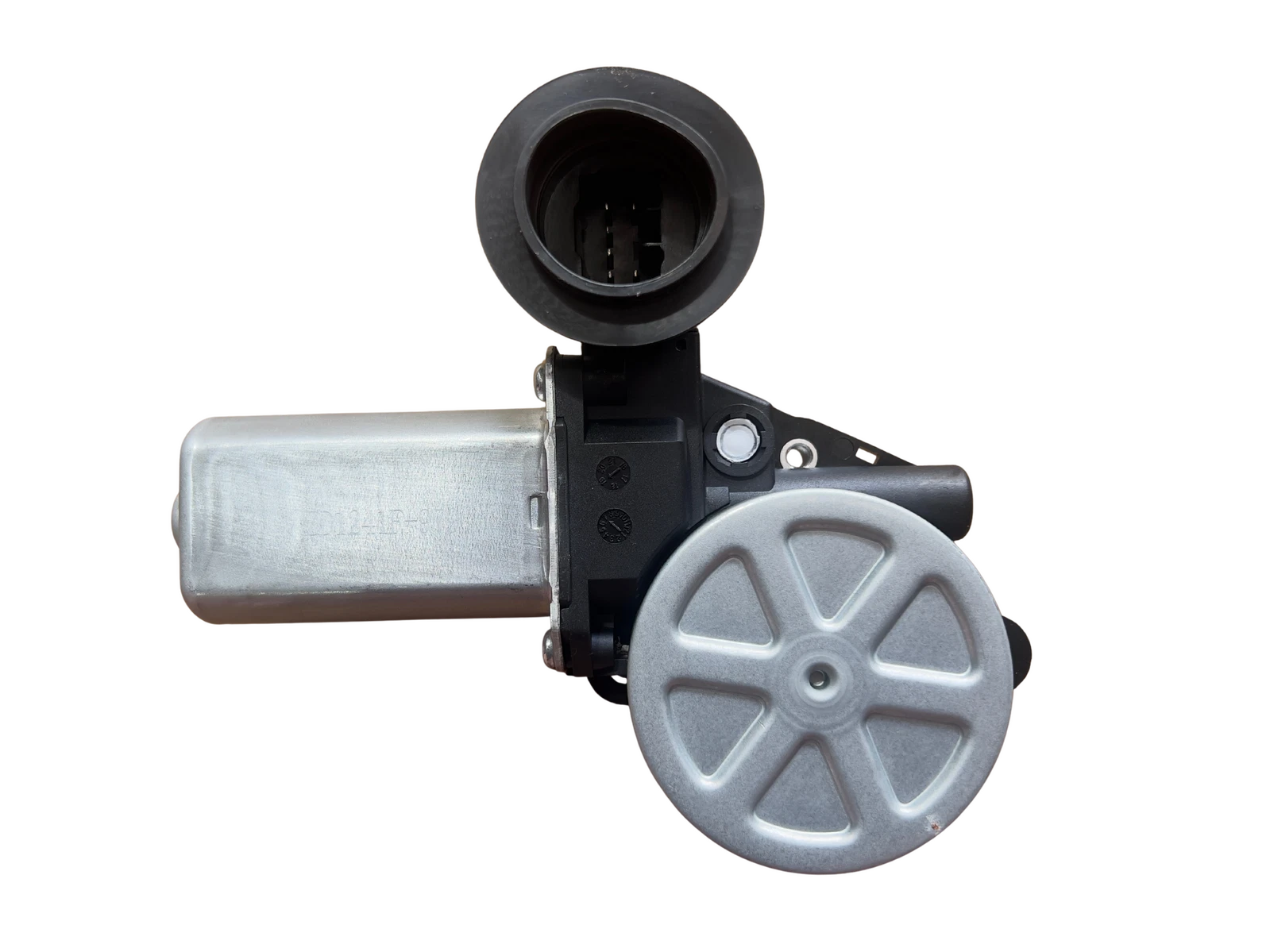

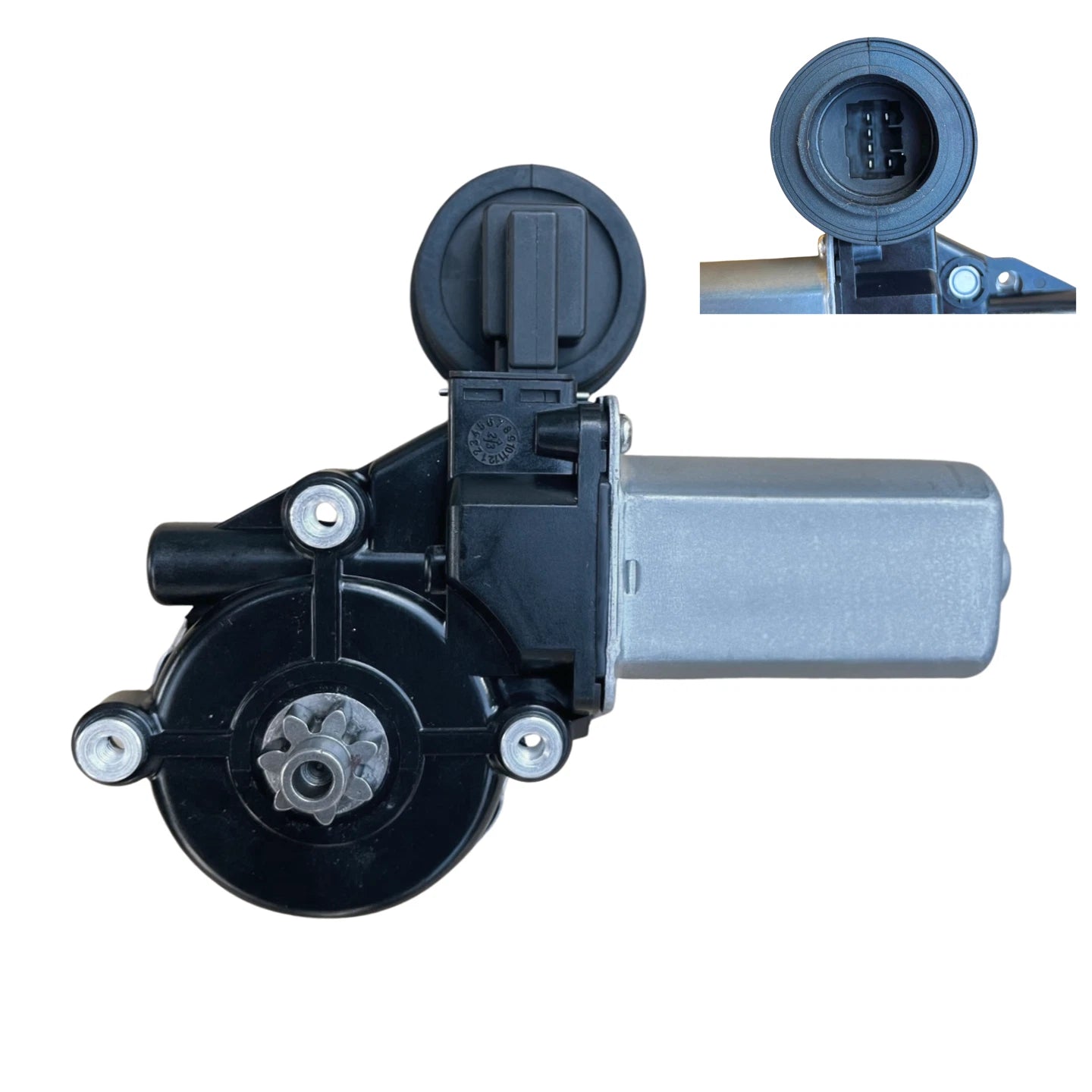

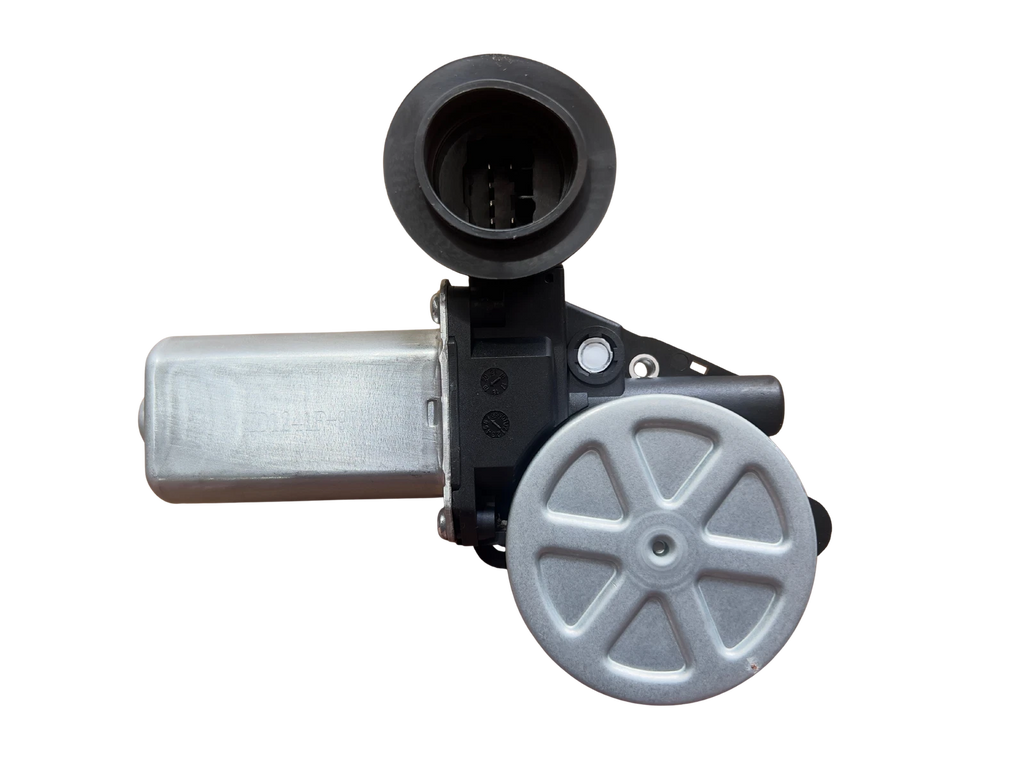

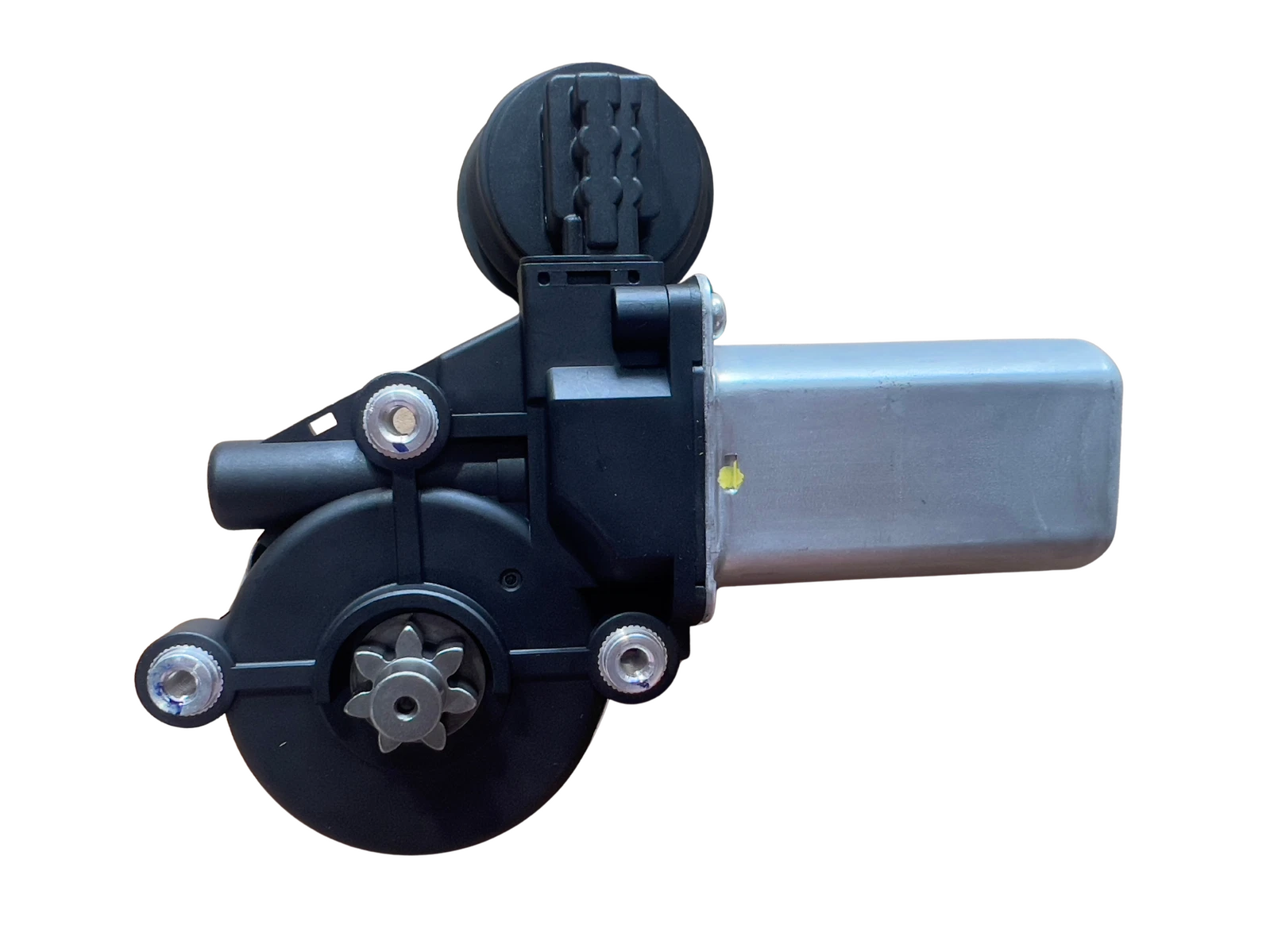

Front Left 6-Pin Window Lift Motor for Toyota Hilux 05-15 & HiAce 05-19

PRODUCT OVERVIEW

This high quality aftermarket electric window lift motor is designed for the front left (front passenger side) door. It features a 6-pin connector and is supplied as a brand new replacement unit, suitable for selected Toyota Hilux and HiAce models.

KEY FEATURES

• Electric window lift motor assembly
• Front left (front passenger side) position
• 6-pin motor connector
• High quality aftermarket replacement
• Brand new part, not reconditioned
• Supplied as 1 piece

VEHICLE COMPATIBILITY

• Toyota Hilux TGN / KUN / GGN 02/2005 - 08/2015
• Toyota HiAce TRH / KDH 01/2005 - 01/2019

Before purchasing, visually match the motor and connector with your original part to confirm compatibility.

TECHNICAL SPECIFICATIONS

• Product: Window lift motor
• Operating mode: Electric
• Placement on vehicle: Front left (front passenger side)
• Motor connector: 6 pins
• Condition: Brand new
• Part specs: High quality aftermarket
• MPN/Item No.: 102023M6F
• Quantity supplied: 1 piece
• Manufacturer warranty: 1 year (part only)

ANTI-PINCH FUNCTION SETUP

This window motor may be used with a regulator system that includes an anti-pinch safety function and one-touch window switch.

• Do not power-test the motor before it is installed in the door, or the anti-pinch function may require resetting.
• The motors are factory-tested and set up prior to dispatch.
• After installation, connect the one-touch window switch and pull the switch up. The window should travel fully to the top.
• If the window drops back down after reaching the top, reset the anti-pinch function as described below.

ANTI-PINCH RESET INSTRUCTIONS

• Step 1: Pull the window switch briefly to move the glass slightly up to the top position.
• Step 2: Hold the one-touch switch in the up position for 3–5 seconds at the top.
• Step 3: Press the window switch briefly to move the glass slightly down to the bottom position.
• Step 4: Hold the one-touch switch in the down position for 3–5 seconds at the bottom.
• Step 5: Pull the one-touch switch to move the window fully up to the top.

The reset is complete if the window remains at the top without dropping. If it still drops after reaching the top, repeat the steps until the function operates correctly.

INSTALLATION & WARRANTY NOTES

• Intended for use as a replacement component for repair purposes.
• Installation by a qualified automotive mechanic is recommended to maintain warranty coverage.
• Warranty covers the replacement of the defective part only and excludes labour or consequential damage.
• Colour and finish may appear slightly different in images due to screen settings and lighting.
• Do not remove any tamper-evident seals or labels on the motor or connectors, as this may affect return eligibility.

Please ensure the part number, plug type, mounting points and orientation match your original motor before installation.
