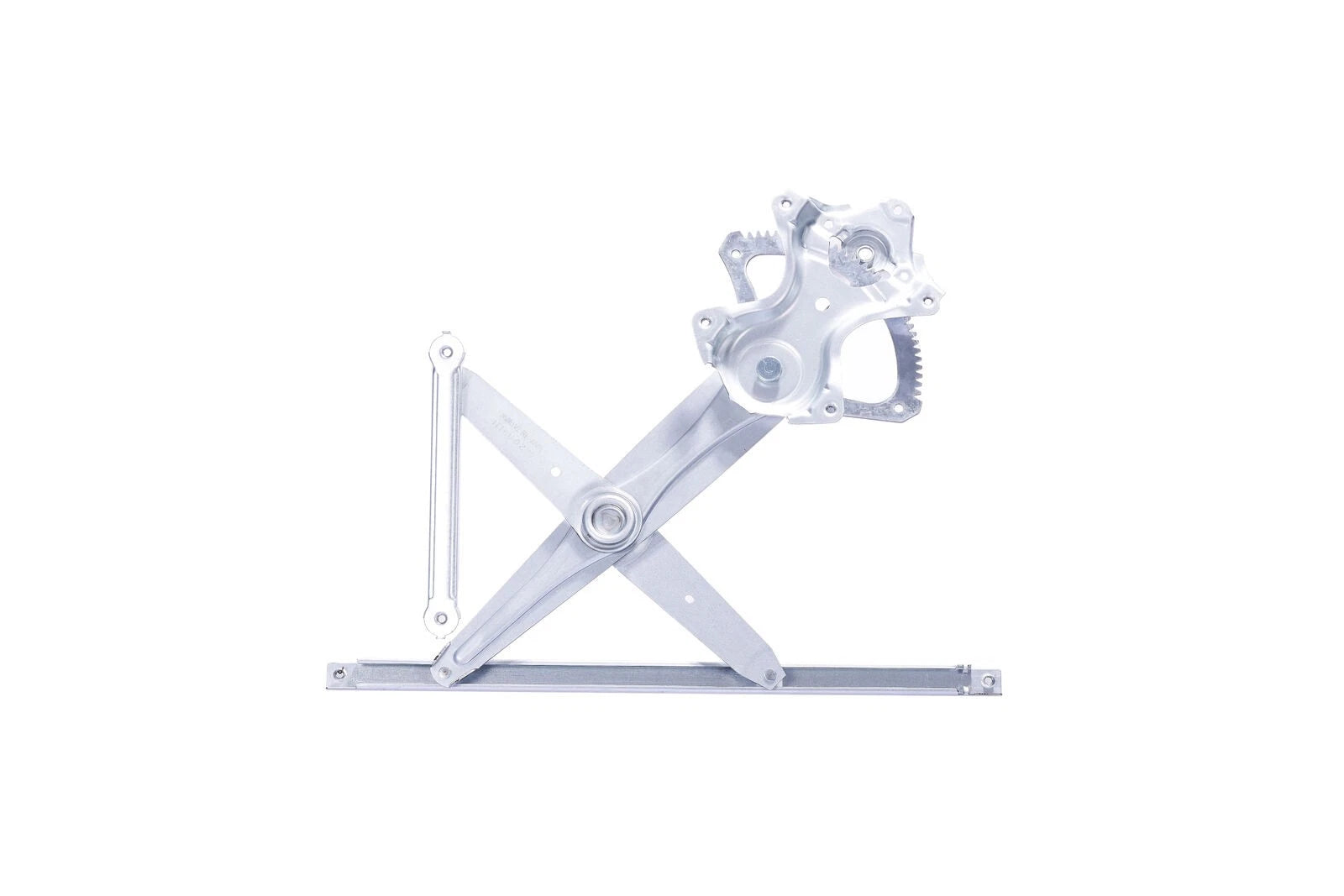

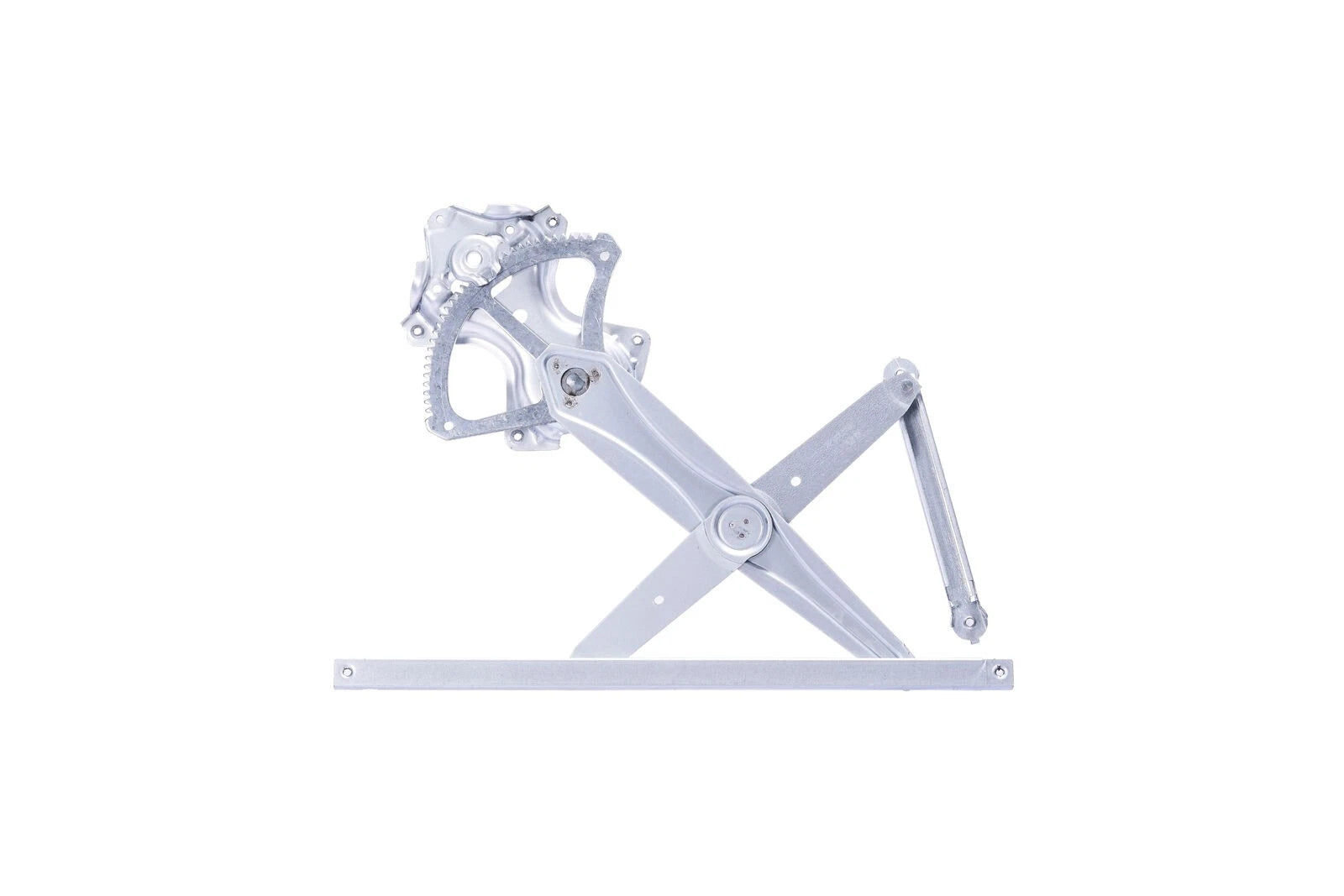

Front Left Electric Window Regulator (No Motor) for Toyota Corolla ZRE152

PRODUCT OVERVIEW

This front left electric window regulator is a high-quality aftermarket replacement designed to restore smooth window operation. Supplied without motor and suitable for specific Toyota applications.

KEY FEATURES

• Electric window regulator assembly (no motor included)
• Front left position (front passenger side)
• High quality aftermarket construction
• Brand new part, supplied as 1 piece
• 12-month manufacturer warranty (part only)

SPECIFICATIONS

• Product: Window regulator
• Operating mode: Electric
• Placement on vehicle: Front left (front passenger side)
• Motor: Not included
• Part specs: High quality aftermarket
• Condition: Brand new
• MPN / Item No.: 102205G
• Quantity supplied: 1 piece
• Manufacturer warranty: 1 year (part only)

VEHICLE FITMENT

• Toyota Corolla ZRE152R 05/2007 - 01/2014
• Toyota Rukus AZE151R 05/2010 - 02/2016

Please confirm the part number and compare the product images with your original regulator before purchase.

ANTI-PINCH FUNCTION RESET (MOTORS WITH ONE-TOUCH)

If used with a motor that has an anti-pinch / one-touch function, follow the reset procedure after installation if the window drops after reaching the top.

• Install the motor on the regulator and connect to the one-touch window switch.
• Do not test the motor before it is fitted to the door.
• If the window drops down after going fully up, perform the reset steps below.

Reset steps:

• Step 1: Pull the window switch briefly so the window moves slightly up to the top.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top position.
• Step 3: Press the window switch briefly so the window moves slightly down to the bottom.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom position.
• Step 5: Pull the one-touch switch to raise the window fully to the top and check it does not drop.

If the window still drops after reaching the top, repeat the reset steps until the function is correctly set.

IMPORTANT NOTES

• This regulator is supplied without a motor. Existing motor may be reused if compatible and in good condition.
• Professional installation by a qualified automotive technician is recommended to maintain warranty.
• Product colour and finish may vary slightly from images due to lighting and screen settings.
