Front Right Power Window Regulator with 6-Pin Motor for Toyota Corolla ZRE152R

PRODUCT OVERVIEW

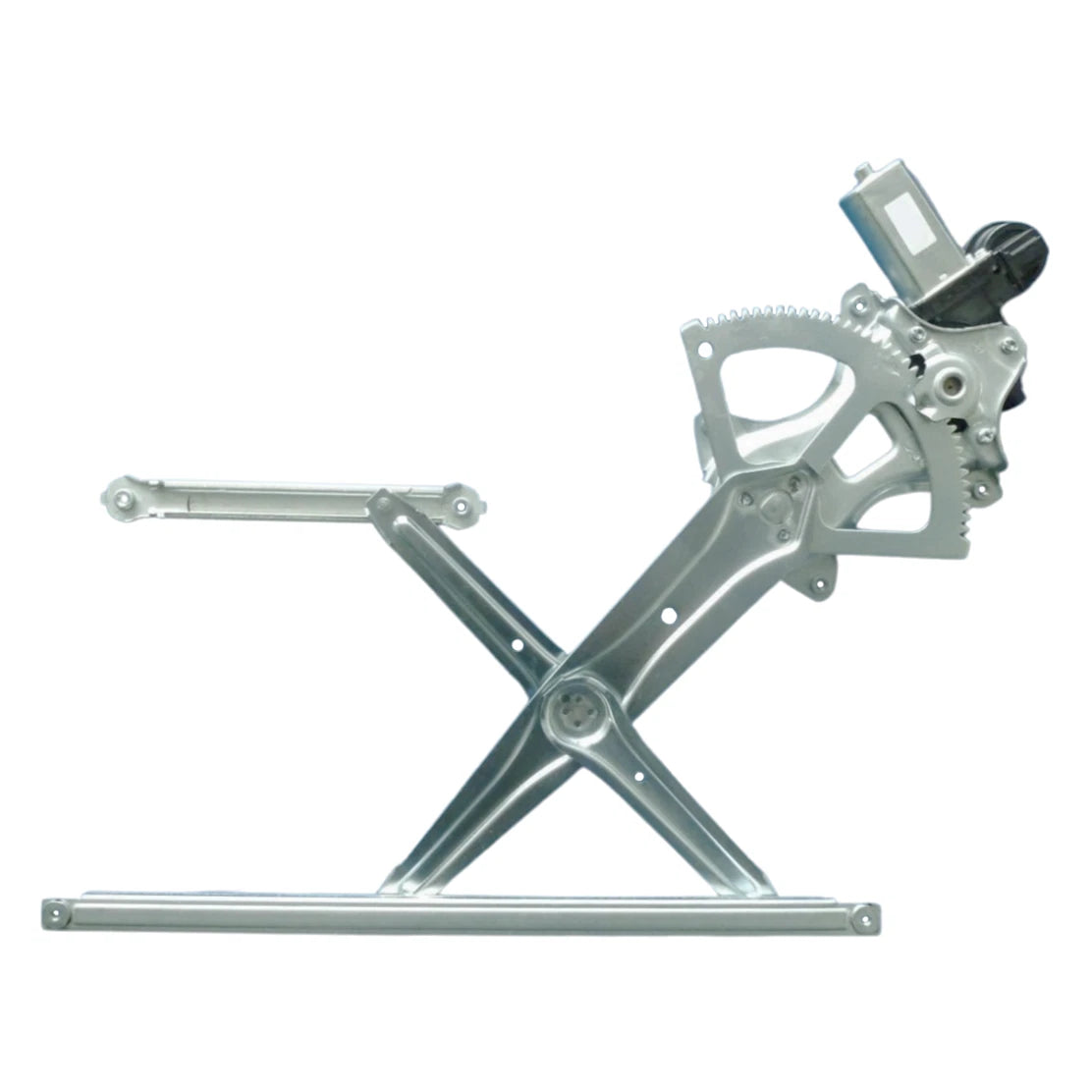

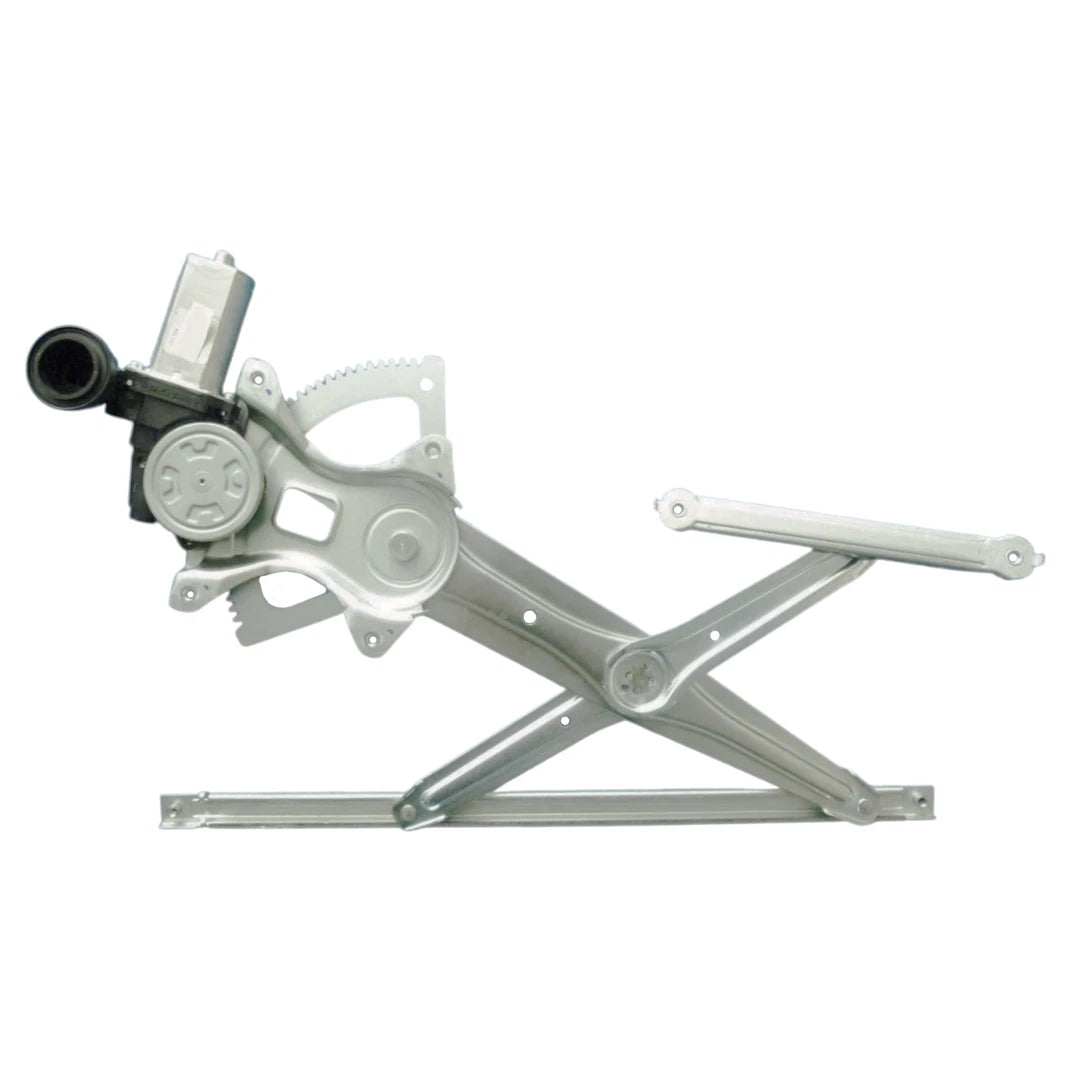

This front right electric window regulator with integrated 6-pin motor is a high-quality aftermarket replacement, designed to restore smooth and reliable window operation on compatible Toyota Corolla ZRE152R models.

KEY FEATURES

• Complete regulator assembly with pre-fitted electric motor

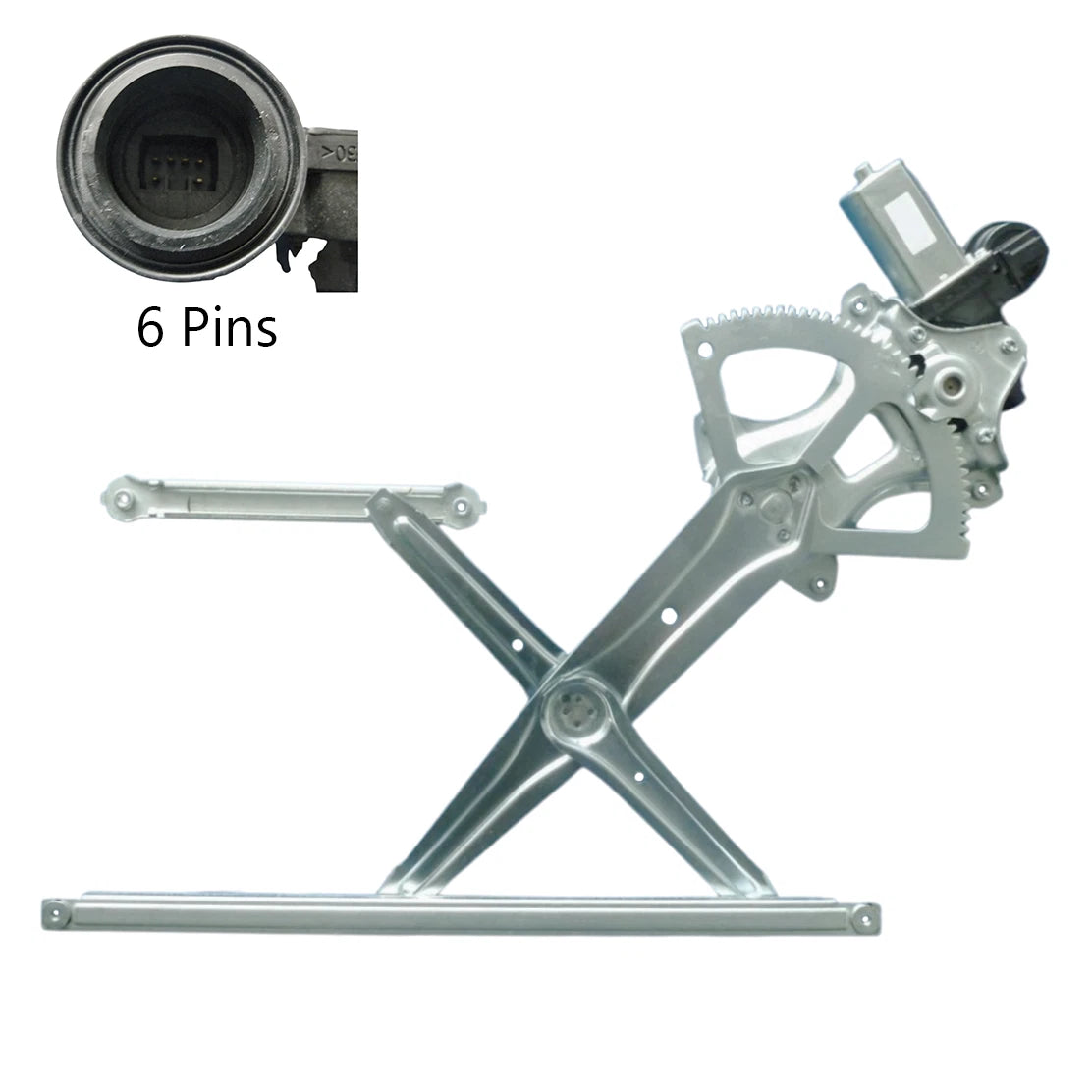

• 6-pin motor connection for compatible power window systems
• Front right (driver side) door fitment
• Engineered to OEM-style fitment for straightforward installation
• High-quality aftermarket construction for durability and reliability

SPECIFICATIONS

• Product type: Window regulator
• Operating mode: Electric
• Placement on vehicle: Front right (front driver side)

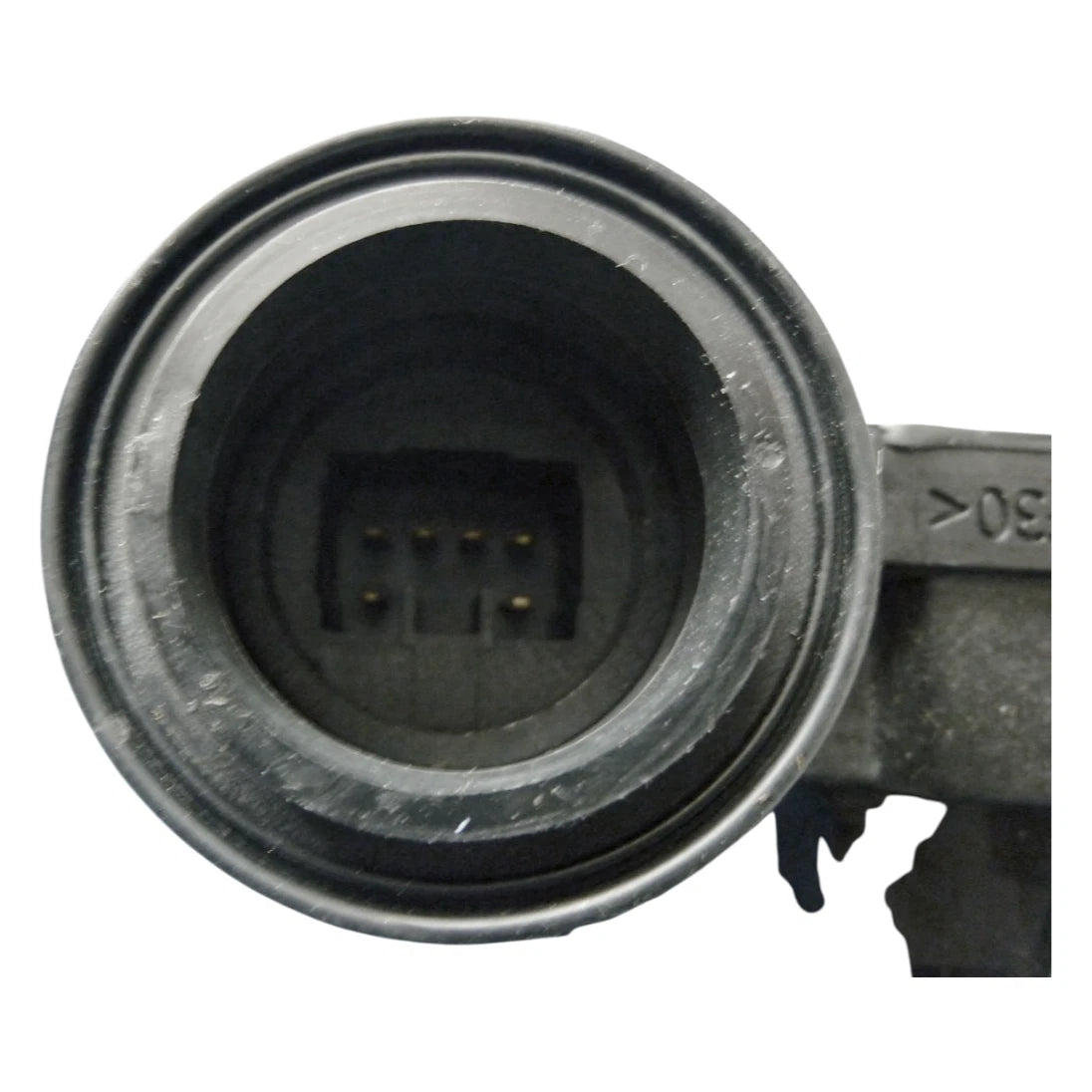

• Motor connector: 6 pins
• Condition: Brand new
• Part specs: High-quality aftermarket
• MPN/Item No.: 101515
• Quantity supplied: 1 piece
• Manufacturer warranty: 12 months (part only)

VEHICLE COMPATIBILITY

Suitable for the following applications (verify plug type and mounting before purchase):

• Toyota Corolla ZRE152R 06/2010–01/2014 3ZR-FE 2.0L
• Toyota Corolla ZRE152R 05/2007–01/2014 2ZR-FE 1.8L

Please visually match the regulator and motor (including 6-pin connector and mounting points) to your original part to confirm compatibility.

ANTI-PINCH FUNCTION RESET

This motor may incorporate an anti-pinch safety function. Incorrect testing before installation can cause the function to fail and require resetting.

• Do not test the motor before it is installed in the door.
• Install the regulator and connect it to the one-touch window switch.
• Pull the switch up to raise the window. If the window reaches the top and then drops, the anti-pinch function must be reset.

Reset procedure:

• Step 1: Pull the window switch briefly to move the glass slightly up to the top.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top position.
• Step 3: Press the window switch briefly to move the glass slightly down to the bottom.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom position.
• Step 5: Pull the one-touch switch to raise the window fully to the top and check that it no longer drops.

If the window still drops after reaching the top, repeat the above steps until the reset is successful.

INSTALLATION & USAGE NOTES

• Professional installation by a qualified automotive technician is strongly recommended.
• Ensure the glass runs freely in the window channels before operating the new regulator.
• Do not remove any tamper-evident labels or seals on the motor or plugs, as this may affect return eligibility.
• Use the correct tools and follow vehicle-specific repair procedures for safe installation.

WARRANTY SUMMARY

• Standard coverage: 12-month manufacturer warranty on the part only.
• Warranty applies to manufacturing defects in the supplied component.
• Labour, diagnostics, and consequential damage are not covered.
• Parts must be installed by a qualified mechanic to maintain warranty validity.

Keep your invoice and any workshop installation records, as these may be required for warranty assessment.

IMPORTANT PURCHASING NOTES

• Images are for reference and may vary slightly in colour due to lighting and screen settings.
• The product supplied will match the listed specifications and fitment details.
• Always compare the mounting points, motor connector (6-pin), and overall layout with your original regulator before installation.
• This component is intended as a replacement part for repair and maintenance purposes.
