Rear Right Electric Window Regulator w/o Motor for VW Golf MK4 5-Dr

PRODUCT OVERVIEW

High quality aftermarket electric window regulator for the rear right door, supplied without motor and without panel. Designed as a direct replacement for the specified OE reference numbers.

KEY FEATURES

• Electric window regulator assembly
• Position: Rear Right (rear driver side)
• Supplied without motor
• Without carrier panel
• Brand new, high quality aftermarket part
• 1-year manufacturer part-only warranty
• Supplied as 1 piece

SPECIFICATIONS

• Product: Window Regulator
• Operating mode: Electric
• Placement on vehicle: Rear Right (rear driver side)
• Motor: Not included
• Panel: Not included
• Condition: Brand new
• MPN / Item No.: 102217D
• OE reference numbers: 1J4837462D, 1J4837462F, 1J4837462H, 1J4837462DS

VEHICLE FITMENT

• Volkswagen Golf MK4 08/1997 - 06/2005 5-door hatch
• Volkswagen Bora 1J 12/1999 - 06/2007

Always compare the part number and product images with your original regulator to confirm compatibility before ordering.

ANTI-PINCH MOTOR RESET INFORMATION

This regulator is compatible with electric window motors that may feature an anti-pinch (one-touch) function. If the window drops after reaching the top, the motor anti-pinch function may require resetting.

ANTI-PINCH RESET STEPS

• Step 1: Pull the window switch briefly so the window moves up slightly to the top.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top position.
• Step 3: Press the window switch briefly so the window moves down slightly to the bottom.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom position.
• Step 5: Pull the one-touch switch to move the window fully up to the top and check that it no longer drops.

If the window still drops after reaching the top, repeat the reset steps until the function operates correctly.

INSTALLATION & WARRANTY NOTES

• Professional installation by a qualified automotive technician is recommended.
• Warranty covers the part only and does not include labour or associated costs.
• Inspect and test operation after installation, especially when used with anti-pinch motors.

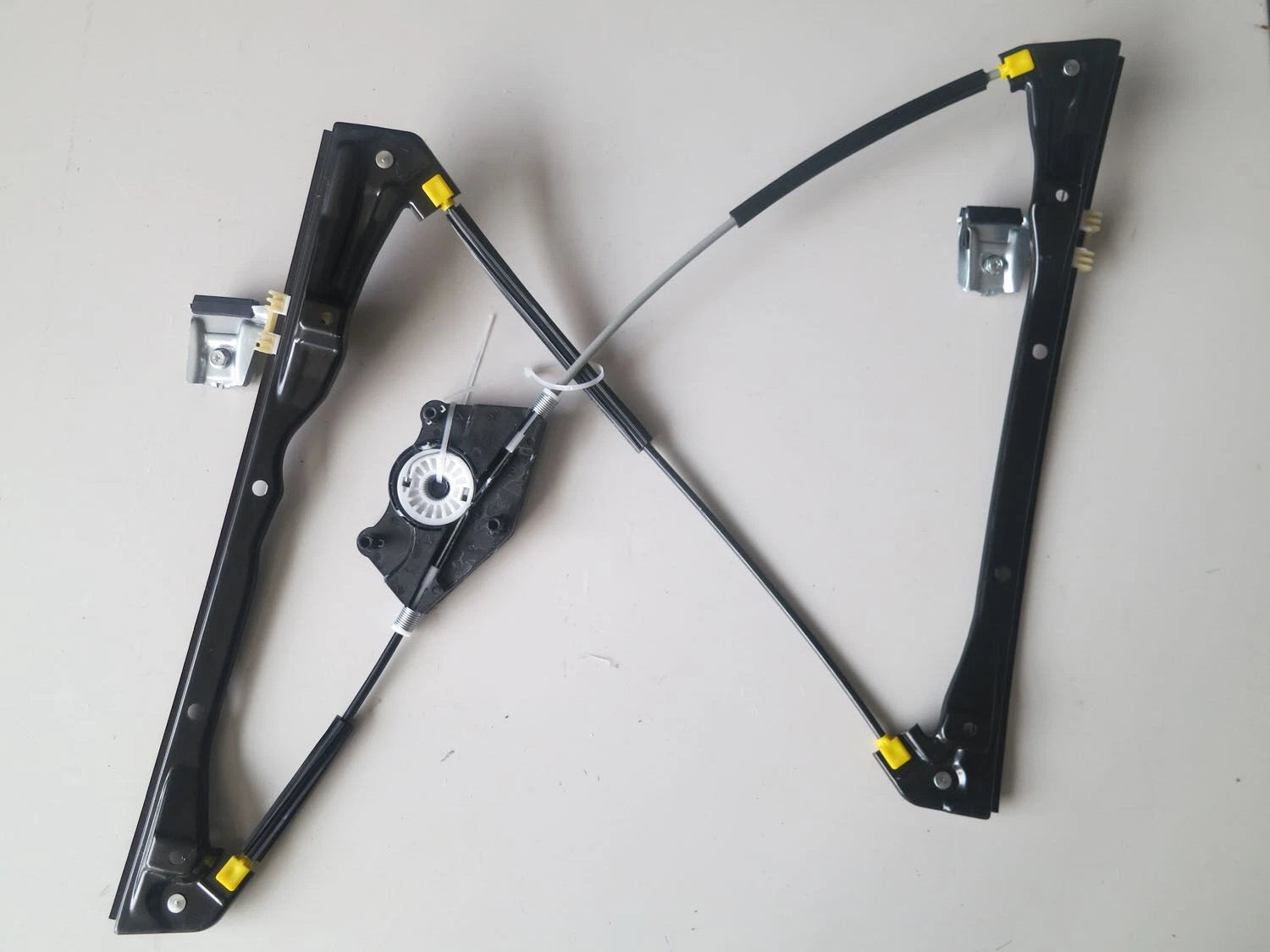

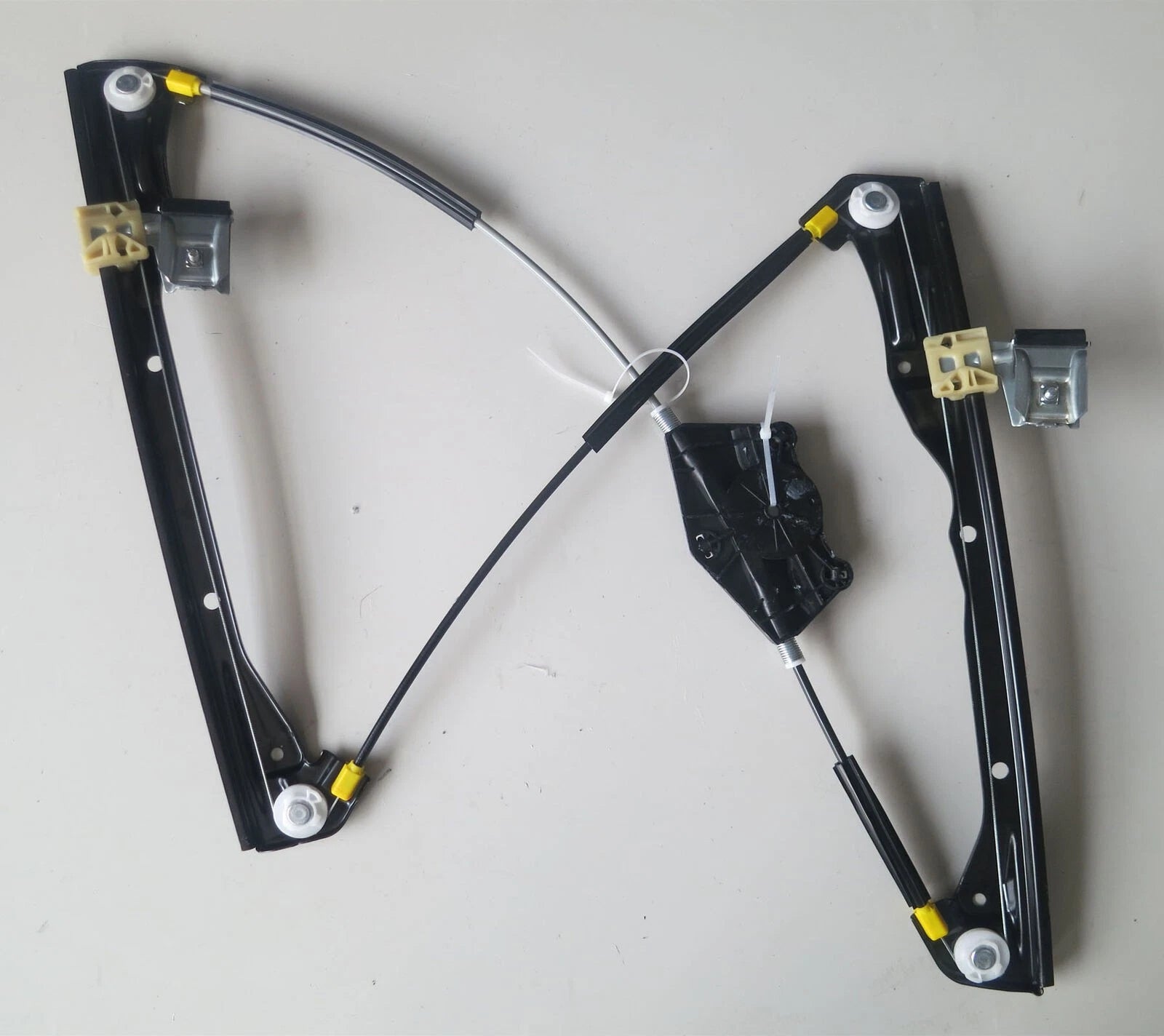

Images are for reference and represent the actual style of the part supplied. Minor visual differences may occur due to lighting and screen display.
