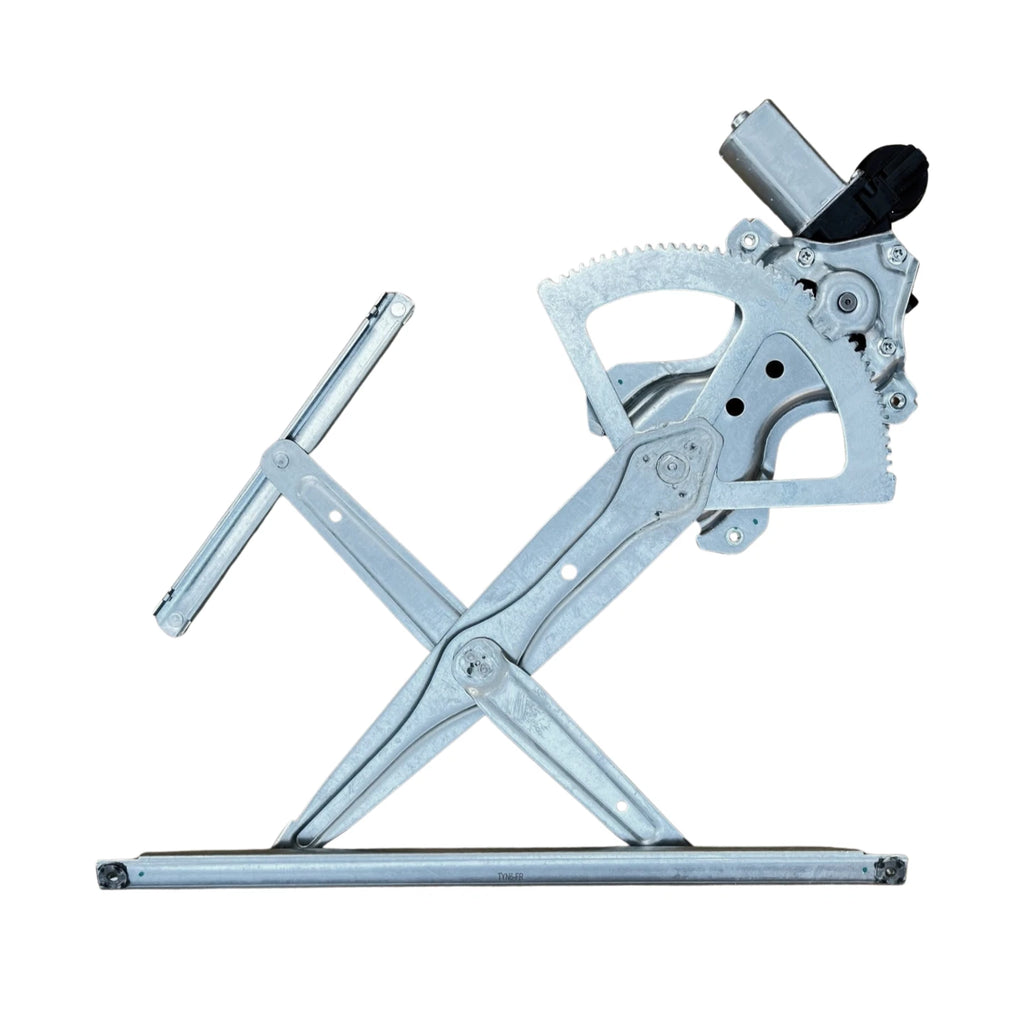

Front Right Electric Window Regulator 6-Pin Motor for Toyota Hilux 05-15

PRODUCT OVERVIEW

This front right electric window regulator is a high-quality aftermarket replacement for selected Toyota Hilux models. It includes a 6-pin motor with auto up/down (anti-pinch) functionality, supplied as a complete brand-new assembly.

KEY FEATURES

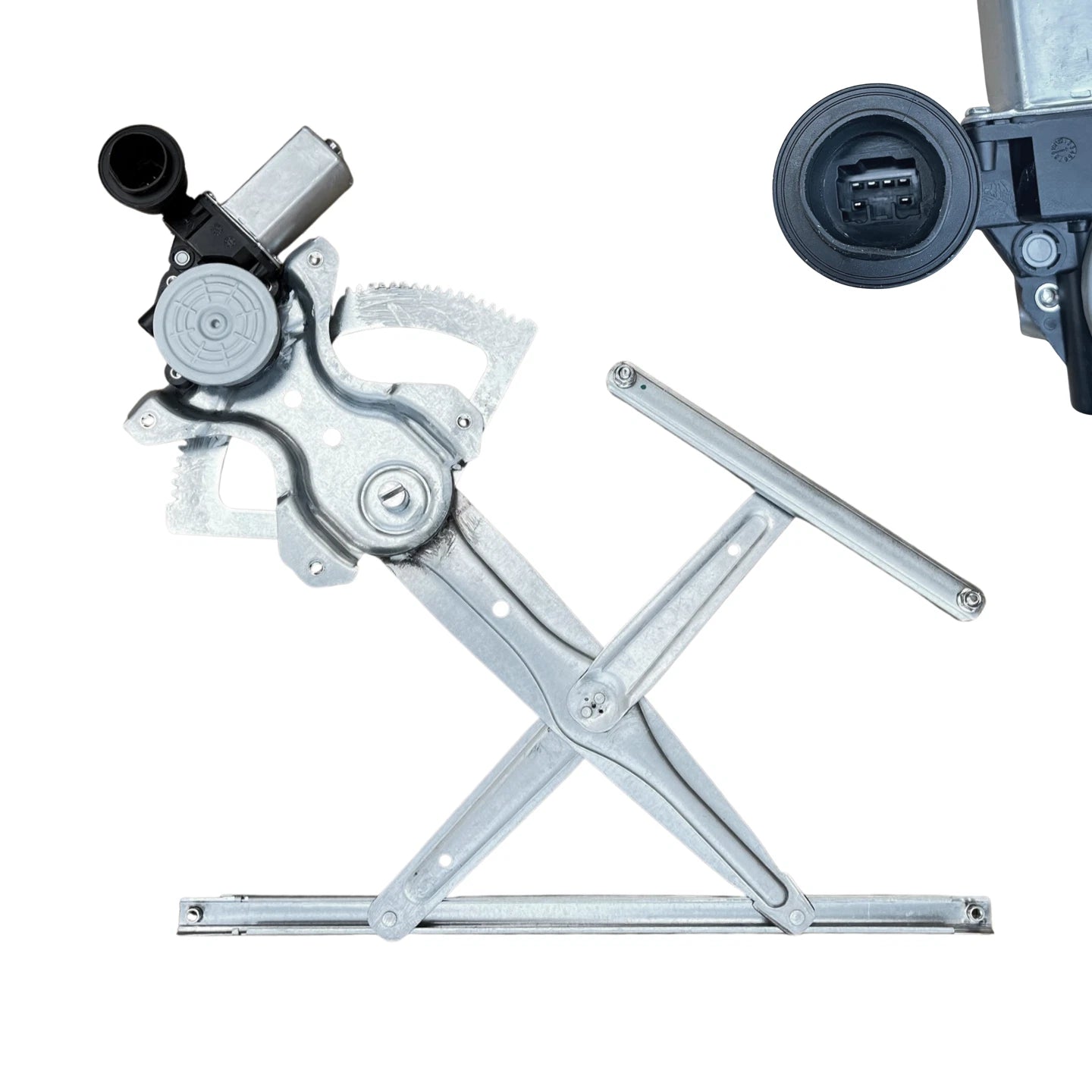

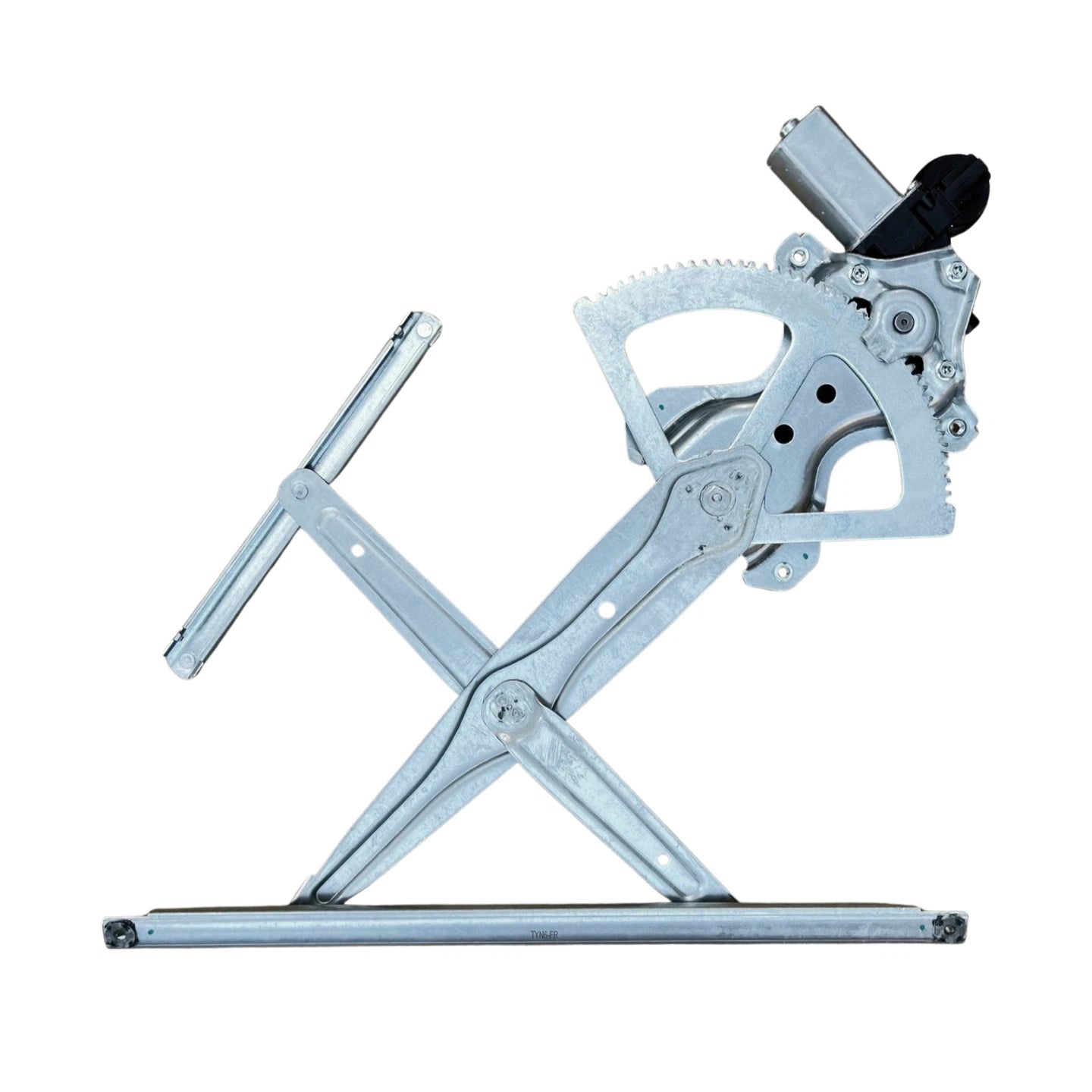

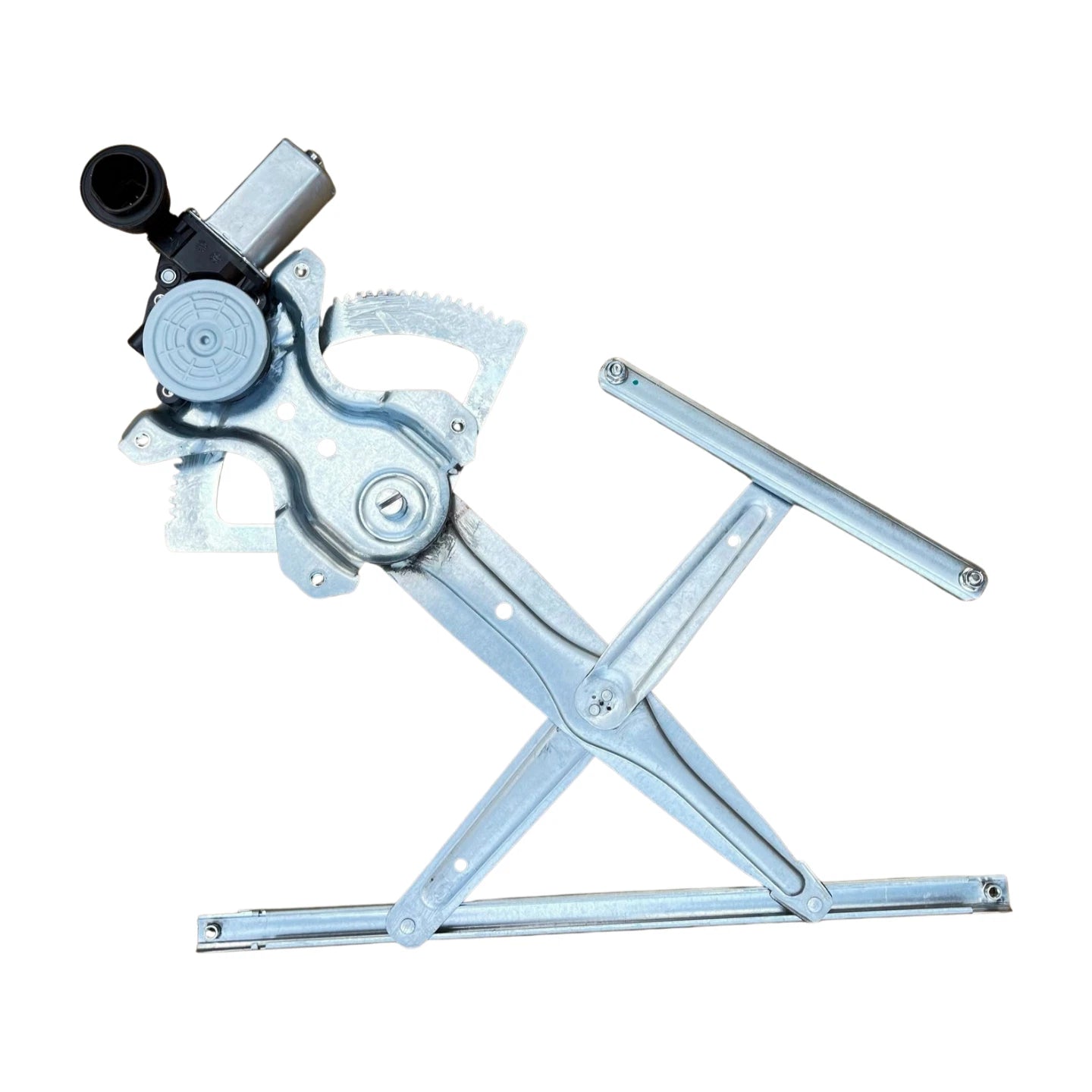

• Complete electric window regulator assembly with motor
• Front right (driver side) position
• 6-pin motor with auto up/down anti-pinch function
• High-quality aftermarket construction
• Supplied brand new, single piece
• Backed by 12-month manufacturer warranty (part only)
• MPN / Item No.: 102040D

VEHICLE COMPATIBILITY

Designed to suit the following applications:

• Toyota Hilux 02/2005 - 08/2015 TGN / KUN / GGN (front right, electric window)

Fitment may vary by trim or market. Always compare the product images, plug type (6-pin), and mounting points with your original part before purchase.

SPECIFICATIONS

• Product type: Window regulator
• Operating mode: Electric
• Placement on vehicle: Front right (driver side)

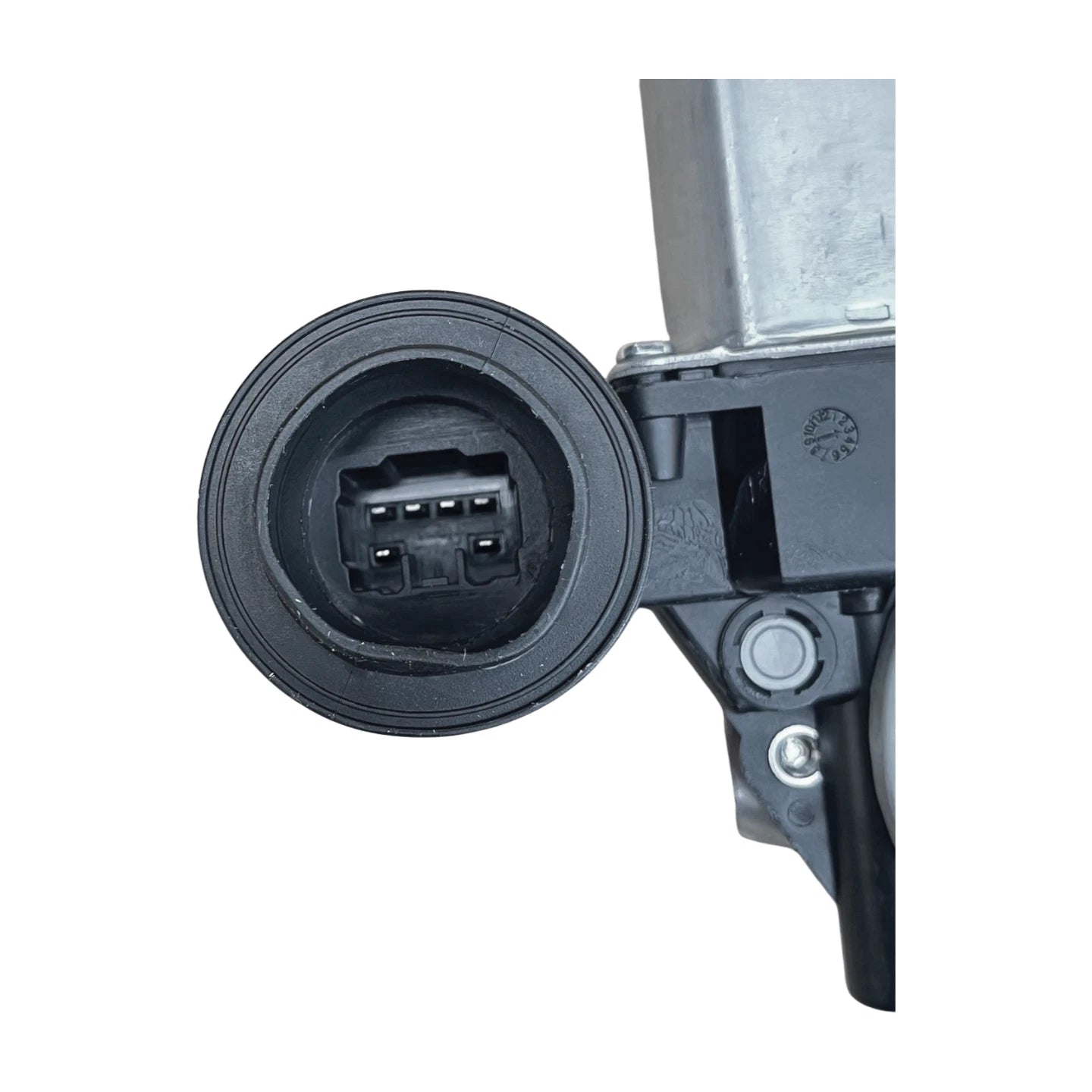

• Motor connector: 6 pins
• Function: Auto up/down with anti-pinch
• Part specification: High-quality aftermarket
• Condition: Brand new
• MPN / Item No.: 102040D
• Warranty: 1 year (part only)
• Quantity supplied: 1 piece

ANTI-PINCH / AUTO UP-DOWN RESET

This regulator motor includes an anti-pinch (one-touch) function. If the window drops after reaching the top, the motor must be reset after installation.

Reset procedure:

• Step 1: With the regulator installed in the door and connected to the one-touch switch, pull the window switch briefly to move the glass fully up to the top.
• Step 2: Hold the one-touch switch in the UP position for 3–5 seconds with the window at the top.
• Step 3: Press the window switch briefly to move the glass fully down to the bottom.
• Step 4: Hold the one-touch switch in the DOWN position for 3–5 seconds with the window at the bottom.
• Step 5: Pull the one-touch switch again to move the window fully up and confirm it no longer drops after reaching the top.

If the window still drops after reaching the top, repeat the steps until the anti-pinch function is correctly set.

INSTALLATION & WARRANTY NOTES

• Professional installation by a qualified automotive mechanic is recommended to maintain warranty coverage.
• Do not power-test the motor before it is installed in the door, as this may affect the anti-pinch calibration.
• Colours or finishes may vary slightly from photos due to lighting and screen settings.
• Images are of the actual style of product supplied; match connector type, mounting points, and orientation to your original part.
