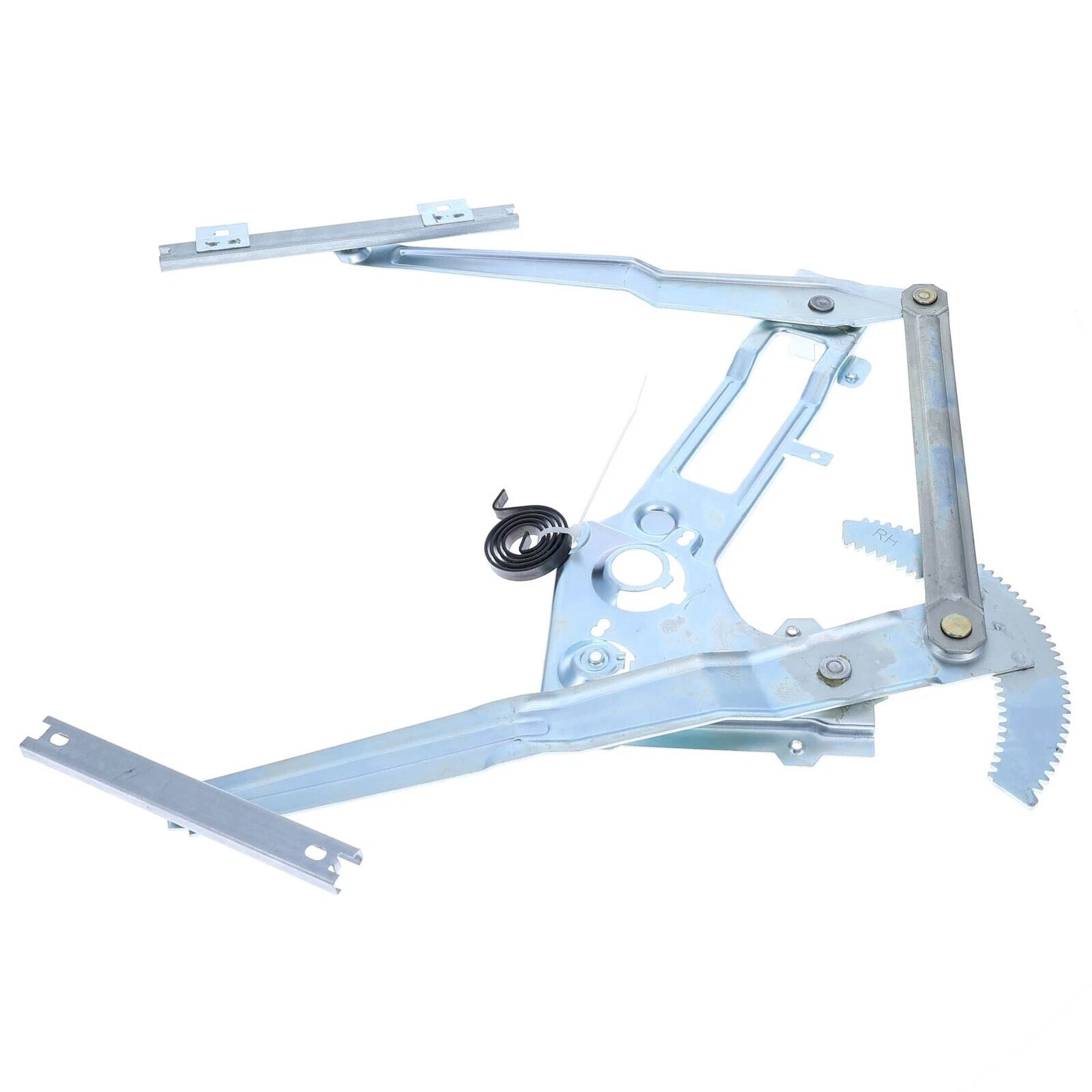

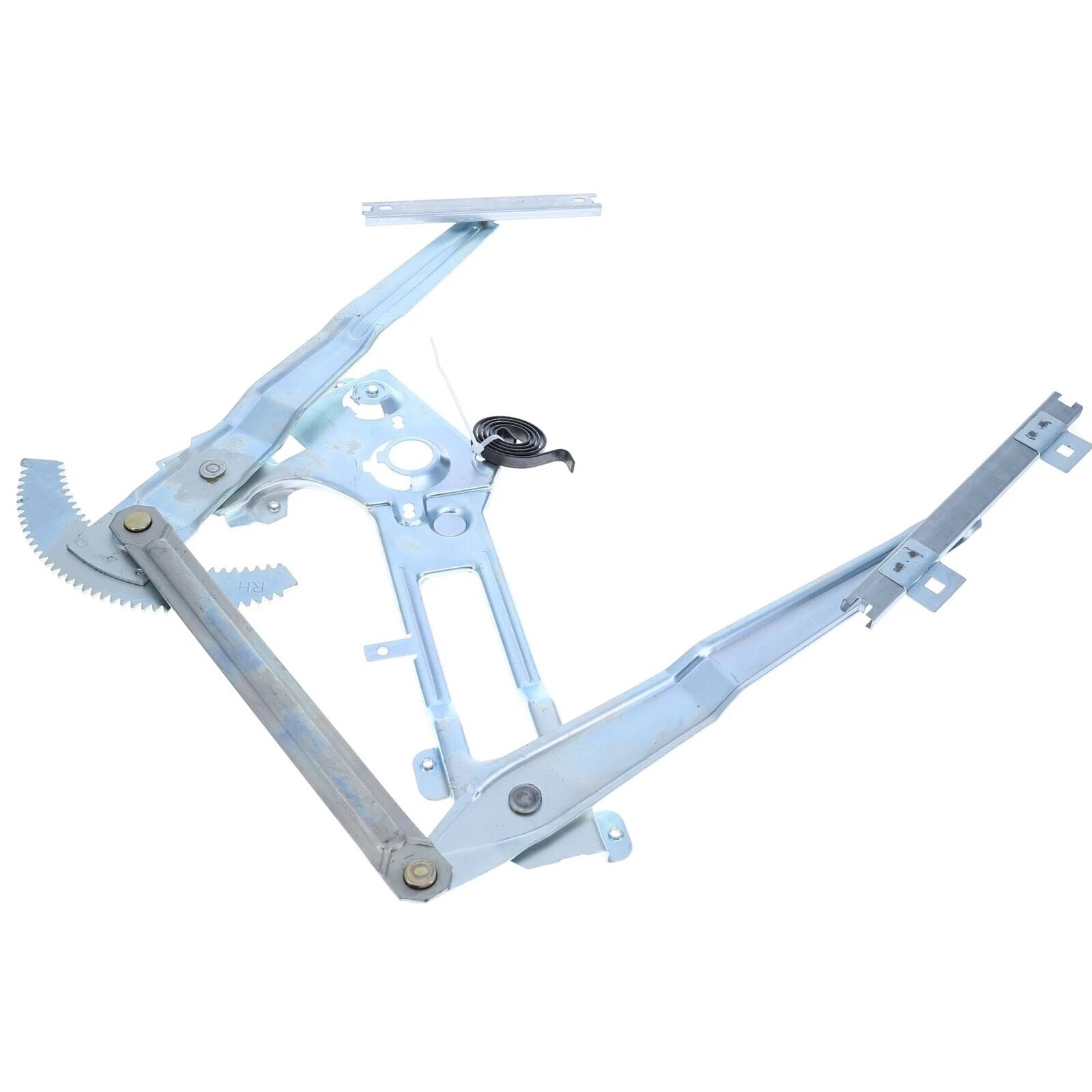

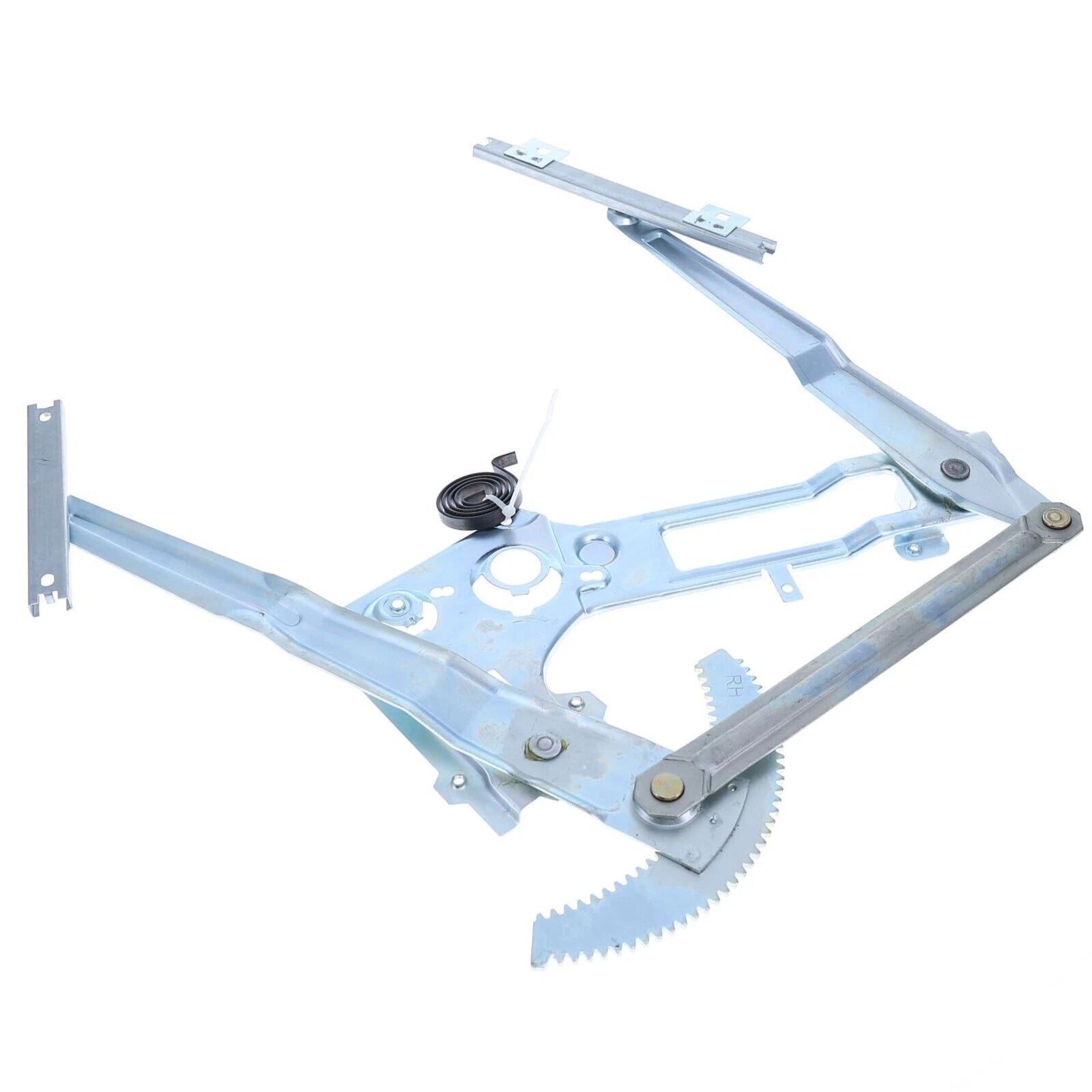

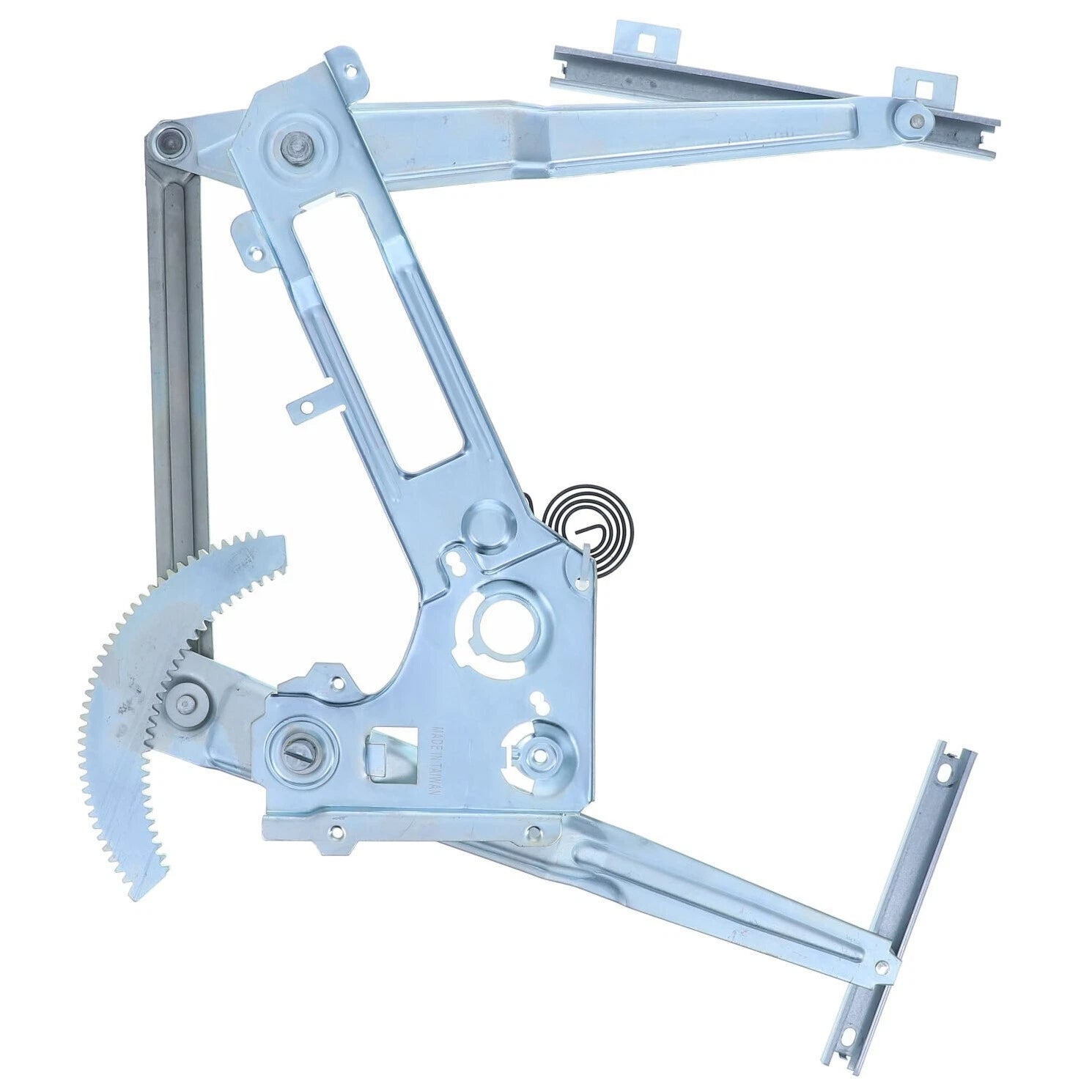

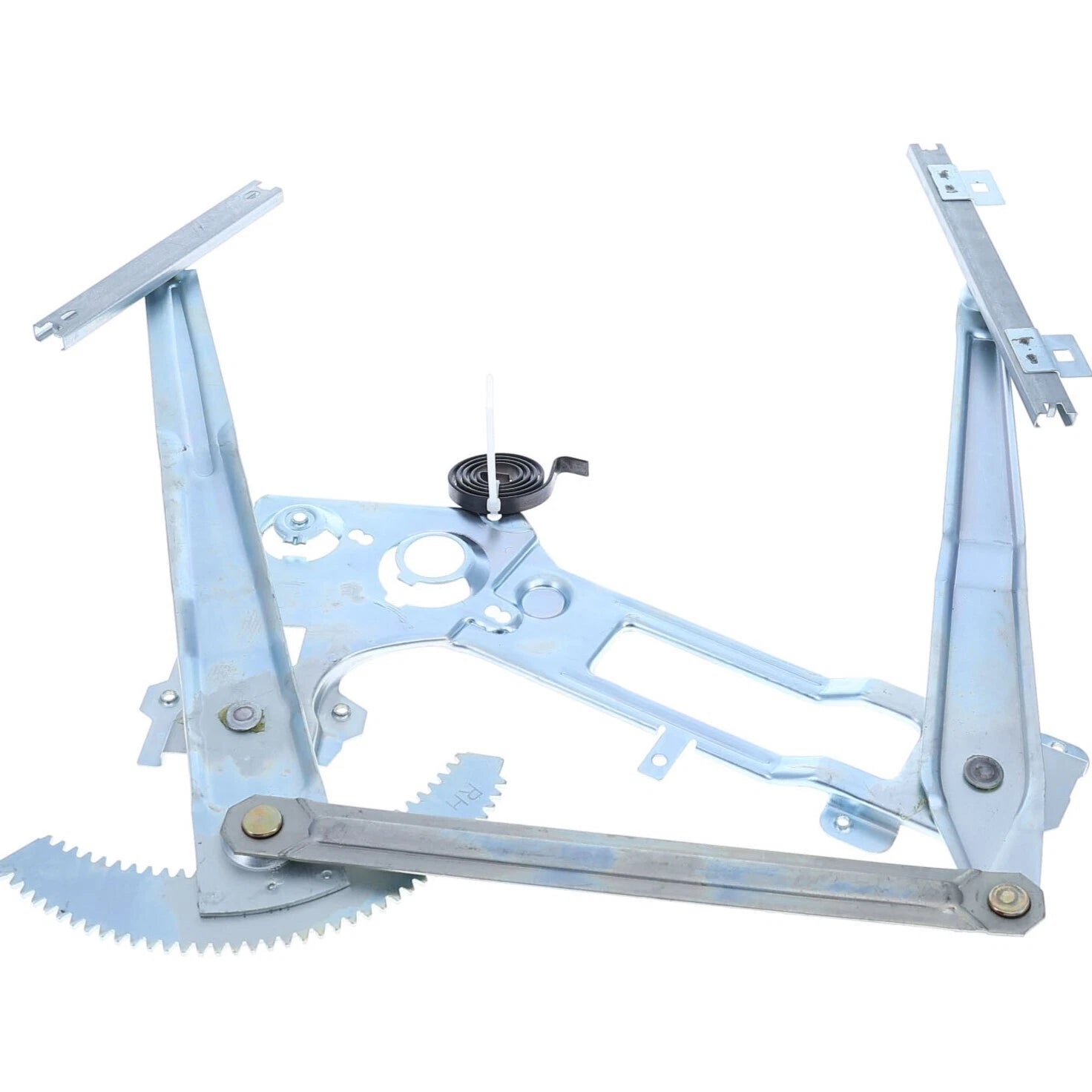

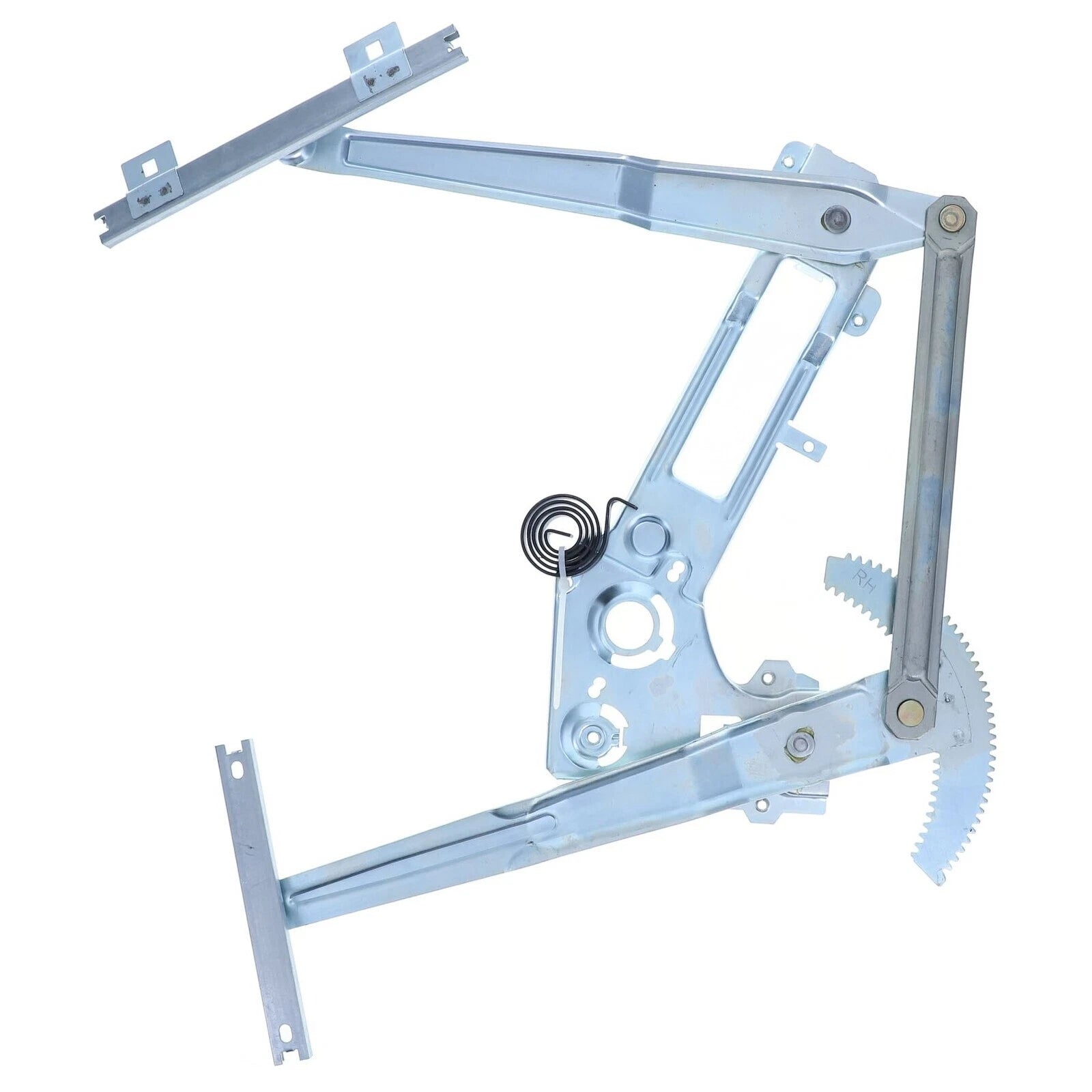

Front Right Electric Window Regulator (No Motor) for Isuzu N-Series

PRODUCT OVERVIEW

This front right electric window regulator is a high-quality aftermarket replacement for selected Isuzu N-Series trucks. Supplied without a motor, it is designed for vehicles equipped with an electric window system and replaces the regulator mechanism only.

KEY FEATURES

• Front right (driver side) electric window regulator assembly
• Electric operating mode – regulator mechanism only
• Motor not included (reuse existing or purchase separately)
• High-quality aftermarket construction
• Supplied brand new
• Includes 12-month parts warranty
• Sold as 1 piece (single side)
• MPN / Item No.: 100373

VEHICLE PLACEMENT

• Position: Front right (front driver side)
• Application: Electric window regulator only (no motor)

FITMENT INFORMATION

Direct-fit replacement for selected Isuzu N-Series models, including:

• Isuzu N-Series NKR58 1994 - 1996
• Isuzu N-Series NKR66 10/1994 - 1997
• Isuzu N-Series NKR66 1998 - 2002
• Isuzu N-Series NKR69 1996 - 1997
• Isuzu N-Series NKR77 11/2002 - 02/2005
• Isuzu N-Series NKR77 03/2005 - 09/2007
• Isuzu N-Series NPR58 1994 - 1995
• Isuzu N-Series NPR66 1994 - 1996
• Isuzu N-Series NPR66 1996 - 1998
• Isuzu N-Series NPR66 1998 - 2002
• Isuzu N-Series NPR70 2000 - 10/2002
• Isuzu N-Series NPR70 11/2002 - 2005
• Isuzu N-Series NPR71 1998 - 2002
• Isuzu N-Series NPR75 07/2005 - 2007
• Isuzu N-Series NPS66 06/1993 - 1998
• Isuzu N-Series NPS70 11/2002 - 2005
• Isuzu N-Series NPS71 1998 - 2002
• Isuzu N-Series NPS75 2005 - 2007
• Isuzu N-Series NQR70 1998 - 10/2002
• Isuzu N-Series NQR70 11/2002 - 2005
• Isuzu N-Series NQR75 07/2005 - 2007

Please compare this regulator with your original part and confirm the vehicle details above before purchasing.

ANTI-PINCH MOTOR NOTE

This regulator is compatible with electric motors that may include an anti-pinch function. If your window motor has an anti-pinch feature, correct setup is essential for proper operation.

• Do not test the motor before it is installed in the door, or the anti-pinch function may fail.
• Install the motor onto the regulator and connect it to the one-touch window switch.
• Operate the switch to confirm the window travels fully to the top.
• If the window drops after reaching the top, the anti-pinch function must be reset.

ANTI-PINCH RESET PROCEDURE

• Step 1: Pull the window switch briefly to move the window slightly up to the top.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top position.
• Step 3: Press the window switch briefly to move the window slightly down to the bottom.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom position.
• Step 5: Pull the one-touch switch to move the window fully up to the top.

If the window still drops after reaching the top, repeat the reset steps until the anti-pinch function is correctly set.

PART QUALITY & WARRANTY

• High-quality aftermarket replacement component
• Suitable for vehicle repair and restoration
• 12-month warranty (part only)
• Installation by a qualified automotive mechanic is recommended to maintain warranty coverage

Product images are for reference only; actual product appearance may vary slightly due to lighting and screen differences. Always confirm the part visually and by fitment details before installation.
