Front Right Electric Window Regulator w/ Motor & Panel for Hyundai i30 GD

PRODUCT OVERVIEW

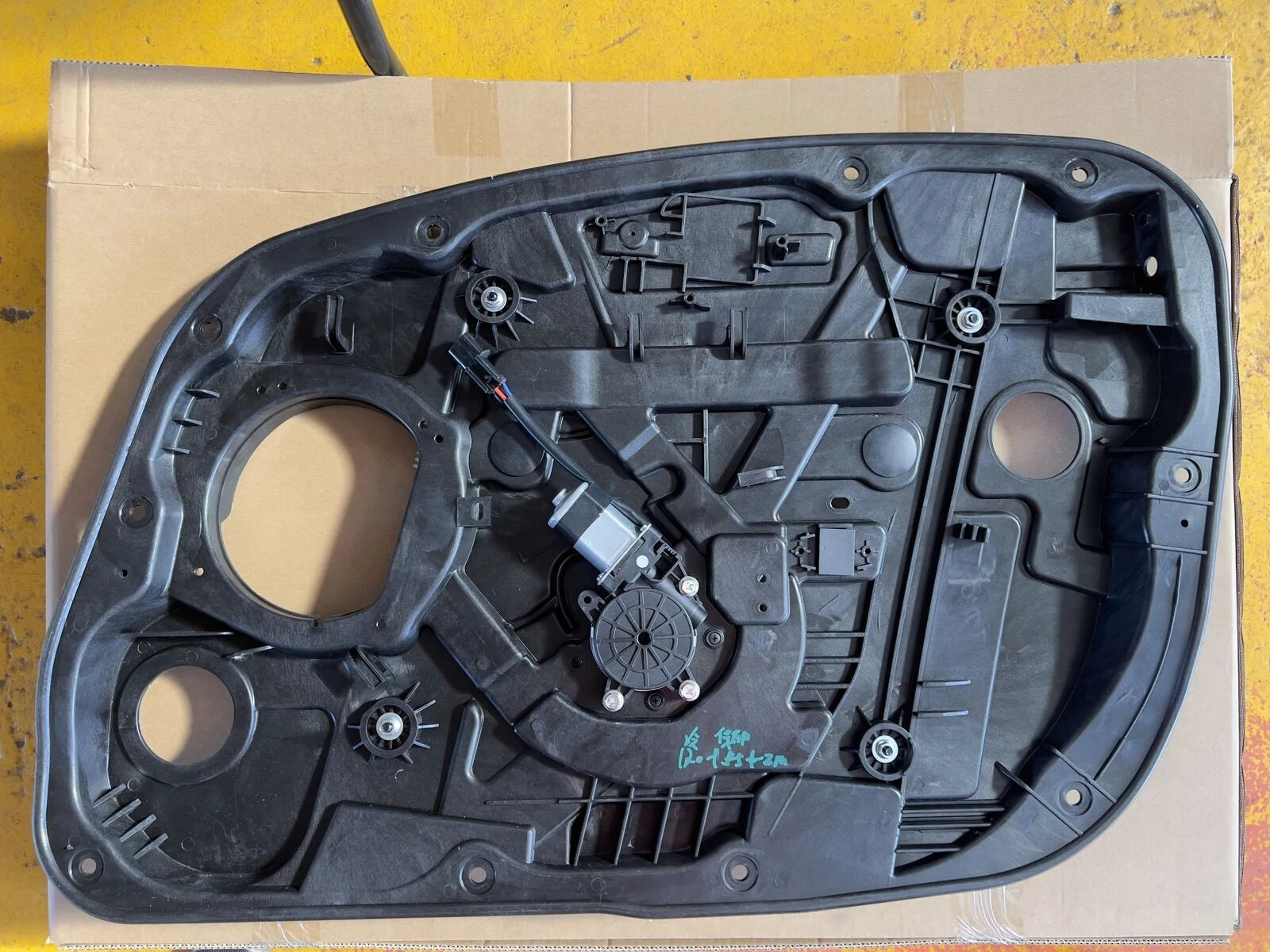

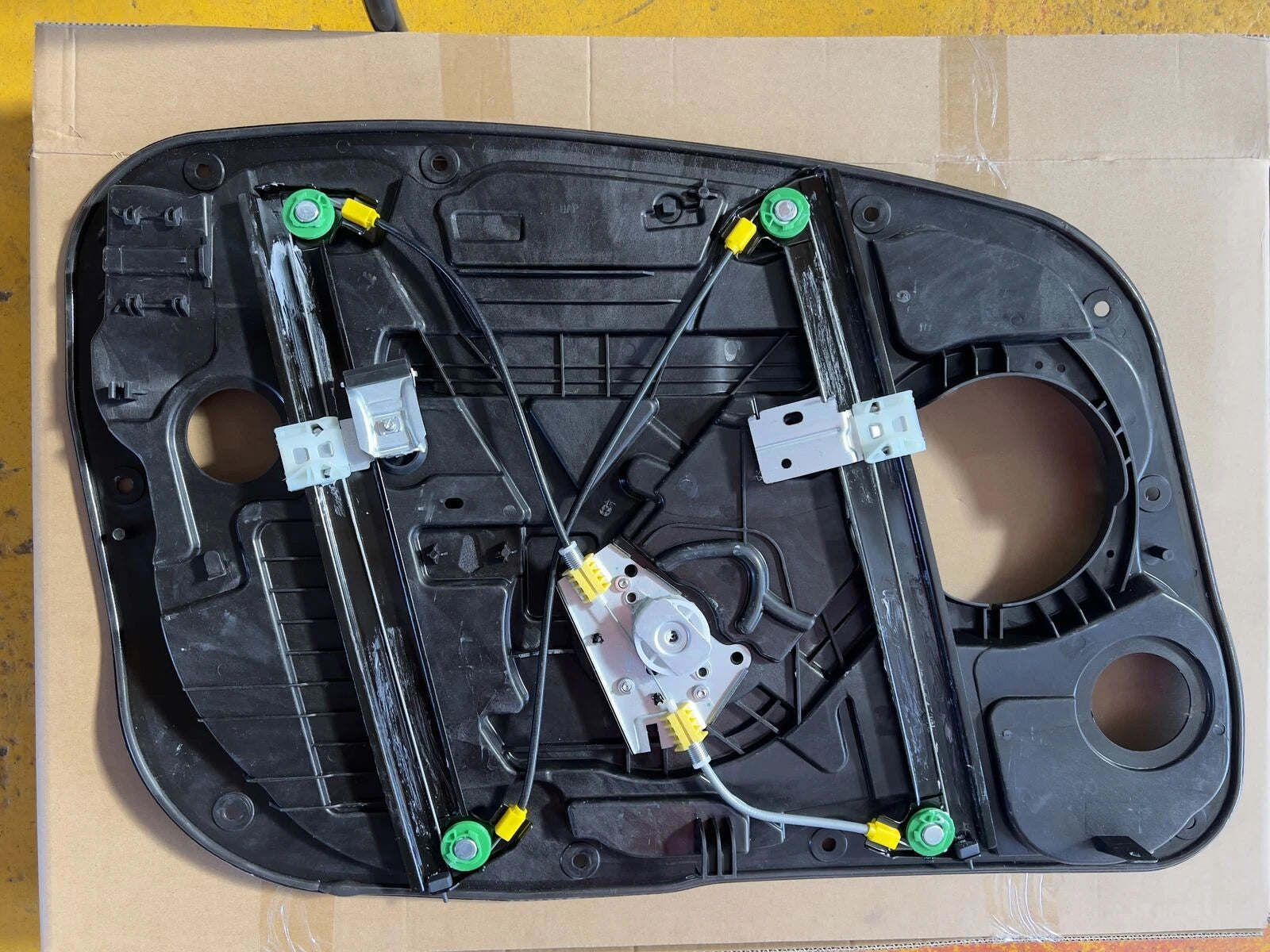

This front right electric window regulator is supplied complete with 2-pin motor and mounting panel, designed as a high-quality aftermarket replacement for selected Hyundai i30 GD models.

KEY FEATURES

• Complete window regulator assembly with motor and panel
• Electric operation with 2-pin motor connection
• Direct-fit replacement for front right (driver side) door
• High quality aftermarket construction
• Supplied brand new with 1-year parts warranty

SPECIFICATIONS

• Product: Window regulator
• Operating mode: Electric
• Placement on vehicle: Front right (front driver side)

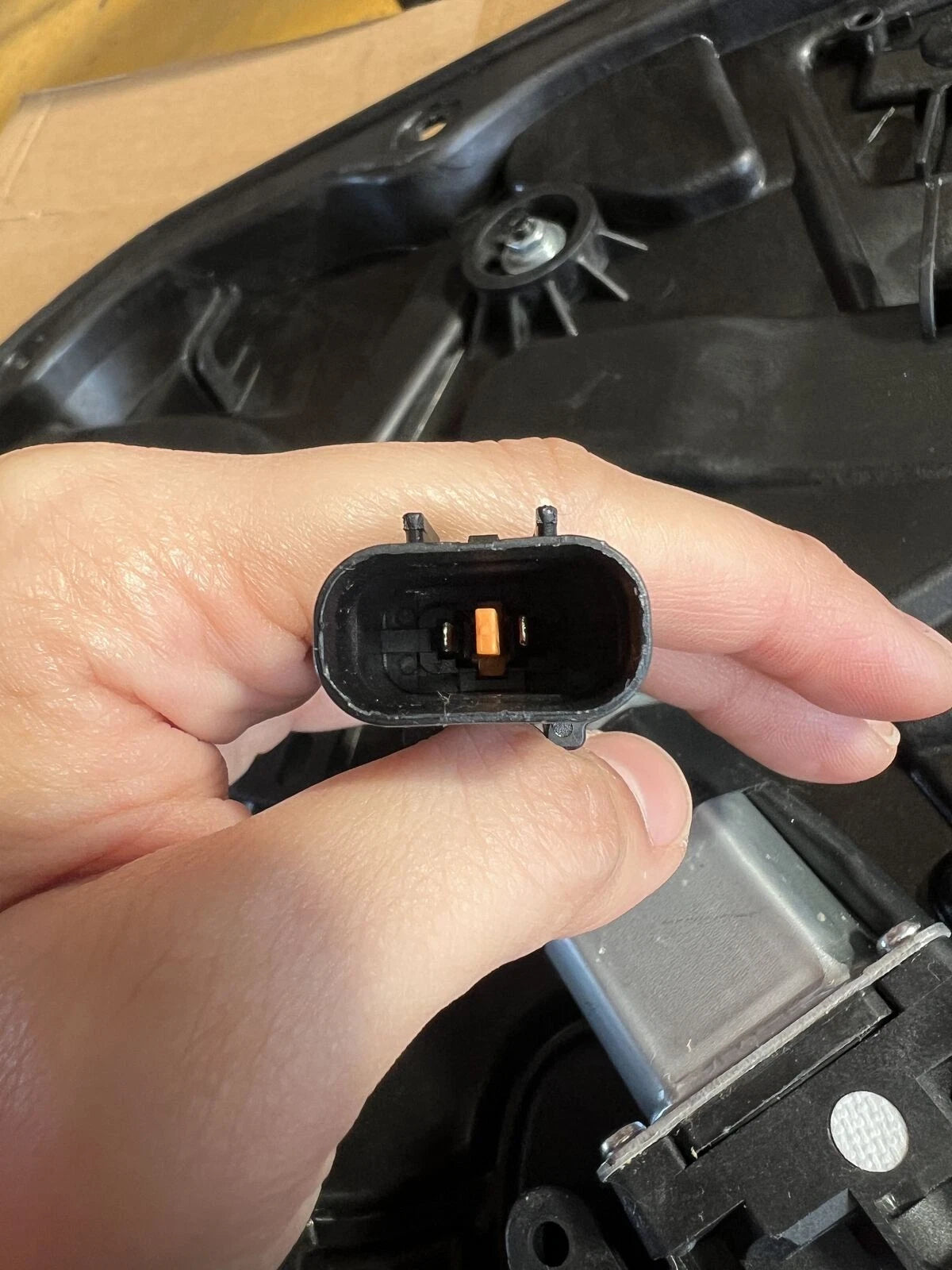

• Motor: 2-pin connector
• Configuration: With panel
• Condition: Brand new
• Part type: High quality aftermarket
• MPN / Item No.: 102258LM2D
• Quantity supplied: 1 piece
• Warranty: 1 year (part only)

FITMENT DETAILS

• Hyundai i30 GD 05/2012 - 03/2017

Always compare the images and specifications with your original part to confirm compatibility before purchase.

ANTI-PINCH FUNCTION RESET (IF APPLICABLE)

If the regulator motor is equipped with an anti-pinch function and the window drops after reaching the top position, the anti-pinch system may require resetting.

• Install the motor in the door before testing to avoid losing the preset function.
• Connect to the one-touch window switch and raise the window fully.
• If the glass drops after reaching the top, follow the reset steps below.

Reset procedure:

• Step 1: Pull the window switch briefly to move the window fully to the top.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top position.
• Step 3: Press the switch briefly to move the window fully to the bottom.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom position.
• Step 5: Pull the one-touch switch to move the window back up to the top.

The reset is complete if the window remains at the top. If it drops again, repeat the procedure.

IMPORTANT NOTES

• Intended for use as a replacement part for repair purposes.
• Installation by a qualified automotive technician is recommended.
• Product colour/finish may vary slightly due to lighting and screen settings.
• Images are representative of the actual part supplied.
