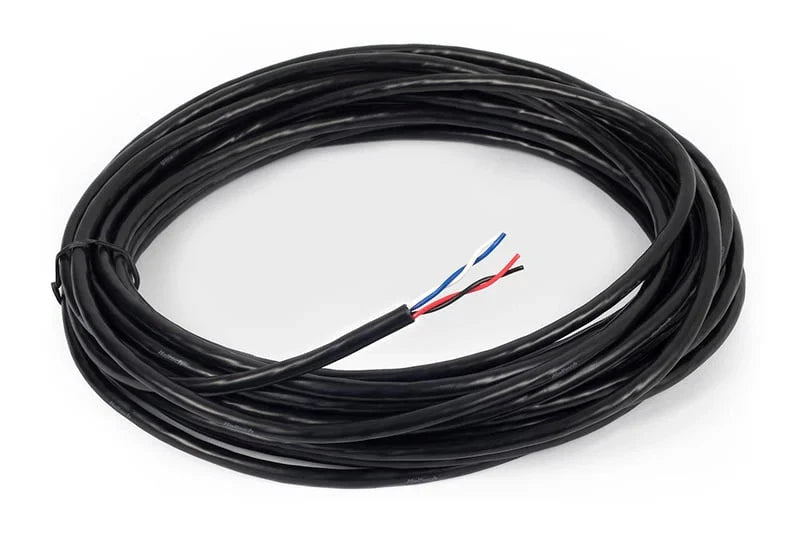

Haltech Multicore CAN Cable 4 x 20AWG PVC, 10m (32ft) HT-039204

PRODUCT OVERVIEW

The Haltech HT-039204 multicore cable is supplied in a 10m (32ft) length and is designed for creating custom CAN extension looms. It is ideal where the ECU is mounted at the front of the vehicle and devices such as a PD-16 are positioned towards the rear, or wherever extended CAN wiring runs are required.

KEY FEATURES

• Purpose-built for Haltech CAN cable and harness extensions
• Multicore construction for tidy, easy-to-route installations
• Colour-coded conductors for quick identification (red/black/white/blue)
• Durable PVC insulation and outer jacket
• Supplied as a continuous 10m (32ft) length

SPECIFICATIONS

• Part number: HT-039204
• Cable type: Multicore CAN cable

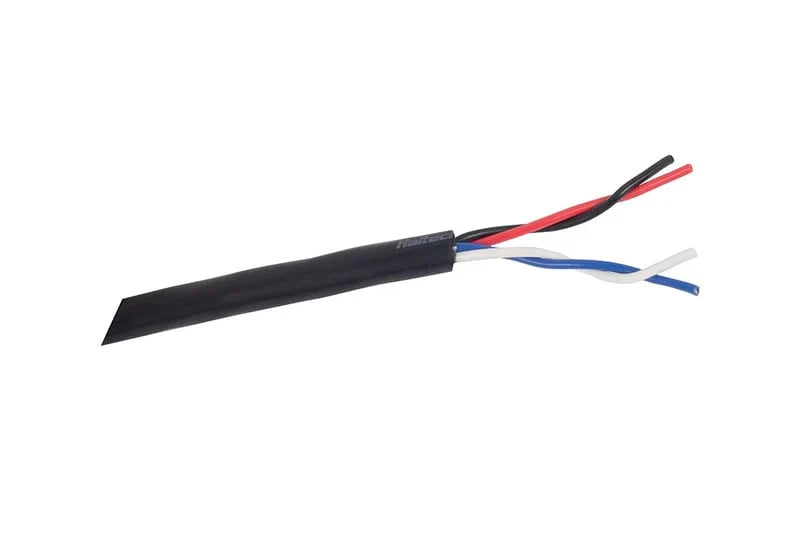

• Conductors: 4 x 20AWG (red / black / white / blue)
• Conductor insulation: PVC
• Cable jacket material: PVC
• Outside diameter: 6.00mm ± 0.25mm
• Length: 10m (32ft)

APPLICATION NOTES

• Suitable for creating custom-length Haltech CAN wiring looms
• Use where extended cable runs are required between ECU and CAN devices
• Professional installation and correct CAN wiring practices are recommended
