Universal 0–13000 RPM LED Backlit Motorcycle Tachometer Gauge 12V

2 8
286138852808
In stock
Auto Parts
A$43.94
OVERVIEW This universal motorcycle tachometer provides accurate engine RPM readings from 0–13,000 RPM in a compact,...
A$43.94
customers are viewing this product
Universal 0–13000 RPM LED Backlit Motorcycle Tachometer Gauge 12V
Description

OVERVIEW

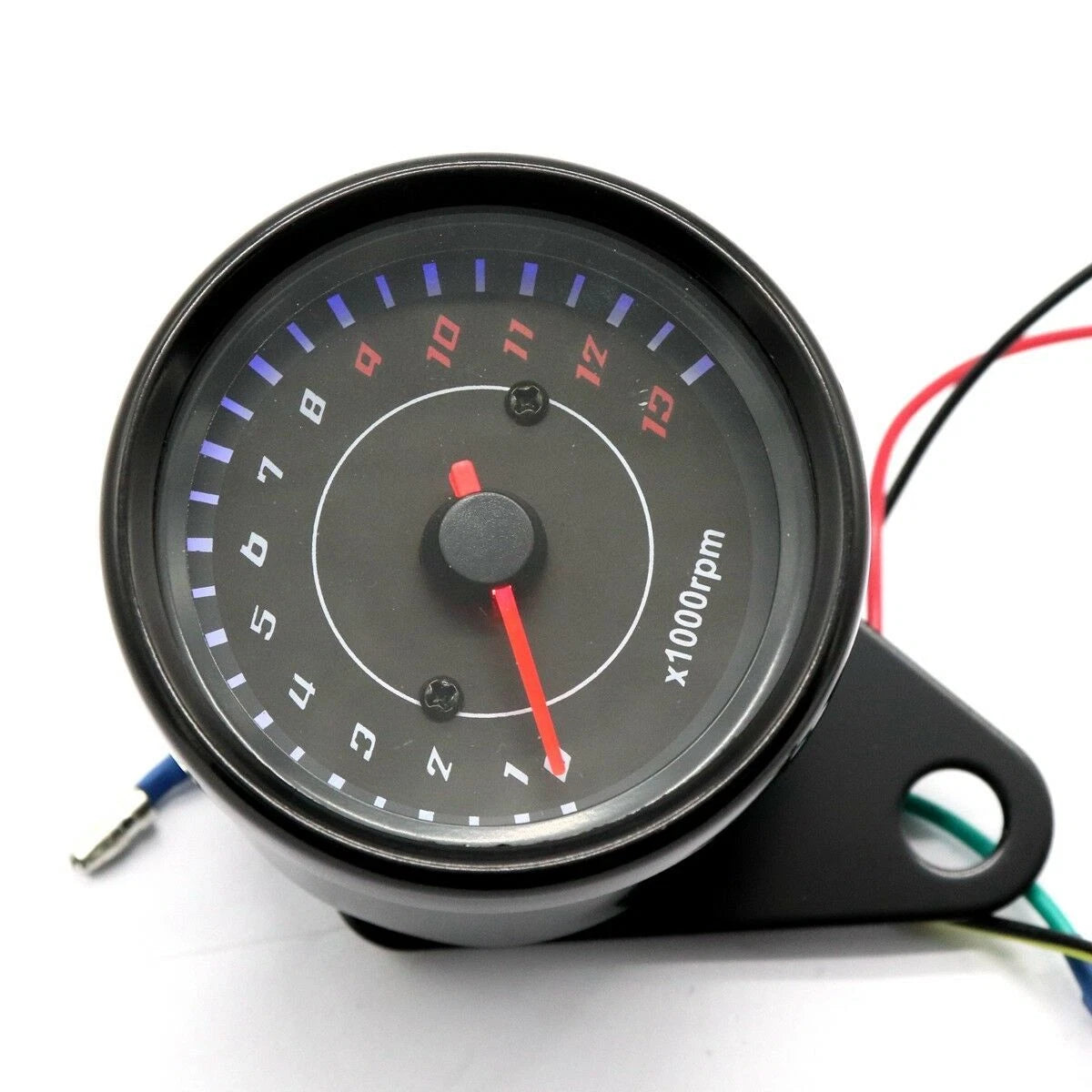

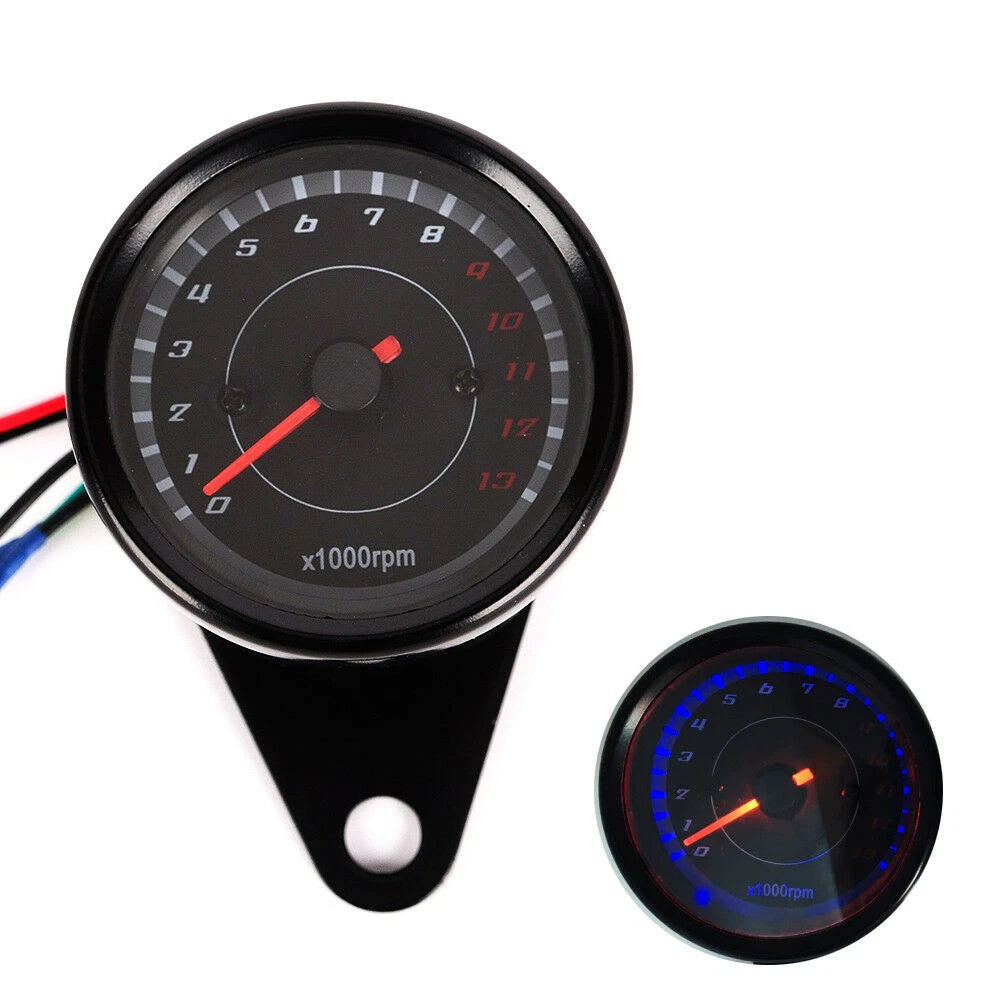

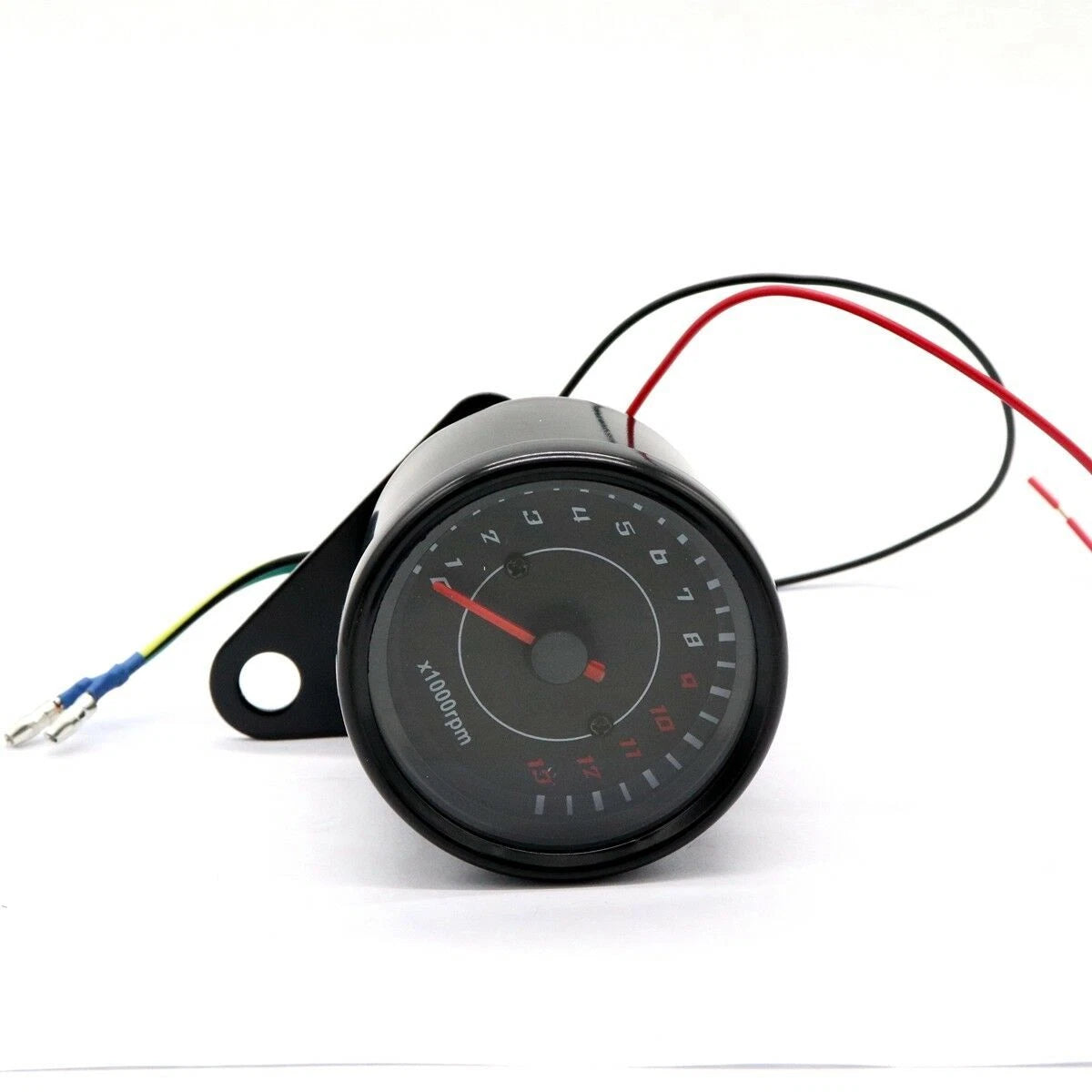

This universal motorcycle tachometer provides accurate engine RPM readings from 0–13,000 RPM in a compact, LED backlit gauge designed for 12V systems.

KEY FEATURES

  • Measurement range: 0–13,000 RPM
  • LED backlight with internal night light for clear visibility in low light
  • Full-sweep red illuminated index on a high-contrast black face
  • Lightweight, compact round design
  • Universal style suitable for many motorcycle models (verify dimensions before purchase)
  • General mechanical speed line interface

SPECIFICATIONS

  • Measurement range: 0–13,000 RPM
  • Input voltage: DC 12V

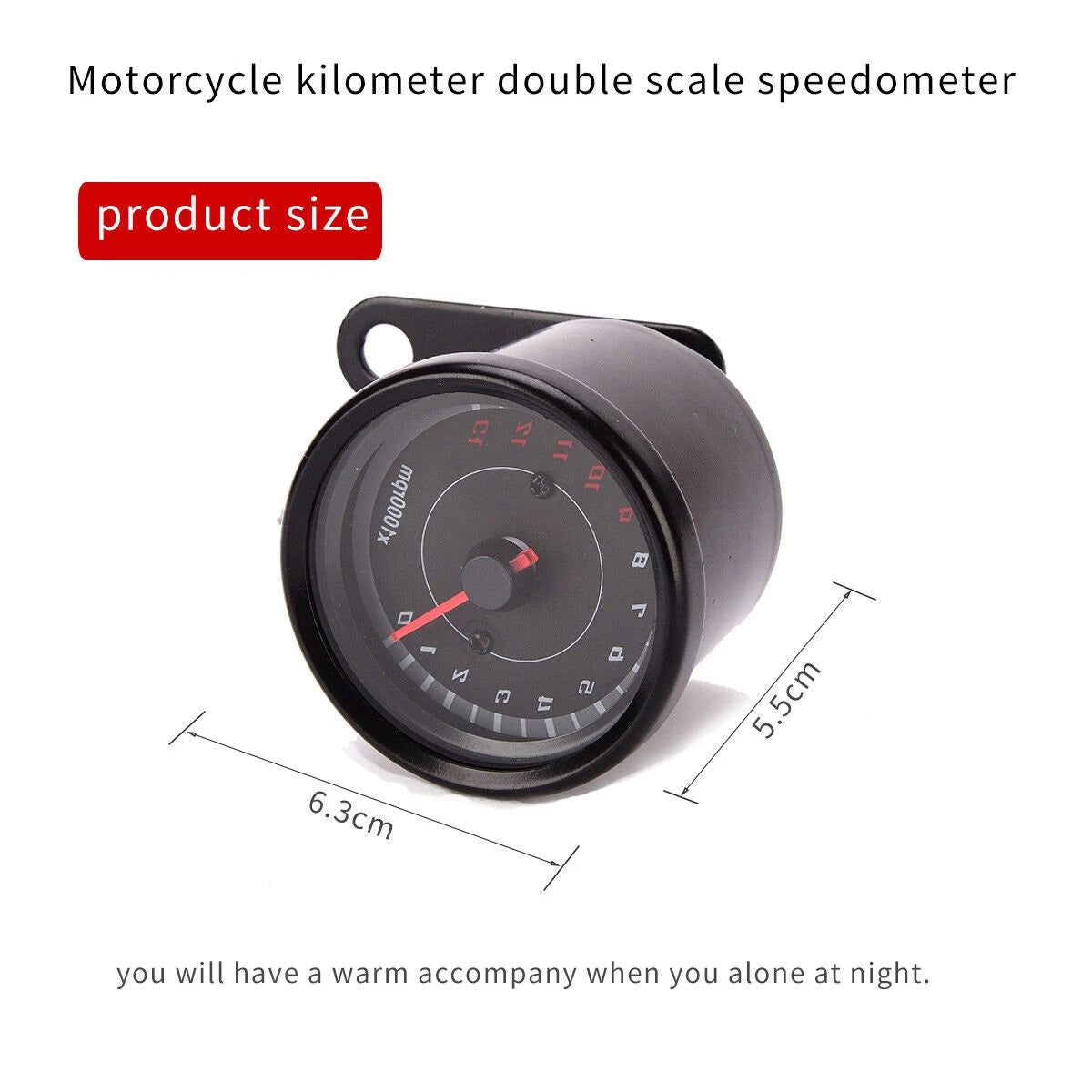

  • Gauge body size: approx. 60 mm (2-3/8") diameter x 56 mm (2-3/16") depth
  • Mirror (viewing) diameter: approx. 58 mm (2.3")
  • Outer bezel diameter: approx. 68 mm (2.7")
  • Face color: black
  • Instructions: not included

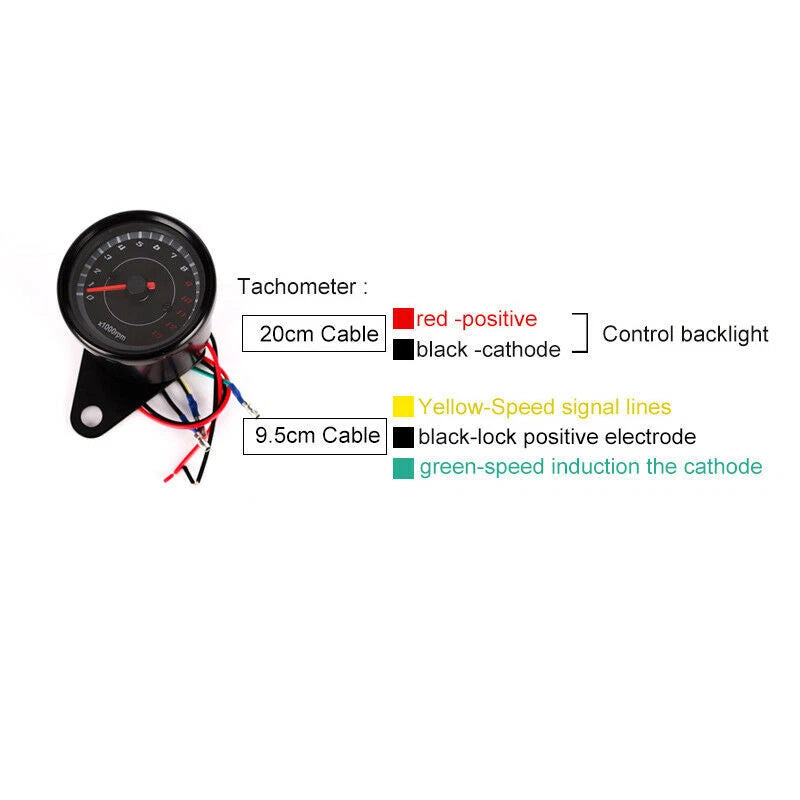

WIRE CONNECTIONS

  • Long red: positive (+)
  • Long black: negative (–)
  • Short green: ground
  • Short yellow/black: engine signal
  • Short black: power / ignition lock positive

FITMENT NOTES

This is a universal-style tachometer and does not include specific vehicle compatibility data. Please verify the gauge dimensions, wiring, and RPM requirements with your motorcycle before purchase.

PACKAGE CONTENTS

  • 1 x LED backlit universal motorcycle tachometer gauge
