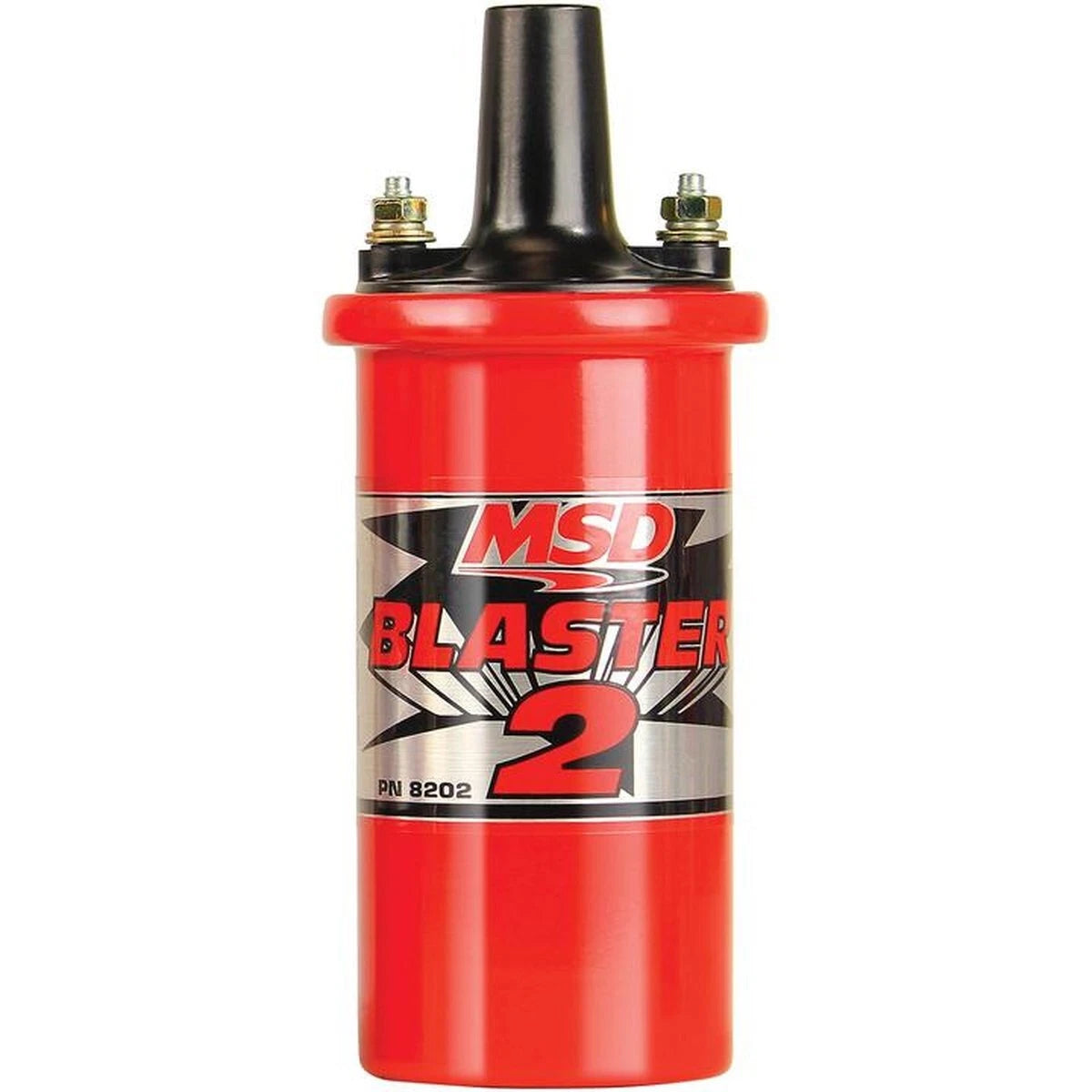

MSD Blaster 2 High Performance Ignition Coil MSD8202 45,000V

PRODUCT OVERVIEW

The MSD Blaster 2 ignition coil MSD8202 is designed as a high performance upgrade or replacement for electronic ignitions and MSD 5, 6 and 7 Series ignition controls. A 100:1 turns ratio and low primary resistance deliver strong spark energy for improved combustion and throttle response. The heavy-duty metal canister is oil-filled for effective heat dissipation and long-term reliability.

KEY FEATURES

• High output performance coil for electronic ignitions and MSD 5, 6, 7 Series (ballast resistor required with points ignition).
• Alkyd tower with high dielectric strength reduces risk of carbon tracking and misfire.
• 100:1 turns ratio and low primary resistance for increased voltage output and strong spark.
• Durable metal canister filled with premium grade oil for cooling and stability.
• Compatible with many stock and performance ignition systems (check ballast resistor requirements).
• CARB E.O. approved for emissions-controlled applications where applicable.

TECHNICAL SPECIFICATIONS

• Part number: MSD8202
• Brand: MSD
• Product type: Ignition coil
• Maximum voltage output: 45,000 V
• Turns ratio: 100:1
• Primary resistance: 0.7 Ω
• Secondary resistance: 4.5 kΩ
• Inductance: 8 mH
• Peak current: 140 mA
• Spark duration: 350 μs
• Emission code: 1

APPLICATION NOTES

• Suitable for use with many stock electronic ignition systems, MSD Blaster Ignition, and MSD 5, 6 or 7 Ignition Controls.
• Most late model electronic ignition vehicles do not require a ballast resistor; always check the vehicle manufacturer’s specifications.
• Mallory Unilite applications require the use of a ballast resistor.
• Professional installation and correct matching to the ignition system are recommended for optimal performance and reliability.
