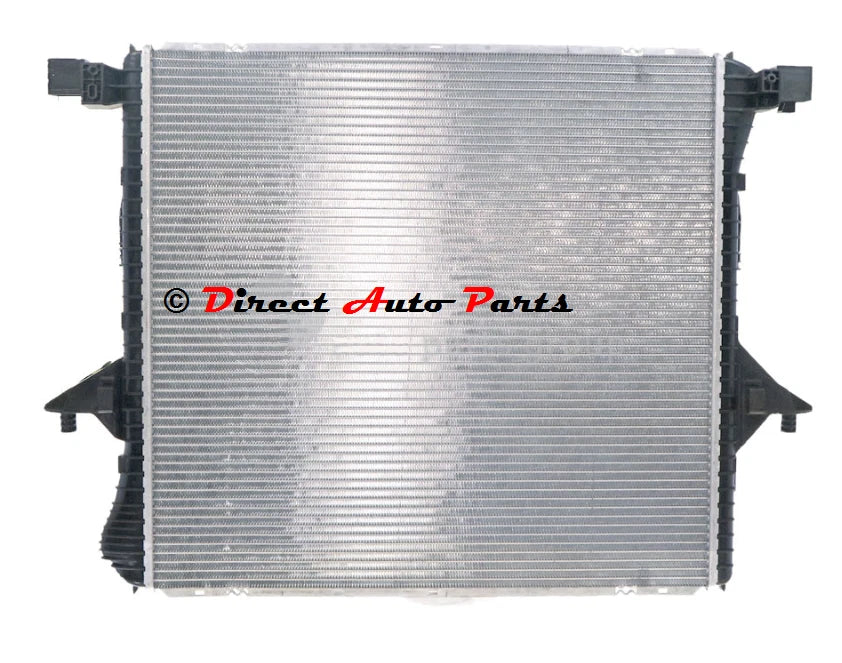

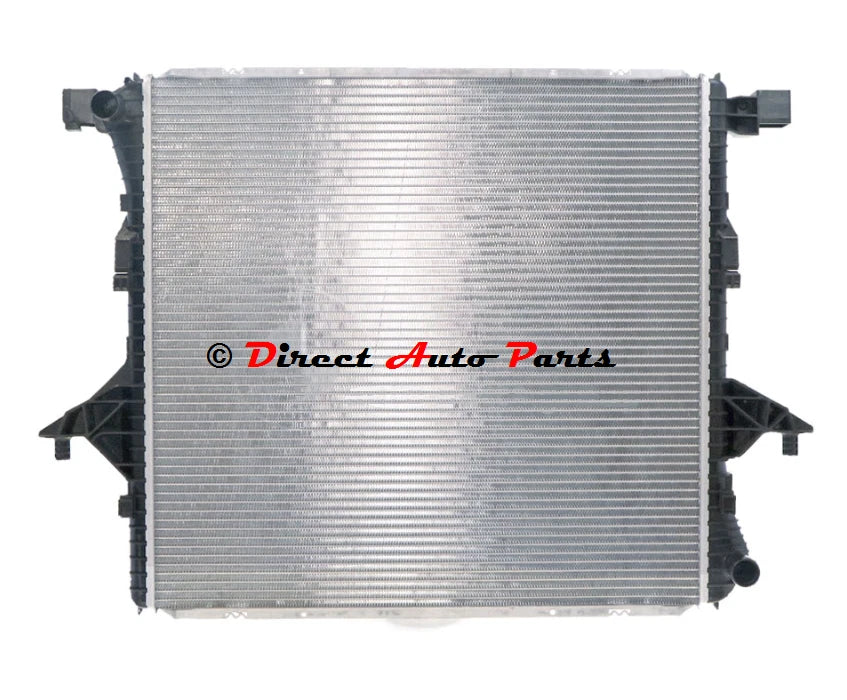

Radiator for Volkswagen Amarok 2H 2.0L Turbo Diesel & Petrol 2011-On

PRODUCT OVERVIEW

Brand-new, high-quality aftermarket radiator designed for Volkswagen Amarok 2H models from 2011-on. Suitable for both 2.0L turbo diesel and 2.0L turbo petrol engines, and compatible with automatic and manual transmissions.

COMPATIBILITY

• Make: Volkswagen
• Model: Amarok 2H
• Year: 2011-on
• Engine: 2.0L CDBA / CDCA / CSHA turbo diesel
• Engine: 2.0L CFPA turbo petrol
• Transmission: Fits both automatic and manual
• Item: Radiator
• OEM compatibility: 2H0121253A

SPECIFICATIONS

• Construction: Plastic aluminium
• Core height (tank to tank): 615 mm
• Core width: 588 mm
• Core thickness: 22 mm
• Inlet diameter: 32 mm
• Outlet diameter: 32 mm

Always confirm dimensions (tank-to-tank height, width, thickness) against your original radiator before purchase and installation.

CONDITION & QUALITY

• Condition: Brand new
• Type: High-quality aftermarket replacement part

WARRANTY

• Warranty: 12-month replacement warranty (no labour)
• Item must be installed by a qualified mechanic in a registered workshop.
• All pre-installation and post-installation procedures must be performed, including electric stray current testing.

Failure to follow correct installation procedures may void the manufacturer warranty.

INSTALLATION NOTES

• Inspect the cooling system for stray/electric current before removing the old radiator.
• Completely drain coolant and flush the system with clean water and a quality alkaline flushing agent.
• Check and, if necessary, replace related components such as radiator cap, hoses, clamps, thermostat, water pump and fans.
• Carefully remove the old radiator, check mountings and correctly install the new radiator assembly.
• Refill with clean water and re-test for stray/electric current before adding coolant.
• Use only the coolant type and dosage specified in the vehicle manufacturer service manual.
• Do not mix different coolant brands to avoid chemical reactions that can reduce corrosion protection.
• Run the engine to normal operating temperature and inspect for leaks after installation.

Correct coolant selection, thorough system flushing and stray current testing are critical to prevent electrolysis, internal corrosion and premature radiator failure.
