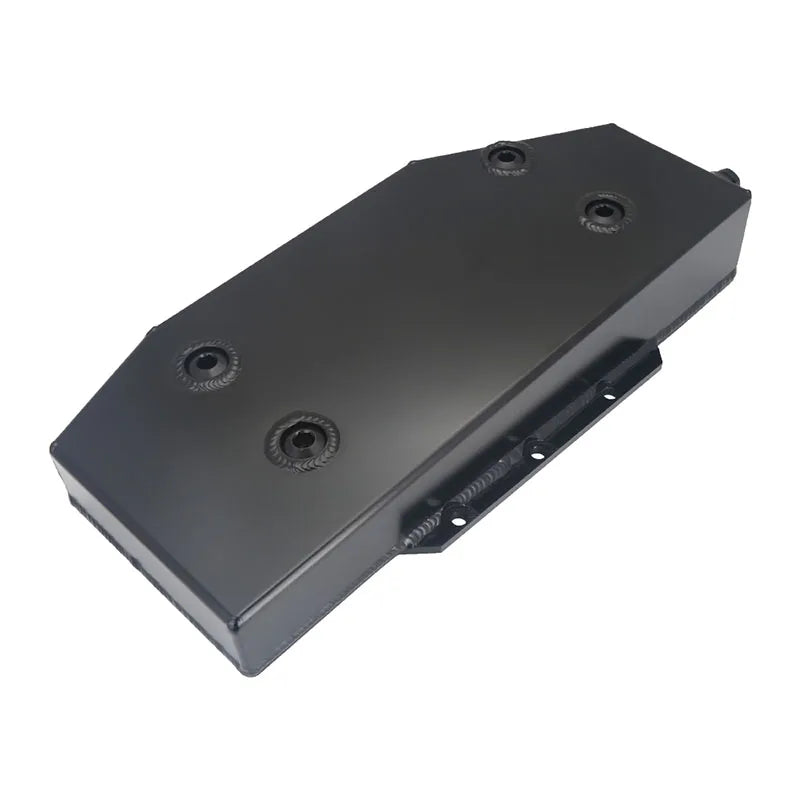

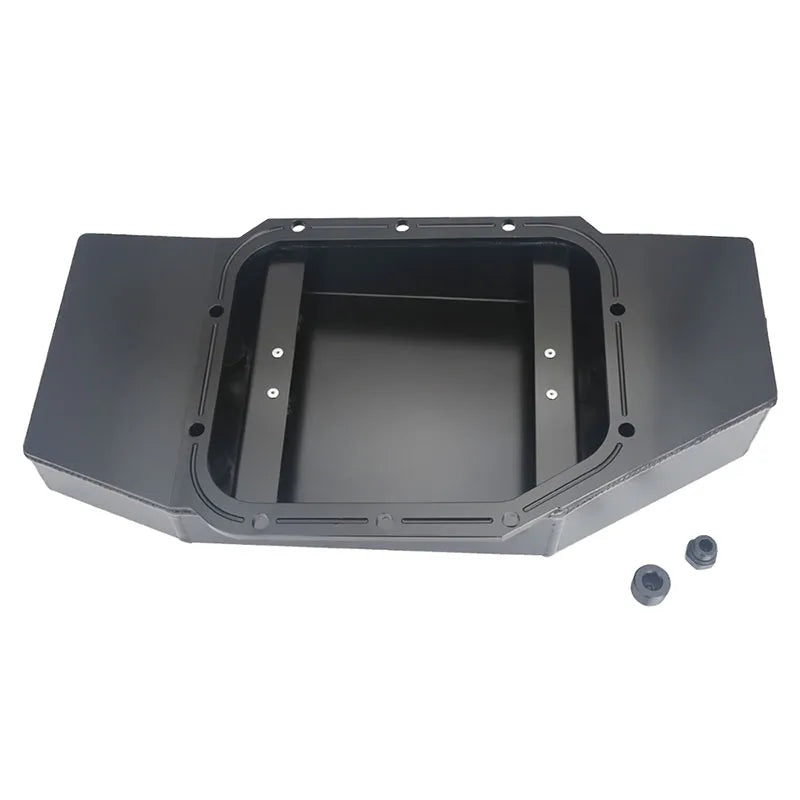

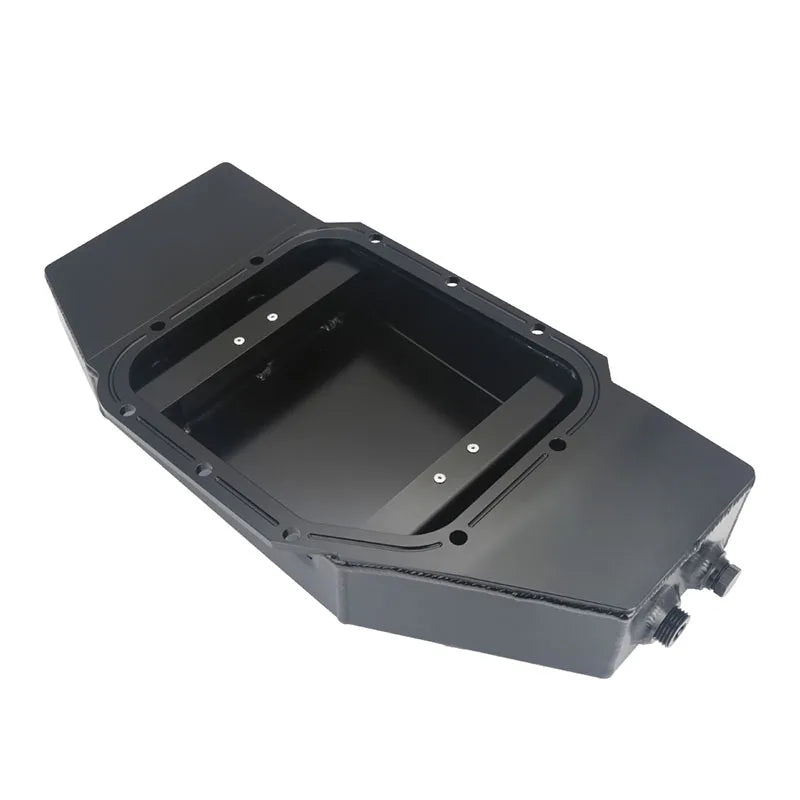

Nissan SR20 180SX 200SX S13 S14 S15 Baffled Oversized Aluminium Oil Pan Sump 4.5 Litre - Black

Product Overview

This oversized baffled oil pan is listed for Nissan SR20-powered 180SX and 200SX models in S13, S14 and S15 form. Made from aluminium with an anodised black finish and a 4.5 litre capacity, it is designed to help keep the oil pickup covered during hard cornering, a common concern for drift and circuit cars. The baffling controls oil movement inside the sump.

Key Features and Benefits

• Oversized 4.5 litre capacity
• Internal baffling to control oil surge
• Aluminium construction
• Anodised black finish
• Designed for the SR20 engine

Vehicle Compatibility

The supplier lists the Nissan SR20 engine in 180SX and 200SX models across the S13, S14 and S15 chassis. Specific SR20 variants and years are not stated. Fitment is supplier-stated and should be confirmed with your engine and chassis, particularly on swapped or modified cars, before ordering.

Product Specifications

• Product type: baffled oil pan sump
• Capacity: 4.5 litres
• Material: aluminium
• Finish: anodised black
• Engine: SR20
• Packed size: 44 x 24 x 10 cm
• Packed weight: approximately 2.3 kg

Installation and Usage

Drain the engine oil and remove the factory sump, cleaning all mating surfaces thoroughly. Check the oil pickup position and clearance to the new baffles before final fitment. Apply a suitable sealant, fit the new pan and tighten the bolts evenly to specification. Allow sealant to cure, refill with the correct oil quantity for the larger sump, then run the engine and check for leaks. Check ground clearance, as an oversized sump may sit lower.

Package Contents

One baffled oil pan as pictured. Gaskets, sealant and bolts are not itemised by the supplier.

Important Fitment Notice

Please send us your VIN and engine details before ordering so we can help confirm fitment. Images are for reference only. Lowered cars must still meet minimum ground clearance rules for a Warrant of Fitness in New Zealand, so check clearance once the pan is fitted.
