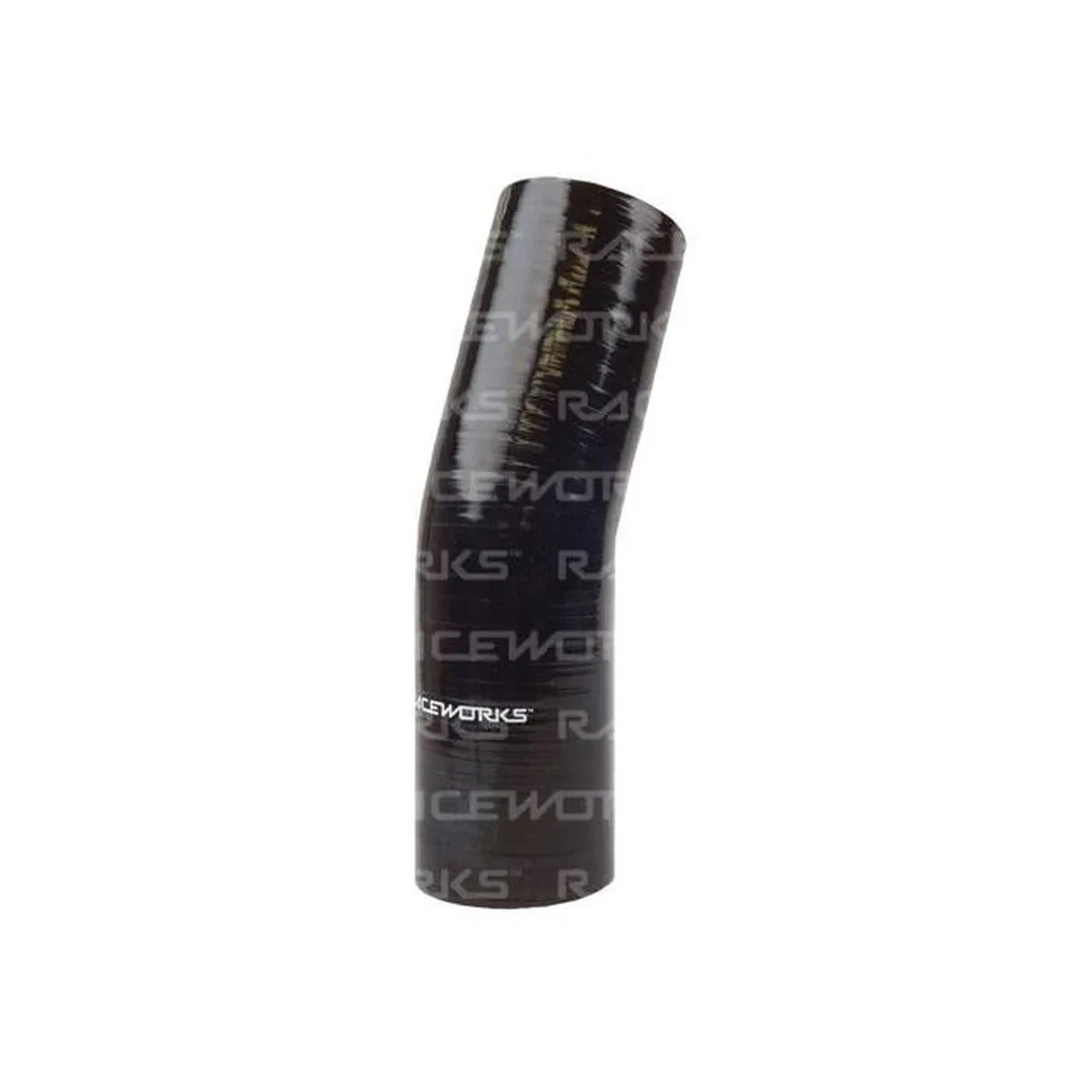

Raceworks Silicone 23° Elbow Hose 2.75" (70mm) Black 4‑Ply

PRODUCT OVERVIEW

The Raceworks 23° Silicone Elbow Hose 2.75" (70mm) in black is engineered to exceed stringent OEM and performance requirements. Constructed with a thick 5mm wall and multi-layer reinforcement, it is ideal for high-performance intake and cooling system applications where durability and reliability are critical.

KEY FEATURES

• 23° silicone elbow hose with 2.75" (70mm) internal diameter
• Solid 5mm wall thickness for superior strength and durability
• 4-ply reinforced silicone polyester construction
• High burst pressure rating, up to 348 psi (application dependent)
• Operating temperature range from -40°C to +180°C
• UV, ozone and electrochemical resistance to minimise fading and degradation
• Black finish for a clean, professional engine bay appearance

MATERIAL & PERFORMANCE

• Premium-grade silicone formulated for performance automotive use
• Reinforced for high-pressure intake, intercooler and coolant applications
• Designed to maintain shape and sealing under heat and vibration

APPLICATION NOTES

• Suitable for air, coolant and other non-petroleum-based fluids
• Not suitable or rated for use with fuel or oil (silicone hose is not fuel safe)
• Universal component; check dimensions and angle against your system layout before purchase

SPECIFICATIONS

• Brand: Raceworks
• Part number: SHE-023-275BK
• Product type: 23° silicone elbow hose
• Bore size: 2.75" (70mm)
• Wall thickness: 5mm
• Construction: 4-ply reinforced silicone polyester
• Temperature range: -40°C to +180°C (approximate)
• Colour: Black

WARRANTY

This Raceworks silicone hose is supplied with a 2-year manufacturer warranty, subject to correct installation and normal use.
