Runva 3.5P ATV Winch 24V 3500lb with Synthetic Rope 35P24VD

PRODUCT OVERVIEW

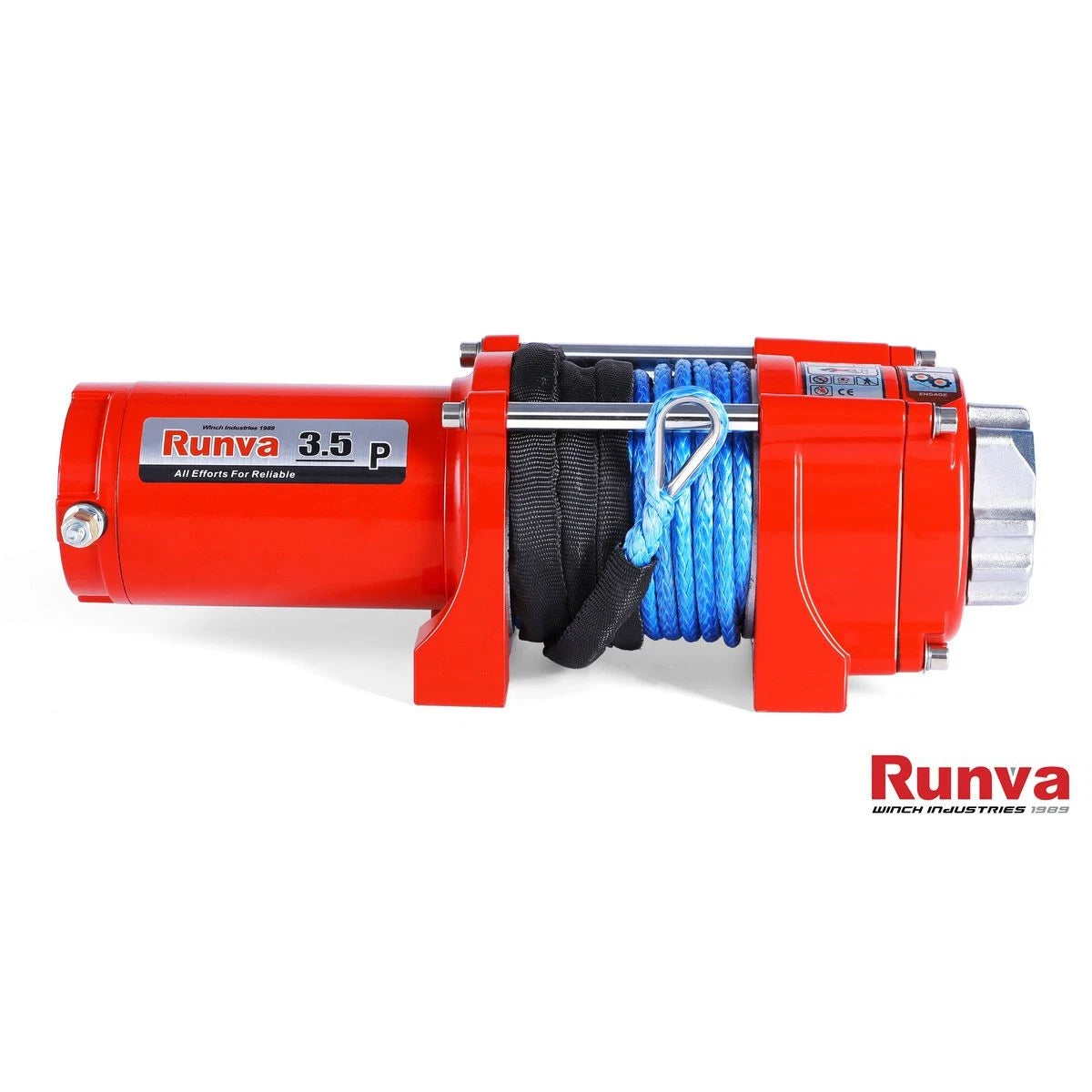

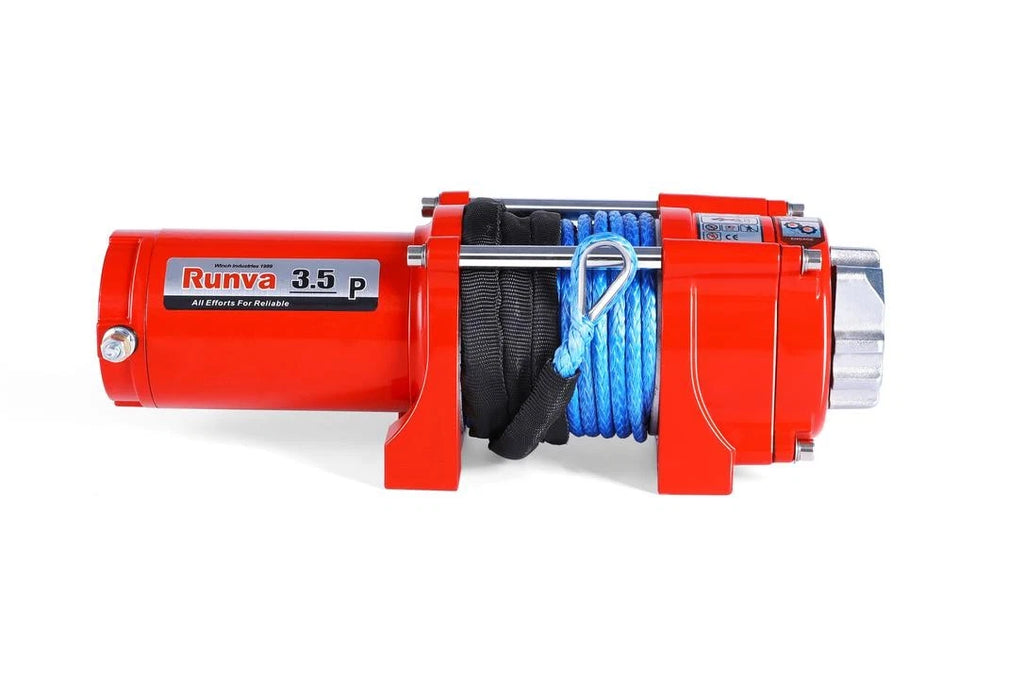

The Runva 3.5P ATV Winch 35P24VD is a compact, high-torque 24V winch designed for reliable vehicle recovery in demanding off-road conditions. Featuring a watertight seal and heavy-duty metal construction, it delivers a rated line pull of 3,500lb (1,588kg) using a durable synthetic rope.

KEY FEATURES

• Rated line pull: 3,500lb (1,588kg) for ATV and light vehicle recovery
• 24V permanent magnet motor, 2.9kW / 3.9HP output
• Full steel planetary gear train with 170:1 gear ratio
• Automatic load-holding brake for secure load control
• Synthetic rope, 6mm x 12.5m, for reduced weight and safer operation
• Watertight construction helps prevent dirt and moisture ingress
• Red powder coat finish for corrosion resistance and durability

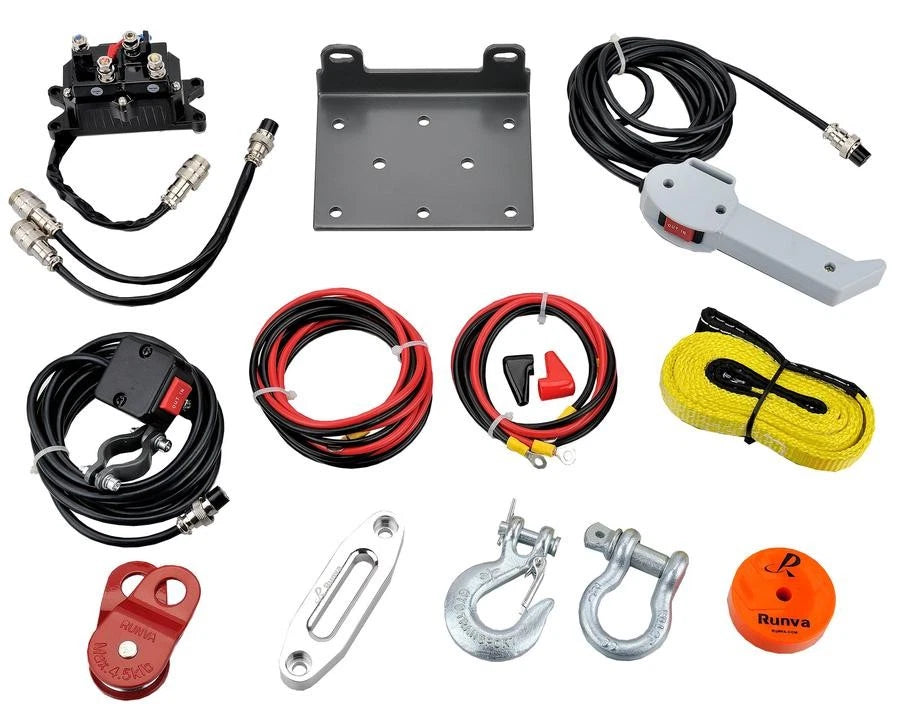

INCLUDED COMPONENTS

• Runva 3.5P 3500lb winch (red housing)
• Pre-fitted synthetic rope
• 250A solenoid
• 2.3m rocker switch ATV handle mounting pack
• 2.3m handheld remote control
• Y connector
• Aluminium hawse fairlead or stainless steel roller fairlead (as supplied)
• Hook and shackle (2 tonne rated)
• Mounting plate
• 2 x 2.3m battery leads (200A)
• 2 tonne snatch block
• 2 tonne, 2m tow strap
• Rope/gear protector

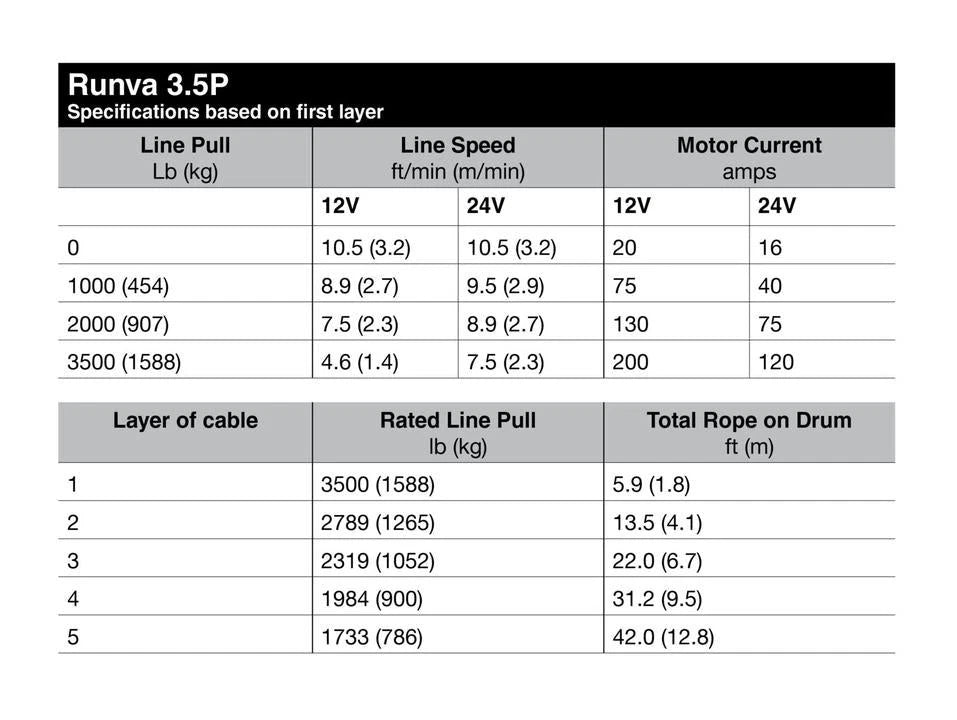

TECHNICAL SPECIFICATIONS

• Rated line pull: 3,500lb (1,588kg)
• Motor: Permanent magnet, 24V, 2.9kW / 3.9HP
• Gear train: Full steel planetary
• Gear ratio: 170:1
• Brake: Automatic load holding
• Rope: Synthetic, 6mm x 12.5m
• Drum size: 37mm (diameter) x 80mm (length)
• Mounting bolt pattern: 76mm x 124mm
• Overall dimensions: 335mm x 116mm x 112mm
• Remote controls: 2.3m handheld remote and rocker switch
• Battery leads: 2 x 2.3m, 200A
• Finish: Red powder coat
• Net weight: 8kg
• Gross weight (with packaging): 9kg
• Warranty: Limited lifetime (as per manufacturer terms)

FITMENT NOTICE

No specific vehicle compatibility is provided for this winch. Ensure mounting dimensions, electrical requirements and rated line pull are suitable for your application before purchase or installation.
