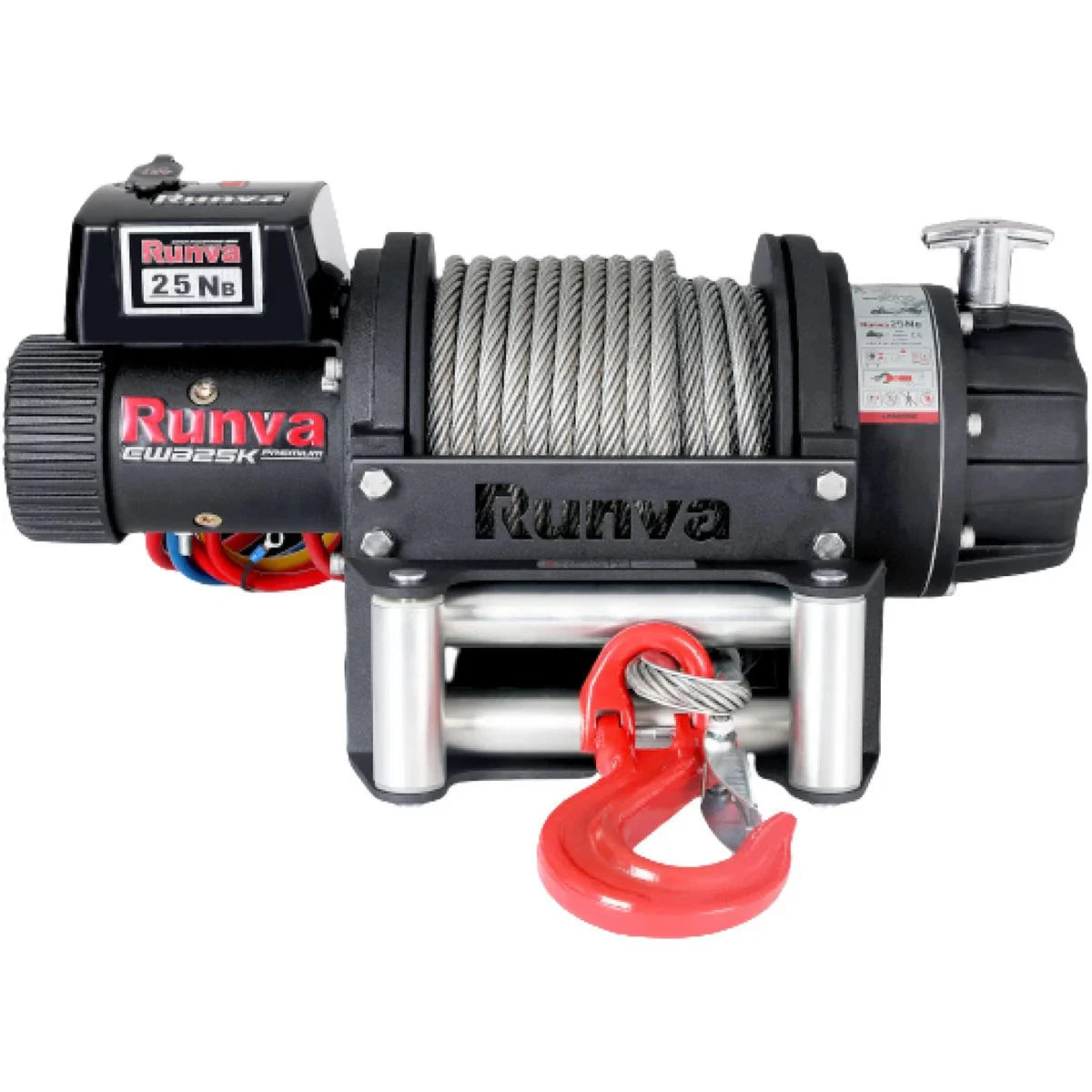

Runva EWB25000 Premium 24V Electric Winch with Steel Cable 25,000lb

PRODUCT OVERVIEW

The Runva EWB25000 Premium is a heavy-duty 24V electric winch delivering a massive 25,000lb (11,340kg) rated line pull for demanding recreational and commercial recovery applications. Featuring a full steel 3-stage planetary gearbox with a 450:1 ratio and fast no-load line speed, it is engineered for reliable performance in extreme conditions.

This model includes premium features such as IP67 ingress protection, an advanced automatic ratchet load-holding brake located in the gearbox, and a stainless steel rotary clutch for quick and secure engagement. Supplied with a heavy-duty handheld remote plus wireless control and heavy-duty battery leads, it is designed for serious pulling power on large 4x4, truck, industrial, marine and utility setups where a high-capacity winch is required.

KEY FEATURES

• Massive 25,000lb (11,340kg) rated line pull for heavy recoveries
• 24V electric motor rated at 6.1kW / 8.2hp for high-torque output
• Full steel 3-stage planetary gear train with 450:1 ratio
• IP67 ingress protection for dust and water resistance
• Automatic ratchet load-holding brake integrated in gearbox
• Stainless steel rotary clutch for easy engage/disengage
• Supplied with heavy-duty handheld and wireless remote controls
• Includes 14mm x 25m steel cable on a large diameter drum
• Matt black powder coat finish for durability and corrosion resistance
• Suitable for demanding recreational, commercial, industrial and marine use

TECHNICAL SPECIFICATIONS

• Rated Line Pull: 25,000lb (11,340kg)
• Motor (12V): 5.5kW / 7.4hp
• Motor (24V): 6.1kW / 8.2hp
• Gear Train: Full steel 3-stage planetary
• Gear Ratio: 450:1
• Clutch Type: Stainless steel rotary clutch
• Clutch Handle Position: Gearbox can be rotated for mounting flexibility
• Brake: Automatic ratchet load-holding in gearbox
• Cable Type: Steel cable
• Cable Size: 14mm x 25m
• Drum Size: 120mm x 198mm
• Mounting Bolt Pattern: 254mm x 114.3mm; 254mm x 190.5mm (8 x M12 bolts)
• Overall Dimensions: 638mm x 298mm x 284mm
• Remote Control: Heavy-duty handheld plus wireless remote
• Battery Leads: 2 x 1.8m heavy-duty leads
• Finish: Matt black powder coat
• Ingress Protection: IP67 rated
• Warranty: Limited 5-year electrical and lifetime mechanical warranty (18-month commercial use warranty)

APPLICATION NOTES

No specific vehicle fitment is supplied for this winch. It is intended for custom installations on suitable bumpers, trays, carrier frames or equipment that can accommodate the mounting bolt pattern, overall dimensions and load requirements. Always verify mounting compatibility and electrical capacity before installation.
