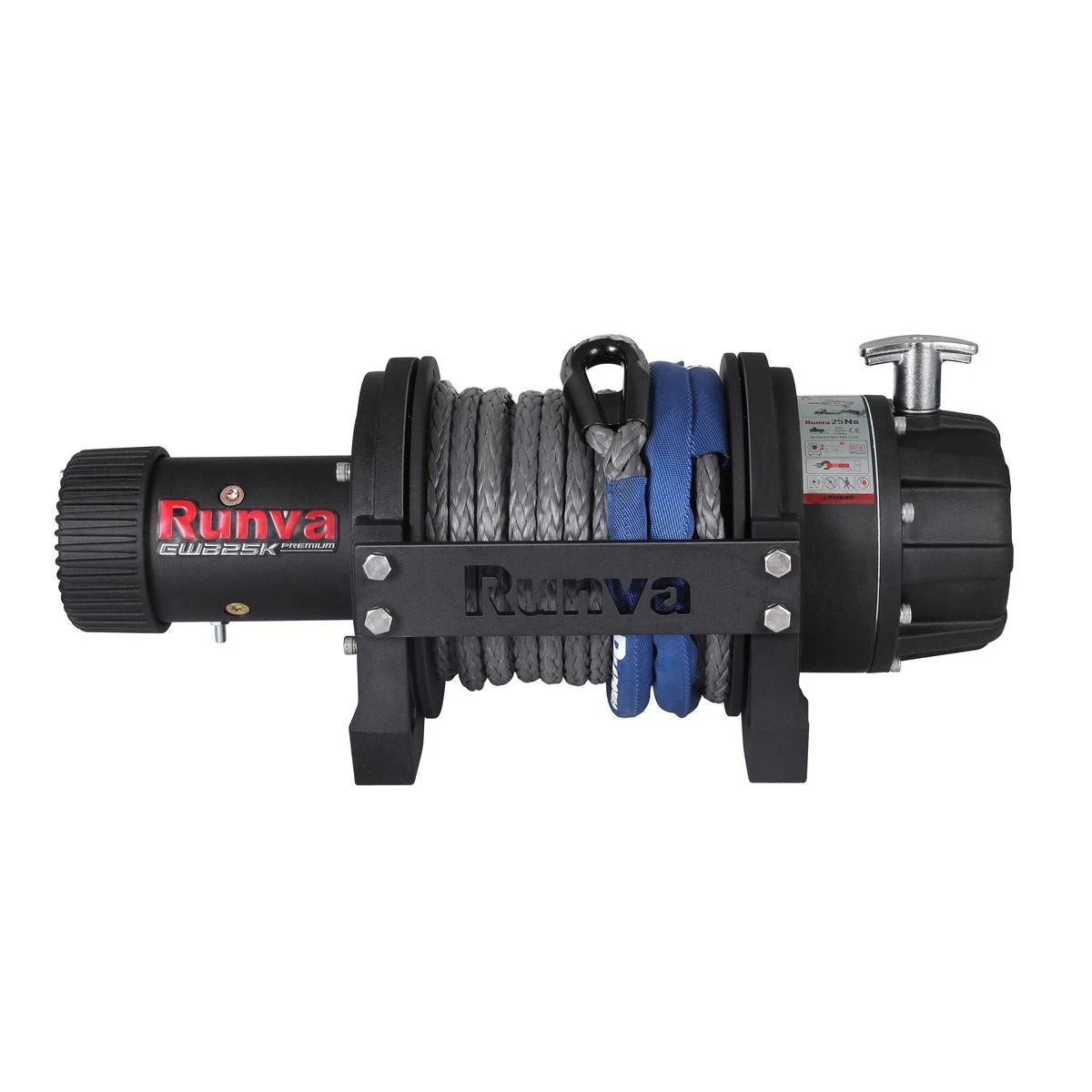

Runva EWB25000 Premium 24V Electric Winch with Synthetic Rope 25K

PRODUCT OVERVIEW

The Runva EWB25000 Premium 24V Electric Winch is a heavy duty recovery solution engineered for demanding recreational and commercial use. With a rated line pull of 25,000 lb (11,340 kg), it is suited to large 4x4, truck, industrial, marine and other heavy pulling tasks where maximum power and reliability are critical.

KEY FEATURES

• 25,000 lb (11,340 kg) rated line pull for heavy duty recovery
• 24V high-output motor for consistent pulling performance
• Full steel 3-stage planetary gear train with 450:1 ratio
• No-load line speed up to 9.3 m/min*
• IP67 ingress protection for water and dust resistance
• Automatic ratchet load-holding brake located in gearbox
• Stainless steel rotary clutch for easy engagement and disengagement
• Synthetic rope for reduced weight and safer handling
• Supplied with heavy duty handheld and wireless remote controls
• Matt black powder coat finish for improved corrosion resistance

*Line speed figure is approximate and may vary with installation and operating conditions.

TECHNICAL SPECIFICATIONS

• Rated line pull: 25,000 lb (11,340 kg)
• Motor: 24V 6.1 kW / 8.2 hp (also compatible with 12V 5.5 kW / 7.4 hp configuration)
• Gear train: Full steel 3-stage planetary
• Gear ratio: 450:1
• Clutch type: Stainless steel rotary clutch
• Clutch handle position: Gearbox can be rotated
• Brake: Automatic ratchet load-holding brake in gearbox
• Cable type: Synthetic rope
• Cable size: 14 mm x 25 m
• Drum size: 120 mm x 198 mm
• Mounting bolt pattern: 254 mm x 114.3 mm; 254 mm x 190.5 mm (8 x M12 bolts)
• Overall dimensions (L x W x H): 638 mm x 298 mm x 284 mm
• Remote control: Heavy duty handheld and wireless remote
• Battery leads: 2 x 1.8 m heavy duty leads
• Finish: Matt black powder coat
• Ingress protection: IP67 rated
• Part number: EWB2500024VD

APPLICATIONS

• Recreational 4x4 and off-road recovery (where mounting and electrical system allow)
• Commercial vehicles and tow trucks
• Industrial and construction site recovery and pulling tasks
• Marine, agricultural and general heavy duty pulling applications

No specific vehicle fitment data is provided for this winch. Always confirm mounting dimensions, electrical capacity and system requirements before installation.

WARRANTY

• Limited 5-year electrical warranty
• Lifetime mechanical warranty
• 18-month warranty for commercial use

Refer to the manufacturer’s warranty terms for full conditions, exclusions and claim procedures.
