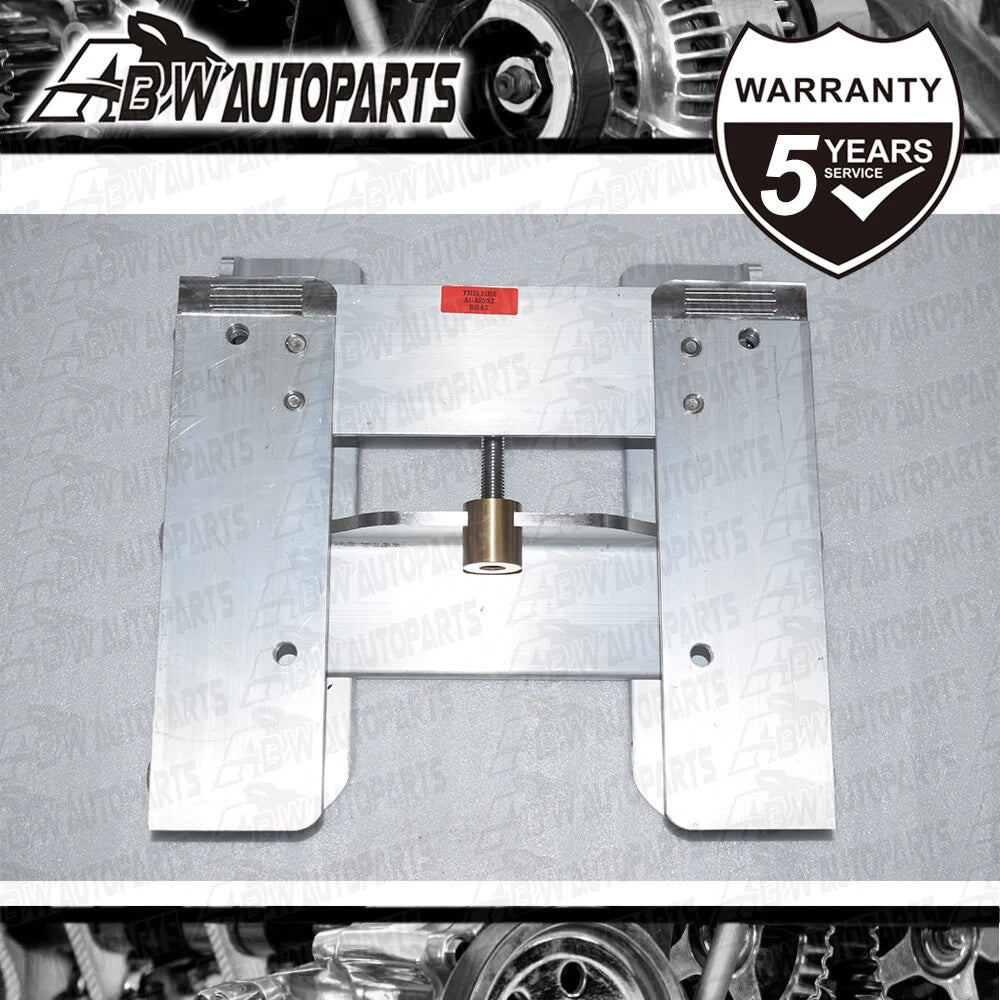

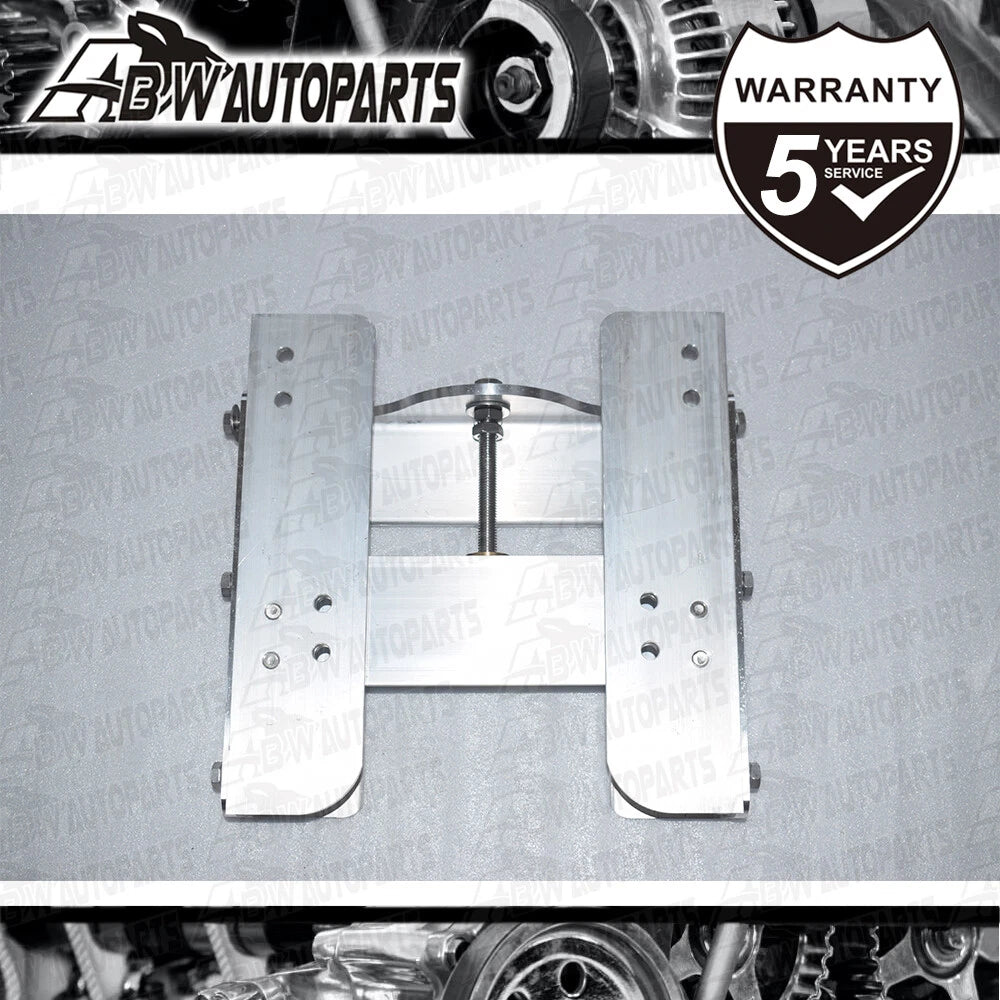

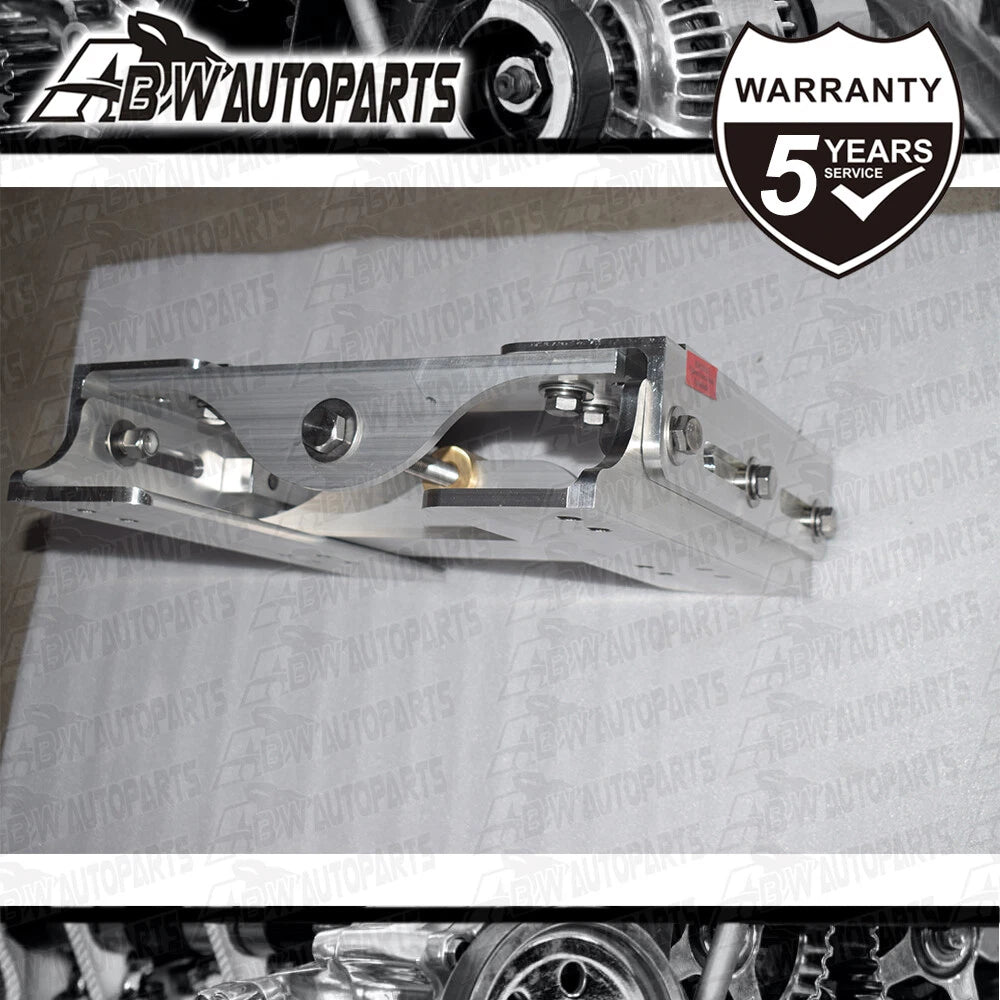

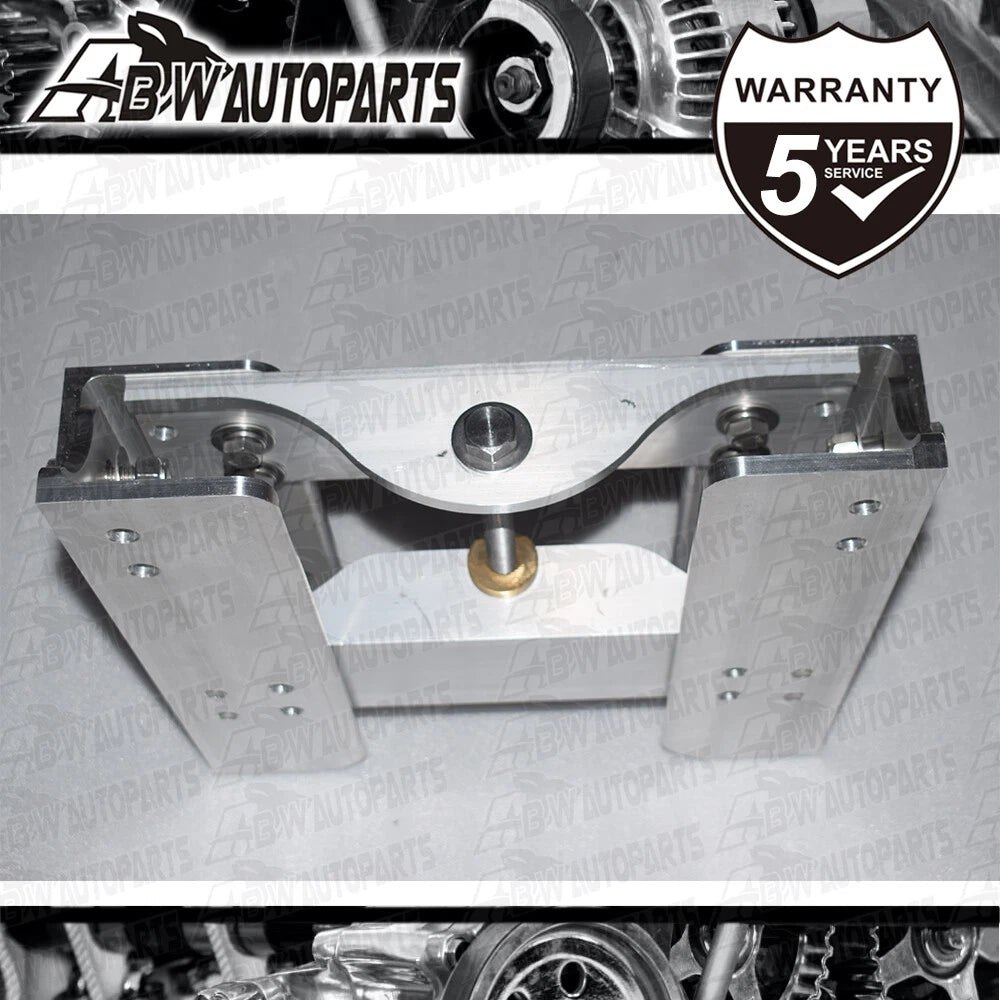

Adjustable 4" Outboard Boat Jack Plate, 4" Setback, 225 HP Max

PRODUCT OVERVIEW

This adjustable 4" outboard boat jack plate provides precise vertical adjustment and setback to optimize engine height, performance, and handling. Constructed from high-strength aircraft-grade aluminum with bronze and brass hardware, it is designed for durability and smooth operation.

KEY FEATURES

• Single-adjusting jack plate design
• High-strength polished aircraft-quality aluminum construction
• Bronze and brass hardware to reduce binding and ensure smooth travel
• Simple height adjustment by turning a single steel bolt
• Provides 4 inches of adjustable vertical movement
• 4 inches of setback to optimize engine position
• Supports up to 225 maximum horsepower
• Approximate weight: 24 lbs

MOUNTING & HOLE DIMENSIONS

Pre-drilled mounting holes are provided for easier installation. Dimensions are listed in inches.

• Pre-drilled for 1/2" stainless hardware
• 12 7/8" across the top two holes (center to center)
• 9 7/8" across the bottom two holes (center to center)
• 8" vertical distance between the upper and lower mounting holes

PERFORMANCE NOTES

A jack plate can help improve holeshot, bow lift, and overall efficiency when your outboard height is not optimal or the engine is not running perpendicular to the water at speed. Always verify proper water pressure and propeller bite after adjustment.
