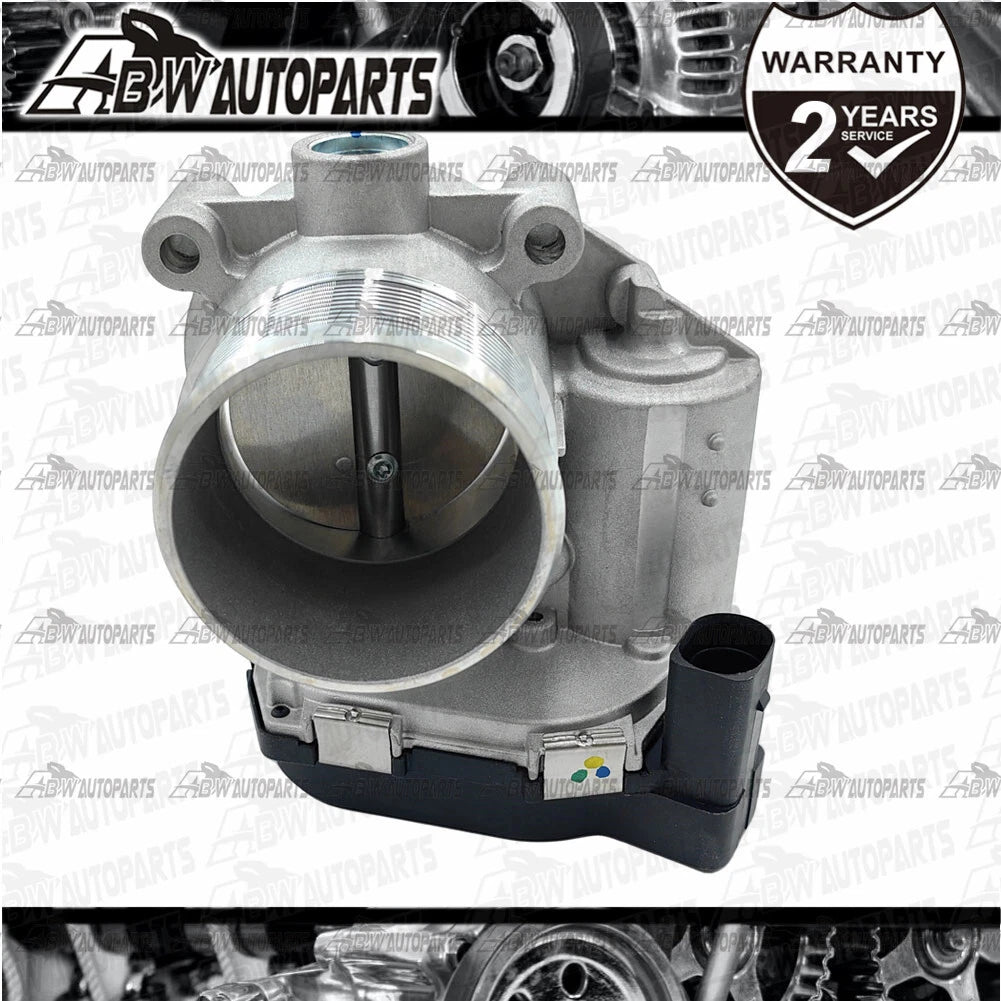

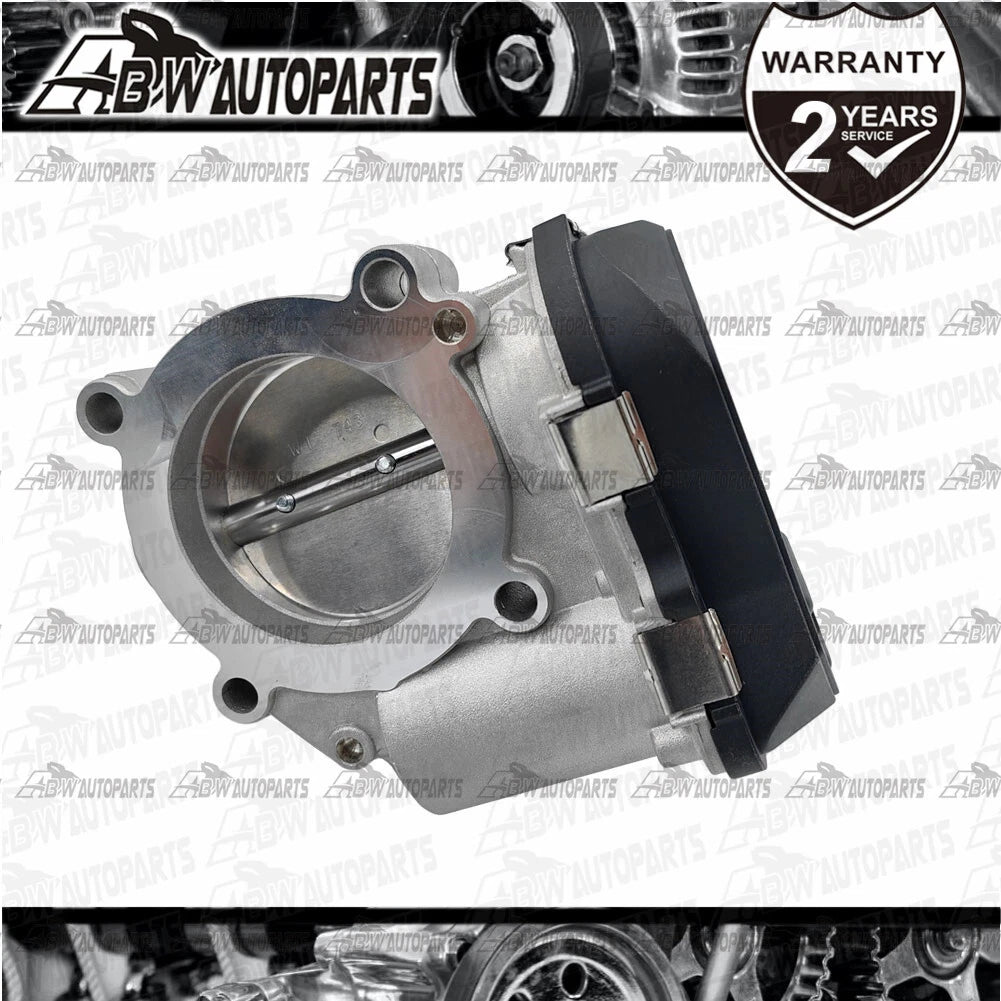

Throttle Body Assembly for Alfa Romeo 159 2.2 JTS Petrol 2006–2011 939AXB1

PRODUCT OVERVIEW

This electronic throttle body assembly is designed as a direct replacement for the intake air control unit on Alfa Romeo 159 2.2 JTS petrol models (2006–2011), part number 939AXB1. It controls engine intake air volume for stable idle, smooth acceleration and optimal performance.

KEY FEATURES

• Electronic throttle body actuator for precise intake air control
• Designed for Alfa Romeo 159 2.2 JTS petrol applications
• Direct fit on the intake manifold for straightforward replacement
• Supports proper idle speed, throttle response and drivability
• Manufactured for reliable sealing and electrical connection

INSTALLATION NOTES

Installation should be carried out by a qualified technician. The throttle body is mounted on the intake manifold and connected to the engine wiring harness and associated hoses.

• Verify flange surfaces are clean and undamaged before installation.
• Always use a new seal ring and gasket when refitting.
• Tighten mounting screws in a cross pattern to 8–10 Nm.
• Reconnect all electrical plugs, intake ducts, coolant and vacuum hoses securely.
• After installation, check for air, coolant and vacuum leaks.

ADAPTATION & SELF-LEARNING

After replacing the throttle body or engine control components, an adaptation or basic setting procedure may be required so the ECU can relearn the throttle position.

• Ensure cooling fluid temperature is over 80°C and battery voltage above 11 V.
• All electrical consumers should be switched off during basic setting.
• Do not press the accelerator pedal during automatic adaptation unless specified by the diagnostic procedure.
• Follow the vehicle manufacturer or diagnostic tool instructions for throttle basic setting.

SAFETY INFORMATION

• Allow the engine to cool before disconnecting any coolant hoses from the throttle body.
• Protect electrical connectors from water, dirt and impact damage.
• Do not use a throttle body that shows signs of collision or housing damage.
• After installation and adaptation, start the engine and let it run for several minutes while checking for leaks and abnormal operation.
