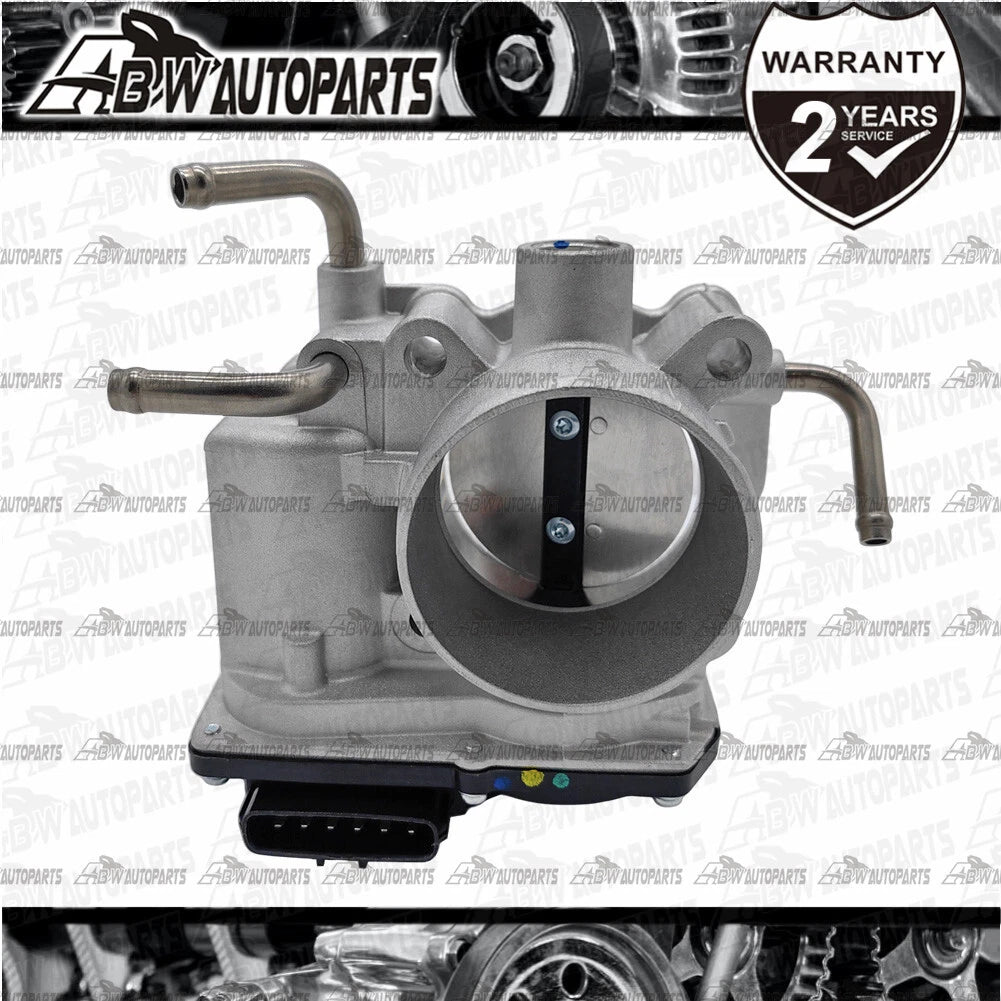

Throttle Body Assembly for Toyota Camry ACV40 2006-2011 2.4L 2AZ-FE

PRODUCT OVERVIEW

This throttle body assembly is designed for Toyota Camry ACV40 2006–2011 Sedan with 2.4L 2AZ-FE petrol engines. It restores precise electronic control of intake air volume for stable idle, smooth acceleration, and improved drivability.

Note: Comes with 3 tubes. Not suitable for 4-tube configurations. Please visually confirm your existing throttle body before purchasing.

KEY FEATURES

• Brand-new complete electronic throttle body assembly
• Direct replacement unit for compatible Toyota Camry ACV40 2.4L 2AZ-FE
• Premium-quality construction for reliable performance
• Supplied ready to install with factory-style connectors
• Backed by 2-year warranty (conditions may apply)

FITMENT INFORMATION

Intended for:

• Toyota Camry ACV40 Sedan
• Model years: 2006–2011
• Engine: 2.4L 2AZ-FE petrol

Before ordering, compare the number of tubes (3-tube type), connector shape, and mounting flange to your original part.

INSTALLATION & IDLE RELEARN

After replacing or cleaning the throttle body, an idle relearn (throttle adaptation) procedure is required so the engine control unit can correctly calibrate throttle position.

Always refer to the official vehicle service manual or latest technical service information for procedure details specific to your vehicle.

Professional installation is strongly recommended.

BASIC INSTALLATION GUIDELINES

• Install on the intake manifold with a new seal ring and/or gasket
• Tighten mounting bolts using a cross pattern; typical torque 8–10 Nm unless otherwise specified by the manufacturer
• Reconnect all electrical connectors, vacuum lines, water pipes, and intake ducting
• Ensure the flange surface and sealing areas are clean and undamaged
• Allow the engine to reach operating temperature and check for leaks

Avoid using any throttle body that has visible impact damage. Protect the electrical connector from moisture and contaminants during installation.

USAGE NOTES

• Do not press the accelerator pedal during ECU basic setting unless specified in the service procedure
• Confirm battery voltage is adequate and all non-essential electrical loads are off during adaptation
• After installation and relearn, verify stable idle, normal throttle response, and that the engine warning light is off
