Universal 20 Litre / 5 Gallon Aluminium Fuel Cell Tank with Sender Cap and Foam

Product Overview

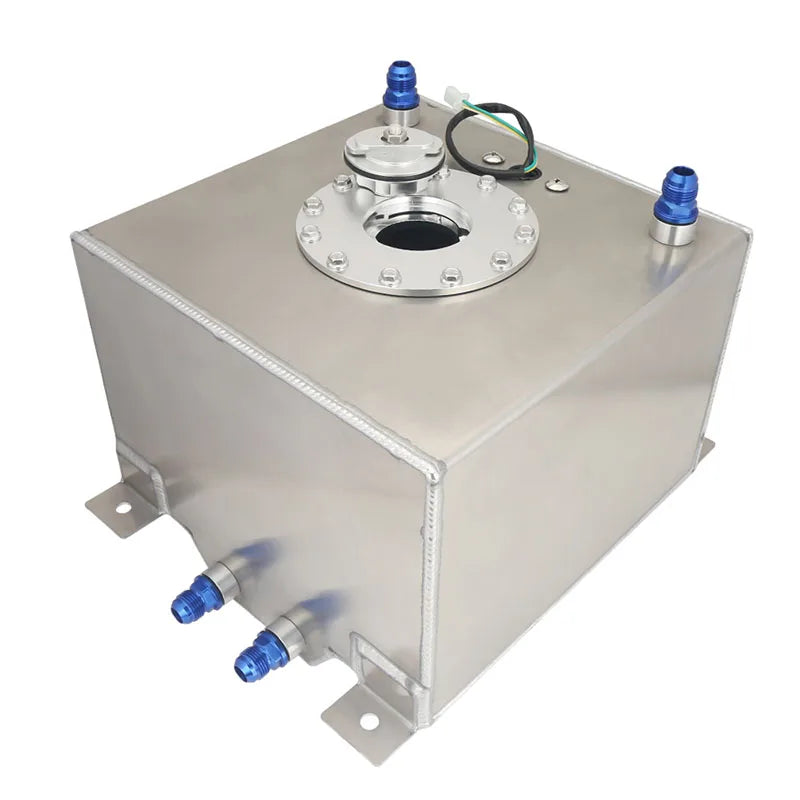

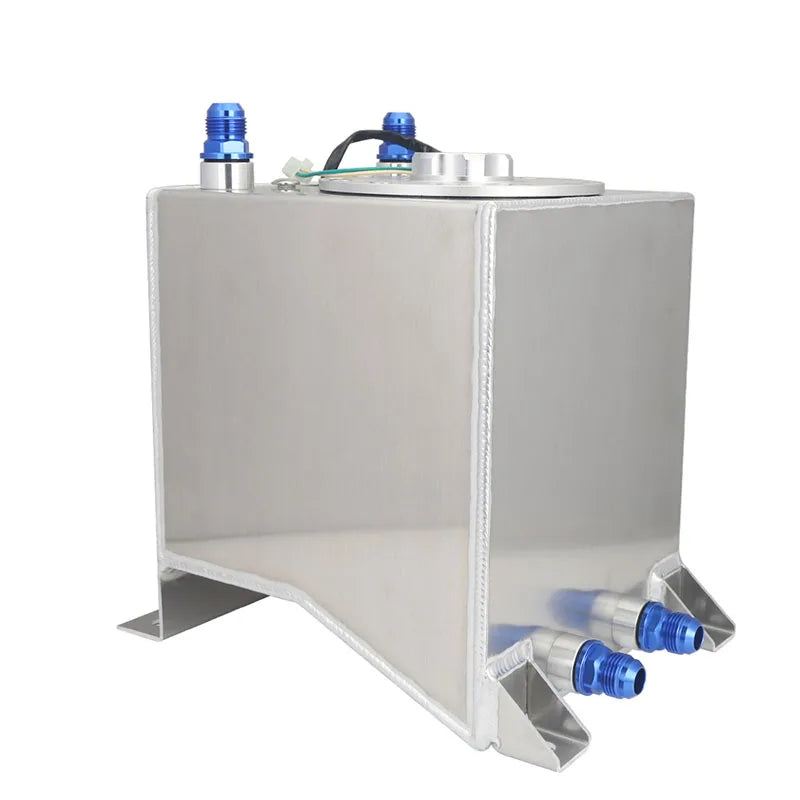

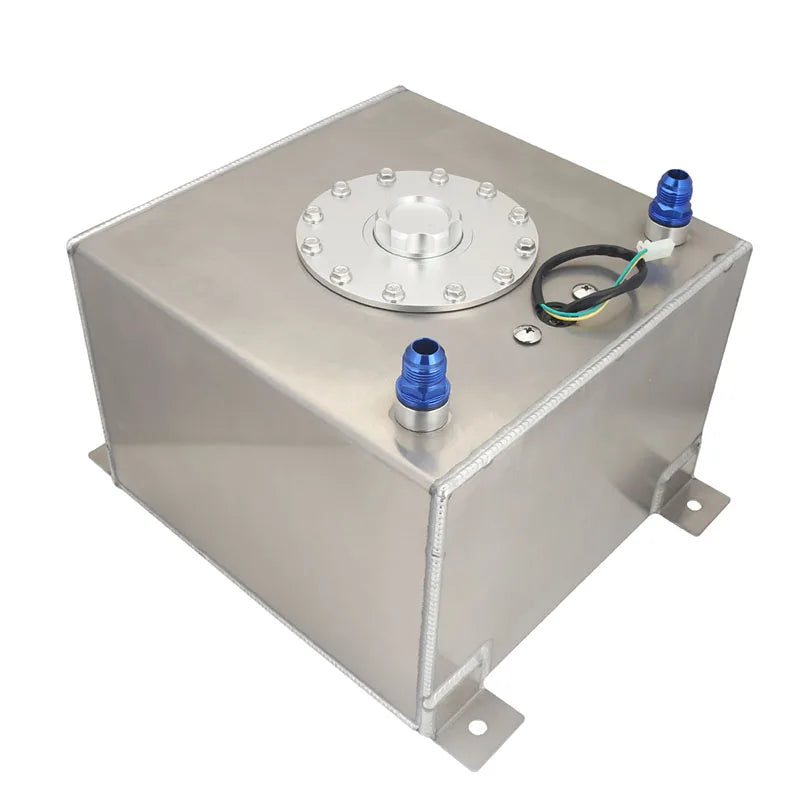

This 20 litre (5 gallon) aluminium fuel cell is designed for race cars, drift builds and custom projects where the factory fuel tank has been removed or relocated. The lightweight aluminium body is supplied with a sensor cap and internal foam, which helps reduce fuel slosh and surge during hard cornering and braking. Its compact square shape makes it straightforward to mount in a boot floor or purpose-built frame.

Key Features and Benefits

• 20 litre / 5 gallon capacity
• Lightweight aluminium construction
• Sensor cap for a fuel level sender
• Internal foam to help reduce fuel slosh
• Compact 31 x 31 x 21.5 cm body
• Universal design for custom installs

Vehicle Compatibility

This is a universal fuel cell and is not designed for a specific vehicle. Suitability depends on your available mounting space, fuel pump setup and fittings. Please confirm the dimensions and port arrangement suit your build before ordering.

Product Specifications

• Product type: fuel cell tank
• Capacity: 20 L / 5 gallon
• Material: aluminium
• Dimensions: 31 x 31 x 21.5 cm
• Features: sensor cap, foam
• Fitment: universal
• Package size: 41 x 37 x 32 cm
• Gross weight: approx. 10.5 kg

Installation and Usage

A fuel cell must be mounted securely using a strong frame or straps, isolated from the cabin with a suitable firewall, and positioned away from exhaust heat and crash zones where possible. Use fuel lines, fittings and vents rated for the fuel you run, and include rollover protection where required. Because fuel system work carries a serious fire risk, installation by a qualified motorsport fabricator is strongly recommended. Check for leaks before every event.

Package Contents

Fuel cell with sensor cap and foam, as described. The supplier has not confirmed whether a filler cap, sender unit, fittings or mounting straps are included, so other contents are not confirmed.

Important Fitment Notice

Fuel cells fitted to road vehicles in New Zealand may require LVV certification, and motorsport bodies have their own fuel cell rules. Please check requirements before purchase, and send us your VIN or chassis number if you would like help with suitability.
