1080P HD 360° Rotatable Waterproof Rear View Backup Camera Night Vision

Feature
Fully Upgrade 360° Rotatable Backup Camera: With the 360°rotate backup camera,you never need to worry about the image too high or too low,never need to adjust install angle only by adding gaskets, can install the backup camera at any position, just rotate lens up/down/left/right to find perfect angle of view anywhere and anytime.

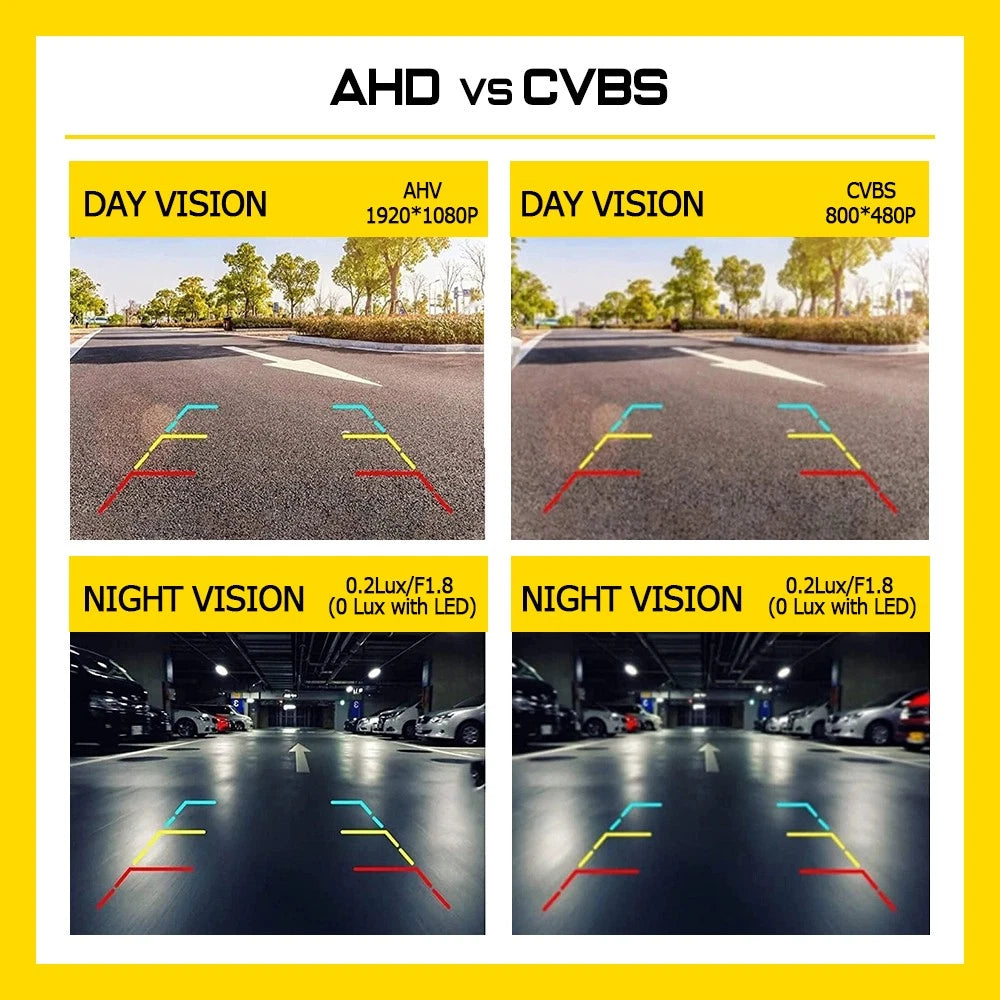

3 Control Real Universal Back Up Camera: Unlike backup camera that support only one of CVBS or AHD signal, which means you may buy back up camera not compatible with your Head unit if don’t know supported input signal or when upgrade your head unit,the old camera not support. We upgrade a real universal reverse camera to support CVBS/AHD switch, solve all your compatibility problem.Rear camera also support mirror/normal image and guideline on/off switch.

Enhanced Night Vision & 170° Wide Angle: AHD backup camera for car designed with sony chip,a large F1.8 aperture, 6 glass lens to ensure high sensitivity and light transmission, which displays clear and true color in low light conditions, brings excellent night vision. Combine with upgrade 170°wider viewing angle,backup camera for truck covers most blind spot areas,offers a perfect parking view at night.

IP68 Waterproof & 12-24V Compatible: Back up camera for cars supports IP68 waterproof and dustproof. Rear view camera is made of high purity resin and designed with fully sealed glue filling craft, in any weather, high or low temperature, you absolutely no need to worry about water, fog or mist inside, long service life. And unlike some reverse camera only support 12V, the back up camera for truck. rv upgrade to support 12-24V vehicles.

Universal RCA Connection: The reverse camera for car designed with standard RCA connection, works with your head units or aftermarket LCD/TFT displays which has RCA input, suitable for variety of vehicles: car, mini-truck, mini-van etc.The vehicle backup cameras will not support dash cam/mirror dash cam as different connection and pin definition.The rv backup camera support mirror/normal image switch, can also be used as front or side camera.

High-Definition Camera:Clear shooting day and night. With a far-infrared wide-angle camera device, obstacles can be seen in front of, beside, or behind the car. The camera makes the situation behind the car more intuitive when reversing, allowing you to drive or reverse easily and safely and providing a great visual experience.

Specifications:

• Product Material: Plastic, Glass
• Colour: Black
• Power: DC 12V
• Product Weight: 160g
• Type: Car Front/Side/Rear View Camera
• TV System: NTSC/AHD
• Effective Pixels: AHD:1920*1080P pixels  CVBS: 800*480P
• Scanning System: 2:1 Interlace
• Sync System: Internal
• Resolution: 1000 TV lines
• Lens Angle: 2.8mm/120°- 1.8mm/170°
• Sensor Area: 5.961mm x 4.276mm
• Video Output: 1.0 VP-P,75 OHM
• S/N Ratio: More than 48db
• Minimum Illumination: 0.2Lux/F1.8 (0 Lux with LED)
• Current Consumpition: No more 300mA
• Power Supply: DC 12V
• Operationg Temperature: -30℃ - 65℃ (RH95%Max.)
• Storage Temperature: -40℃- 75℃ (RH95%Max.)
• Other Items: Auto matic white balance. Agc and BLC
• Waterproof Grade: IP69
• Packaging Weight: 223 g
• Item Height:2.7cm/1.06in
• Item Length:3cm/1.23in
• Item Width:3cm/1.19in
• Calbe Length:59cm/22.3in

​

NOTES：

Installation instructions are not included, and Professional Installation is Highly Recommended.

This camera is a rear camera without distance scale lines as the default settings for backing up.

Cut White Cable: Appear Parking Guide Lines.

Cut green cable: Switch from CVBS mode to AHD mode

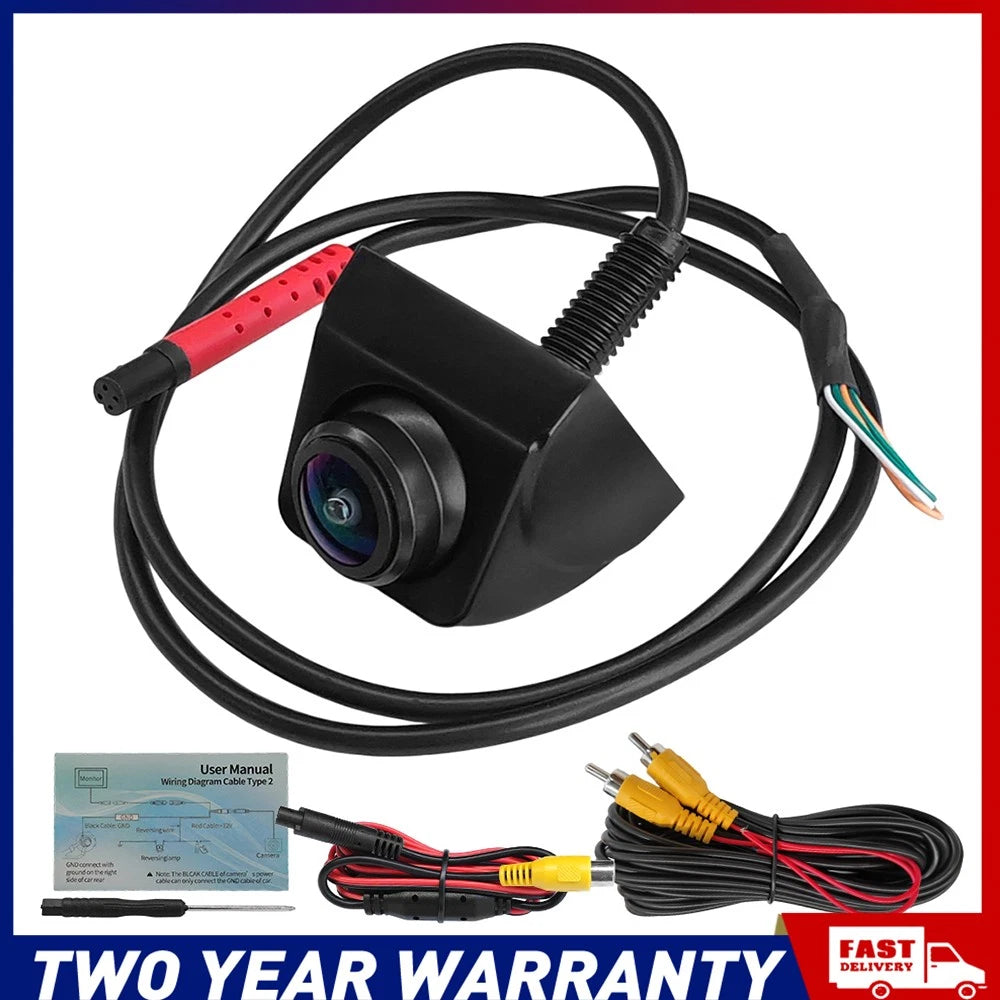

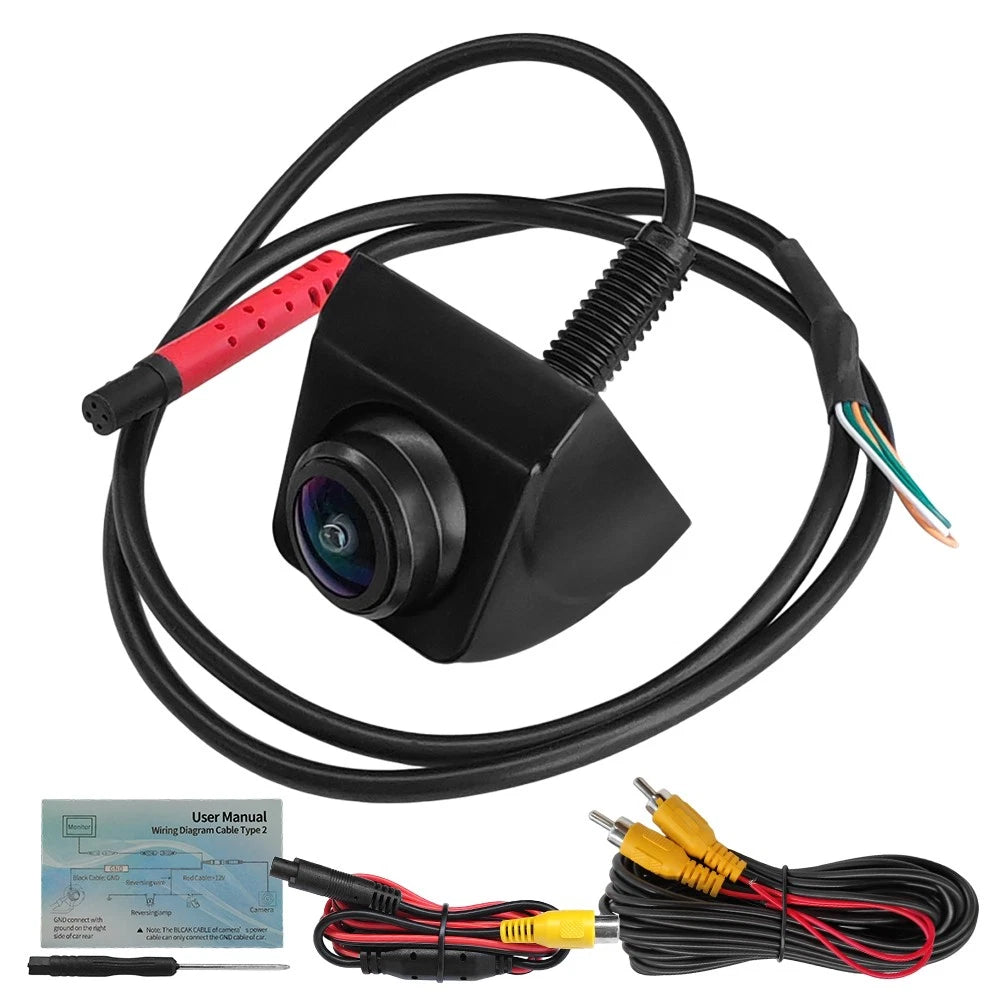

Packaging Include:

1 x Car Camera

1 x Allen Key

1 x 6M RCA Video Cable

1 x 1M Power Cable

1 x User Manual
